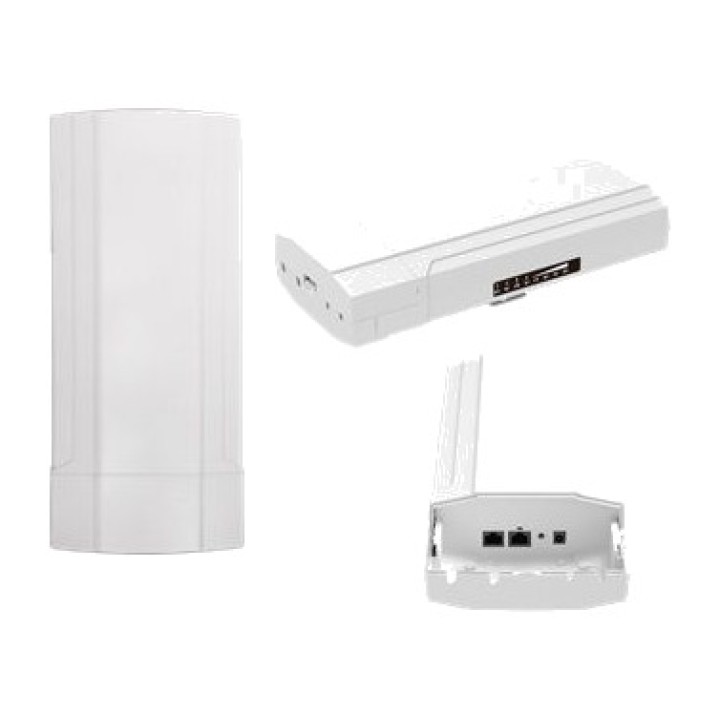

GALGUS Dual-band outdoor Wi-Fi access point OC400 1167MBPS 802.11AC MGS0000009203

The Galgus OC400 Access Point is the most suitable choice
for outdoor wireless communications of up to
500mW of power, for 802.11ac Wave environments 2.

Thanks to its robust, rain- and dust-proof ABS housing
and sun, and its omnidirectional antenna with 5dBi gain, make
this product ideal for a variety of outdoor environments with
medium-high user density, such as schools,
hospitals, large cafés, medium-sized
to small hotels, offices, restaurants, stations,
airports, outdoor events and small businesses.
To support typical uses such as heavy downloads, HD movies
and online gaming, etc., that require network security,
location, positioning, and other bandwidth-intensive requirements
bandwidth-intensive, up to 500 m away.

Antenna


Omnidirectional indoor antenna

5 dBi antenna gain. Up to 1000 mW RF Tx power

2,4/5 GHz : 2x2 MU-MIMO

Interfaces


10/100/1000 Mbps RJ45 WAN Port

WAN port supports IEEE 802.3at standard PoE

10/100/1000 Mbps RJ45 LAN Port

Reset button

WiFi Standard


802.11 a, b, g, n, ac Wave2

PHY Capacity


2.4 GHz: 300 Mbps 5 GHz: 867 Mbps

QoS capabilities


Profile based on packet priority and scheduling,
Bandwidth restriction for each SSID. Modification
of VMM parameters, call classification and prioritization
QoS for wireless and wired interfaces, congestion management,
traffic management, bandwidth limitation per user

Power supply


DC 12V 1.5A input jack IEEE 802.3at PoE+

Typical power consumption


<,20W

Humidity


Operation: 5% to 95% (non-condensing)

Operating temperature


-30°C (22°F) a1 55°C (131°F)

Dimensions Weight Mounting


315 x 145 x 80 mm 760 g Pole mounting IP67

SECURITY


WIDS & WIPS CHT, ACL support, IEEE 802.11w

RFC 6101 Secure Layer Socket, RFC 5246 Transport Layer
Security, RFC 4253 Secure Shell

Advanced firewall with SYN flood protection

MSS clamping, NAT, Port forwarding, support for rules of
traffic, 64/128-bit WEP, 128bit WPA (TKIP/AES), WPA & WPA2
Personal and Enterprise with IEEE 802.1x and VLAN tagging , WPA3
PSK, Local authorization via RADIUS server, IPsec and L2TP
passthrough, key management, PSK/TKIP and AES encryption,
denial of service, attack protection, MAC filtering
(Dynamic List), Isolate wireless clients, Hide SSID

Wi-Fi features


IEEE 802.11h (DFS), WPA & WPA2 Personal , WPA & WPA2.
Enterprise with IEEE 802.1x and VLAN tagging, WMM, Power Save,
Tx Beamforming, LDPC, STBC, IEEE 802.11r/k/v

IEEE 802.11u Hotspot and Hotspot 2.0, Captive Portal Support,
Online Login and provisioning policy, WISPr, Multiple
SSIDs, Data aggregation, Packet prioritization and scheduling,
, Statistical reports, LDP support, ACL support,
SW update and configuration with DHCP
auto-provisioning, OFDM modulations = BPSK,QPSK,
16-QAM, 64-QAM and DSSS = DBPSK, DQPSK, CCK, SSID
broadcasting, Multi SSID up to 8 (4 SSID in 2.4GHz, 4 SSID in
5GHz), SSID-based VLAN tagging, >,128 users

Management and Diagnostics


Galgus Cloud Manager, Web GUI, RFC 1157 & 2271 SNMP, RFC
3414 SNMP v3 HTTP/HTTPS Web Server, Provisioning
Zero Touch, Telnet SSH, Network Controller Enhancer. Ping,
Traceroute and Ns lookup tools. Syslog and Log support
Local, Save and restore settings via Web Interface. Wireless RF
status and throughput, TCP/UDP Connections statistics and
details. Traffic metrics per interface, Load. Can manage the AP
through VLAN ID, Map VLAN IDs to multiple SSID, IEEE 802.1q,
Dynamic VLAN with 802.1x, Up to 16 VLAN

IP and network


IPv4, IPv6, IEEE 802.1d & 802.1s STP, IEEE 802.1q VLANs, RFC
2131 & RFC 2132 DHCP Client/Server , RFC 1661 PPP, RFC 2516
PPPoE, RFC 2637 PPPtP, RFC 2661 L2TP, Static Leases,
Domain whitelist, Firewall, IP filter, URL filter and MAC filter, Can
work as: Gateway (PPPOE, static IP, dynamic IP), Wireless AP,
Repeater, WISP, WDS, Ad-Hoc and Pseudo Ad-Hoc, Mesh
802.11s, Monitor, Bridge. DDNS, VPN pass through, Port
forwarding and DMZ host. UDP, TCP, DNS, NTP, STP,

IPv6


RFC 6333 Dual Stack, RFC 4213 IPv6-in-IPv 6, RFC 4291/3315:
Dynamic Host. DHCPv6 RF Performance Table


RF power


2.4G: 11n @MCS7:23±2DB, @MCS0:25±2DB.

11g @54M:24±2DB, @6M:26±2DB.

11b @11M:26±2DB, @1M:28±2DB.

5.8G: 11a @54M:24±2DB, @6M:26±2DB.

11n @MCS7:22±2DB, @MCS0:24±2DB.

11ac @MCS9:21±2DB, @MCS0:23±2DB.

RX sensitivity


2.4G: 11n: -70dbm@MCS7, -88dbm @MCS0.

11g: -72dbm@54Mbps, -88dbm@6Mbps.

11b: -85dbm@11Mbps, -94dbm@1Mbps.

5.8G: 11a: -72dbm@54Mbps, -90dbm@6Mbps.

11n: -70dbm@MCS7, -90dbm @MCS0.

11ac:-60dbm@MCS9, -86dbm @MCS0.

EVM


11n: -28 DB

11g: -25 DB

11b: -10 DB

11a: -25 DB

PPM


±20ppm
Volume (m ³): 0.0071
