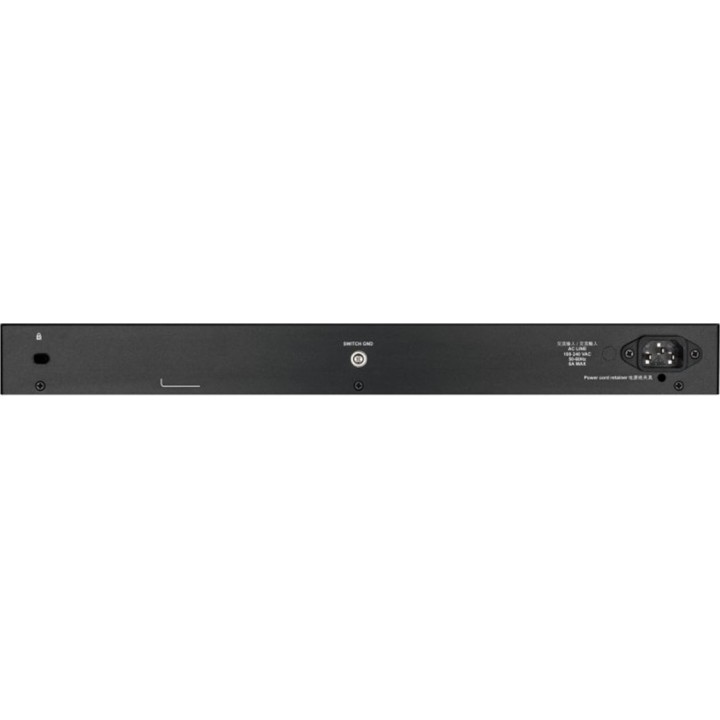

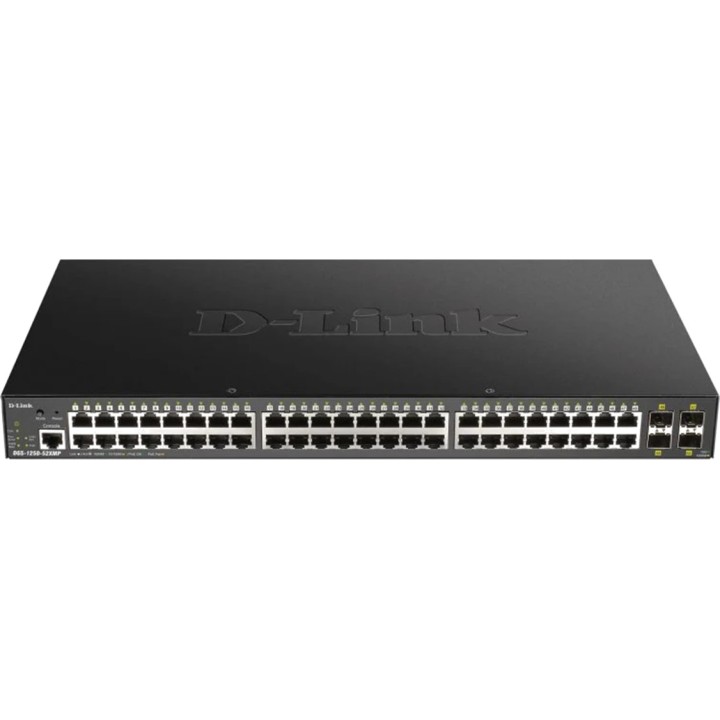

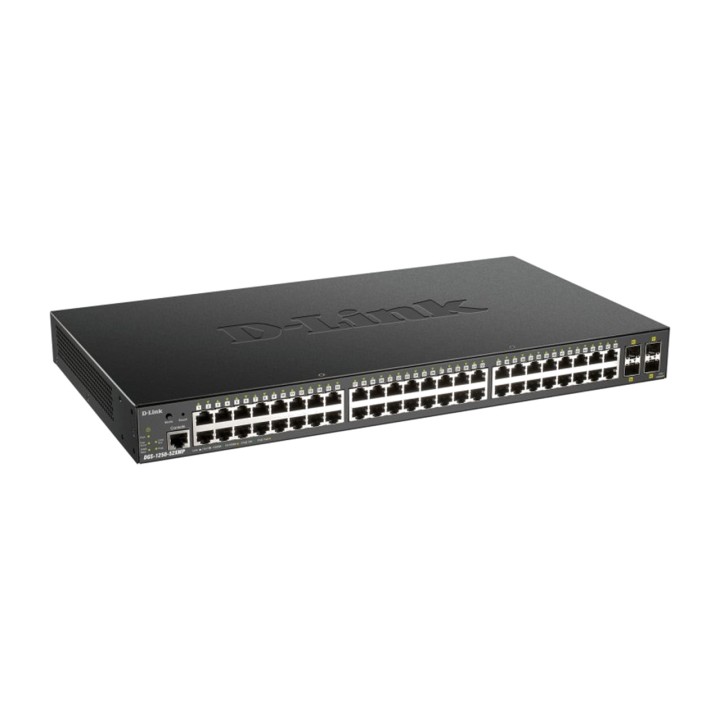

D-LINK 52-port L3 managed PoE switch DGS-1250-52XMP 4XSFP+ 10G MGS0000003270

The D-Link DGS-1250 series smart managed switches offer a
real value as an enterprise access and access/aggregation solution for
small and medium-sized businesses (SMBs). They provide a variety of physical
(including a full CLI console port), multiple management interfaces, 11 web languages, QoS enablement and Layer
2 advanced features with Lite Layer
This DGS-1250-52XMP model has 48 10/100/1000BASE-T ports and 4 additional 10G SFP+ ports -3.

for optical connections using multimode or
single-mode SFP transceivers, enabling true network power at a value price.
single-mode, allowing real network power at a value price.
Easy maintenance, less downtime

The DGS-1250 series supports dual image and dual configuration functionality, as well
as a console port, all of which make it easier to configure, troubleshoot
and make other changes without interfering with network operation,
while the comprehensive command-line interface (CLI) functionality
allows remote configuration without the need for Internet access. And if a problem ever
occurs, the supported Spanning Tree Protocols (STP /
RSTP / MSTP) help keep everything running without interruptions or downtime.
Automatic configuration

The DGS-1250 series supports Auto Voice VLAN and surveillance mode, which allow
voice and video traffic to be automatically identified and handled differently from
normal network traffic. Auto Voice VLAN detects Voice over IP
(VoIP) traffic and automatically segments it from the rest of the network, increasing
security and allowing Quality of Service (QoS) to be applied.
High PoE budget E (370 W)

The DGS-1250 series offers Power-over-Ethernet (PoE), which simplifies the
deployment of IP cameras, VoIP phones, wireless access points and
other powered devices. Using the switch management interface,
an administrator can control various PoE functions, such as
restarting cameras or access points remotely, from anywhere on the
network, even over the Internet. All PoE models support the IEEE standards
802.3af and 802.3at.
Extensive management and advanced features

The DGS-1250 series comes with IGMP snooping, Port Mirroring, Spanning Tree Protocol
(STP) and Link Aggregation Control Protocol (LACP). The IEEE flow control function
802.3x allows servers to connect directly to the switch for
fast and reliable data transfers. The series also supports features
advanced features such as static routing, which enables communication between
different user groups in different VLAN segments on a network.
Management versatility

The DGS-1250 series comes with the D-Link Network Assistant (DNA) utility so that
administrators can remotely control their network at the port level. DNA
allows customers to easily discover multiple D-Link smart managed switches
within the same L2 network segment and display them on screen
for instant access.
Characteristic

48 Po ports E 10/100/1000BASE-T.
4 10G SFP+ ports to choose the most suitable media type for your
needs.
Lite L3 static routing for greater network efficiency.
Advanced security features such as access control list, IMPB,
802.1X authentication to improve network security and protect the IT network from
the Internet.
370 W PoE power budget (802.3af/at) to provide more power for
connected devices.
Dual image and configuration to reduce downtime.
Supports STP / RSTP / MSTP to maintain network quality.
Full CLI for easy management.
QoS enabled to improve the performance of critical network traffic.
11 web languages for management flexibility.

D-Link SPECIFICATIONS DGS-1250-52XMP

Management features
Switch type: Managed
Switch cover: L3
Quality of Service (QoS) support: Yes
Web-based management: Yes
Location settings configuration (CLI): Yes
System event logging: Yes
MIB support : RFC2893, RFC4213, RFC4291, RFC2464, RFC2462, RFC4862,
RFC2461, RFC4861, RFC2573, RFC1321, RFC2284, RFC2865, RFC2716, RFC3580,
RFC826, RFC2463, RFC4443, RFC792, RFC793, RFC768, RFC791, RFC2389, RFC4113,
RFC4022, RFC2618, RFC2674, RFC1398, RFC1643, RFC1650, RFC2358, RFC2665,
RFC2021, RFC271, RFC1757, RFC2819, RFC1442, RFC1901, RFC1902, RFC1903,
RFC1904, RFC1905, RFC1906, RFC1907, RFC1908, RFC2578, RFC3418, RFC2573,
RFC2575, RFC2576, RFC1212, RFC1213, RFC1215, RFC1493, RFC1157, RFC2620,

Ports and Interfaces
Number of basic RJ-45 Ethernet switching ports : 48
Basic switching RJ-45 Ethernet ports: None
Number of module slots SFP+: 4
Console port: RJ-45

Connection
Network standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE
802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE
802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Auto MDI / MDI-X: Yes
Spanning Tree Protocol: Yes
Head-of-line blocking (HOL): Yes
VLAN support: Yes
Virtual LAN functions: Voice VLAN
Number of VLANs: 4094

Data transmission
Switching capacity: 176 Gbit/s
Forwarding rate: 130.95 Mpps
MAC address table: 32000 entries
Static route: Yes
Number of static routes: 124
Jumbo Frames support: Yes
Jumbo frames: 12000
Packet buffer : 16 MB

SECURITY
DHCP features: DHCP client, DHCP server, DHCP snooping
Access Control List (ACL): Yes
Access control list rules: 768
IGMP: Yes
Supported security algorithms: EAP, LEAP, PEAP, SSH, TTLS
Loop protection: Yes
IP-MAC port binding: Yes
Queue scheduling algorithms: Weighted Round Robin (WRR)

Multicast functions
Multicast support: Yes

Design
Product colour: Black
LED indicators: Activity, Link, Power, Speed
Electromagnetic compatibility: CE A, VCCI A, FCC A, IC, BSMI
Certification: CB, UL, BSMI, CCC

Performance
Memory type: DDR3-SDRAM
Internal memory : 2048 MB
Flash Memory : 64 MB
Noise level: 51,2 dB
Mean time between failures: 309053,1 hours

Power control
Power supply included: Yes
Input voltage AC: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max x.): 467,3 W

Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Number of Power over Ethernet ports (Po E): 48
Power per Power over Ethernet port (Po E): 15,4 W
Power over Ethernet (PoE) budget : 370 W

Environmental conditions
Operating temperature range : -5 - 50 C
Storage temperature range : -20 - 70 C
Relative humidity range for operation : 0 - 95%
Relative humidity range during storage : 0 - 95%
Heat dissipation: 1512,676 BTU/h

WEIGHT AND DIMENSIONS
Width: 440 mm
Depth: 430 mm
HEIGHT: 44MM
Weight: 3.85kg

Packaging
Package width: 393 mm
Package depth: 563 mm
Package height: 89 mm
Package weight: 5.17 kg
Volume (m ³): 0.0197
