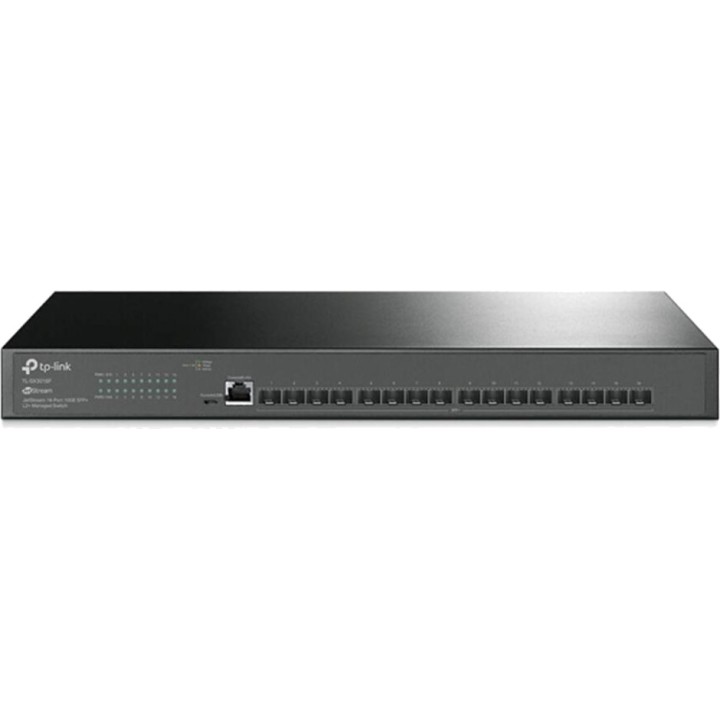

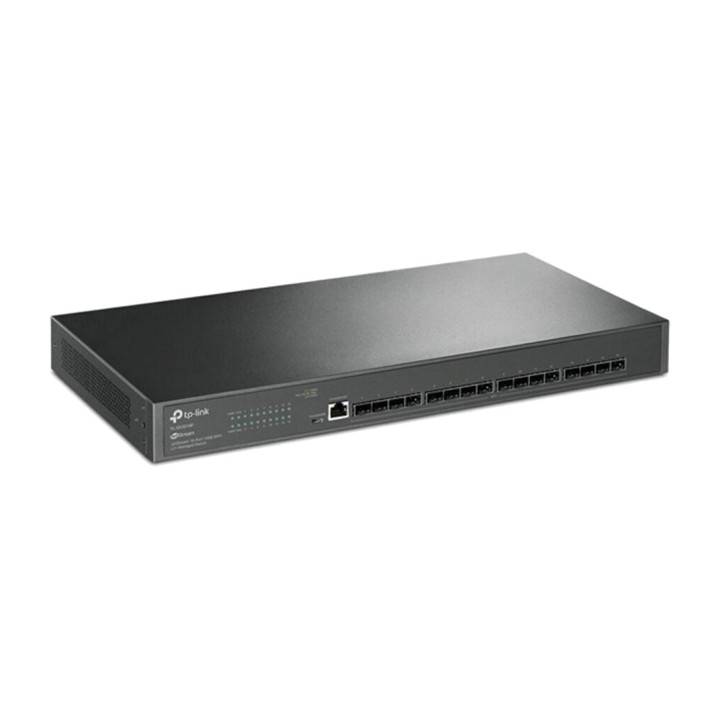

TP-LINK 16-slot managed switch SFP+ 10G TL-SX3016F JETSTREAM-L2+ MGS0000019801

TL-SX3016F

16-Port JetStream Managed Switch 10GE SFP+ L2+

16 full 10 GE SFP+ slots: The ultra-fast full 10 Gbps SFP+ slots provide high-bandwidth aggregation connectivity and 320 Gbps non-blocking switching capacity.

Abundant L2 and L2+ features: Supports a full range of L2 and L2+ features, including static routing, enterprise-level QoS, IGMP Snooping and more.

Robust security strategies: Helps protect your LAN investment with integrated IP-MAC port binding, ACL, port security, 802.1X authentication and more.

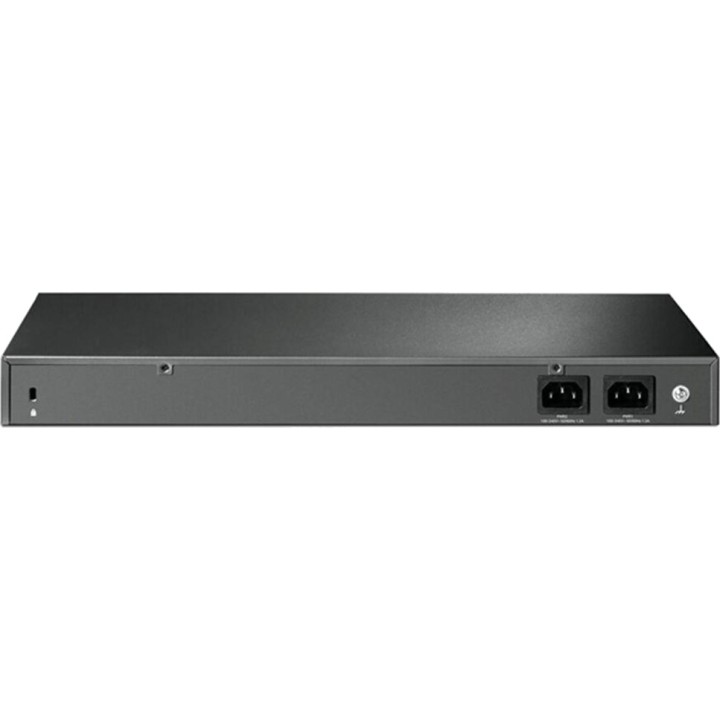

Dual redundant power supplies: Two power supplies that back each other up make it an ideal choice for a reliable network architecture.

Centralized cloud management: Integrates with Omada SDN for cloud access and remote management.

Standalone management: Web, CLI (console port, Telnet, SSH), SNMP, RMON and dual image provide powerful management capabilities.

Hardware Features

Interface

Slots 16 10GE SFP +

1 console port RJ45

1 micro-USB console port

Number of Fans : 1

Power Supply: 100-240 V AC~50/60 Hz

Dimensions: 17.3 8.7 1.7 in (440 220 44 mm)

Mounting: Rack Mount

Maximum Power Consumption 32.74 W (220 V / 50 Hz)

Max Heat Dissipation 111.71 BTU/hr (220 V / 50 Hz)

Performance

Switching Capacity 320 Gbps

Packet Forwarding Rate 238.08 Mpps

Address Table MAC 32 K

Jumbo frame 9 KB

SOFTWARE FEATURES

Quality of Service 8 priority queues

802.1p CoS / DSCP Priority

Queue scheduling

- SP (Strict Priority)

- WRR (Weighted Round Robin)

- SP + WRR

Bandwidth control

- Port/flow-based classification limitation

Smoother performance

Action per flow

- Mirror (to a supported interface)

- Redirect (to a supported interface)

- Rate limit

- QoS monitoring

L2 and L2+ Features Add a link

- Static link aggregation

- 802.3ad LACP

- Up to 8 aggregation groups, containing 8 ports per group

Spanning Tree Protocol

- 802.1d STP

- 802.1w RSTP

- MSTP 802.1s

- STP security: TC Protect, BPDU Filter, Root Protect

Loopback detection

- Port-based

- VLAN-based

Flow control

- Flow control 802.3x

- HOL blocking prevention

Mirroring

- Port mirroring

- CPU mirroring

- Twelve fifty-nine at night

- Many-to-one

- Tx / Rx / Both

L2 Multicast IGMP Snooping

- IGMP Snooping v1 / v2 / v3

- Fast Leave

- IGMP query

- IGMP authentication

IGMP authentication

MLD query

- MLD v1 / v2 query

- Fast Leave

- MLD query

- Static group configuration

- Limited IP multicast

MVR

Multicast filtering: 256 profiles and 16 entries per profile

VLAN VLAN Group

- Maximum groups of VLAN 4K

Tagged VLAN 802.1Q

MAC VLAN: 30 entries

Protocol VLAN: 16 protocol templates, protocol VLAN 16

Private VLAN

GVRP

VPN VLAN (QinQ)

- Port-based QinQ

- Selective QinQ

Voice VLAN

Time-based Access Control List ACL

MAC ACL

- Source MAC

- Destination MAC

- VLAN ID

- User priority

- Ether type

IP ACL

-Source IP

- Destination IP

- Fragment

- IP protocol

- TCP flag

- TCP / UDP port

- TOS DSCP / IP

- User priority

Combined ACL

Packet content ACL

IPv6 ACL

Policy

- Reflection

- Redirect

- Rate limit

- QoS monitoring

ACL applies to port / VLAN

IP-MAC-Port Binding Security

- 512 entries

- DHCP Snooping

- ARP inspection

- IPv4 source protection: 100 entries

IPv6-MAC-Port Binding

- 512 entries

- DHCPv6 Snooping

- ND detection

- IPv6 source protection: 100 entries

DoS Defense

Static / dynamic port security

- Up to 64 MAC addresses per port

Broadcast / multicast / unicast storm control

- kbps / ratio control mode

802.1X

- Port-based authentication

- MAC-based authentication

- VLAN assignment

- MAB

- Guest VLAN

- Supports RADIUS authentication and accounting

AAA (including TACACS +)

Port isolation

Secure web management via HTTPS with SSLv 3 / TLS 1.2

Secure command-line interface (CLI) management with SSHv1 / SSHv2

IP / Port / MAC-based access control

IPv6 IPv6 dual IPv4 / IPv6

Multicast Listener Discovery (MLD) snooping

IPv6 ACL

IPv6 interface

Static IPv6 routing

IPv neighbor discovery 6 (ND)

Path maximum transmission unit (MTU) discovery

Internet Control Message Protocol (ICMP) version 6

TCPv6 / UDPv6

IPv6 applications

- DHCPv6 client

- Ping6

- Tracert6

- Telnet (v 6)

- IPv 6 SNMP

- IPv 6 SSH

- SSL IPv6

- Http / Https

- IPv 6 TFTP

L3 features 16 IPv4 / IPv6 interfaces

Static routing

- 48 static routes

Static ARP

- 128 static entries

Proxy ARP

Gratuitous ARP

DHCP server

DHCP relay

- DHCP interface relay

- DHCP VLAN relay

Relay DHCP L2

Web-based GUI management

Command-line interface (CLI) via the console port, telnet

SNMP v1 / v2c / v3

- Trap / Inform

- RMON (groups 1,2,3,9)

SDM Template

DHCP / BOOTP Client

802.1ab LLDP / LLDP-MED

Automatic DHCP installation

Dual image, dual configuration

CPU monitoring

Cable diagnostics

EEE

Password recovery

SNTP

System log

Advanced Features Supports Omada Hardware Controller (OC200 / OC300), software controller, cloud-based controller

Automatic device discovery

Batch configuration

Batch firmware update

Intelligent Network Monitoring

Abnormal event warnings

Unified configuration

reboot schedule

ZTP (Zero-Touch Provisioning) *

MIBs MIB II (RFC1213)

Interface MIB (RFC2233)

Ethernet interface MIB (RFC1643)

Jumper MIB (RFC1493)

P / Q-Bridge MIB (RFC2674)

RMON MIB (RFC2819)

RMON2 MIB (RFC2021)

Radius accounting client MIB (RFC2620)

Radius authentication client MIB (RFC2618)

Remote Ping, Traceroute MIB (RFC2925)

Supports TP-Link private MIB

Others

CE, FCC, RoHS certifications
Volume (m ³): 0.0180
