GIGABYTE ATX motherboard for AMD X870E AORUS PRO X3D ICE AM5 DSP0000043083

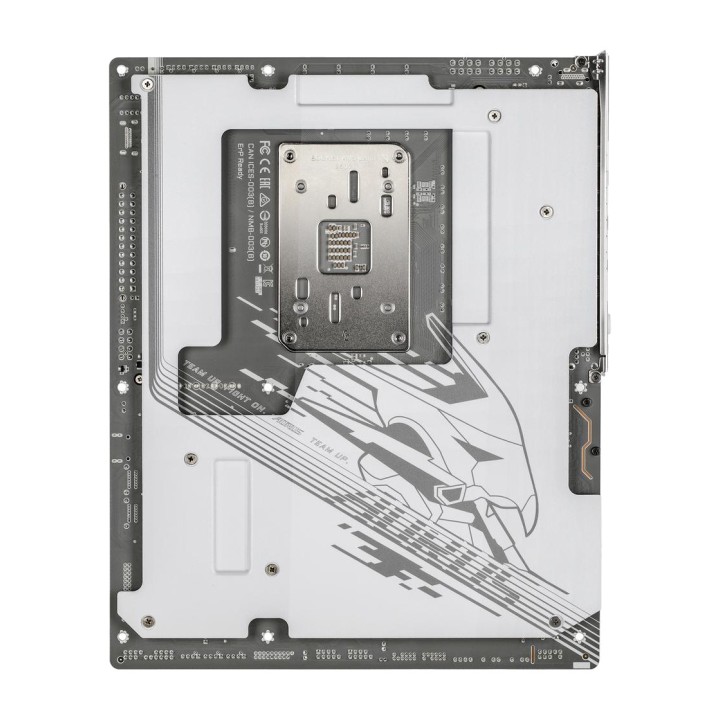

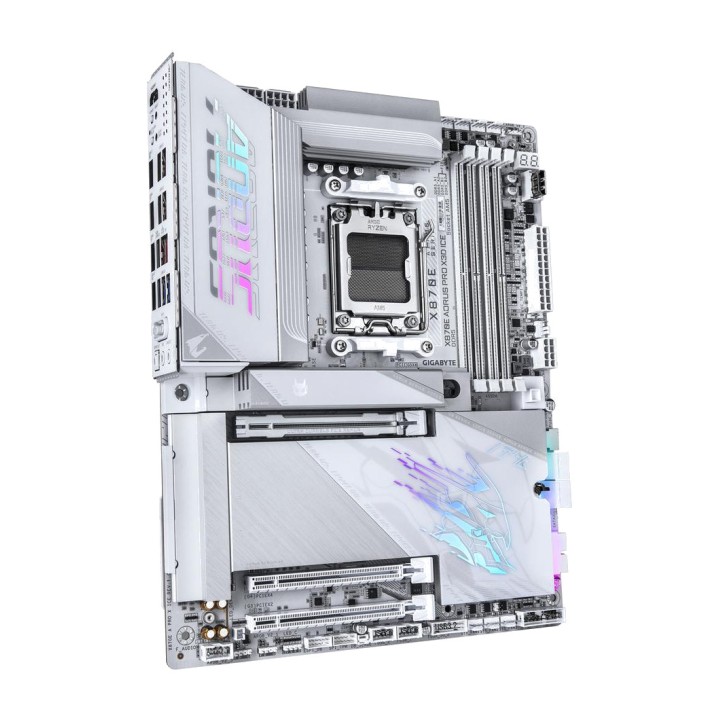

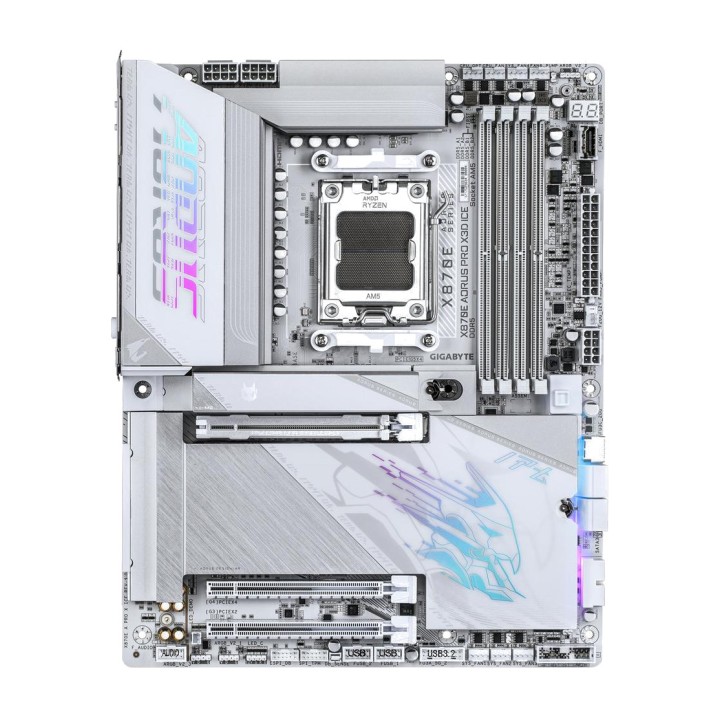

Features of the X870E AORUS PRO X3D ICE
The X870E AORUS PRO X3D ICE is a high-performance ATX motherboard based on the AMD X870E chipset and ready for AMD Ryzen 9000, 8000 and 7000 Series processors with the AM5 socket. Its configuration combines support for high-speed DDR5 memory, PCIe 5.0 connectivity, advanced M.2 storage, USB4, 5GbE networking and Wi-Fi 7, providing an especially comprehensive platform for gaming systems, workstations and high-performance computers.
AM5 socket and chipset AMD X870E
The motherboard features an AMD AM5 socket and supports several generations of Ryzen processors, allowing high-performance systems to be configured on a modern platform with extensive expansion options.

Socket : AMD AM5
Compatible with AMD Ryzen 9000 Series processors
Compatible with AMD Ryzen 8000 Series processors
Compatible with AMD Ryzen 7000 Series processors
Chipset : AMD X870E

DDR5 memory up to 256 GB
Its four DIMM slots allow up to 256 GB of DDR5 memory to be installed in a dual-channel architecture. It also supports AMD EXPO and XMP profiles, making it easy to use high-performance memory at high frequencies through overclocking.

4 slots DDR5 DIMM
Maximum capacity : 256 GB
Up to 64 GB per DIMM module
Dual Channel memory architecture
Compatible with non-ECC Un-buffered DIMM 1Rx8, 2Rx8 and 1Rx16
Compatible with AMD EXPO and XMP
Supported frequencies: 9000(O.C.), 8800(O.C.), 8600(O.C.), 8400(O.C.), 8200(O.C.), 8000(O.C.), 7800(O.C.), 7600(O.C.), 7200(O.C.), 7000(O.C.), 6800(O.C.), 6600(O.C.), 6400(O.C.), 6200(O.C.), 6000(O.C.), 5600(O.C.), 5200 and 4800 MT/s

The supported speed, type and number of modules may vary depending on the installed processor and memory configuration.
Integrated graphics with HDMI and USB4
When using an AMD Ryzen processor with integrated Radeon graphics, the motherboard supports various high-resolution video outputs, including HDMI and USB4 with DisplayPort support.

2 USB4 USB Type-C ports with DisplayPort output
Maximum resolution via USB4: 3840 x 2160 at 240 Hz
DisplayPort 1.4 and HDR support
1 rear HDMI port with a maximum resolution of 4096 x 2160 at 60 Hz
HDMI 2.1, HDCP 2.3 and HDR support
Support for native HDMI 2.1 TMDS ports
1 front HDMI port with a maximum resolution of 1920 x 1080 at 30 Hz
HDMI 1.4 support on the front output

Graphics features and available outputs may vary depending on the installed processor.
Realtek ALC1220 high-definition audio
The integrated sound system uses the Realtek ALC1220 codec, providing high-definition audio and multichannel configurations for gaming, multimedia or entertainment systems.

Realtek codec ALC1220
High Definition Audio
Compatibility with 2, 4, 5.1 and 7.1 channels
Rear line-out compatible with DSD audio
Compatibility with S/PDIF optical output
Software configuration of connector functions via audio software

5GbE network and Wi-Fi 7 connectivity
Network connectivity combines a Realtek 5GbE wired interface with a Qualcomm Wi-Fi 7 module, providing high-speed alternatives over both Ethernet and wireless connections.

Realtek 5GbE LAN controller
Ethernet speeds: 5 Gbps, 2.5 Gbps, 1 Gbps and 100 Mbps
Qualcomm Wi-Fi module 7 QCNCM865
Wi-Fi standards: 802.11a, b, g, n, ac, ax and be
Frequency bands: 2.4 GHz, 5 GHz and 6 GHz
Compatibility with Wi-Fi 7 11be at 320 MHz
Bluetooth 5.4
2 antenna connectors 2T2R

Wi-Fi 7 features require Windows 11 SV3 to function correctly and do not have a driver compatible with Windows 10. The availability of 6 GHz channels depends on each country's regulations, and the Bluetooth version may vary with updates.
PCIe 5.0 for graphics cards and high-performance devices
The X870E AORUS PRO X3D ICE features several expansion slots, including a primary slot connected directly to the processor and designed to take advantage of PCI Express 5.0 with compatible processors.

1 primary CPU-integrated PCI Express x16 slot
Ryzen 9000 and 7000: PCIe 5.0 x16
Ryzen 8000 Phoenix 1: PCIe 4.0 x8
Ryzen 8000 Phoenix 2: PCIe 4.0 x4
1 PCI Express x16 slot operating at PCIe 4.0 x4 via chipset
1 PCI Express x16 slot operating at PCIe 3.0 x2 via chipset

The primary PCIEX16 slot supports a graphics card or an NVMe SSD. In single-graphics-card configurations, it must be installed in the primary PCIEX16 slot.
Four M.2 slots and SATA storage
The motherboard offers a particularly comprehensive storage configuration, with four M.2 connectors and four 6 Gb/s SATA ports. Two of the M.2 slots are connected to the CPU, while the remaining ones depend on the chipset.

1 M.2 M2A_CPU compatible with 25110, 22110, 2580 drives and 2280
M2A_CPU with PCIe 5.0 x4/x2 on Ryzen 9000 and 7000
M2A_CPU with PCIe 4.0 x4/x2 on Ryzen 8000 Phoenix 1 and Phoeni x 2
1 M.2 M2B_CPU compatible with 22110 drives and 2280
M2B_CPU with PCIe 5.0 x4/x2 on Ryzen 9000 and 7000
2 M.2 connectors M2C_SB and M2D_SB with PCIe 4.0 x4/x2
M2C_SB and M2D_SB compatible with 22110 formats and 2280
4 SATA 6 Gb/s connectors

The M2B_CPU connector shares bandwidth with the ASMedia USB4 controller. When a device is installed in M2B_CPU, both this slot and the corresponding USB4 port operate at a maximum bandwidth of x2. With Ryzen 8000 Phoenix 1 or Phoenix 2 processors, the USB4 port operates at a maximum of x2 and the M2B_CPU connector is unavailable.
RAID support for NVMe and SATA drives
The platform allows you to configure different RAID levels for NVMe and SATA storage, providing flexibility to prioritize performance, redundancy, or a combination of both.

NVMe: RAID 0, RAID 1, RAID 5 and RAID 10
RAID 5 available only with AMD Ryzen 9000 Series processors
SATA: RAID 0, RAID 1 and RAID 10

USB4 and high-speed USB connectivity
The motherboard features a wide range of USB connections, including USB4 Type-C, USB 3.2 Gen 2, USB 3.2 Gen 2x2 and internal headers for expanding chassis connectivity.

2 rear USB4 USB Type-C ports via CPU and ASMedia controller USB4
1 rear USB Type-C USB 3.2 Gen 2 port connected to the CPU
1 rear USB Type-C USB 3.2 Gen 2 port via chipset
5 rear USB 3.2 Gen 2 Type-A ports
3 rear USB 3.2 Gen 1 ports
1 internal USB Type-C USB 3.2 Gen header 2x2
Fast charging up to 65 W via PD 3.0 and QC 4+ on the compatible USB Type-C header
4 USB 3.2 Gen 1 ports via internal headers
4 USB 2.0/1.1 ports via internal headers

Extensive internal connections for cooling and expansion
The X870E AORUS PRO X3D ICE provides a comprehensive selection of internal connectors for power, fans, liquid cooling, lighting and peripherals, facilitating advanced and customised configurations.

1 24-pin ATX main connector
2 8-pin ATX 12V connectors
1 PCIe power connector
1 CPU fan connector
1 connector for CPU fan or liquid cooling pump
4 system fan connectors
2 fan or liquid-cooling pump connectors
3 connectors for Gen2 addressable RGB LED strips
1 connector for RGB LED strip
4 SATA 6 Gb/s connectors
4 M.2 Socket 3 connectors
1 front-panel connector
1 front audio connector
1 USB Type-C USB 3.2 Gen header 2x2
2 USB 3.2 Gen 1 headers
2 headers USB 2.0/1.1
1 noise detection connector
1 internal HDMI port
1 Trusted Platform Module connector for module GC-TPM2.0 SPI V2
2 temperature sensor connectors
1 reset jumper
1 Clear CMOS jumper

The actual availability of the internal HDMI port depends on the processor used.
Rear panel ready for advanced configurations

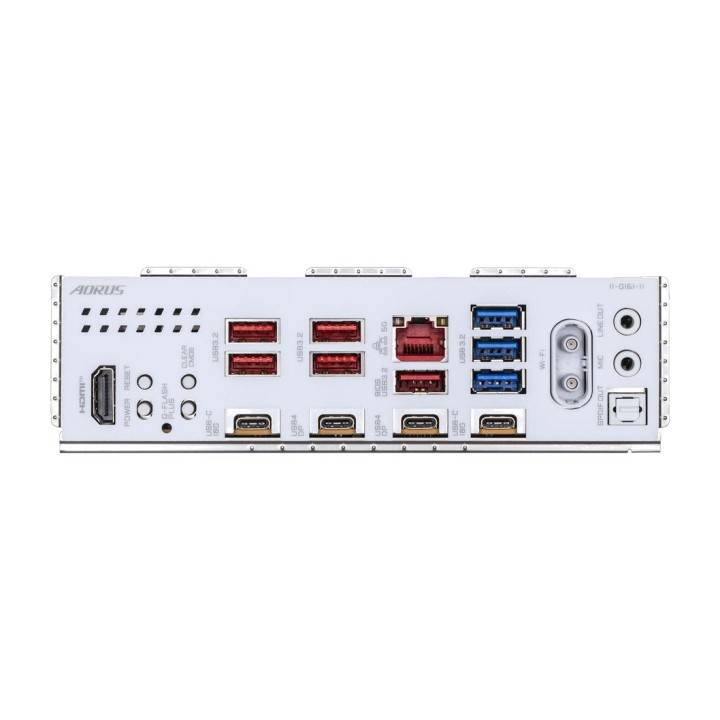

The rear I/O panel brings together a large number of interfaces and maintenance buttons, providing easy access to functions such as Q-Flash Plus, Clear CMOS, USB4, Ethernet and digital audio.

1 HDMI port
1 Reset Button
1 power button
1 Clear CMOS button
1 Q-Flash Plus button
5 red USB 3.2 Gen 2 Type-A ports
2 USB Type-C ports with USB 3.2 Gen 2
2 USB4 USB Type-C ports with DisplayPort
1 port RJ-45
3 USB 3.2 Gen 1 ports
2 antenna connectors 2T2R
2 audio connectors
1 optical S/PDIF output

The availability of certain HDMI and DisplayPort features may vary depending on the installed processor.
Advanced system monitoring
The iTE I/O controller and integrated monitoring features allow you to monitor various system parameters, including temperatures, voltages, fans and cooling systems.

iTE I/O controller
Voltage detection
Temperature detection
Fan speed detection
Liquid cooling flow detection
Fan failure warning
Fan speed control
Noise detection

Compatibility with fan and pump speed control depends on the installed device.
UEFI BIOS and maintenance features
The motherboard features a 512 Mbit AMI UEFI BIOS and GIGABYTE tools designed to facilitate system configuration, updating and maintenance.

1 512 Mbit flash memory
Licensed AMI UEFI BIOS
PnP 1.0a support
DMI 2.7
WfM 2.0
SM BIOS 2.7
ACPI 5.0
GIGABYTE Control Center support
Q-Flash support
Q-Flash Plus support
Smart Backup support

The applications and features available in GIGABYTE Control Center may vary depending on the motherboard model and specifications.
Software, operating system and form factor
The X870E AORUS PRO X3D ICE uses an ATX form factor measuring 30.5 x 24.4 cm and is designed for systems based on 64-bit Windows 11.

Included software: Norton Internet Security OEM
Supported operating system: 64-bit Windows 11
Format: ATX
Dimensions: 30,5 x 24,4 cm
Volume (m ³): 0.0091
