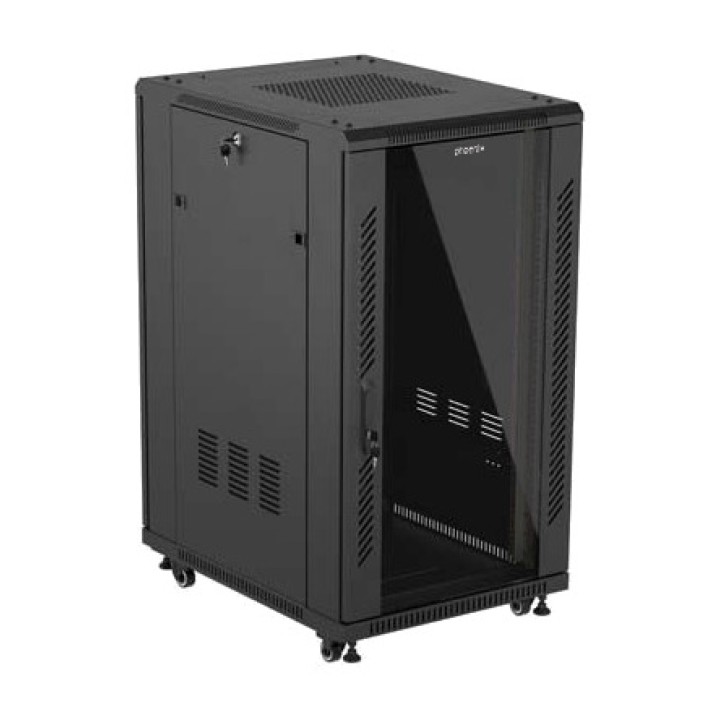

PHOENIX 19-inch floor-standing server rack cabinet 22U 600X800MM MAX-1000KG DSP0000041221

Features of the Phoenix Floor-Standing Cabinet x PHTN222800U 22U 19"
The Phoenix PHTN222800U Floor-Standing Cabinet is the highest-capacity solution in the range, designed to centralise complete network and server installations. Its 22U and 800 mm depth provide space to integrate equipment such as the core switch, servers, storage systems, patch panels and uninterruptible power supplies in a single cabinet.
High capacity for networks and servers
Its standard 19" format, 22U capacity and 800 mm depth allow it to house a complete communications and processing infrastructure. The load capacity of 800 to 1,000 kg makes it easy to install heavy professional equipment.

CAPACITY: 22U

Standard format: 19"
Width and depth dimensions: 600 × 800 mm
Chassis-only height (without accessories) 1080 mm (108 cm) 1080 mm (108 cm)
Height with levelling feet ~1153 mm (115.3 cm) 1153 mm (115.3 cm)
Height with castors 1159 mm (115.9 cm) 1159 mm (115.9 cm)
Usable internal height (22U) 977.9 mm (97.8 cm) 977.9 mm (97.8 cm)
Maximum load capacity: 800–1,000 kg
Suitable for switches, servers, storage and UPS systems

Professional SPCC steel construction
The cabinet is made of 2.0 mm thick cold-rolled SPCC steel, providing a sturdy structure for network and server equipment. Its black powder-coated finish offers a uniform appearance suitable for professional environments.

Material: cold-rolled SPCC steel

Steel thickness: 2.0 mm
Finish: Powder coating
COLOUR: BLACK
Protection rating: IP20

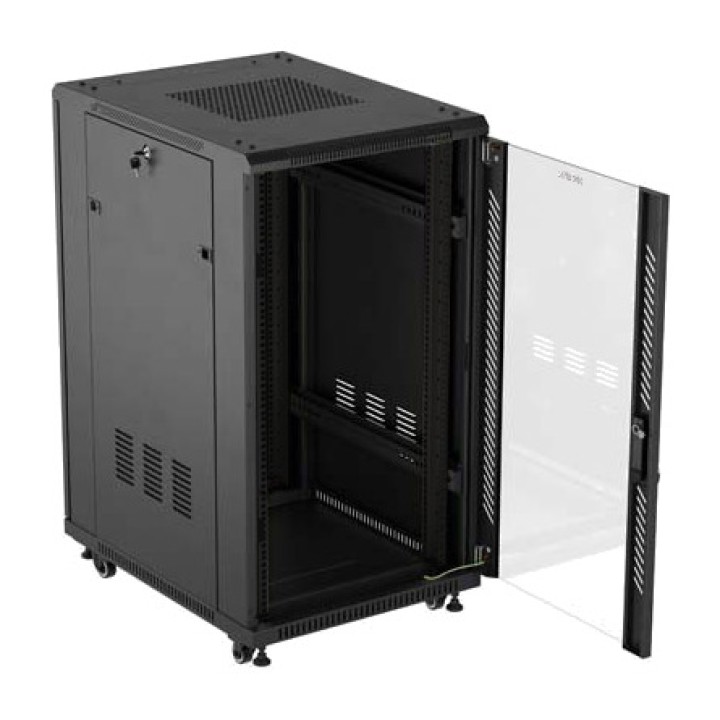

Double doors for front and rear access

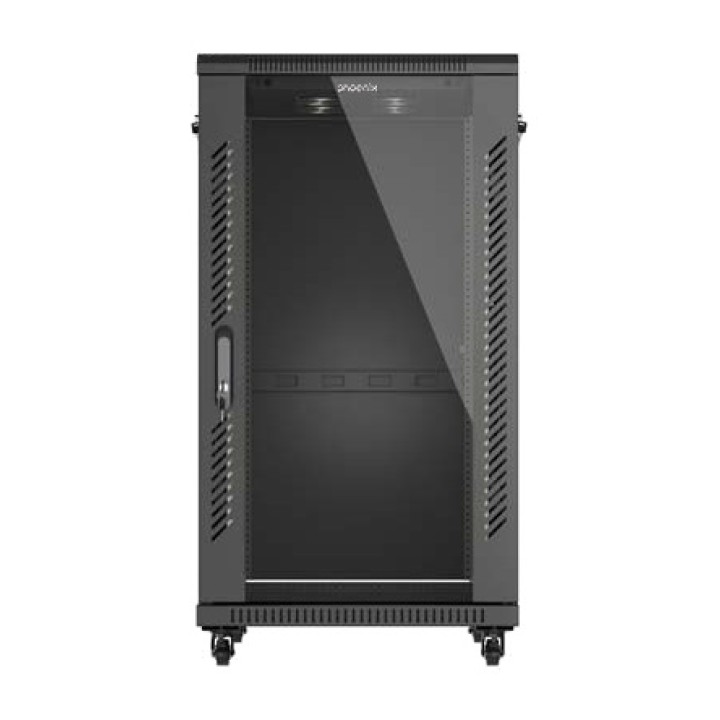

The double-door configuration allows installation, connection and maintenance work to be carried out from both sides. The tempered-glass front door makes it easy to visually monitor the equipment, while the steel rear door with double mesh promotes airflow.

Tempered glass front door

Steel rear door with double mesh
Doors open to more than 180°
Spring-loaded security locks
Front and rear access to the equipment

Active ventilation with four fans included

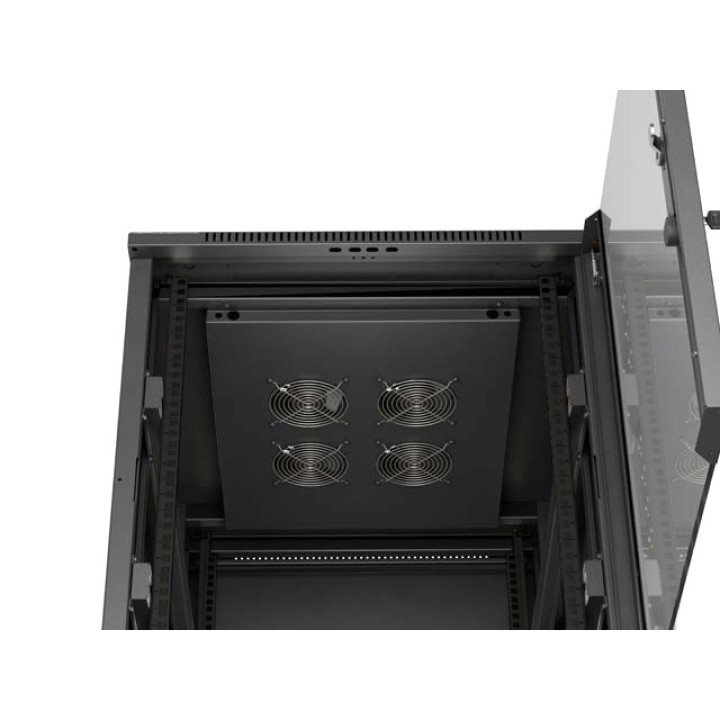

The top panel incorporates four fans for active thermal management of the installed equipment. This configuration helps remove hot air that builds up inside and is particularly useful in installations with servers, storage systems and devices operating continuously.

4 fans included

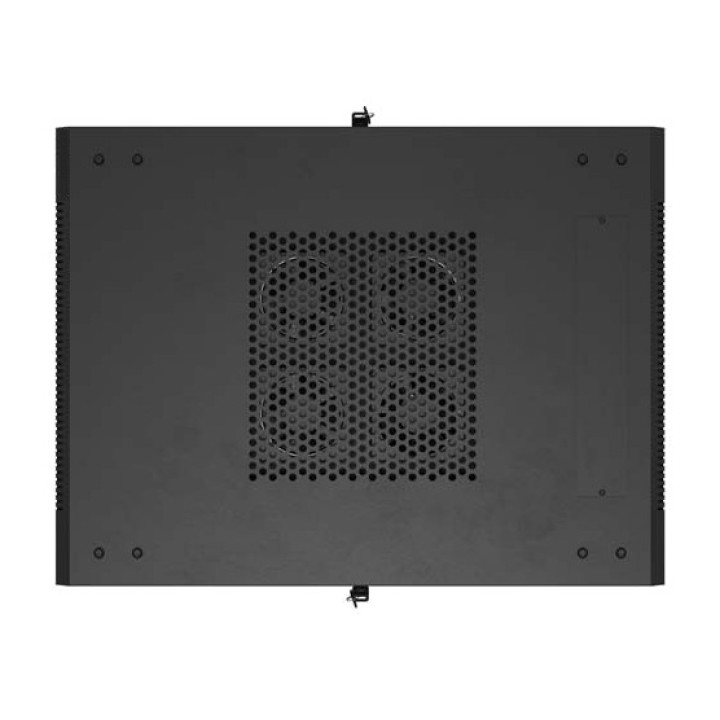

Ventilation installed in the top cover
Active circulation of the air inside
Double-mesh rear door to promote ventilation

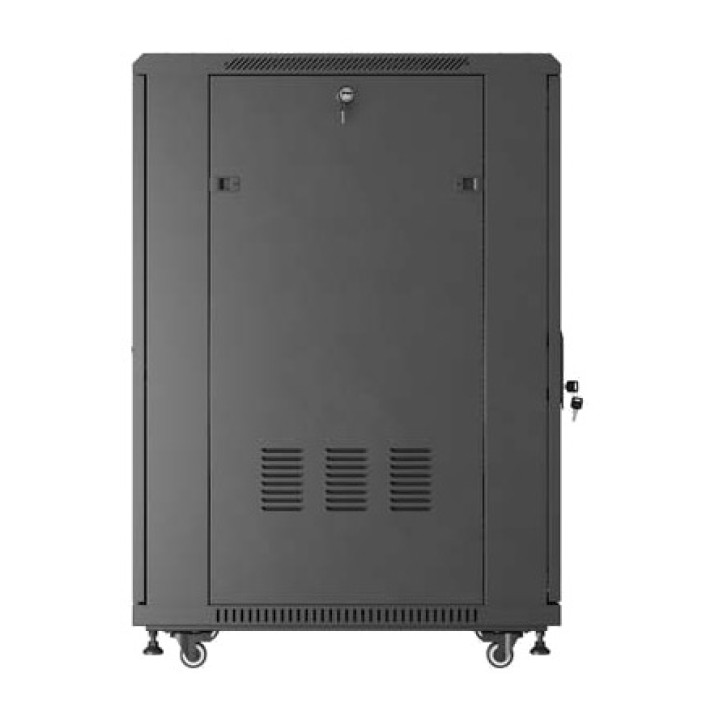

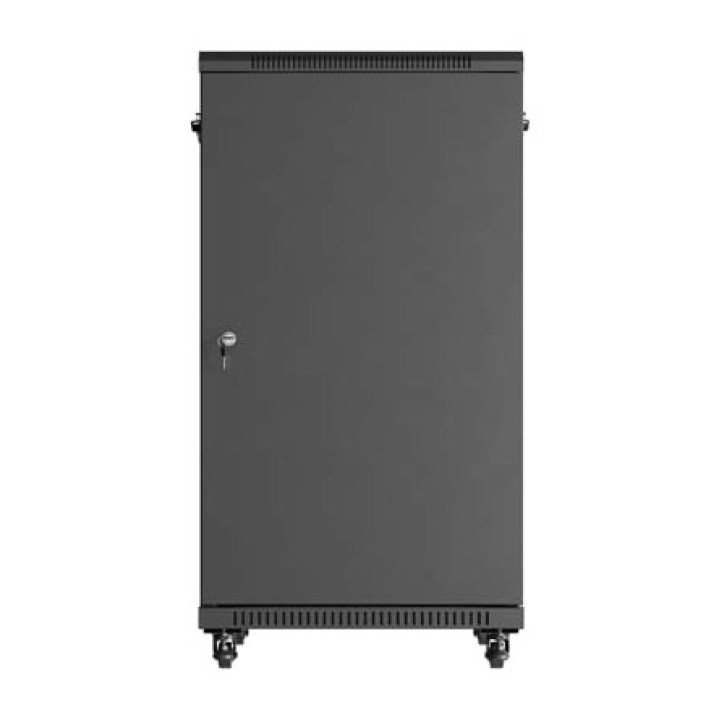

Removable side panels with locks
The removable side panels provide easy access to the interior during assembly, cable management and maintenance work. Their locks keep the equipment protected once installation is complete.

Removable side panels

Side security locks
Convenient access for installation and maintenance
Easier organisation of connections and accessories

Professional cable management
The Phoenix PHTN222800U has cable entry holes at the top, bottom and rear. The different positions allow cable entry and exit to be adapted to the requirements of each installation, keeping connections organised and accessible.

Cable entry in the top panel

Cable entry in the bottom panel
Cable entry in the rear panel
Flexible routing of network and power cables

Stable installation and controlled movement
The cabinet includes four M12 levelling feet and four castors with brakes, offering flexibility during installation. The castors make it easy to move when necessary, while the brakes and levelling feet allow it to be stabilised in its final position.

4 levelling feet M12

4 castors with brakes
Floor-mounted
Frame stabilisation and levelling

Supplied disassembled with accessories included

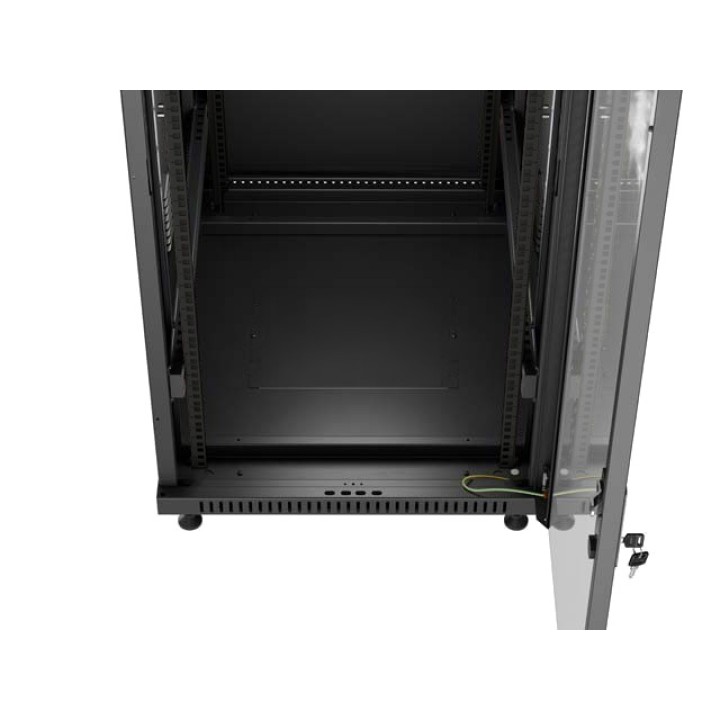

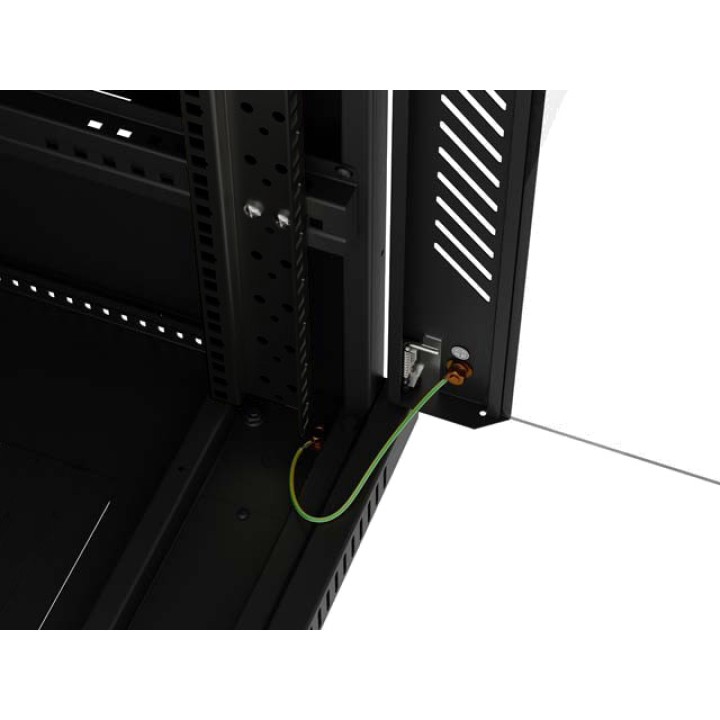

The cabinet is supplied disassembled to facilitate transport and handling. It includes the components required for initial assembly, securing compatible equipment and earthing the frame.

Front, rear and side locks

4 levelling feet M12
4 castors with brakes
4 fans
40 screws M6
Grounding cables

Technical specifications

Phoenix reference: PHTN222800U

EAN Code: 8436626132535
Rack units: 22U
Format: standard 19"
Width and depth dimensions: 600 × 800 mm
Load capacity: 800–1,000 kg
Material: cold-rolled SPCC steel
Steel thickness: 2.0 mm
Finish: Powder coating
Protection: IP20
COLOUR: BLACK
Front door: tempered glass, opens more than 180° and spring-loaded lock
Rear door: steel with double mesh, opens more than 180° and spring-loaded lock
Side panels: removable with lock
Ventilation: 4 fans included in the top panel
Cable openings: top, bottom and rear panels
Mounting type: floor
Supplied disassembled
Certifications: CE and RoHS

Applicable standards
The Phoenix PHTN222800U Floor-Standing Cabinet complies with the main standards applicable to 19" rack cabinets and telecommunications equipment.

ANSI/EIA RS-310-D

DIN 41491/PART 1
DIN 41494/PART 7
ETSI
IEC 297-2:1982
Volume (m ³): 0.3371
