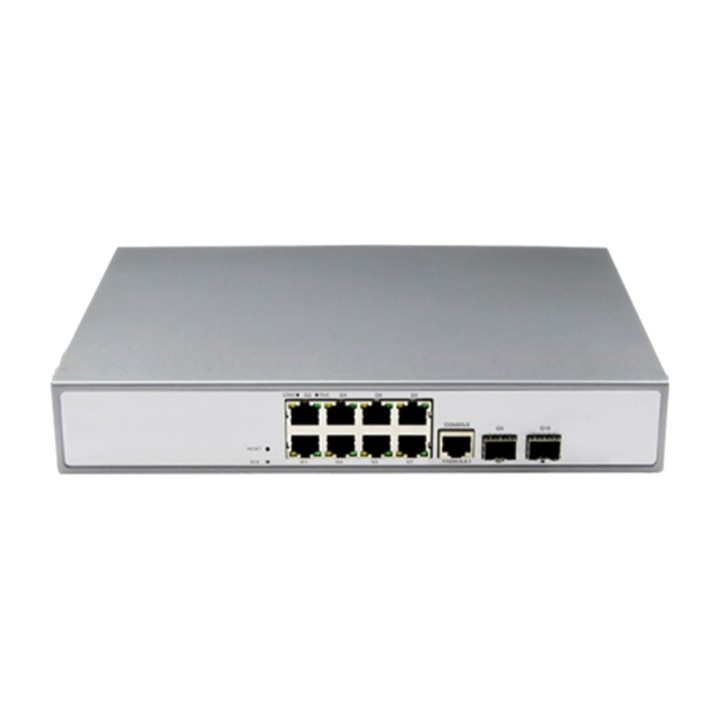

GALGUS Managed PoE switch with 8 Gigabit ports and 2 SFP G-SW-M8P2S MGS0000009217

The G-SW-M8P2S series is a fully managed PoE
gigabits. It has 8x10/100/1000Base-T RJ45 PoE ports and
2x100/1000Base-X SFP fiber slot ports.
Ports 1–8 can support IEEE 802.3af/at standard PoE power supply.
A single port can deliver up to 30 W of PoE power, and the maximum PoE output power is
30 W, and the maximum PoE output power is 250
W. As a PoE power-sourcing device, it can
automatically detect and recognize powered devices that
comply with the standard and supply power to them
via the network cable. It can power
POE terminal devices, such as wireless access points,
webcams, VoIP phones, building visual access control intercoms
and so on, via a network cable, to meet the network environment’s need for a power source
that needs a power source
high-density PoE power supply. It is suitable for hotels,
campuses, factory dormitories, and small and medium-sized
Using this printer directly is very easy thanks to its intuitive 6.1 cm LCD screen.

The G-SW-M8P2S has Layer 2 plus the function of
comprehensive web management, supports
IPV4/IPV6 management, supports static route forwarding at
full line rate, supports
a comprehensive security protection mechanism, a complete
ACL/QoS policy and rich VLAN functions, and is
easy to use, manage, and maintain. Supports multiple
STP/RSTP/MSTP network redundancy protocols (<,50 ms) and
(ITU-T G.8032) ERPS to improve link backup and
network reliability. When a unidirectional network fails, communication
can be restored quickly to ensure
uninterrupted communication for critical
applications. According to the actual application
requirements, you can configure multiple application services,
such as PoE power management, port traffic control,
VLAN segmentation, and SNMP through the web management
mode.
FEATURES

n Gigabit access, gigabit TP/SFP uplink (combo port)
combined)

All series support Gigabit Ethernet ports
and gigabit SFP uplink port combinations,
allowing users to build networks flexibly
to meet the needs of various
scenarios.

Supports non-blocking wire-speed forwarding.

Supports IEEE 802.3x-based full duplex and half duplex
based on backpressure.


n Intelligent PoE power supply function

The 8x10/100/1000Base-T RJ45 ports support PoE power
supply, meeting the PoE power supply requirements of
security monitoring, teleconferencing systems and wireless
teleconference and wireless coverage.

Complies with the IEEE PoE power supply standard
802.3af/at and automatically detects PoE devices
for power supply without damaging non-PoE devices. The
maximum PoE output power is up to 250
W, and the maximum PoE output power per port is
30 W.

The PoE port supports the priority mechanism. When the
remaining power is insufficient, power is preferentially guaranteed
to the high-priority port to prevent the
device from being overloaded.

Supports the POE network management function, which can be
configured through the network management system to
implement power allocation, priority setting,
port power status verification, and PoE port time scheduling.
PoE port time scheduling.

n Strong business processing capability

Supports IEEE 802.1Q VLAN; users can flexibly divide VLANs
according to their needs and supports
QinQ configuration.

Supports QoS, with port-based, 802.1P-based, and
DSCP-based priority modes, and Equ, SP, WRR,
and SP+WRR queue scheduling algorithms.

ACL supports data packet filtering through the
configuration of matching rules, processing operations,
and time permissions, providing a
flexible access control strategy.

Supports the IGMP V1/V2 multicast protocol and IGMP
Snooping to meet the access requirements of
multiple endpoints for HD video conferencing and video surveillance.

Supports the industrial fast production tree protocol
V-Ring and ERPS STP/RSTP/MSTP, eliminates Layer 2
loops and provides link backup.

Supports static aggregation and dynamic aggregation,
effectively increases the link bandwidth,
achieves load balancing, link backup, and
improves link reliability.


n Complete security protection mechanism

Supports 802.1X authentication, providing the function of
authentication for LAN computers and controls the status
of the authorized controlled port according to the result
of the authentication.

Supports port isolation

Supports port broadcast storm suppression

Port support + MAC binding, port binding function
IP + MAC +


n The equipment is stable and reliable

The host has low power consumption and a design without
fan noise, an aluminum alloy metal housing,
excellent heat dissipation, and ensures
stable operation of the products.

The equipment complies with the national CCC standard and meets
the requirements of the CE, FCC and RoHS safety standards, and is
safe and reliable.

Its power supply and high-redundancy design
provide stable PoE power over the long term

Users can easily understand the device’s operating
status through the power
(PWR) indicator and the port status (Link)
operation indicator.


n Easy operation and maintenance management

Supports various management and maintenance methods,
such as web management and CLI command line (Console,
Telnet) , SNMP (V1/V2/V3).

Supports encryption methods such as HTTPS, SSLV3 and
SSHV1/V2 for more secure management.

Supports RMON, system logs and port traffic statistics for
easy network optimization and transformation.

Supports LLDP, which enables the network management system to
query and determine the link’s communication
status.

Supports CPU monitoring, memory monitoring and ping
detection, and cable length detection.
TECHNICAL SPECIFICATION

Interface

8 PoE 10/100/1000Base-T ports (data/power)

2 100/1000Base-X uplink SFP ports (data)

1 RS232 console port (115200,N,8,1)

POE port

Ports 1–8 can support the IEEE 802.3af/at PoE standard

Network protocol

IEEE802.3 10Base-T,

IEEE802.3i 10Base-T,

IEEE802.3u 100Base-TX,

IEEE802.3ab 1000Base-T,

IEEE802.3z 1000Base-X

IEEE802.3x

PoE standard

IEEE802.3af/en standard

Ethernet port features

10/100/1000BaseT(X) auto-detection, duplex
full/half-duplex, adaptive MDI/MDI-X

Fiber port features

Gigabit SFP fiber interface (fiber module not included,
must be ordered separately, module options include
single-mode/multimode, single-fiber/dual-fiber, LC)

Forwarding mode

Store and forward (full wire speed)

Switching capacity

192 Gbps (non-blocking)

Forwarding rate at 64 bytes

17.86 Mpps

Mac

8K

Buffer memory

4M

Twisted-pair transmission

10BASE-T: Cat3,4,5 UTP (100 meters) ,

100BASE-TX: Cat5 or later UTP (100 meters)

1000BASE-T: Cat5e or later UTP (100 meters)

Optical fiber cable

Multimode: 850nm 0~500M Single-mode: 1310nm 0~40KM,
1550nm 0~120KM.

Power supply pin

Default : 1/2 (+), 3/6 (-)

Maximum/average power per port

30W/30W

Total power/input voltage

250 W (AC 100-240 V)

power consumption

Standby <,10W, Full load < ,240W

LED indicator

Power indicator: PWR (green), system indicator: SYS
(green), network indicator: Link/Act (yellow), PoE indicator: PoE
(green), SFP fiber port: L/A (green)

Power supply

Built-in switching power supply , CA 100~240V
50-60Hz 4.1A

Operating TEMPERATURE/Humidity

-20~+55°C,5%~90% RH Non-condensing

Storage TEMPERATURE /Humidity

-40~+75°C,5%~95% RH Non-condensing

Dimensions (L*W*H)

270*181*44,5mm

Net / gross weight

<,1,7 kg / <,2,2 kg

Installation method

Desktop type, 19-inch 1U cabinet installation

Lightning protection / Protection level

Lightning protection: 4KV 8/20us,

Protection level: IP30

CERTIFICATION

CCC, CE Mark, commercial, CE/LVD EN60950, FCC Part 15 Class
B,RoHS, Managed series function

Interfaces

IEEE802.3x flow control (full duplex)

Broadcast storm suppression for port rate

supports the speed limit for message traffic
incoming and offline, with a minimum packet size
of 64 Kbps.

Temperature protection setting

EEE Ethernet port power-saving configuration

PoE Management

Total PoE power supply limit

PoE output power allocation per port, close /af/at

PoE output priority configuration for each port

Display of PoE operating status per port

Power-on delay start

PoE time and work scheduling

Layer 3 function

Supports managed function L2 +,

Management support IPV4/IPV6

Supports Layer 3 soft routing forwarding (weak three
levels),

Supports communication between different network segments,
different VLANs

Supports static routing/default routing
128, 1024 ARP software forwarding

VLAN

Supports port-based VLAN (4K), IEEE802.1q

Supports protocol-based VLAN

Supports three port configuration types: access, trunk, hybrid
ports

Supports QinQ configuration

Port Aggregation

Supports LACP

Supports static aggregation

Supports up to 8 aggregation groups, each group
of aggregation supports 8 ports.

Spanning Tree

STP (IEEE802.1d)

RSTP (IEEE802.1w)

MSTP (IEEE802.1s)

Industrial ring network protocol

Supports G.8032 (ERPS), supports a maximum of 255 rings and
supports 1024 devices per ring.

The self-healing time of the ring network is less than 20
ms.

Multicast

Supports IGMP Snooping V1/V2 and supports a maximum of 1024 multicast groups.
multicast at most.

Supports the user fast-leave mechanism

Supports MLD Snooping V1/V2

Supports multicast VLAN


Bidirectional traffic mirroring supported on the port
basic

QoS

Differentiated services QoS

Each port supports 8 egress queues

Supports 802.1p/DSCP priority mapping

Supports queue scheduling mechanisms (SP, WRR,
SP+WRR)

Priority tag Mark/Remark

Sequence-based packet filtering

Supports sequence-based redirection

Supports flow-based rate limiting

ACL

Supports L2 to L4 packet filtering; can
match the first 80 bytes of the message, providing
based on the source MAC address, destination MAC address,
source IP address, destination IP address, the
IP protocol type, TCP/UDP port, TCP/UDP port range,
VLAN and other ACL definitions.

Supports ACLs based on port and VLAN

Security features



Supports user rating management and protection
with a password

Supports IEEE802.1X authentication/MAC address authentication
centralized

Supports AAA and RADIUS authentication

Supports the number of learning restrictions
MAC addresses

Supports MAC address blackholing

Supports SSH 2 to provide secure passwords for the
user login.

Supports SSL to ensure the security of transmission
Data

Supports port isolation

Supports the ARP message rate-limiting function

Supports IP source address protection

Supports the ARP intrusion detection function

Supports protection against DoS attacks

Supports port broadcast message suppression

Supports the host data backup mechanism

IP+MAC+VLAN+ port binding capabilities

DHCP

Supports DHCP client

Supports DHCP snooping

DHCP service support

Compatible with DHCP relay

Management and Maintenance



Support console/AUX modem/Telnet/SSH2.0 configuration
CLI command line

WEB network management support (HTTPS)

Supports FTP, TFTP, Xmodem file download management,
SFTP

SUPPORT SNMP V1/V2C/V3

Support bond reduction

Supports NTP clock

Supports system job logging

Supports ping detection

Supports cable status detection

Supports viewing instantaneous CPU utilization status

Supports the LLDP Link Layer Discovery Protocol

Supports ONV NMS intelligent management center

System requirements



Web browser: Mozilla Firefox 2.5 or later, browser
Google Chrome V42 or later, Microsoft Internet Explorer10 or
later,

Cat5e Ethernet cable or later,

TCP/IP, network adapter and network operating system (Microsoft
Windows, Linux or Mac OS X) installed on each computer
on the network.
Volume (m ³): 0.0052
