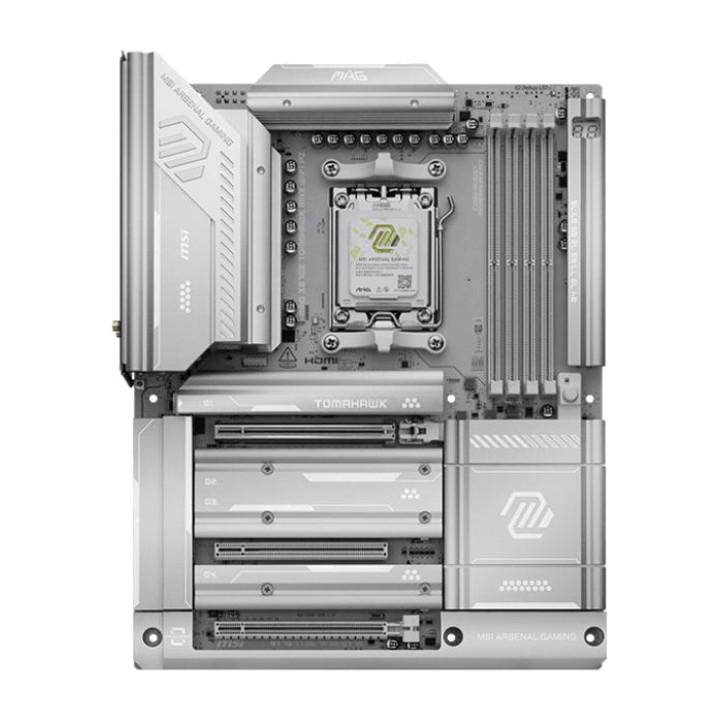

MSI ATX motherboard MAG X870E-TOMAHAWK MAX-WIFI PZ AM5 DSP0000042443

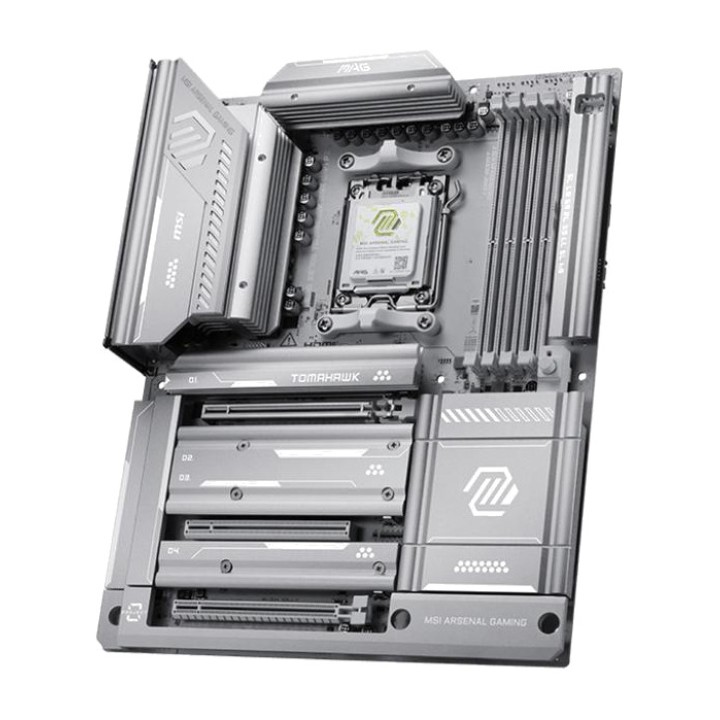

Features of the MSI MAG X870E TOMAHAWK MAX WIFI PZ
The MSI MAG X870E TOMAHAWK MAX WIFI PZ is a Back-Connect ATX motherboard with an AMD X870E chipset, designed for gaming PCs and high-performance configurations. Compatible with AMD Ryzen™ 9000, 8000 and 7000 processors for the AM5 socket, it combines DDR5 memory, PCIe 5.0, Gen5 M.2 storage, Wi-Fi 7 and 5G LAN. Its rear-mounted connections also enable a cleaner build and simplify cable management.
Back-Connect design for a cleaner build
The Back-Connect design moves the power, fan and other headers to the rear of the motherboard. This leaves the front less cluttered, showcasing components such as the graphics card or liquid cooling, while also making cable management easier.

Form factor: Back-Connect ATX
Dimensions: 243.84 x 304.8 mm
Main connectors located on the rear
Design focused on simplifying cable management

AMD X870E platform for Ryzen™ processors
Equipped with the AMD X870E chipset and AM5 socket, this motherboard supports several generations of AMD Ryzen™ desktop processors, enabling configurations suited to both gaming and demanding workloads.

Chipset : AMD X870E
Socket: AM5
Compatible with AMD Ryzen™ Series 9000
Compatible with AMD Ryzen™ Series 8000
Compatible with AMD Ryzen™ Series 7000

Power delivery system designed for high loads
Its 14-phase Duet Rail Power System architecture with 80A SPS, together with Core Boost, digital PWM and dual CPU power connectors, is designed to provide stable power delivery under heavy loads. The 8-layer PCB also features reinforced 2 oz copper and server-grade material.

14-phase Duet Rail system with 80A SPS
2-phase SOC power supply
Digital PWM IC
2 CPU power connectors
8-pin PCIE_PWR connector
Core Boost technology and EZ OC Tuning features
8-layer PCB with reinforced 2 oz copper

DDR5 memory up to 256 GB
Its four dual-channel DDR5 UDIMM slots support a maximum capacity of 256 GB and overclocked speeds of up to 8400+ MT/s in compatible configurations. Memory Boost uses an isolated DDR circuit, while AMD EXPO™ profiles and High-Efficiency Mode let you adjust memory performance in the BIOS.

4 slots DDR5 UDIMM
Maximum capacity : 256 GB
Double channel
DDR5 8400 - 5600 MT/s via OC
DDR5 5600 - 4800 MT/s via JEDEC
Compatible with AMD EXPO™ and memory overclocking
Compatible with Non-ECC and Un-buffered memory
Compatible with CUDIMM in Clock Driver Bypass mode

With Ryzen™ 9000 Series processors, the specified maximum overclocking frequencies depend on the configuration of the installed modules.

1DPC 1R: up to 8400+ MT/s
1DPC 2R: up to 6400+ MT/s
2DPC 1R: up to 6400+ MT/s
2DPC 2R: up to 6400+ MT/s

PCIe 5.0 and Steel Armor for graphics cards
The primary slot features PCIe 5.0 and MSI Steel Armor II, a reinforcement with additional solder points designed to support heavy graphics cards and protect the contact point against electromagnetic interference. The EZ PCIe Release system also makes it easier to install and remove the GPU with a button.

PCI_E1: PCIe 5.0 up to x16 from CPU
PCI_E2: PCIe 3.0 up to x1 from chipset
PCI_E3: PCIe 4.0 up to x4 from chipset
PCIe 5.0 x16 with Ryzen™ 9000 and 7000 Series
PCIe 4.0 x8 with Ryzen™ 8700, 8600 and 8400 Series
PCIe 4.0 x4 with Ryzen™ 8500 and 8300 Series
Steel Armor II and EZ PCIe Release

Four M.2 slots with up to PCIe 5.0
For high-speed storage, it features four M.2 connectors, two of which have a PCIe 5.0 x4 interface of up to 128 Gbps. The other two use PCIe 4.0 x4 at up to 64 Gbps, plus four SATA 6G connections to expand storage options.

M.2_1: up to PCIe 5.0 x4, compatible with devices 22110/2280
M.2_2: up to PCIe 5.0 x4, compatible with devices 2280/2260
M.2_3: up to PCIe 4.0 x4, compatible with devices 2280/2260
M.2_4: up to PCIe 4.0 x4, compatible with devices 2280/2260
2 Gen5 x4 slots up to 128 Gbps
2 Gen4 x4 slots up to 64 Gbps
4 connections SATA 6G

With Ryzen™ 9000 and 7000 Series, M.2_1 and M.2_2 can operate at up to PCIe 5.0 x4. With Ryzen™ 8000, M.2_1 operates at up to PCIe 4.0 x4, while M.2_2 supports up to PCIe 4.0 x4 with Ryzen™ 8700, 8600 and 8400. The M.2_2 slot is unavailable with Ryzen™ 8500 and 8300 Series.
RAID support for SATA and NVMe
The board supports configuring RAID arrays with both SATA drives and M.2 NVMe storage, offering different options to meet the system’s performance or redundancy requirements.

SATA: RAID 0, RAID 1 and RAID 10
M.2 NVMe: RAID 0, RAID 1, RAID 5 and RAID 10
RAID 5 for M.2 NVMe compatible with Ryzen™ 9000 Series
RAID 10 for M.2 NVMe compatible with Ryzen™ 9000 and 7000 Series

Frozr Design for optimized cooling
The Frozr Guard system combines an extended heatsink with 7 W/mK MOSFET thermal pads, additional pads for the chokes and M.2 Shield Frozr. Frozr Sync and Frozr Control are also included to connect, synchronise and manage the system fans.

Extended heatsink
7 W/mK MOSFET thermal pads
Additional thermal pads for the chokes
EZ M.2 Shield Frozr II
Frozr Sync
Frozr Control via MSI Center
Compatible with Cooling Wizard and Frozr AI Cooling

Wi-Fi 7, Bluetooth® 5.4 and LAN 5G
Its connectivity features include Realtek® 8126 5G LAN and Wi-Fi 7, providing high-speed wired and wireless networking options. The wireless module is preinstalled in an M.2 Key-E slot and supports MU-MIMO, MLO and 4KQAM.

Realtek ® 8126 5G LAN
Wi-Fi 7
2.4 GHz, 5 GHz and 6 GHz bands
Channels up to 320 MHz
Wireless speeds of up to 5.8 Gbps
Supports 802.11 a/b/g/n/ac/ax/be
MU-MIMO TX/RX
MLO and 4KQAM
Bluetooth ® 5.4
MSI EZ Antenna with magnetic design

6 GHz band availability depends on the regulations in each country. Wi-Fi 7 and Bluetooth® 5.4 are ready for Windows® 11 version 24H2. The Bluetooth® version may be updated depending on the wireless chipset.
USB4® and extensive USB connectivity
The MSI MAG X870E TOMAHAWK MAX WIFI PZ offers a wide range of USB connections of up to 40 Gbps, including USB Type-A and Type-C ports on both the rear panel and via front-panel headers.

2 rear USB 40 Gbps Type-C ports
1 front USB 20 Gbps Type-C port
1 rear USB 10 Gbps Type-C port
2 rear USB 10 Gbps Type-A ports
3 rear USB 5 Gbps Type-A ports
4 front USB 5 Gbps Type-A ports
4 rear USB 2.0
4 front USB 2.0 ports

The rear USB 40 Gbps Type-C ports and the M.2_2 slot share PCIe 5.0 x4 bandwidth. With a device installed in M.2_2, both operate at PCIe 5.0 x2. M.2_2 can be configured as PCIe 5.0 x4 in the BIOS, in which case the USB 40 Gbps Type-C ports are disabled. The USB4® host controller supports up to PCIe 4.0 x4.
Video outputs of up to 8K
For processors with integrated graphics, the board offers HDMI™ 2.1 FRL with a maximum resolution of 8K at 60 Hz, as well as DisplayPort output via the USB4® Type-C ports.

1 HDMI™ 2.1 FRL
Maximum HDMI™ resolution: 8K at 60 Hz
2 USB4® Type-C with DisplayPort 1.4 HBR3
Maximum resolution via DisplayPort over USB Type-C: 4K at 120 Hz

Graphics outputs require a processor with integrated graphics, and their specifications may vary depending on the installed CPU.
Audio Boost 5 with Realtek ® ALC4080
The Audio Boost 5 system with Realtek® ALC4080 codec delivers high-performance USB audio with support for up to 7.1-channel configurations. It also features optical S/PDIF output and high-resolution playback via the front panel.

Realtek codec ® ALC4080
High-performance 7.1-channel USB audio
Playback up to 32 bits/384 kHz on the front panel
Optical S/PDIF output
Audio Boost 5 technology

EZ DIY features for easier assembly
MSI EZ DIY technologies simplify component installation and replacement, reducing the need for tools in common tasks such as installing an M.2 SSD or removing the graphics card.

EZ M.2 Shield Frozr II with tool-free design
EZ PCIe Release to release the graphics card with a button
EZ M.2 Clip II for installing and removing SSDs without screws
EZ Antenna magnetic for easy placement

Internal connectors for cooling, lighting and expansion
The motherboard integrates numerous internal connectors for fans, cooling, RGB lighting and peripherals, making it easier to configure custom PCs and advanced cooling systems.

1 ATX_PWR connector
2 CPU_PWR connectors
1 8-pin PCIE_PWR connector
1 CPU Fan connector
1 PUMP_SYS Fan connector
6 System Fan connectors
1 header ARGB + FAN + USB 2.0 JAF_2
2 JFP front panel connectors
1 JCI chassis intrusion connector
1 JAUD front audio connector
3 Addressable connectors V2 RGB LED JARGB_V2
1 JRGB RGB LED connector
1 TPM-compatible header TPM 2.0
2 BCLK frequency jumpers JBCLK

Integrated diagnostic tools
To facilitate the detection of potential issues during assembly or configuration, the motherboard features several LEDs dedicated to system and memory diagnostics.

4 EZ Debug LEDs
1 EZ Digit Debug LED
1 EZ Memory Detection LED

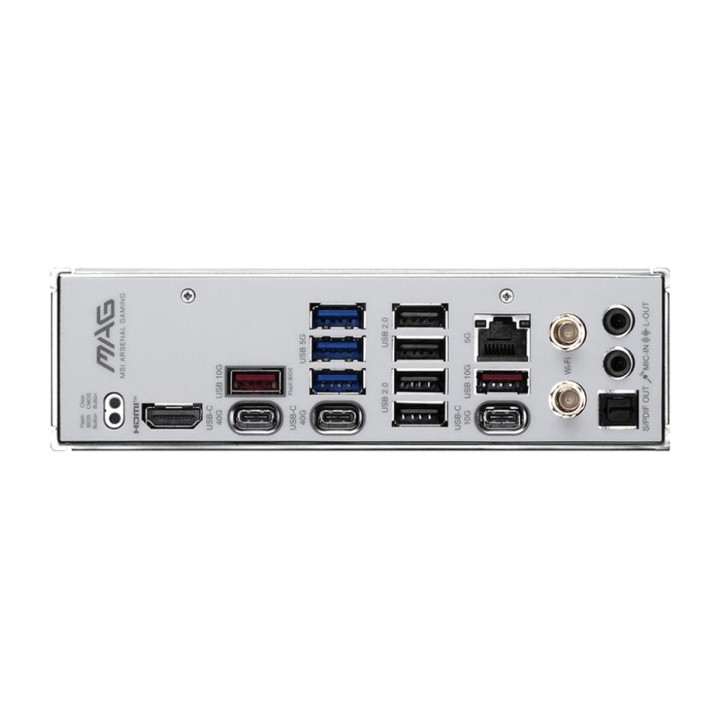

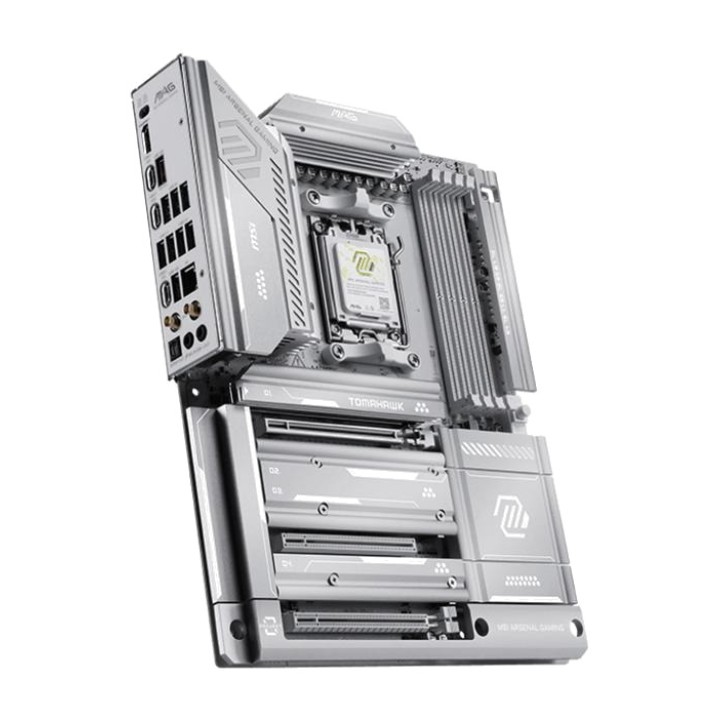

Comprehensive, accessible rear panel
The rear panel brings together high-speed USB, 5G networking, Wi-Fi, video and audio connectivity, as well as dedicated Clear CMOS and Flash BIOS buttons that simplify certain configuration and maintenance tasks.

Clear CMOS button
Flash BIOS button
USB 40 Gbps Type-C
USB 10 Gbps Type-C and Type-A
USB 5 Gbps Type-A
USB 2.0
Port LAN 5G
Wi-Fi / Bluetooth® connections
HDMI™
Audio connectors
Optical S/PDIF output

Compatibility and operating system
The MSI MAG X870E TOMAHAWK MAX WIFI PZ is compatible with 64-bit Windows® 11. Memory compatibility and effective speed may vary depending on the processor and the configuration of the installed modules.

Compatible operating system: 64-bit Windows® 11
The DIMM slots feature double-sided latches
CUDIMM compatibility and POR startup frequency may vary depending on the CPU series
Memory compatibility and speed depend on the processor and the configuration used
Volume (m ³): 0.0091
