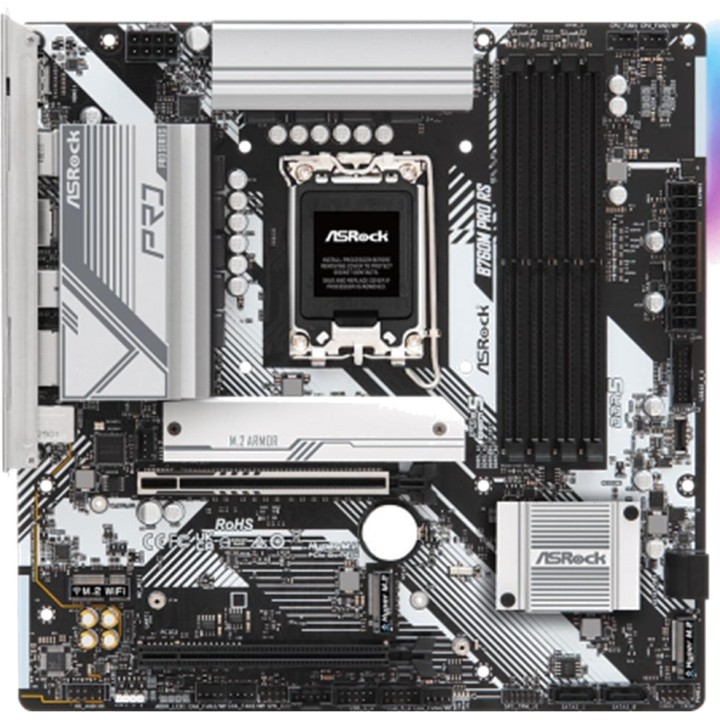

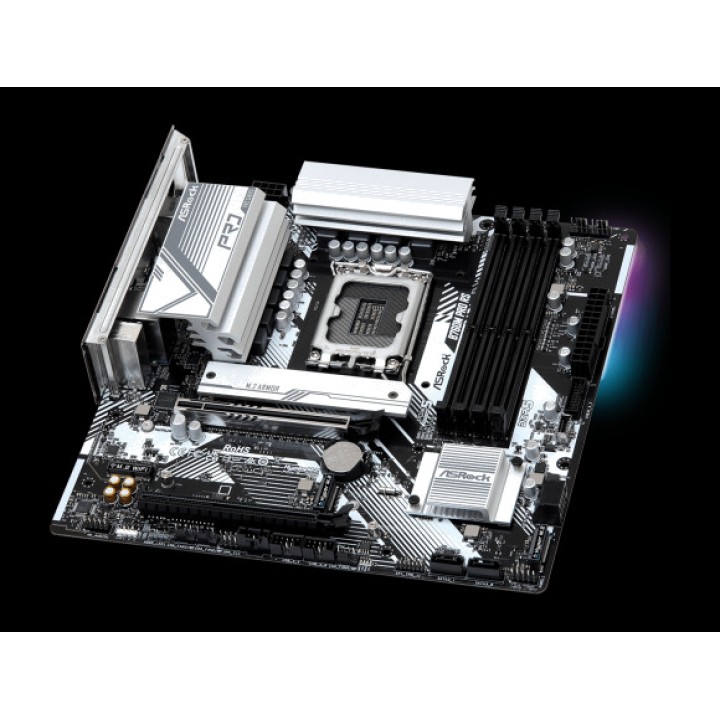

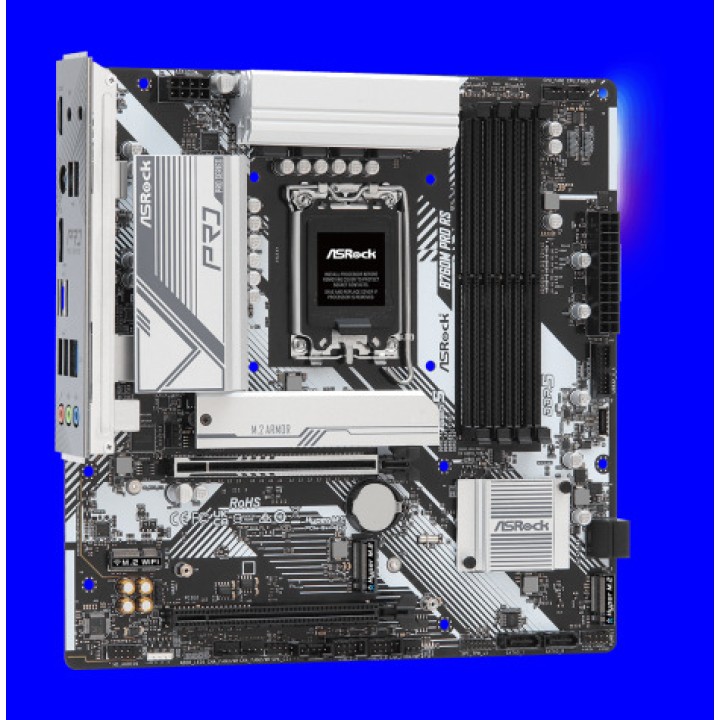

Features of the ASRock B760M Pro RS motherboard
The ASRock B760M Pro RS is a Micro ATX motherboard designed for building current systems with 14th, 13th and 12th Gen Intel® Core™ processors. It features the Intel® B760 chipset, DDR5 memory, a PCIe 5.0 slot for the graphics card and three M.2 PCIe 4.0 connections, providing a balanced foundation for gaming PCs, workstations and general-purpose systems.
Compatible with the latest-generation Intel® processors
Thanks to its LGA1700 socket, this motherboard supports 14th, 13th and 12th Gen Intel® Core™ processors. It is also compatible with various Intel® performance optimization technologies, where supported by the installed processor.

Intel socket ® LGA1700
Compatible with 14th, 13th and 12th Gen Intel® Core™ processors
Intel chipset ® B760
Compatible with Intel® Hybrid Technology
Compatible with Intel® Turbo Boost Max 3.0 Technology
Compatible with Intel® Thermal Velocity Boost, TVB
Compatible with Intel® Adaptive Boost Technology, ABT

Stable power delivery with Dr.MOS design
The ASRock B760M Pro RS features a 7+1+1-phase power delivery system with 50 A Dr.MOS for VCore and GT. This design helps provide stable power to the processor during intensive workloads and extended sessions.

7+1+1-phase power delivery design
50 A Dr.MOS for VCore and GT
24-pin ATX power connector
High-density 8-pin 12 V power connector
Pre-installed I/O shield

DDR5 memory up to 7200+ MHz via overclocking
Its four DIMM slots support up to 256 GB of dual-channel DDR5 memory. The motherboard supports Intel® XMP 3.0 profiles and speeds of up to 7200+ MHz via overclocking, depending on the module and processor configuration.

Four slots DIMM DDR5
Dual Channel memory architecture
Maximum capacity : 256 GB
Compatible with non-ECC, unbuffered DDR5 memory
Compatible with Intel® Extreme Memory Profile , XMP 3.0
1DPC 1R: up to 7200+ MHz via OC and 4800 MHz natively
1DPC 2R: up to 6000+ MHz via OC and 4400 MHz natively
2DPC 1R: up to 5600+ MHz via OC and 4000 MHz natively
2DPC 2R: up to 4800+ MHz via OC and 3600 MHz natively

PCIe 5.0 slot for graphics cards
The main PCIe 5.0 x16 slot lets you install current and future graphics cards with a high-bandwidth interface. It also includes a second PCIe 3.0 x16 slot operating in x4 mode and an M.2 Key E socket for expanding wireless connectivity.

One PCIe 5.0 x16 slot connected to the CPU and operating in mode x16
One PCIe 3.0 x16 slot connected to the chipset and operating in mode x4
One M.2 Key E socket for WiFi and Bluetooth modules type 2230
Compatible with Intel® CNVio and CNVio2
AMD CrossFire™ compatible
Compatible with NVMe SSDs as boot devices

M.2 PCIe 4.0 storage and SATA connections
The motherboard offers three Hyper M.2 PCIe Gen4 x4 sockets with speeds of up to 64 Gb/s, suitable for installing high-speed NVMe SSDs. It also features four SATA3 connectors for hard drives, SATA SSDs and other compatible storage devices.

One Hyper M.2 M2_1 Key M for 2242, 2260 and 2280 PCIe Gen drives 4 x4
One Hyper M.2 M2_2 Key M for 2280 PCIe Gen drives 4 x4
One Hyper M.2 M2_3 Key M for 2280 PCIe Gen drives 4 x4
Speeds of up to 64 Gb/s across all three sockets M.2
Four SATA3 6 Gb/s connectors
Compatible with Intel® Volume Management Device, VMD
Compatible with NVMe SSDs as boot devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 on SATA devices

High-resolution HDMI and DisplayPort outputs
The integrated video connections let you use the Intel® UHD Graphics of compatible processors. The motherboard features HDMI 2.1 and DisplayPort 1.4, supporting resolutions up to 4K or 8K depending on the output used.

12th-generation Intel® Xe graphics architecture
One output HDMI 2.1 TMDS
Maximum resolution via HDMI: 4K at 60 Hz
One DisplayPort 1.4 output with DSC
Maximum resolution via DisplayPort: 8K at 60 Hz or 5K at 120 Hz
COMPATIBLE WITH HDCP 2.3

The integrated video outputs require a processor with an integrated GPU.
7.1-channel HD audio with Nahimic Audio
The Realtek ALC897 codec provides 7.1-channel HD audio for gaming, multimedia content and communications. Nahimic Audio technology enhances the audio experience with various processing and customisation features.

7.1-channel HD audio
Realtek codec ALC897
Compatible with Nahimic Audio
Rear line-in, front speaker and microphone connections
Internal audio connector for the front panel

Red Dragon 2.5G LAN
The Dragon 2.5 Gigabit LAN connection provides network speeds of up to 2500 Mb/s, improving file transfers, online gaming and streaming compared with a conventional Gigabit connection.

Dragon controller RTL8125BG
Speeds of 10, 100, 1000 and 2500 Mb/s
Compatible with Dragon software 2.5G LAN
Intelligent automatic bandwidth adjustment
Visual network usage statistics
Optimised profiles for gaming, browsing and streaming
Customisable priority control

USB connectivity for peripherals and external devices
The ASRock B760M Pro RS features USB 3.2 Gen1 Type-C and Type-A connections on both the rear panel and internal headers for the front of the case. All USB ports are protected against electrostatic discharge.

Two USB 3.2 Gen1 Type-C ports: one rear and one front
Five USB 3.2 Gen1 Type-A ports: three rear and two front
Six USB 2.0 ports: two rear and four front
One USB 3.2 Gen1 header for two front ports
One front USB 3.2 Gen1 Type-C header
Two USB 2.0 headers for four front ports
ESD protection on all USB ports

Connectors for cooling, lighting and expansion
The motherboard includes various internal connections for managing fans, liquid-cooling pumps and RGB lighting. The Smart Fan system makes it easy to control the speed of compatible fans and adjust cooling to the system’s needs.

One 4-pin CPU fan connector, up to 1 A and 12 W
One 4-pin CPU or water pump connector, up to 2 A and 24 W
Four 4-pin chassis or water pump connectors, up to 2 A and 24 W each
Automatic detection of 3- or 4-pin fans on CPU_FAN2/WP and CHA_FAN1-4/WP
One RGB LED connector up to 12 V, 3 A and 36 W
Three addressable LED connectors up to 5 V, 3 A and 15 W
One SPI TPM connector
One chassis intrusion and speaker connector
One 5-pin Thunderbolt™ AIC connector
Compatible with the ASRock Thunderbolt card ™ 4 AIC

Full rear panel

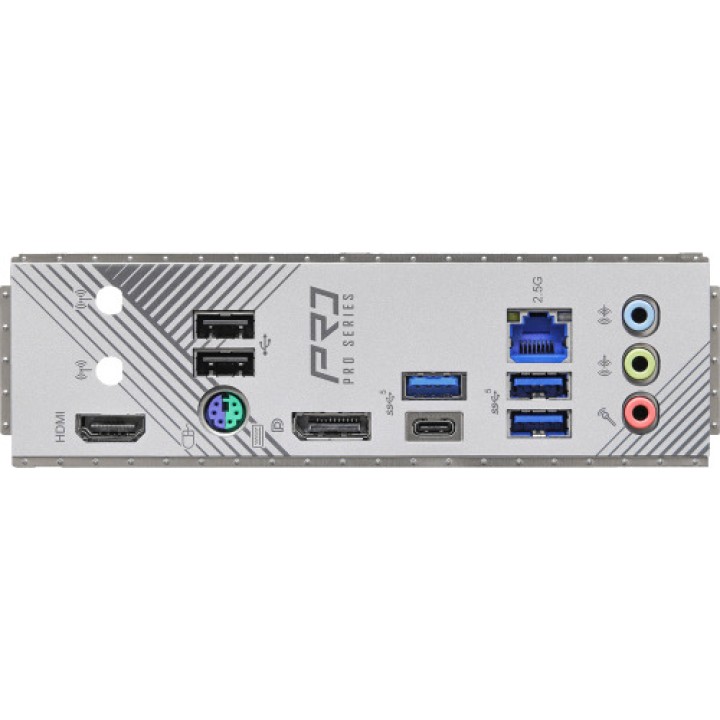

The I/O panel integrates the ports required to connect monitors, peripherals, wired networks and audio devices. It also features two antenna mounting points, ready for use with a separately installed compatible wireless module.

Two antenna mounting points
One PS/2 port for keyboard or mouse
One HDMI port
One DisplayPort 1.4
One USB 3.2 Gen1 Type-C
Three USB 3.2 Gen1 Type-A
DoS USB 2.0
One port RJ-45 2.5G LAN
HD audio connectors for line-in, front speaker and microphone

UEFI and ASRock configuration tools
The motherboard features a 128 Mb AMI UEFI BIOS with a graphical interface and various ASRock tools to facilitate system configuration, updating and diagnostics.

128 Mb AMI UEFI BIOS with graphical support
ASRock EZ Mode
ASRock Full HD UEFI interface
ASRock My Favorites in UEFI
ASRock Instant Flash
ASRock Easy RAID Installer
ASRock automatic driver installer
ASRock Post Status Checker for easy problem identification
ASRock Motherboard A-Tuning Utility
ASRock Dragon software 2.5G LAN
ASRock Polychrome Sync

The ASRock Polychrome SYNC utility can be downloaded from ASRock Live Update & APP Shop.
Micro ATX form factor and compatibility
Its 24.4 x 24.4 cm Micro ATX form factor allows installation in a wide variety of compatible cases, while retaining four memory slots, multiple storage options and expansion connectivity.

Micro ATX form factor
Dimensions: 9.6 x 9.6 inches
Dimensions: 24.4 x 24.4 cm
Compatible with 64-bit Microsoft Windows® 10
Compatible with 64-bit Microsoft Windows® 11
FCC and CE certifications
ErP and EuP ready with a compatible power supply

Included accessories
The motherboard is supplied with the items required for the initial installation of the system and storage drives.

One user manual
Two SATA data cables
Four socket screws M.2
One socket spacer M.2
Volume (m ³): 0.0091
