MSI ATX motherboard PRO X870E-S EVO-WIFI AM5 DSP0000041990

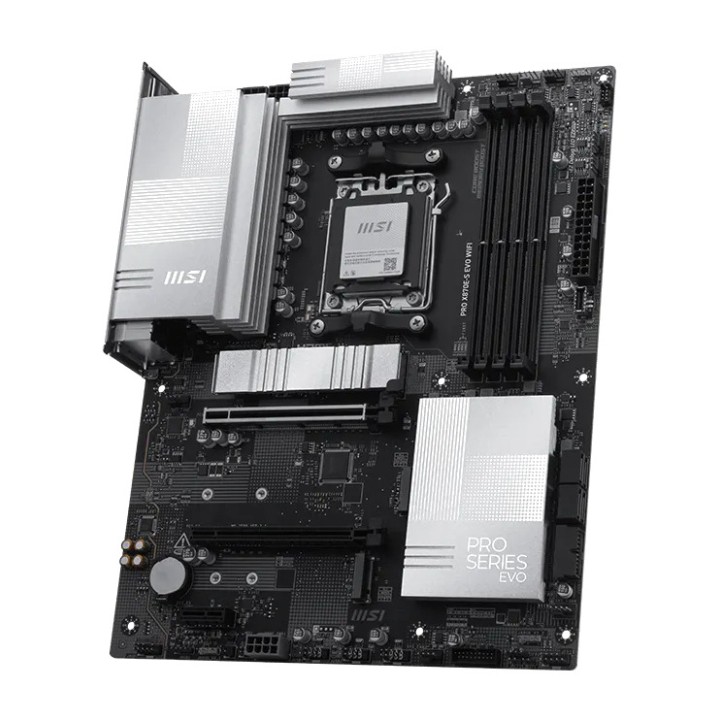

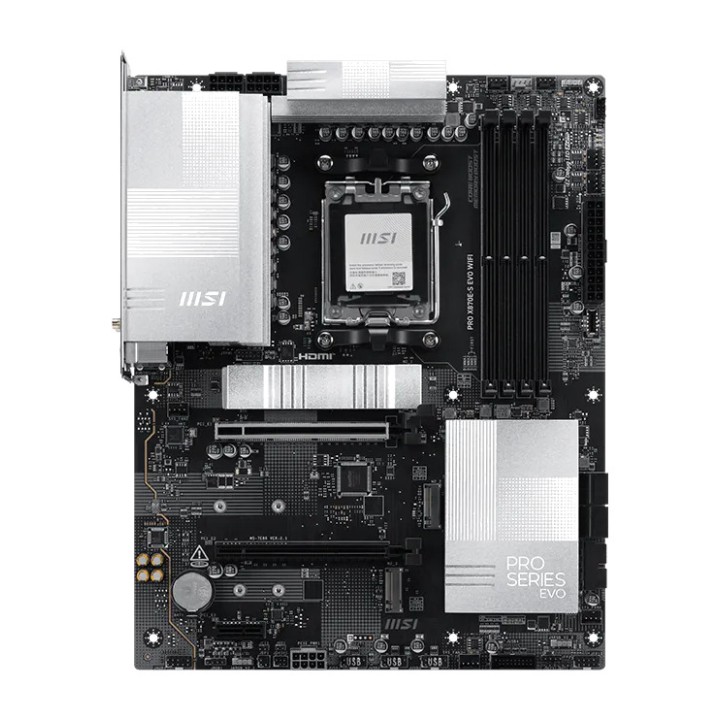

Features of the MSI PRO X870E-S EVO WIFI
The MSI PRO X870E-S EVO WIFI is a high-performance ATX motherboard designed for building professional systems, workstations and advanced computers based on AMD Ryzen™ processors. Equipped with the AMD X870E chipset and AM5 socket, it offers compatibility with Ryzen™ 9000, 8000 and 7000 Series processors, high-speed DDR5 memory, Wi-Fi 7 connectivity, 5G networking and PCIe 5.0 storage.
AMD AM5 platform ready for high performance
Thanks to the AMD X870E chipset, this motherboard provides a current, expandable platform for AMD Ryzen™ processors. Its AM5 socket supports different CPU generations, making it easy to configure a system suited to intensive productivity, content creation or professional tasks.

Chipset AMD X870E
Socket AM5
Compatible with AMD Ryzen™ 9000, 8000 and 7000 Series processors
ATX form factor

DDR5 memory up to 256 GB
Its four DDR5 UDIMM slots allow up to 256 GB of memory to be installed in a dual-channel configuration. The motherboard supports speeds of up to 8200+ MT/s via overclocking with Ryzen™ 9000 processors, as well as AMD EXPO™ profiles for easy performance tuning.

4 slots DDR5 UDIMM
Maximum capacity of 256 GB
DDR5 speeds from 5600 to 8200 MT/s via overclocking
JEDEC speeds from 4800 to 5600 MT/s
Compatible with AMD EXPO™ and memory overclocking
Dual-channel operation
Compatible with Non-ECC and Un-buffered memory
Compatible with CUDIMM in clock driver bypass mode

With AMD Ryzen™ 9000 Series processors, maximum overclocking frequencies depend on the installed configuration: up to 8200+ MT/s with 1DPC 1R, 6400+ MT/s with 1DPC 2R or 2DPC 1R, and 6000+ MT/s with 2DPC 2R.
CUDIMM compatibility, POR boot frequency and achievable speeds may vary depending on the processor and memory configuration. DIMM slots feature a retention latch on one side only.
PCIe 5.0 slot for advanced graphics cards
The MSI PRO X870E-S EVO WIFI has two PCIe x16 slots and one PCIe x1 slot. The primary slot connects directly to the processor and supports PCIe 5.0 x16 with Ryzen™ 9000 and 7000 processors, providing the bandwidth required for high-performance graphics cards.

1 PCIe 5.0 x16 slot from the CPU
1 PCIe 4.0 slot operating at up to x4 from the chipset
1 PCIe 3.0 x1 slot from the chipset
PCIe 5.0 x16 with Ryzen™ 9000 and 7000 Series
PCIe 4.0 x8 with Ryzen™ 8700, 8600 and 8400 Series
PCIe 4.0 x4 with Ryzen™ 8500 and 8300 Series

PCIe 5.0 and SATA M.2 storage
To create a fast and flexible storage system, the motherboard integrates three M.2 slots and four 6 Gb/s SATA connectors. The primary M.2 slot connects directly to the processor and can support PCIe 5.0 x4 drives, while the other two support PCIe 4.0 x4.

3 slots M.2
M.2_1 from CPU: PCIe 5.0 x4 and 2280 or 2260
M.2_2 from chipset: PCIe 4.0 x4 and 22110 or formats 2280
M.2_3 from chipset: PCIe 4.0 x4 and 2280 or formats 2260
4 SATA 6 Gb/s connectors

The M.2_1 slot operates at up to PCIe 5.0 x4 with Ryzen™ 9000 and 7000 processors, and up to PCIe 4.0 x4 with Ryzen™ 8000 processors. Refer to the motherboard manual for any M.2 SSD heatsink restrictions.
RAID configuration support
The motherboard lets you combine multiple drives to improve performance, capacity or redundancy using RAID configurations for SATA and NVMe storage.

RAID 0, RAID 1, RAID 5 and RAID 10 for SATA drives
RAID 0, RAID 1 and RAID 5 for M.2 NVMe drives
RAID 5 available with Ryzen™ 9000 and 7000 Series processors

Wi-Fi 7, Bluetooth 5.4 and 5 Gb/s LAN
Its network connectivity combines Wi-Fi 7, Bluetooth® 5.4 and 5G Ethernet, offering both wireless and wired options for fast transfers, online gaming, collaborative work and access to compatible devices.

Realtek controller ® 8126VB 5G LAN
Preinstalled Wi-Fi 7 module in M.2 Key-E slot
Support for 2.4 GHz, 5 GHz and 6 GHz bands
Channel width of up to 160 MHz
Wireless speed of up to 2.9 Gb/s
MU-MIMO TX/RX support
Compatible with 802.11 a, b, g, n, ac, ax and be
Bluetooth® 5.4, MLO and 4KQAM

6 GHz band availability depends on the regulations in each country. Wi-Fi 7 and Bluetooth® 5.4 require Windows® 11 version 24H2 and may vary depending on the driver or chipset manufacturer updates.
USB connectivity up to 40 Gb/s
The MSI PRO X870E-S EVO WIFI offers a wide selection of USB connections for peripherals, external storage and high-speed devices. Highlights include its 40 Gb/s USB Type-C port, alongside 20 Gb/s, 10 Gb/s and 5 Gb/s connections.

1 rear 40 Gb/s USB Type-C
1 rear USB 20 Gb/s Type-C
2 rear USB 10 Gb/s Type-A
1 front USB 10 Gb/s Type-C
2 rear USB 5 Gb/s Type-A
4 front USB 5 Gb/s Type-A
4 rear USB 2.0
6 front USB 2.0

HDMI and DisplayPort video outputs via USB-C
When a processor with integrated graphics is installed, the motherboard supports an HDMI™ 2.1 output with a resolution of up to 4K at 60 Hz and a DisplayPort 1.4 output via the USB4® Type-C port.

1 HDMI™ 2.1 output with TMDS port
Maximum HDMI resolution of 4K at 60 Hz
DisplayPort 1.4 with HBR3 via USB Type-C
Maximum DisplayPort resolution of 4K at 120 Hz

Image outputs are only available with processors that include integrated graphics. Graphics specifications may vary depending on the installed CPU.
7.1-channel high-definition audio
The Realtek® ALC897 codec provides high-definition audio with up to 7.1 channels, suitable for multimedia systems, video games, video conferencing and systems with surround sound configurations.

Realtek codec ® ALC897
High-definition audio
7.1-channel sound support

Internal connectors for cooling, lighting and expansion
The motherboard features numerous internal connectors for configuring a complete cooling, lighting and power system. It includes eight connections for fans or a pump, as well as RGB and Addressable RGB Gen 2 headers.

1 ATX power connector
2 CPU power connectors
1 8-pin PCIe power connector
1 CPU fan connector
1 combined pump or system fan connector
6 system fan connectors
2 JFP front panel connectors
1 JCI chassis intrusion detection connector
1 JAUD front audio connector
1 connector for JDASH settings controller
3 Addressable connectors V2 RGB LED JARGB_V2
1 JRGB RGB LED connector
1 TPM header compatible with TPM 2.0

Diagnostic and maintenance features
To facilitate installation and troubleshooting, it features four EZ Debug LEDs and an EZ Memory Detection LED. The rear panel also includes Clear CMOS and Flash BIOS buttons to simplify certain maintenance tasks.

4 EZ Debug LED indicators
1 EZ Memory Detection LED indicator
Clear CMOS button
Flash BIOS button

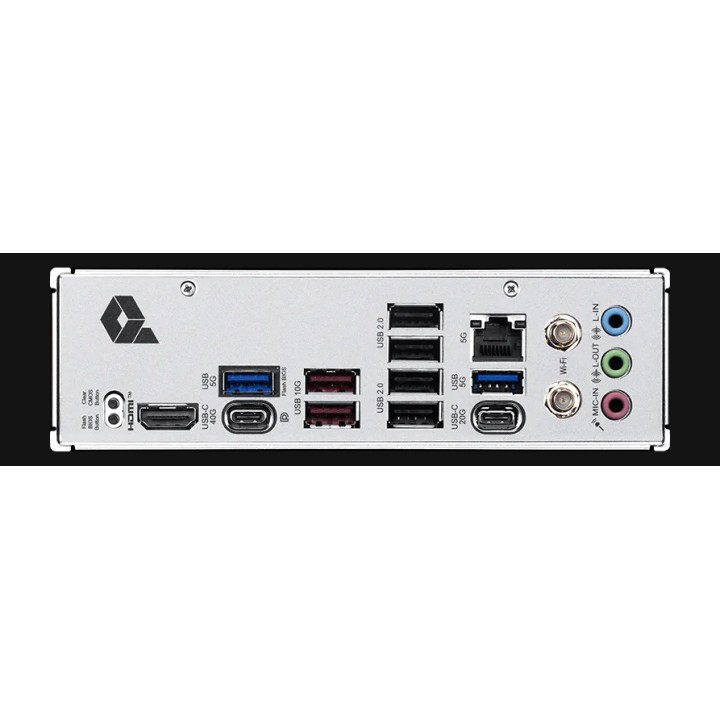

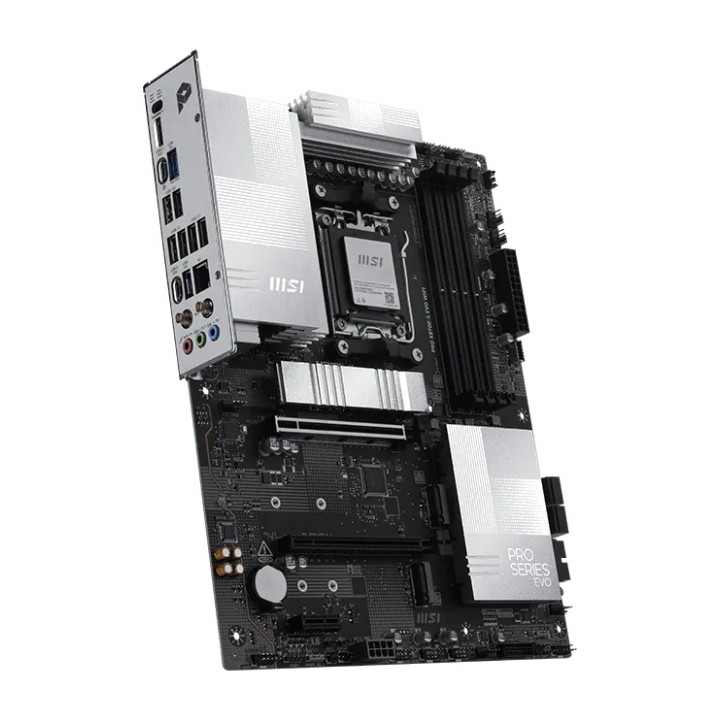

Rear panel connections
The rear panel brings together the motherboard’s main connections, including 5G networking, Wi-Fi and Bluetooth antennas, video and audio outputs, and high-speed USB ports.

Clear CMOS button
Flash BIOS button
HDMI™ output
USB 40 Gb/s Type-C
USB 20 Gb/s Type-C
USB 10 Gb/s Type-A
USB 5 Gb/s Type-A
USB 2.0
Port LAN 5G
Wi-Fi and Bluetooth connections
Audio connectors

ATX form factor and Windows compatibility 11
Measuring 304.8 x 243.84 mm, this motherboard uses the ATX form factor and is compatible with 64-bit Windows® 11, making it suitable for towers that support full-size motherboards.

ATX form factor
Dimensions: 304.8 x 243.84 mm
Compatible with 64-bit Windows® 11
Volume (m ³): 0.0075
