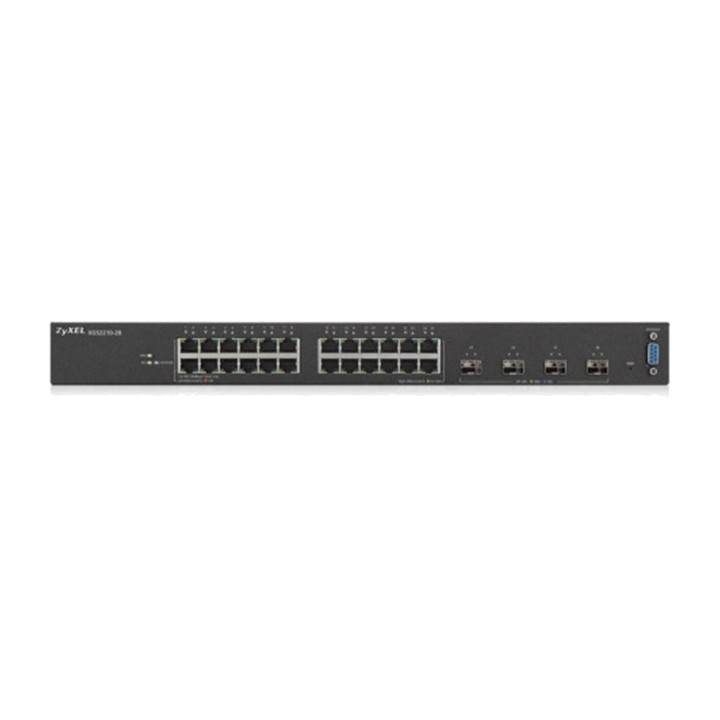

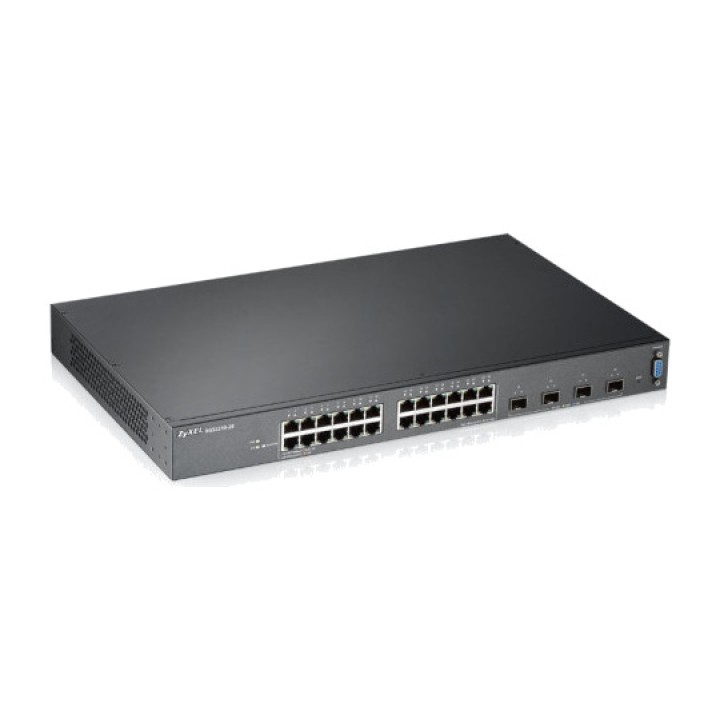

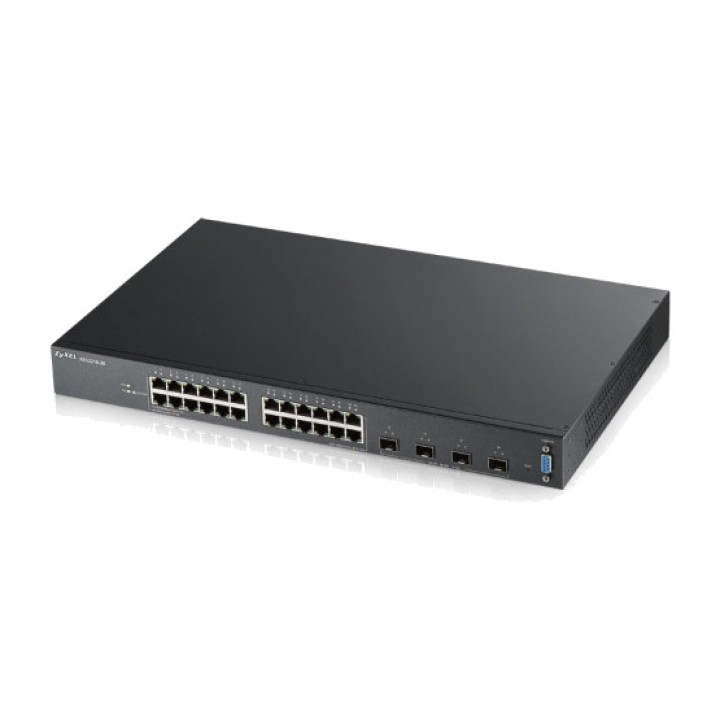

ZYXEL 24-port managed L2 Gigabit switch for rack mounting XGS2210-28 4X-SFP+ DSP0000042141

Zyxel Switch Features XGS2210-28
The Zyxel XGS2210-28 is a Layer 2 managed switch designed for networks that need a combination of Gigabit connectivity, high-speed links and advanced management features. It has 24 RJ-45 Gigabit Ethernet ports and 4 SFP+ slots, as well as 10G support, a switching capacity of 128 Gbit/s and a 1U rack-mount form factor.
24 Gigabit Ethernet ports and 4 SFP+ slots
Its port configuration allows numerous devices to be connected via Gigabit Ethernet 10/100/1000, while its SFP+ slots can be used for higher-speed links. 10G support provides a suitable solution for expanding the connection capacity of the network infrastructure.

24 RJ-45 Gigabit Ethernet ports 10/100/1000
4 slots for SFP+ modules
SUPPORT 10G
Link aggregation
Flow control support

High switching performance
The Zyxel XGS2210-28 provides a switching capacity of 128 Gbit/s and throughput of up to 95,2 Mpps. It also supports Jumbo Frames of up to 9000, has 8 queues and features a 1,5 MB packet buffer to manage network traffic.

Switching capacity: 128 Gbit/s
Throughput: 95,2 Mpps
MAC address table: 16000 entries
Jumbo Frames: Up to 9000
Number of queues : 8
Packet buffer : 1,5 MB
MAC address learning

Advanced network and VLAN management
As a Layer 2 managed switch, it offers tools designed to facilitate traffic control and organization. It features web-based management, QoS and VLAN support, and various mechanisms for controlling network traffic behavior and distribution.

Layer managed switch L2
Web-based management
Quality of Service (QoS) support
VLAN support
Private VLAN, Protocol-based VLAN and Port-based VLAN
Port mirroring
Rate limiting
Storm control
Spanning Tree Protocol
IP routing
ARP inspection
Traffic classification
System event log

Security and access control features
To strengthen control over connected devices and users, the switch integrates ACL, MAC-based authentication and various security protocols. It also features MAC address filtering, BPDU protection and filtering, and SSH/SSL support.

Access Control List (ACL)
MAC-based authentication
MAC address filtering
Supported algorithms and protocols: 802.1x RADIUS, SNMP, SSH and SSH-2
SSH/SSL support
BPDU protection and filtering
DHCP features: DHCP client
IGMP support

Network standards compatibility
The device is compatible with a wide range of IEEE standards, facilitating integration into network infrastructures with different technologies and management requirements.

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w and IEEE 802.1x
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af and IEEE 802.3at
IEEE 802.3az, IEEE 802.3u, IEEE 802.3x and IEEE 802.3z
Multicast support

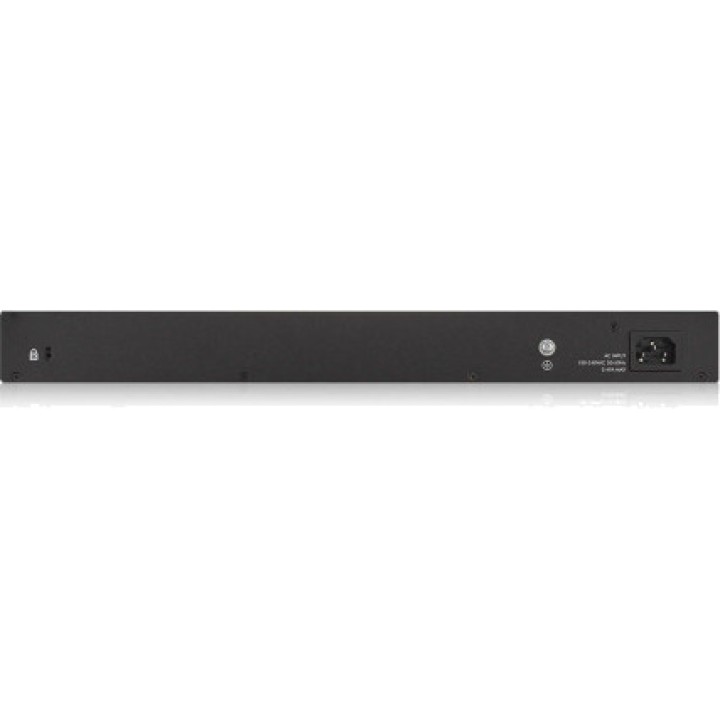

1U format for rack installation
Its black chassis has a 1U format designed for rack mounting, with dimensions of 441 x 270 x 45 mm. It is also stackable and features power and status LEDs for easy monitoring of the device.

Rack mounting: Yes
Form factor: 1U
Stackable: Yes
COLOUR: BLACK
LED indicators: power and status
Width: 441 mm
Depth: 270 mm
Height: 45mm
Weight: 3,7 kg

Power consumption and operating conditions
The Zyxel XGS2210-28 supports a power supply of 100 to 240 V and 50 to 60 Hz, with a specified maximum power consumption of 20 W. It is designed to operate at temperatures between 0 and 50 °C and relative humidity between 10 and 95%.

Input voltage AC: 100 - 240 V
AC input frequency: 50 - 60 Hz
Maximum consumption : 20 W
Operating temperature : 0 - 50 °C
Operating relative humidity : 10 - 95%
Storage temperature : -40 - 70 °C
Storage relative humidity : 10 - 90%
Heat dissipation: 68.2 BTU/h
PoE: No

Other specifications
The switch completes its feature set with Plug and Play functionality, MIB support and certifications for integration into network environments. The product includes an AC power cable and rack-mounting hardware.

Plug and Play: Yes
Mean time between failures: 831699 h
Electromagnetic compatibility : FCC 15 (A), CE (A), BSMI
Certification: RoHS
Safety: LVD, BSMI
MIB support: RFC 1066, RFC 1213, RFC 1493, RFC 1643, RFC 1757, RFC 2011, RFC 2233, RFC 2358, RFC 2674, RFC 2819, RFC 2925, RFC 3621, RFC 4022, RFC 4113, RFC 4292 and RFC 4293
Included cable: AC power
Mounting shelf included: yes
Package weight: 4.8 kg
Package dimensions: 622 x 358 x 108 mm
Volume (m ³): 0.0099
