TP-LINK 5 GHz outdoor access point for long-distance links PHAROS-MAXTREAM 300MBPS 13DBI CPE510

13dBi 5GHz 300Mbps Outdoor CPE CPE510

TP-LINK Pharos MAXtream technology
TDMA (Time-Division-Multiple-Access) improves product performance, the
capacity and latency, ideal for PTMP applications
Operating modes: AP / Client / Bridge/ Repeater / AP Router / AP Router
Client (WISP)
13dBi dual-polarized directional MIMO antennas and 2x2
Adjustable transmission power from 0 to 23 dBm.
System-level optimizations for wireless transmission over more than
15 kilometers of range
TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-
Access) technology improves the product's performance, capacity and latency,
ideal for PTMP applications
Centralized Management System - Pharos Control
Passive PoE adapter supports a maximum of 60 meters (200 feet) of
PoE deployment and allows the device to be reset remotely

Hardware Features
Qualcomm Atheros Enterprise AR9350B 560MHz CPU processor, MIPS
74Kc
DDR2 64MB RAM, Flash 8MB

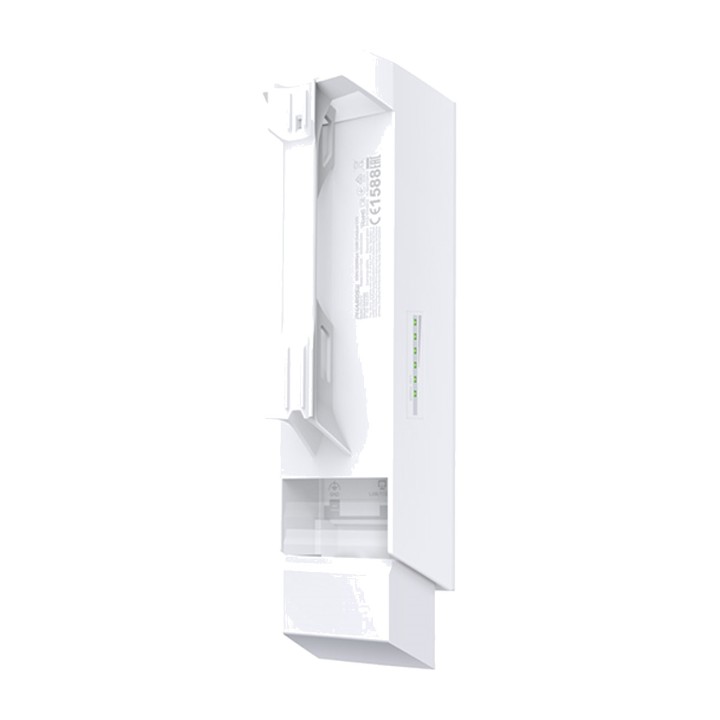

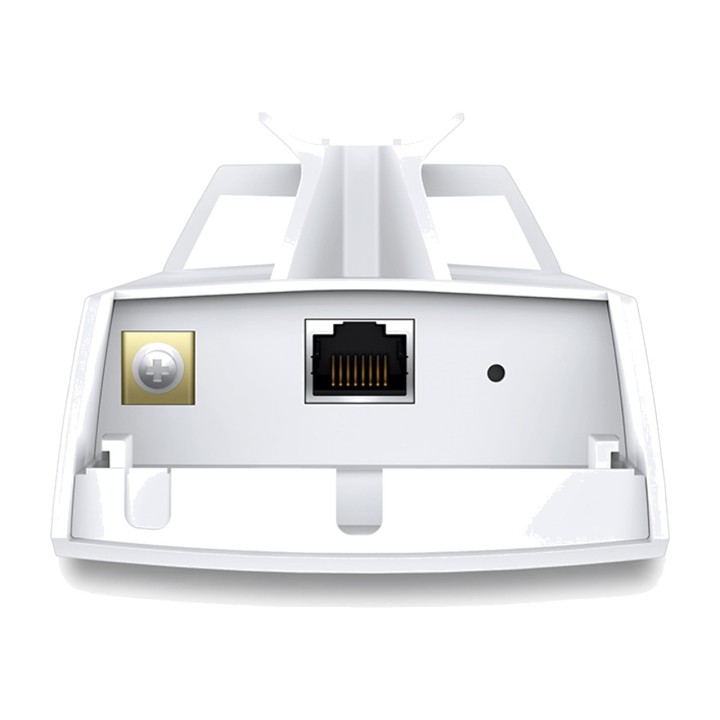

1 Shielded Ethernet Port Interface 10/100Mbps (LAN0, passive PoE input)
1 grounding terminal
1 Reset button
Power Supply Passive PoE Adapter via LAN0 (+4,5pins, -7,8pins)
Voltage range: 16-27VDC
Maximum Power Consumption of 10,5 W
Note: When configured using the passive PoE adapter, the power
obtained from the power supply will vary depending on the length of the
connection cable.
Dimensions 224 x 79 x 60 mm
Antenna Type 13dBi 2x2 Dual-Polarized Directional Antenna
Beamwidth: 45 (H-Plane) / 30 (E-Plane)
Note: For more details, please refer to the data sheet
Protection ESD protection of 15KV
Lightning protection of 6000V
Enclosure Outdoor ASA-stabilized plastic material
Waterproof Certification IPX5
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n (with Pharos MAXtream
disabled)
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Wireless Speed Up to 300Mbps (40MHz, Dynamic)
Up to 144.4Mbps (20MHz, Dynamic)
Up to 72.2Mbps (10MHz, Dynamic)
Up to 36.1Mbps (5MHz, Dynamic)
Frequency 5.15~5.85GHz
Note: The available operating frequency may vary depending on the
limitations of the countries or regions where the device is used.
Receive Sensitivity 802.11a:
54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm
802.11n:
MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm,
MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm,
MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm,
MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm,
MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm
Transmission Power 27dBm/500mw (adjustable power up to 1dBm)
Note: the maximum transmission power may vary across different
channels depending on the restrictions of the countries or regions in which the
device is used.
SOFTWARE FEATURES
Wireless Settings Pharos MAXtream TDMA Technology
802.11a/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmit Power Control
Dynamic Frequency Selection (DFS)
WDS Enabled/Disabled
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) encryption and
64/128/152-bit WEP encryption
SSID Broadcast Enabled/Disabled
Multi-SSID with VLAN tagging (AP mode only)
Distance/ACK timeout settings
Wireless MAC Address Filtering
Advanced Wireless Options:
>, Beacon Interval /RTS Threshold/Fragmentation
>,Threshold/ DTIM Interval/ AP Isolation/Short GI/Wi-Fi Multimedia
Management Detection and remote management via the Pharos app
CONTROL
HTTP/HTTPS web-based administration
System log
SNMP Agent (v2c)
Ping Watch Dog
Dynamic DNS
SSH Server
System Tools Wireless Signal Quality Indicators:
Signal strength / noise / Transmit CCQ / CPU / Memory
Monitoring: Throughput / Stations / Interfaces / ARP / Routes / WAN / DHCP
Spectrum Analyzer
Speed test
Ping
Traceroute
System-Level Optimizations Optimized IGMP Snooping / Proxy for
multicast applications
Hardware watchdog
POE ADAPTER SPECIFICATIONS
Dimensions (W*D*H) 110*57*33.5mm
Interfaces 1 AC jack with ground
1 Shielded 10/100Mbps Ethernet Port (Power + Data)
1 Shielded 10/100Mbps Ethernet Port (Data)
Button Remote Reset Button
Status LEDs Power Green: 0~0.8A
RED: 0.8A~1.0A
Input 100-240VAC, 50/60Hz
Input Voltage 100VA~240VAC @ 50Hz~60Hz
Input Current 0.8A Ma x @ 100VAC
Output 24VDC, 1.0A Max
+4, 5pins, -7, 8pins. (Supports up to 60m of Power over Ethernet)
Output Voltage 24VDC(+4,5pins, -7,8pins)
Efficiency > ,80%
Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
Others
Certifications CE, FCC, Ro HS, IPX5
Package Contents Outdoor Wireless CPE
Passive POE Adapter of 24V 0.5A
Mounting Straps
AC Power Cable
Installation guide
System requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or
Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend using one of the following browsers for an improved user experience:
Google Chrome, Safari and
Firefox. Internet Explorer is not recommended.
Environmental Factors Operating Temperature : -30C~70C (-
22~158)
Storage temperature : -40~70 (-40~158)
Operating humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
Volume (m ³): 0.0035
