PHOENIX High-density 19-inch server rack cabinet 15U 600X800MM DSP0000041222

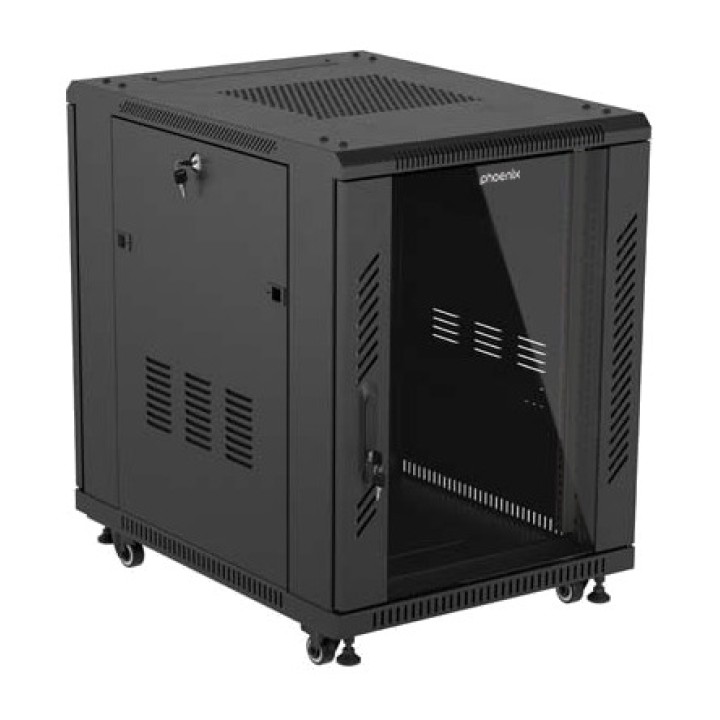

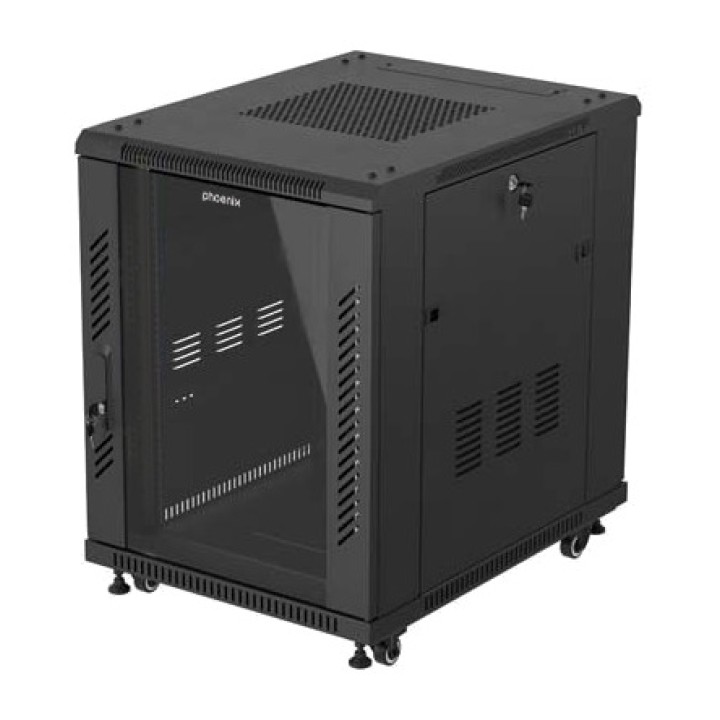

Features of the Phoenix Floor-Standing Cabinet x PHTN215800U 15U 19"
The Phoenix PHTN215800U Floor-Standing Cabinet combines a capacity of 15U with a depth of 800 mm, providing the space needed to install blade servers, large SAN/NAS storage systems, core switches and security appliances exceeding 600 mm in length. Its professional construction, included active ventilation and multiple cable access points make it possible to create an organised, secure network infrastructure ready for deep equipment.
800 mm depth for long equipment
Thanks to its 800 mm depth and 15 rack units, this cabinet provides space for devices that cannot be installed in conventional racks with a shallower depth. Its standard 19" format allows different communications, storage and security equipment to be integrated into a single structure.

Capacity of 15U

Maximum load capacity of 60 kg 19"
Depth: 800 mm
Width: 600 mm
Chassis height only (without accessories) 769 mm (76,9 cm) 769 mm (76,9 cm)
Height with M12 levelling feet ~840 - 842 mm (84,2 cm) 842 mm (84,2 cm)
Height with fixed / swivel castors 848 mm (84,8 cm) 848 mm (84,8 cm)
Usable internal height (15U) 666,75 mm (66,68 cm) 666,75 mm (66,68 cm)
Suitable for blade servers, SAN/NAS equipment, core switches and security appliances

Heavy-duty professional construction
The Phoenix PHTN215800U is made of 2,0 mm thick cold-rolled SPCC steel, providing a sturdy structure for professional installations. Its load capacity of 800 to 1.000 kg allows it to house heavy equipment, while the black powder-coated finish provides protection and a uniform appearance.

Material: cold-rolled SPCC steel

Steel thickness: 2.0 mm
Maximum load capacity: between 800 and 1.000 kg
Powder-coated finish
COLOR BLACK
Protection rating IP20

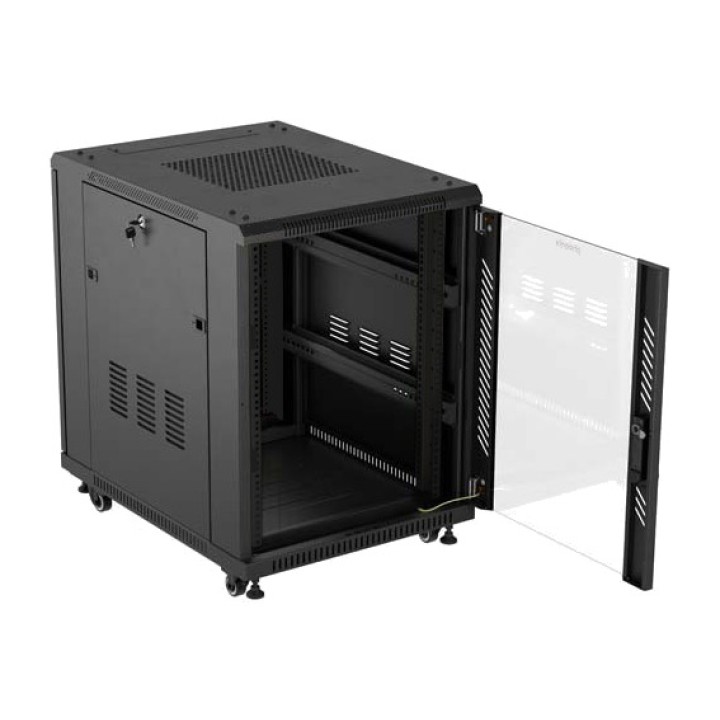

Double doors for convenient and secure access

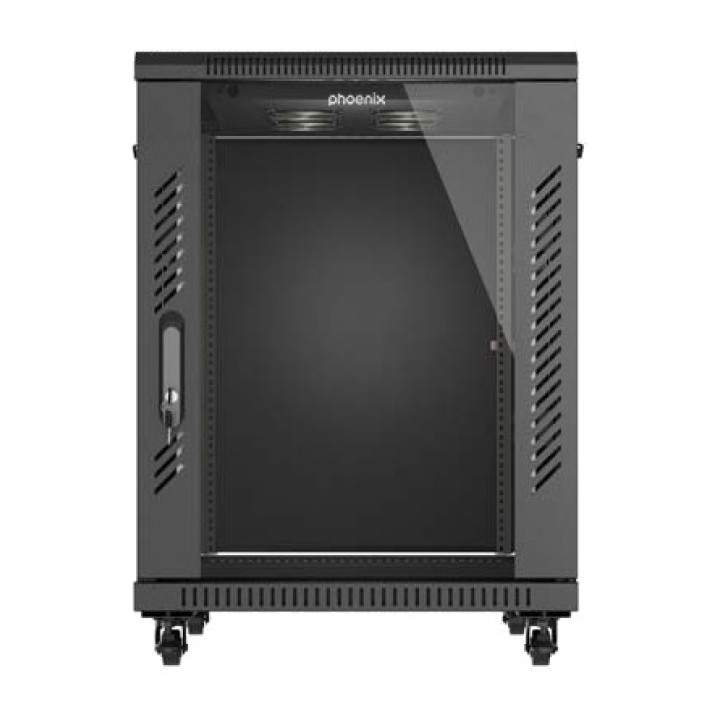

The cabinet features a tempered-glass front door and a steel rear door with double mesh. Both open more than 180° to facilitate equipment installation, connection and maintenance, and are fitted with spring-loaded security locks to control access to the interior.

Tempered glass front door

Steel rear door with double mesh
Doors open to more than 180°
Spring-loaded security locks

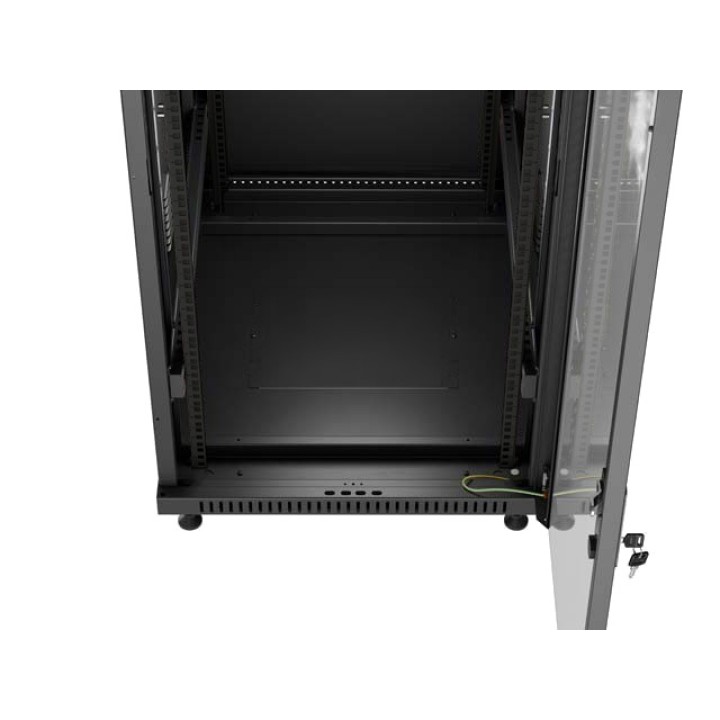

Front and rear access to the equipment

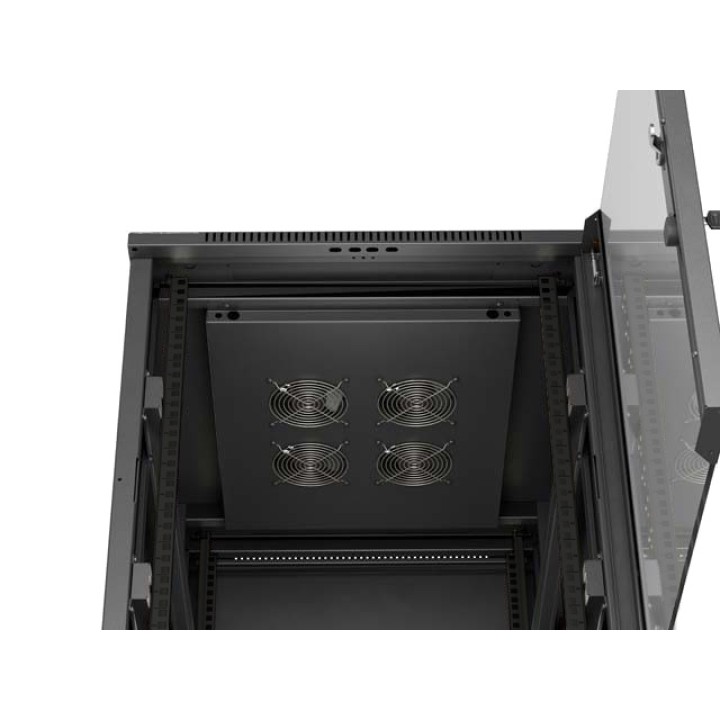

Active ventilation with four fans included
The top panel incorporates four fans to actively manage the internal temperature. This configuration promotes air circulation and helps remove the heat generated by servers, storage systems, switches and other devices operating continuously.

4 fans included

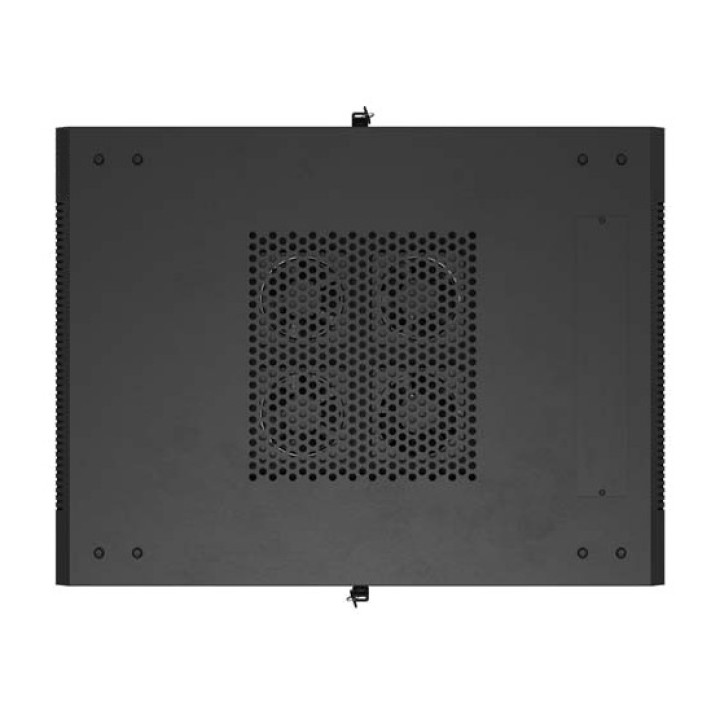

Fans installed in the top cover
Active thermal management
Suitable for installations with several devices operating simultaneously

Removable side panels

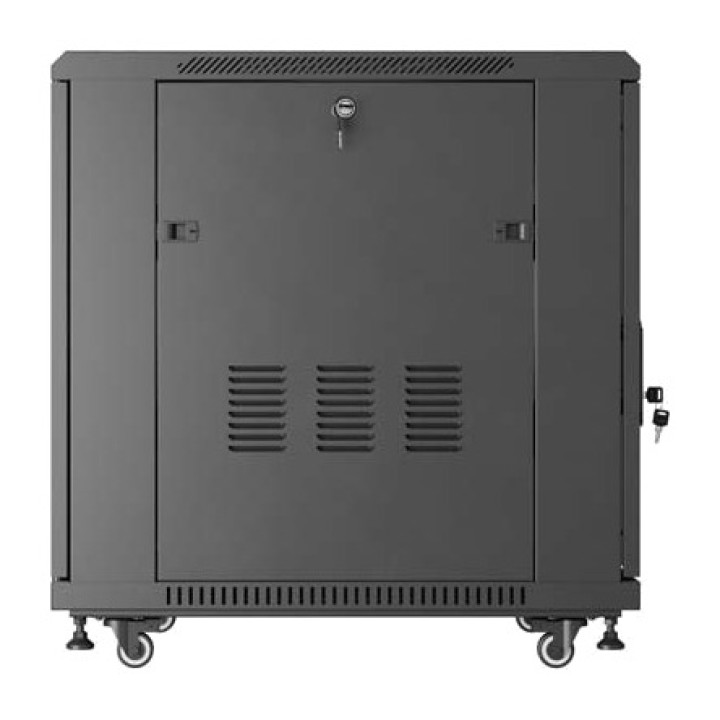

The removable side panels with locks provide convenient access to the interior from both sides. This configuration simplifies installation, maintenance and cable management without compromising the security of the installed equipment.

Removable side panels

Side security locks
Side access for installation and maintenance
Easier access to equipment and connections

Flexible and orderly cable management
The cabinet has cable entry holes in the top, bottom and rear panels. The different positions allow cable entry and exit to be adapted to the requirements of each installation, facilitating an organised layout of electrical and network connections.

Cable entry in the top panel

Cable entry in the bottom panel
Cable entry in the rear panel
Adaptable routing for network and power cables

Stable installation and controlled mobility
The Phoenix PHTN215800U includes four M12 levelling feet and four castors with brakes. The castors make it easier to move the cabinet during installation, while the brakes and adjustable feet allow it to be levelled and stabilised in its final position.

4 levelling feet M12

4 castors with brakes
Easier movement during assembly
Levelling and stabilisation on the floor

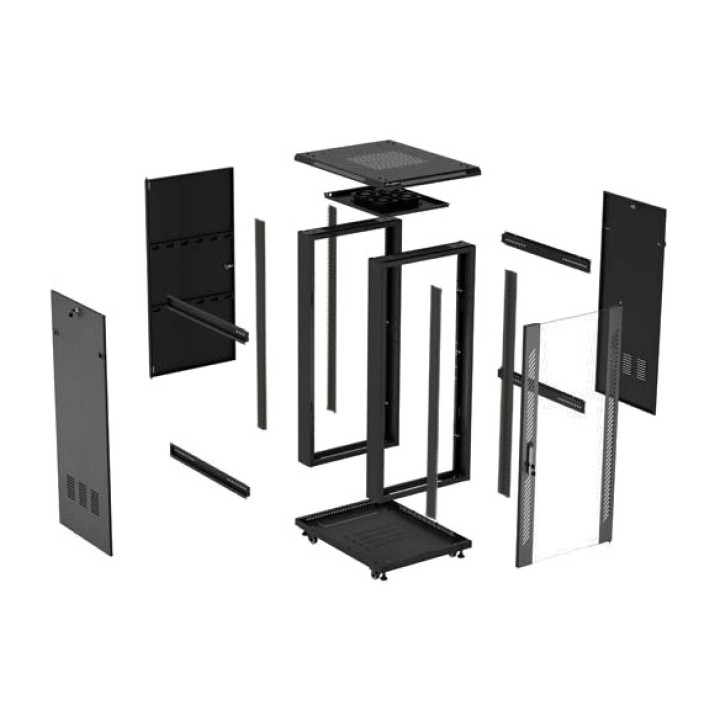

Supplied disassembled with accessories included

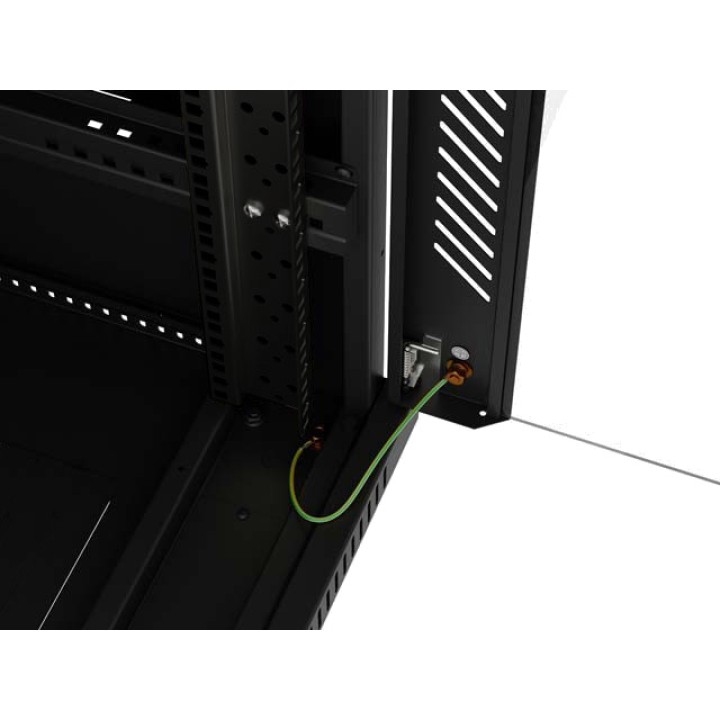

The cabinet is delivered disassembled and includes the components required to complete assembly and prepare the installation. It also includes grounding cables to correctly connect the various metal panels.

Front, rear and side locks

4 levelling feet M12
4 castors with brakes
4 fans
40 screws M6
Grounding cables

Technical specifications

Phoenix reference: PHTN215800U

EAN Code: 8436626132542
Rack units: 15U
Format: standard 19"
Width and depth dimensions: 600 × 800 mm
Load capacity: between 800 and 1,000 kg
Material: cold-rolled SPCC steel
Material thickness: 2.0 mm
Finish: Powder coating
Protection: IP20
COLOUR: BLACK
Front door: tempered glass, opens more than 180° and has a spring-loaded security lock
Rear door: double-mesh steel, opens more than 180° and has a spring-loaded security lock
Side panels: removable with lock
Ventilation: 4 fans included in the top cover
Cable openings: top, bottom and rear panels
Mounting type: floor
Supplied disassembled
Certifications: CE and RoHS

Applicable standards
The Phoenix PHTN215800U Floor-Standing Cabinet complies with the main standards applicable to 19" rack cabinets and telecommunications equipment.

ANSI/EIA RS-310-D

DIN 41491/PART 1
DIN 41494/PART 7
ETSI
IEC 297-2:1982
Volume (m ³): 0.2656
