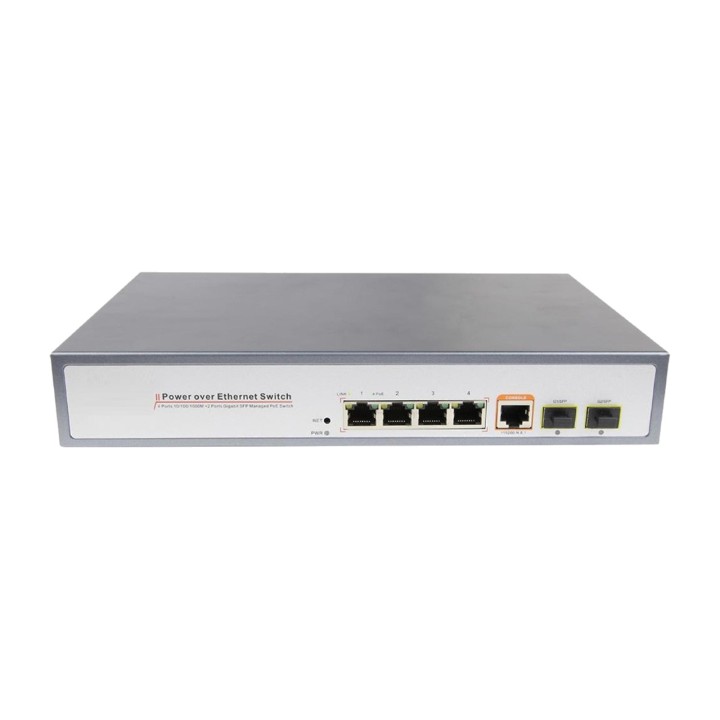

GALGUS Managed PoE switch with 4 Gigabit ports and 2 SFP G-SW-M4P2S MGS0000009210

MODEL: G-SW-M4P4S

Interface

4 POE 10/100/1000Base-T ports (data/power),

2 SFP 100/1000Base-X ports (data)

1 * RS232 console port (115200, N, 8,1)

POE port

Ports 1–4 compatible with PoE @ IEEE802.3af/at

Network protocol

IEEE802.3 10BASE-T, IEEE802.3i 10Base-T,

IEEE802.3u 100Base-TX,

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE802.3x

PoE standard

IEEE802.3af/en

Ethernet port function

10/100/1000Base-T, auto-detection, auto-negotiation
Full/half-duplex MDI/MDI-X

Fiber port function

Gigabit SFP interface (fiber module not included, must be
ordered separately; module options include single-mode/multimode,
single-fiber/dual-fiber, LC)

Forwarding mode

Store and forward (full wire speed)

Switching capacity

128 Gbps (non-blocking)

Forwarding rate at 64 bytes

11.90 Mpps

Mac

8K

Buffer memory

4M

Jumbo frames

9.6K

Twisted-pair transmission

10BASE-T: Cat3,4,5 UTP (100 meters) ,

100BASE-TX: Cat5 or later UTP (100 meters) ,

1000BASE-X: Cat5e or later UTP (100 meters)

Optical cable

Multimode: 850nm 0-550M, Single-mode: 1310nm 0-40KM,
1550nm 0-120KM.

Power supply pin

Default : 1/2 (+), 3/6 (-),

MAX./Average power per port

30 W/15,4 W

Total power/input voltage

65 W (AC 100-240 V)

power consumption

Standby: <,9W, Full load: < ,60W

LED

Power indicator: PWR (green), system indicator:
SYS (green), network indicator: Link (yellow), Fiber port
SFP: L/A (green), POE indicator: PoE (green),

Power supply

Built-in power supply,

100~240V AC 50-60Hz 1A

Operating temperature / humidity

-20~+55°C, 5%~90% RH non-condensing

Storage temperature / humidity

-40~+75°C, 5%~95% RH non-condensing

Dimension

270*181*44,5mm

Net / gross weight

<,1,5 kg / <,2,0 kg

Installation method

Desktop type, 19-inch 1U cabinet installation

Lightning protection port / protection level

Port lightning protection: 4KV 8/20us,

Protection level: IP30

CERTIFICATION

CCC, CE Mark, commercial, CE/LVD EN60950, FCC Part 15 Class
B, RoHS,

warranty

3 years, lifetime maintenance.
Managed series function

Interface

IEEE802.3x flow control (full duplex)

Broadcast storm suppression for port rate

supports the speed limit for message traffic
incoming and offline, with a minimum packet size
of 64 Kbps.

Temperature protection setting

EEE Ethernet port power-saving configuration

PoE Management

Total PoE power supply limit

PoE output power allocation per port, close /af/at

PoE output priority configuration for each port

Display of PoE operating status per port

Power-on delay start

PoE time and work scheduling

Layer 3 function

Supports managed function L2 +,

Management support IPV4/IPV6

Supports Layer 3 soft routing forwarding (weak three
levels),

Supports communication between different network segments,
different VLANs

Supports static routing/default routing
128, 1024 ARP software forwarding

VLAN

Supports port-based VLAN (4K), IEEE802.1q

Supports protocol-based VLAN

Supports three port configuration types: access, trunk, hybrid
ports

Supports QinQ configuration

Port Aggregation

Supports LACP

Supports static aggregation

Supports up to 8 aggregation groups, each group
of aggregation supports 8 ports.

Spanning Tree

STP (IEEE802.1d)

RSTP (IEEE802.1w)

MSTP (IEEE802.1s)

Industrial ring network protocol

Supports G.8032 (ERPS), supports a maximum of 255 rings and
supports 1024 devices per ring.

The self-healing time of the ring network is less than 20
ms.

Multicast

Supports IGMP Snooping V1/V2 and supports a maximum of 1024 multicast groups.
multicast at most.

Supports the user fast-leave mechanism

Supports MLD Snooping V1/V2

Supports multicast VLAN


Bidirectional traffic mirroring supported on the port
basic

QoS

Differentiated services QoS

Each port supports 8 egress queues

Supports 802.1p/DSCP priority mapping

Supports queue scheduling mechanisms (SP, WRR,
SP+WRR)

Priority tag Mark/Remark

Sequence-based packet filtering

Supports sequence-based redirection

Supports flow-based rate limiting

ACL

Supports L2 to L4 packet filtering; can
match the first 80 bytes of the message, providing
based on the source MAC address, destination MAC address,
source IP address, destination IP address, the
IP protocol type, TCP/UDP port, TCP/UDP port range,
VLAN and other ACL definitions.

Supports ACLs based on port and VLAN

Security features

Supports user rating management and protection
with a password

Supports IEEE802.1X authentication/MAC address authentication
centralized

Supports AAA and RADIUS authentication

Supports the number of learning restrictions
MAC addresses

Supports MAC address blackholing

Supports SSH 2 to provide secure passwords for the
user login.

Supports SSL to ensure the security of transmission
Data

Supports port isolation

Supports the ARP message rate-limiting function

Supports IP source address protection

Supports the ARP intrusion detection function

Supports protection against DoS attacks

Supports port broadcast message suppression

Supports the host data backup mechanism

IP+MAC+VLAN+ port binding capabilities

DHCP

Supports DHCP client

Supports DHCP snooping

DHCP server support

Compatible with DHCP relay

Management and Maintenance

Support console/AUX modem/Telnet/SSH2.0 configuration
CLI command line

WEB network management support (HTTPS)

Supports FTP, TFTP, Xmodem file download management,
SFTP

SUPPORT SNMP V1/V2C/V3

Support bond reduction

Supports NTP clock

Supports system job logging

Supports ping detection

Supports cable status detection

Supports viewing instantaneous CPU utilization status

Supports the LLDP Link Layer Discovery Protocol

Supports the NMS intelligent management center
Compatible with the Galgus "Cloud network management system
Manager"

System requirements

Web browser: Mozilla Firefox 2.5 or later, browser
Google Chrome V42 or later, Microsoft Internet Explorer10 or
later,

Cat5e Ethernet cable or later,

TCP/IP, network adapter and network operating system (Microsoft
Windows, Linux or Mac OS X) installed on each computer
on the network.
Volume (m ³): 0.0052
