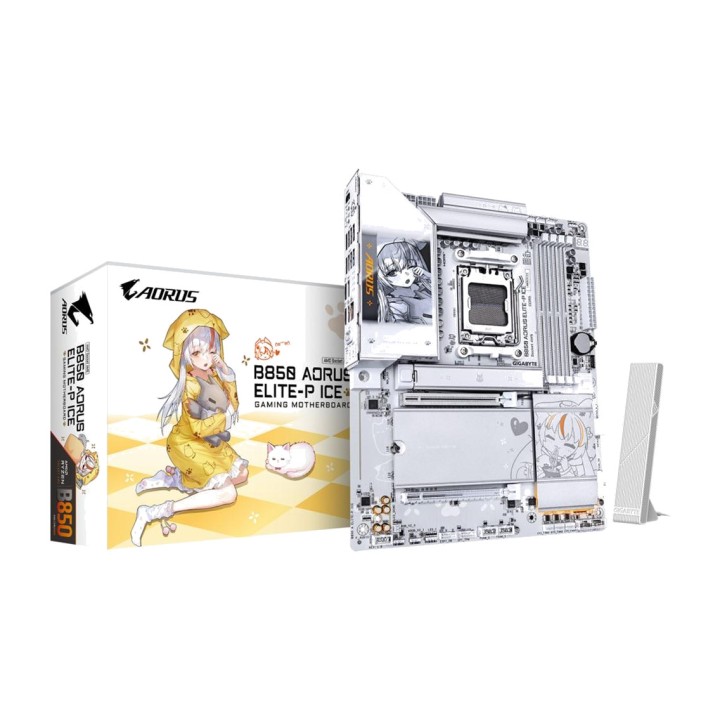

GIGABYTE ATX motherboard for AMD B850 AORUS ELITE-P ICE AM5 DSP0000043082

Motherboard Features GIGABYTE B850 A ELITE-P ICE AM5 ATX

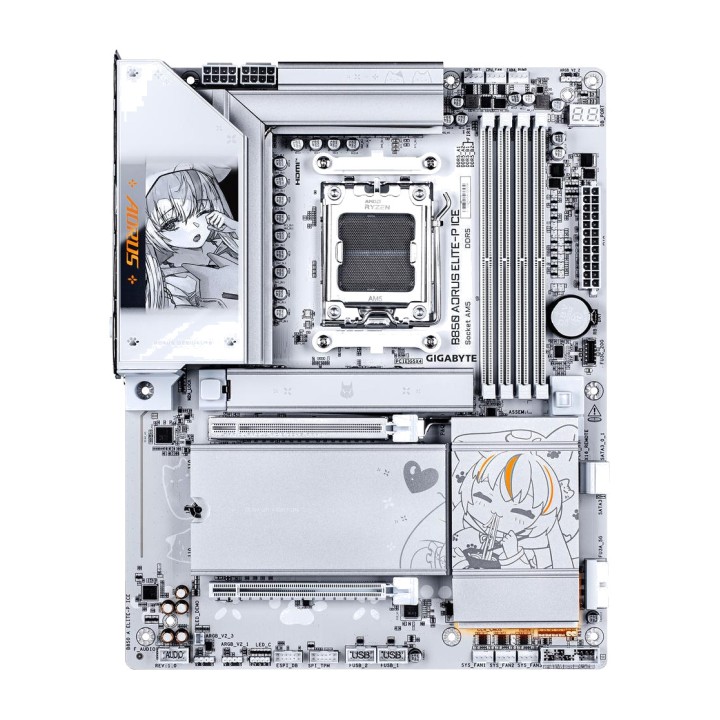

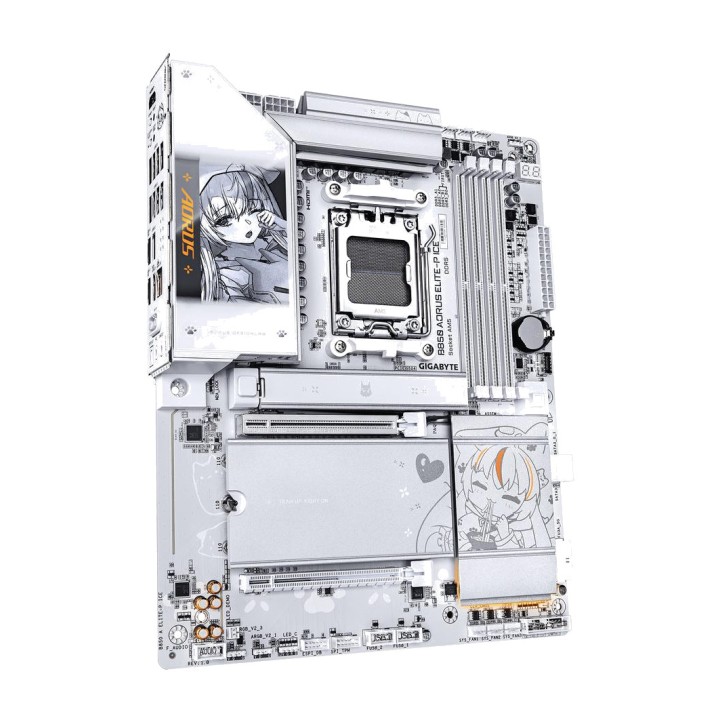

The GIGABYTE B850 A ELITE-P ICE is an ATX motherboard with an AMD AM5 socket and B850 chipset, ready for high-performance configurations with AMD Ryzen 9000, 8000 and 7000 Series processors. It supports high-speed DDR5 memory, four M.2 connectors, PCI Express 5.0, 5 GbE networking, Wi-Fi 7 and extensive USB connectivity, making it a versatile foundation for gaming PCs, workstations and high-performance computers.
AM5 socket and chipset AMD B850
Its AMD AM5 platform with B850 chipset supports different generations of Ryzen processors and provides a foundation ready to take advantage of current memory, storage and connectivity technologies. Specific compatibility may vary depending on the installed processor.

Socket : AMD AM5
Chipset : AMD B850
Compatible with AMD Ryzen 9000 Series processors
Compatible with AMD Ryzen 8000 Series processors
Compatible with AMD Ryzen 7000 Series processors

DDR5 memory up to 256 GB
The motherboard features four DDR5 DIMM slots with dual-channel architecture and supports up to 256 GB of total memory. It is also compatible with AMD EXPO and XMP profiles, making it easy to use memory modules designed for higher-performance configurations.

4 x slots DDR5 DIMM
Maximum capacity : 256 GB
Maximum capacity per module : 64 GB
Dual Channel memory architecture
Supported speeds: DDR5 8200(O.C.) / 8000(O.C.) / 7950(O.C.) / 7900(O.C.) / 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5200 / 4800 / 4400 MT/s
Compatible with non-ECC Un-buffered DIMM 1Rx8, 2Rx8 and 1Rx16
Compatible with AMD EXPO and XMP
Supported speeds, memory types and number of modules may vary depending on the processor and installed configuration

PCI Express 5.0 for graphics cards and high-performance devices
The primary PCI Express slot is connected directly to the processor and can provide PCIe 5.0 x16 with Ryzen 9000 and 7000 Series processors. It also has a second PCIe slot connected to the chipset to expand installation options.

1 x PCI Express x16 PCIEX16 integrated into the CPU
Ryzen 9000/7000 Series: PCIe 5.0 x16
Ryzen 8000 Series Phoenix 1: PCIe 4.0 x8
Ryzen 8000 Series Phoenix 2: PCIe 4.0 x4
The PCIEX16 slot supports a graphics card or an NVMe SSD
For configurations with a single graphics card, the slot must be used PCIEX16
1 x PCI Express x16 PCIEX4 connected to the chipset, compatible with PCIe 4.0 and operation x4

Four M.2 connectors and SATA storage
The GIGABYTE B850 A ELITE-P ICE provides four M.2 connections for NVMe SSDs, including an interface that can operate with PCIe 5.0 when paired with Ryzen 9000 and 7000 Series processors. It also features two SATA 6 Gb/s ports and support for various RAID configurations.

1 x M.2 M2A_CPU, Socket 3, M key, compatible with SSD 2580/2280
M2A_CPU with Ryzen 9000/7000 Series: PCIe 5.0 x4/x2
M2A_CPU with Ryzen 8000 Series Phoenix 1: PCIe 4.0 x4/x2
M2A_CPU with Ryzen 8000 Series Phoenix 2: PCIe 4.0 x4/x2
1 x M.2 M2B_CPU, Socket 3, M key, compatible with SSD 22110/2280
M2B_CPU with Ryzen 9000/7000 Series: PCIe 4.0 x4/x2
M2B_CPU with Ryzen 8000 Series Phoenix 1: PCIe 4.0 x4/x2
M2B_CPU with Ryzen 8000 Series Phoenix 2: PCIe 4.0 x4/x2
2 x M.2 M2C_SB/M2D_SB, Socket 3, M key, for 22110/2280 PCIe SSDs 4.0 x4/x2
The PCIEX4 slot shares bandwidth with M2D_SB and is unavailable when a device is installed in this connector M.2
2 x SATA 6 Gb/s connectors
RAID 0, RAID 1, RAID 5 and RAID 10 for NVMe storage
RAID 5 available only with AMD Ryzen 9000 Series processors
RAID 0 and RAID 1 for SATA devices

Wi-Fi 7, Bluetooth 5.4 and 5 GbE LAN
For network connections, the board integrates Realtek LAN up to 5 GbE and Wi-Fi 7 wireless connectivity. The Realtek RTL8922AE module operates on the 2.4, 5 and 6 GHz bands and includes Bluetooth 5.4 for connecting compatible peripherals and devices.

Realtek 5GbE LAN: 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps
Realtek Wi-Fi 7 RTL8922AE
Compatible with 802.11a/b/g/n/ac/ax/be
Frequency bands: 2.4 GHz / 5 GHz / 6 GHz
Compatible with the 160 MHz 11be standard
Bluetooth 5.4
Wi-Fi 7 features require Windows 11 SV3 and do not have a driver compatible with Windows 10
The availability of Wi-Fi 7 channels in the 6 GHz band depends on the regulations in each country
The Bluetooth version may vary with updates from the chip manufacturer
Actual wireless speed may vary depending on the environment and equipment used

Realtek ALC1220 high-definition audio
The audio section is managed by the Realtek ALC1220 codec, which supports high-definition audio and multichannel configurations of up to 7.1 channels. It also features an optical S/PDIF output for compatible sound systems.

Realtek ALC1220 CODEC
High Definition Audio
Compatible with 2 / 4 / 5.1 / 7.1 channels
S/PDIF output
The rear panel line-out supports DSD audio
The functionality of the audio jacks can be changed via software
7.1 audio configuration is performed via the audio software

HDMI output for integrated graphics
When the installed processor features compatible integrated AMD Radeon graphics, the motherboard’s HDMI 2.1 output can be used directly, supporting resolutions up to 4096 x 2160 at 60 Hz.

1 x HDMI
Maximum resolution: 4096 x 2160 at 60 Hz
COMPATIBLE WITH HDMI 2.1
COMPATIBLE WITH HDCP 2.3
HDR compatible
Native port compatible with HDMI 2.1 TMDS
Graphics availability and features depend on the installed processor

Extensive USB connectivity
The motherboard offers a comprehensive selection of USB connections on both the rear panel and via internal headers. Of particular note is USB Type-C with USB 3.2 Gen 2x2, available via an internal header and designed for cases with a compatible high-speed front USB-C connection.

2 x USB Type-C on the rear panel with USB 3.2 Gen 2, managed by the CPU
2 x red USB 3.2 Gen 2 Type-A on the rear panel, managed by the CPU
4 x USB 2.0/1.1 on the rear panel via CPU + hub USB 2.0
1 x USB Type-C USB 3.2 Gen 2x2 via chipset internal header
2 x USB 3.2 Gen 1 via internal header
4 x USB 2.0/1.1 via internal headers
4 x USB 3.2 Gen 1 on the rear panel via chipset + USB 3.2 Gen 1 hub

Internal connectors for cooling, RGB and expansion
Its internal layout facilitates the assembly of advanced systems thanks to dedicated connectors for fans, liquid-cooling pumps and RGB lighting systems. It also includes the headers required for front-panel, USB and TPM connections.

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan connector
1 x CPU fan or liquid-cooling pump connector
3 x system fan connectors
1 x system fan or liquid-cooling pump connector
3 x Gen2 addressable RGB LED strip connectors
1 x RGB LED strip connector
4 x M.2 Socket 3 connectors
2 x SATA 6 Gb/s connectors
1 x front panel connector
1 x front panel audio connector
1 x USB Type-C header with USB 3.2 Gen 2x2
1 x USB 3.2 Gen 1 header
2 x headers USB 2.0/1.1
1 x Trusted Platform Module header compatible only with the module GC-TPM2.0 SPI V2
1 x reset jumper
1 x Clear CMOS jumper

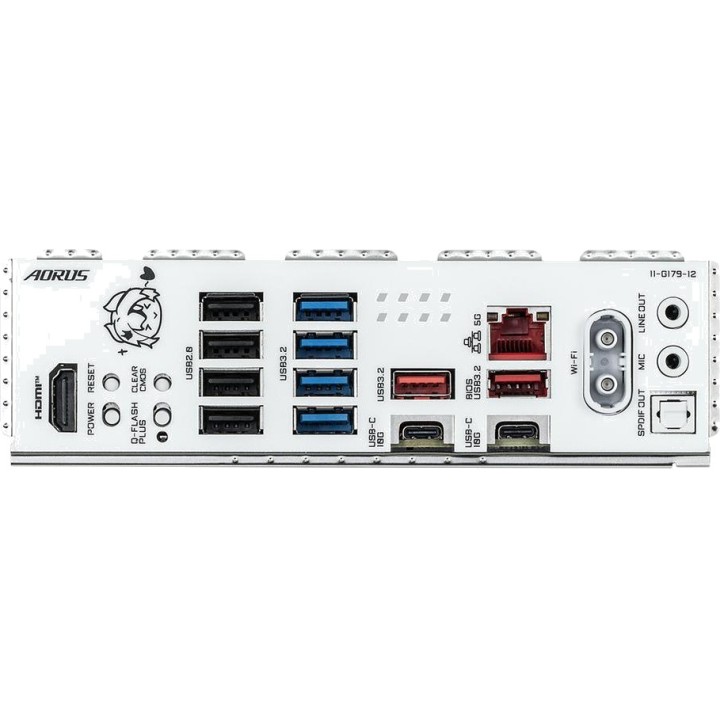

Rear panel ready for comprehensive connectivity
The rear I/O panel brings together USB-C, USB 3.2, 5 GbE LAN, Wi-Fi antenna connectors, HDMI and digital audio. It also features physical buttons for power, reset, clearing CMOS and updating the BIOS via Q-Flash Plus.

1 x HDMI, compatibility depends on the installed CPU
1 x Reset button
1 x Power button
1 x Clear CMOS button
1 x Q-Flash Plus button
4 x USB 2.0/1.1
4 x USB 3.2 Gen 1
2 x red USB 3.2 Gen 2 Type-A
2 x USB Type-C with USB 3.2 Gen 2
1 x RJ-45
2 x antenna connectors 2T2R
2 x audio connectors
1 x optical S/PDIF output

System monitoring and control
The motherboard features temperature, voltage, fan and liquid cooling monitoring functions, allowing you to monitor various system parameters and control the speed of compatible cooling systems.

Voltage detection
Temperature detection
Fan speed detection
Liquid cooling flow rate detection
Fan failure warning
Fan speed control
Speed control availability depends on the installed fan or pump
I/O controller: iTE I/O Controller Chip

UEFI BIOS and GIGABYTE features
The GIGABYTE B850 A ELITE-P ICE uses AMI UEFI BIOS with 512 Mbit flash memory and provides GIGABYTE's own tools to facilitate system configuration, updating and management.

1 x 512 Mbit flash memory
Licensed AMI UEFI BIOS
PnP 1.0a
DMI 2.7
WfM 2.0
SM BIOS 2.7
ACPI 5.0
Compatible with GIGABYTE Control Center GCC
Applications and features available in GCC may vary depending on the model and its specifications
Compatible with Q-Flash
Compatible with Q-Flash Plus
Compatible with Smart Backup

ATX form factor and Windows compatibility 11
Measuring 30,5 x 24,4 cm and using the ATX form factor, this motherboard is designed for cases compatible with this standard. Its officially supported operating system is 64-bit Windows 11.

Format: ATX
Dimensions: 30,5 x 24,4 cm
Supported operating system: 64-bit Windows 11
Included software: Norton Internet Security, OEM version
Volume (m ³): 0.0073
