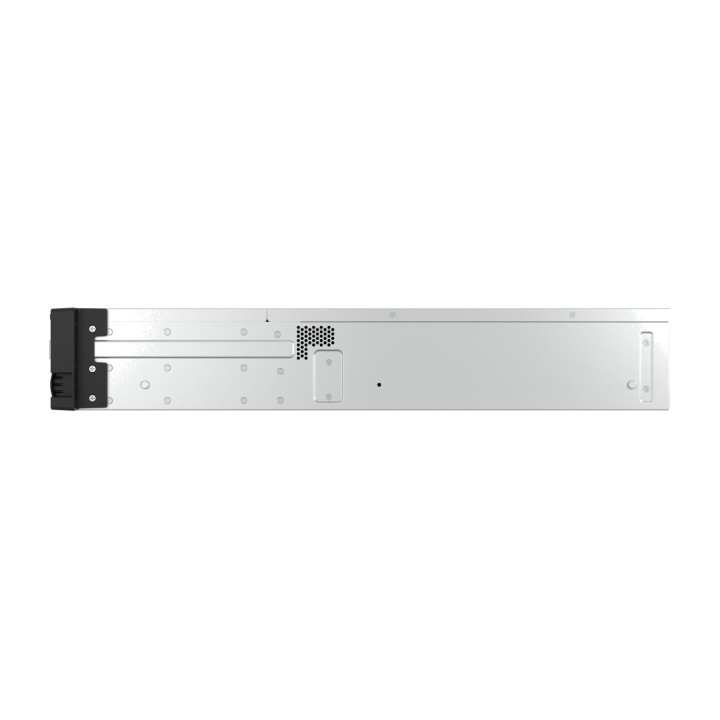

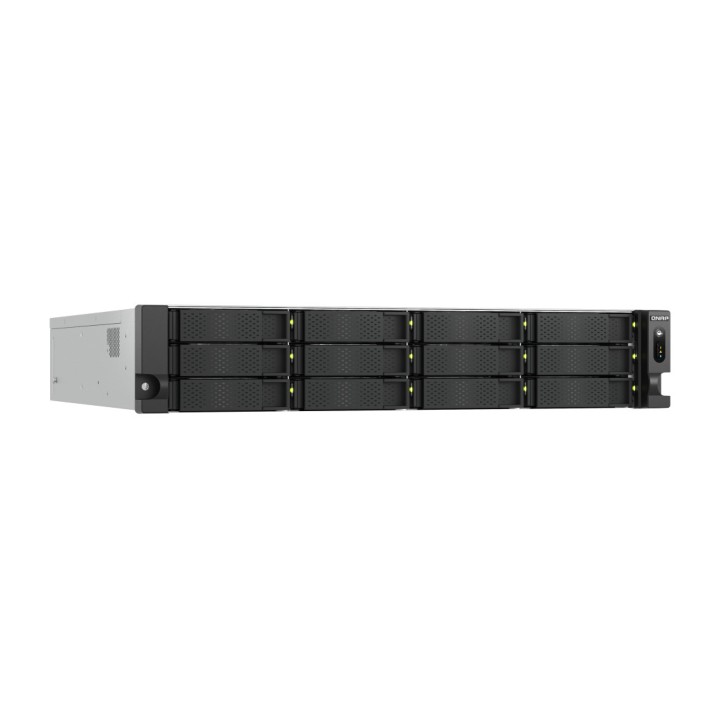

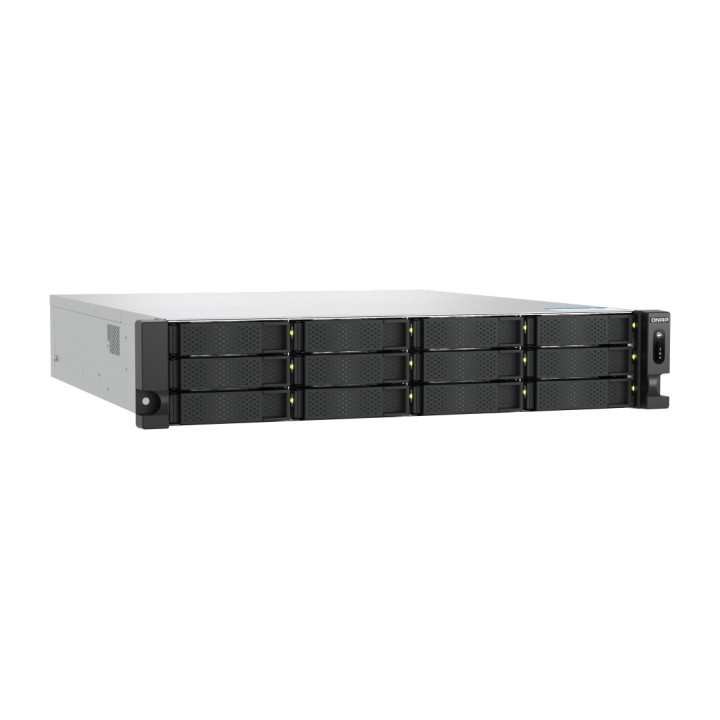

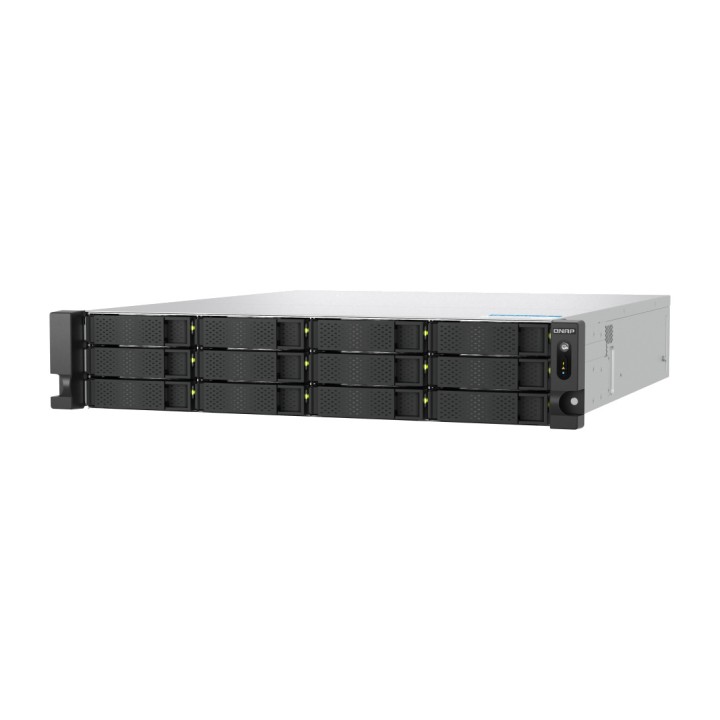

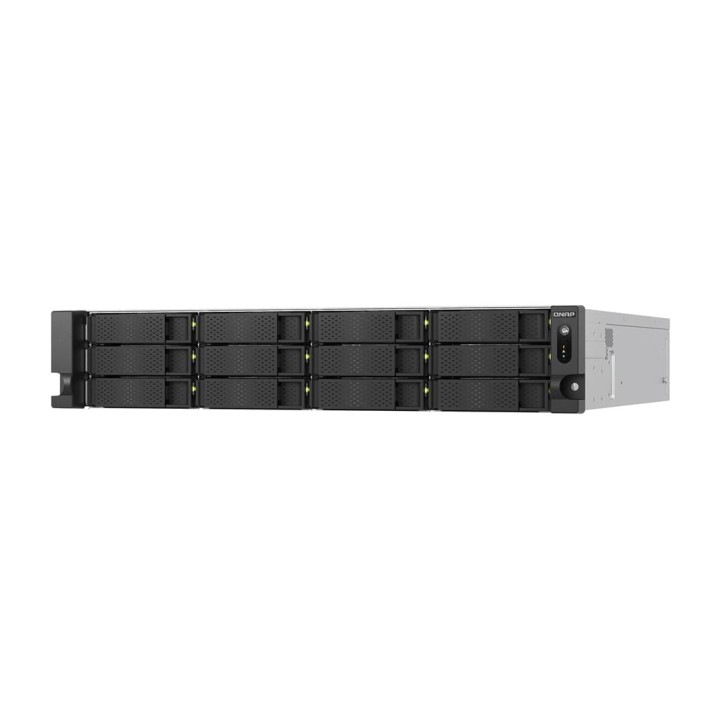

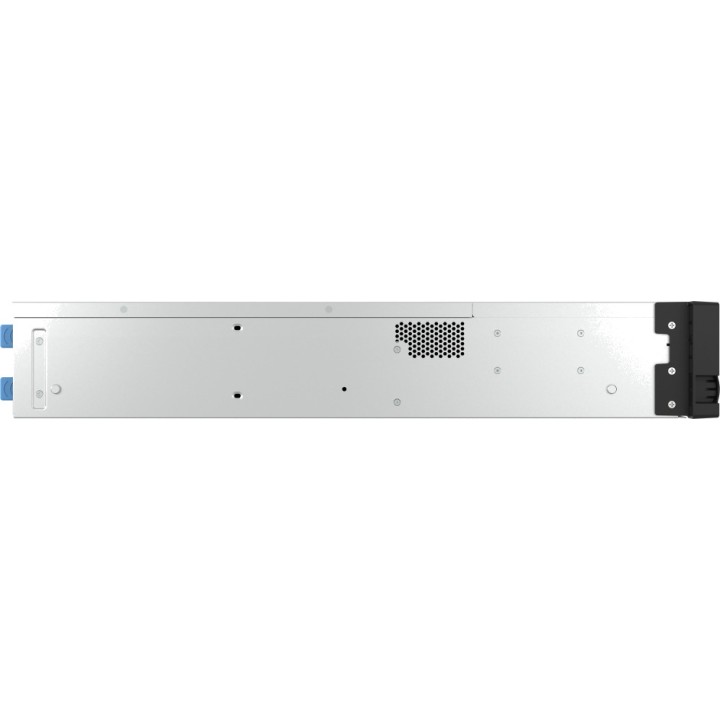

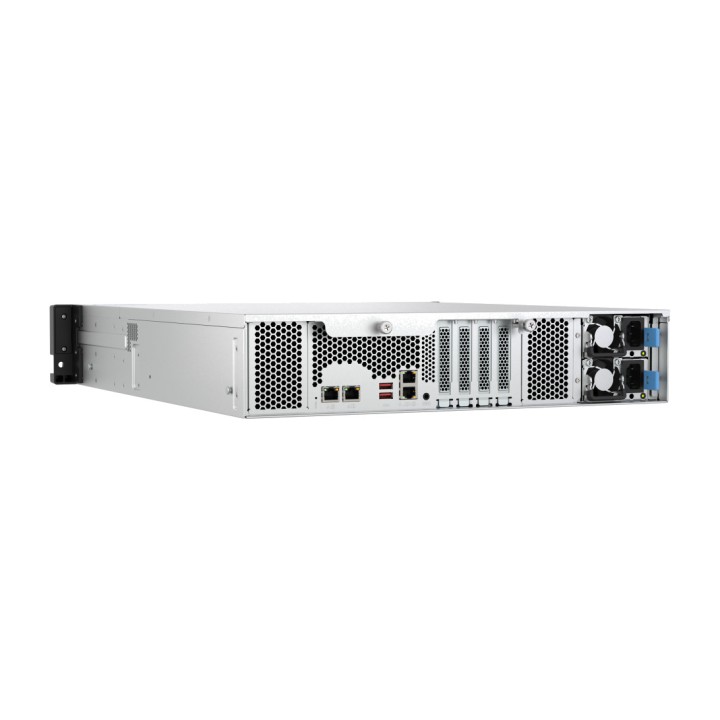

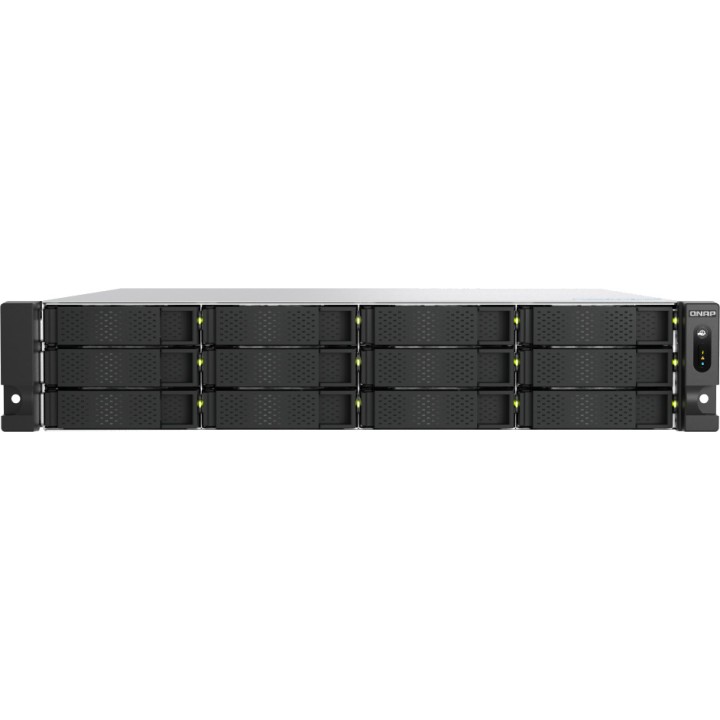

QNAP 12-bay rackmount NAS server without drives TS-H1277AXU-RP 2U RYZEN-7 32GB 10GBE DSP0000030218

```
-GENERAL-
Device Type NAS Server
Case type: Rackmount - 2U
Total storage capacity 0 GB
Installed devices / Number of modules 0 (installed) / 12 (max.)
Width 43.2 cm
Height 8.86 cm
Depth 51.12 cm
Weight 13 kg
Integrated devices LED panel, 3 60 mm fans, vibration
Host connectivity 2.5 Gigabit Ethernet / 10 Gigabit Ethernet

-EXPANSION / CONNECTIVITY
Expansion bays 12 (total) / 12 (available) x hot-swap - 2.5" / 3.5"
Expansion slots
2 (total) / 2 (available) x M.2 2280
3 (total) / 3 (available) x PCI Express 4.0 x4

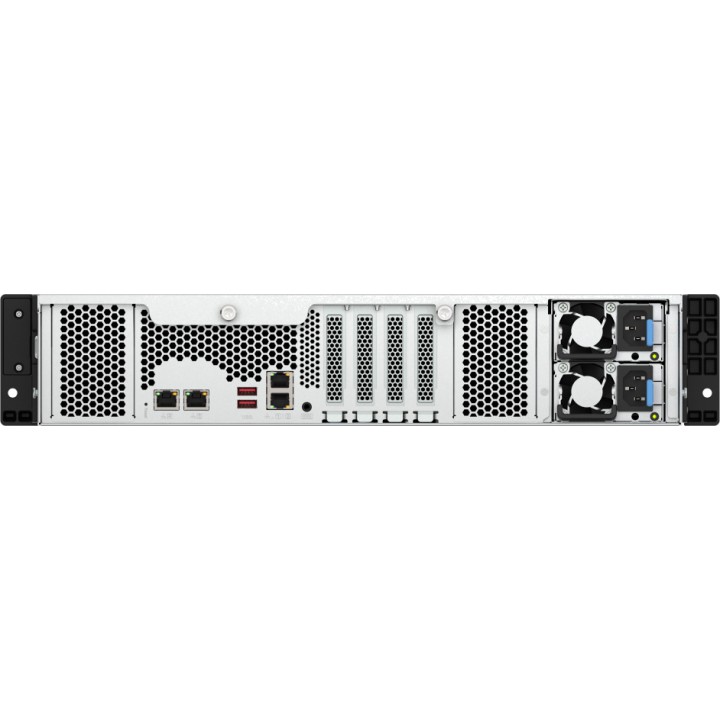

Interfaces
2 x Ethernet 1000Base -T - RJ-45
2 x 2.5 Gigabit Ethernet
2 x USB 3.2 Gen 2 - Type A

-VARIOUS
Cables included 1 x network cable
Included accessories
48 x flat-head screws (for HDD of 3,5")
36 x flat-head screws (for HDD of 2,5")
2 x power cables

-NETWORK CONNECTIVITY
10GbE, 5GbE, 2.5GbE, 100Mb LAN, 1GbE data interconnection protocol
Network / Transport protocol IPv4, IPv6, PPTP, L2TP, OpenVPN, WireGuard, QBelt, QuFTP
Remote management protocol SNMP 2, SNMP 3, SFTP, TFTP, SSH, Telnet, HTTP, HTTPS
Compatibility with AFP, FTP, SMB, CIFS, NFS v3, NFS v4, WebDAV, FTPS network services
Encryption algorithm AES-NI, FIPS 140-2, AES 256-bit , TLS 1.0, 1.1, 1.2, 1.3
FEATURES
Floating-point unit, encryption engine, hardware transcoding, SSD cache acceleration, direct GPU output, Jumbo Frames, JBOD expansion, VJBOD Cloud, iSCSI, Fibre Channel, file- and block-based LUNs, LUN snapshots, RAID migration, RAID and Storage Pool expansion, disk standby mode, Secure Erase, SSD TRIM, SSD life estimation, external device management, domain, ACL, DDNS, Smart Fan, power on/off scheduling, Virtual Switch, advanced security (firewall, 2FA, control lists), bundled services, synchronization and backup tools, multimedia, antivirus, QVPN, HD Station, LDAP, SQL Server, Qfiling, QmailAgent, QuWAN, DA Driver Analyzer, reset button, FXP support

-PERFORMANCE
Concurrent connections (CIFS) 5000
Maximum pool size 308 TB
Maximum number of pools 128
Maximum volume size 250 TB
Maximum number of volumes 128
Maximum shared folder size 250 TB
Maximum number of shared folders 512
Maximum LUN size 250 TB
Maximum FTP connections 1024
Minimum snapshot interval 5 min
Local user account 4096
Local group account 512
Domain group/user account 200000
System log events 3000 per second
Virtual hosts 32

-FUELING
Installed quantity 2
Maximum load supported 2
Power supplied 550 W
Required voltage CA 100-240 V
Power Supply Internal Power Supply

-SOFTWARE / SYSTEM REQUIREMENTS
IronWolf Health Management software included
QNAP QuTS hero h storage operating system 5.1.3 / QTS 5.1.3
Required operating system
macOS 10.10 or later, Ubuntu 14.04, CentOS 7.0, RHEL 6.6, SuSE Linux 12 or later, IBM AIX 7, Oracle Solaris 10 or later, Windows 7 / 8 / 10 / 11, Windows Server 2008 R2 / 2012 / 2012 R2 / 2016 / 2019 / 2022

-ENVIRONMENTAL PARAMETERS
Minimum operating temperature 0 °C
Maximum operating temperature 40 °C
Operating humidity range 5 - 95% RH (no condensation)

-Storage Controller
RAID Type
Interface type SATA 6Gb/s
Level RAID RAID 0, 1, 5, 6, 10, 50, 60, JBOD

-PROCESSOR / MEMORY
Installed processors 1 x AMD Ryzen 7
Number of cores 8 cores
Maximum turbo speed 5.3 GHz
32 GB DDR5 RAM (installed) / 128 GB (max.)
Installed flash memory 5 GB
Maximum load supported 1

-DIMENSIONS AND WEIGHT (PACKAGING)
Packaging weight 19 kg
```
Volume (m ³): 0.0207
