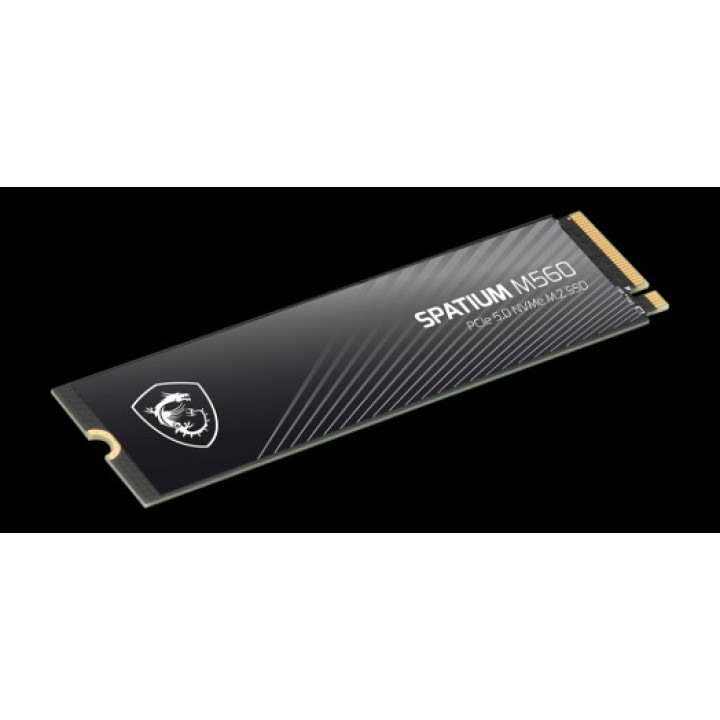

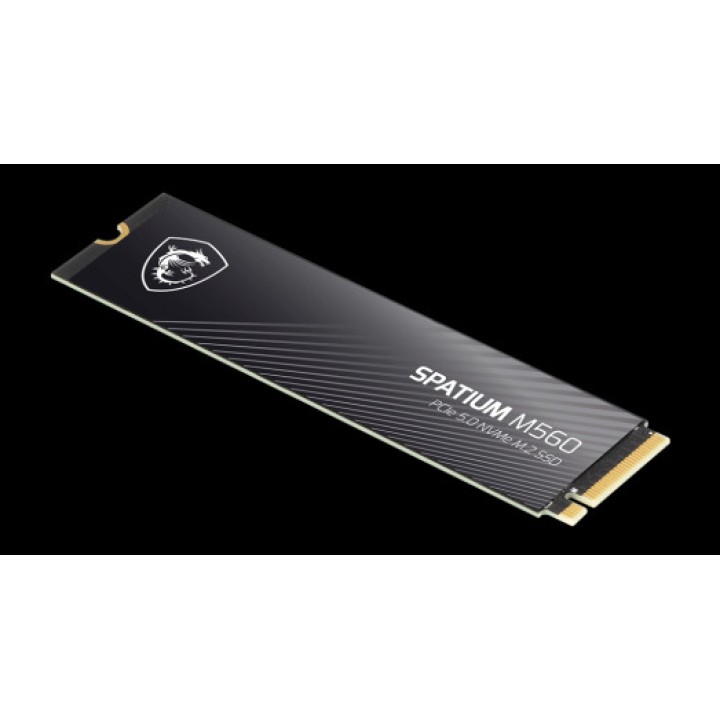

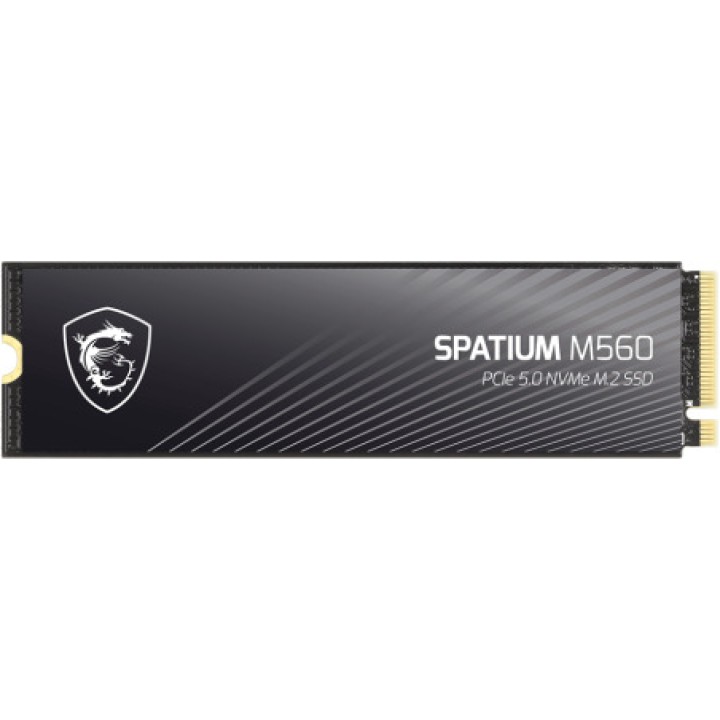

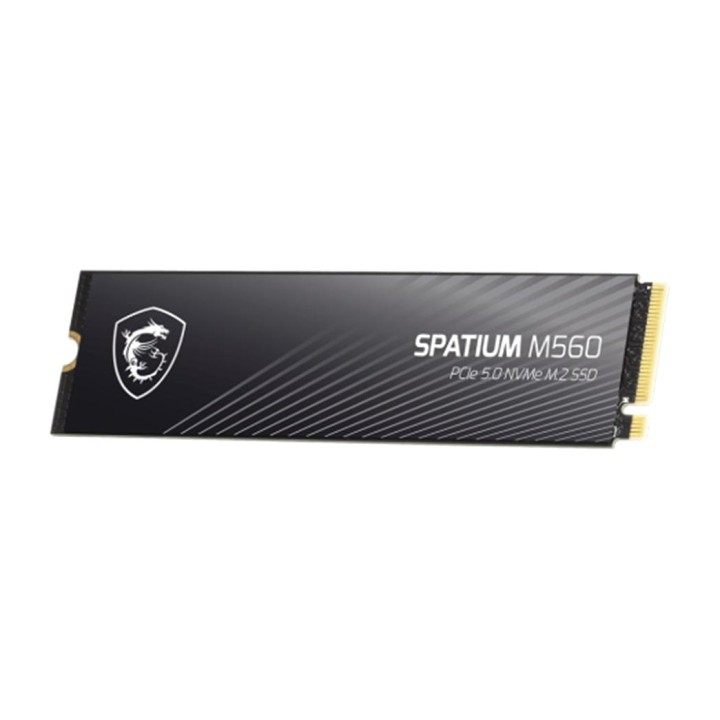

MSI Internal M.2 NVMe PCIe SSD 5.0 SPATIUM-M560 2TB 10300MB/S DSP0000043153

Features of the MSI SPATIUM M560 PCIe 5.0 NVMe SSD M.2 2TB
The 2 TB MSI SPATIUM M560 is a high-performance SSD storage drive designed for computers that need speed, capacity and efficiency. Thanks to its PCI Express 5.0 interface, NVMe 2.0 technology and 3D NAND memory, it delivers read speeds of up to 10300 MB/s and write speeds of up to 8700 MB/s, ideal for speeding up game loading, demanding applications and large file transfers.
High-speed PCIe 5.0 performance
The PCI Express 5.0 interface provides high bandwidth for fast data transfers and a responsive system. Its sequential speeds make it easier to work with large files, install programs and load applications.

Interface: PCI Express 5.0
Sequential read speed (ATTO): up to 10300 MB/s
Sequential write speed (ATTO): up to 8700 MB/s
Protocol: NVMe 2.0

2 TB capacity and memory 3D NAND
With 2 TB of storage, the MSI SPATIUM M560 provides space for operating systems, video games, professional software and multimedia libraries. Its 3D NAND memory combines high storage density with performance suited to high-performance systems.

CAPACITY : 2 TB
Memory type : 3D NAND
Drive type: internal SSD
Recommended use: PC

Fast response in random operations
In addition to its high sequential speeds, this SSD delivers up to 1300000 IOPS in random read and 1400000 IOPS in random write with 4 KB blocks. This performance helps with accessing numerous small files, multitasking and application responsiveness.

Random read (4 KB): up to 1300000 IOPS
Random write (4 KB): up to 1400000 IOPS
NVMe support: yes

Durability and performance maintenance
The MSI SPATIUM M560 is designed for intensive use, with an endurance rating of 1200 TBW and a mean time between failures of 1500000 hours. It also features TRIM support, which helps manage data blocks that are no longer in use and helps maintain drive performance.

Write endurance : 1200 TBW
Mean time between failures (MTBF): 1500000 hours
TRIM support: Yes

Compact M.2 form factor for PC integration
Its M.2 2280 form factor, measuring 22 x 80 mm and 2,15 mm thick, makes it easy to integrate into compatible systems. This compact design provides high-capacity storage without the need for additional data or power cables.

Form factor : M.2 2280
Width: 22mm
Depth: 80 mm
Height: 2,15 mm
Component for: PC

Power consumption and operating conditions
The MSI SPATIUM M560 SSD has a specified maximum power consumption of 5,9 W and an operating temperature range of 0 to 70 °C. To take advantage of its PCIe 5.0 performance, it is recommended to use a compatible motherboard and ensure adequate cooling.

Maximum power consumption : 5,9 W
Operating temperature: from 0 to 70 °C
Volume (m ³): 0.0017
