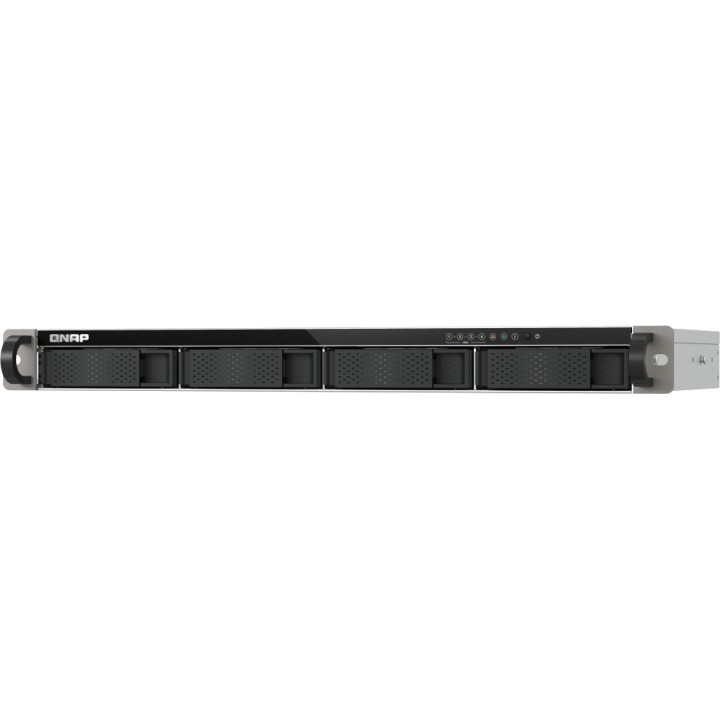

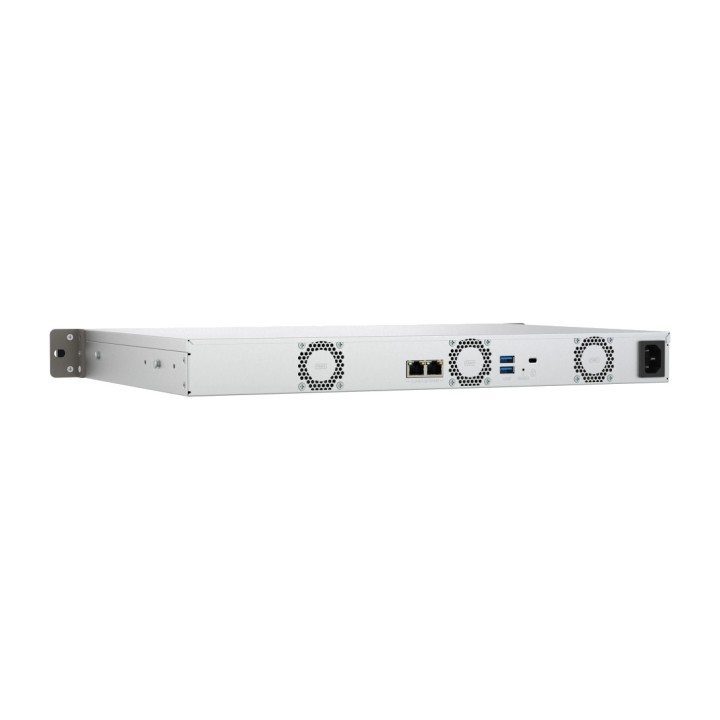

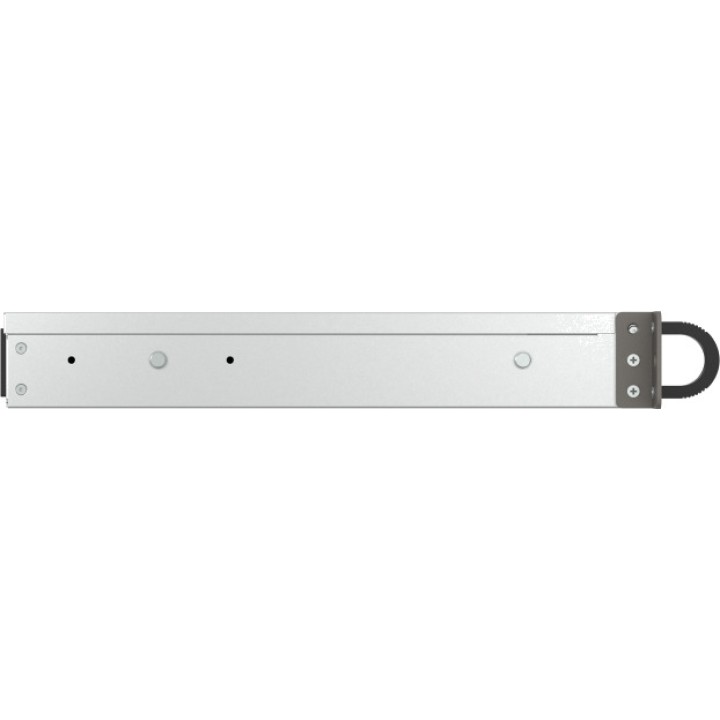

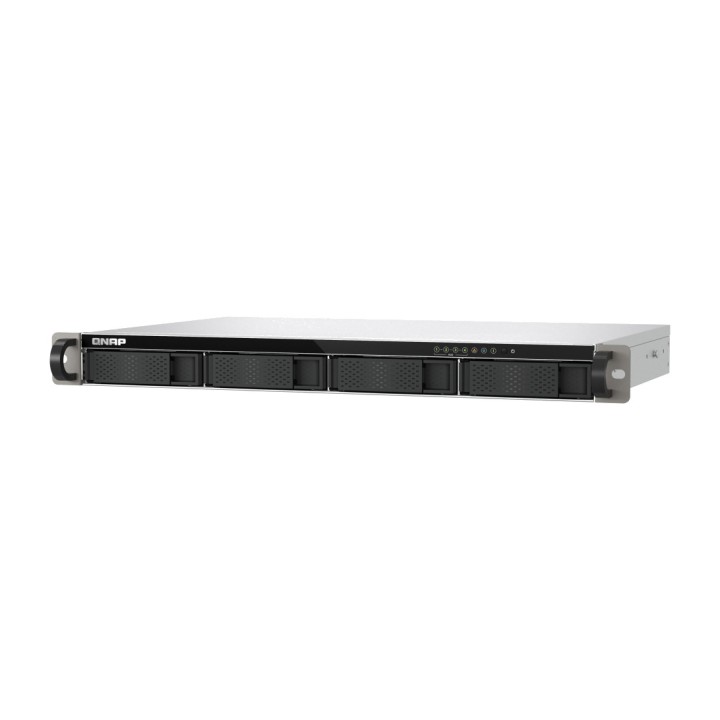

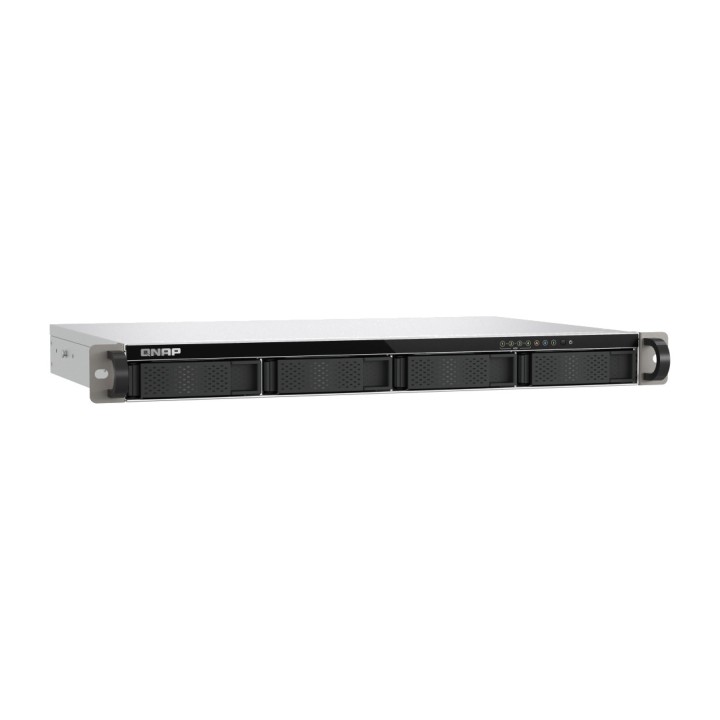

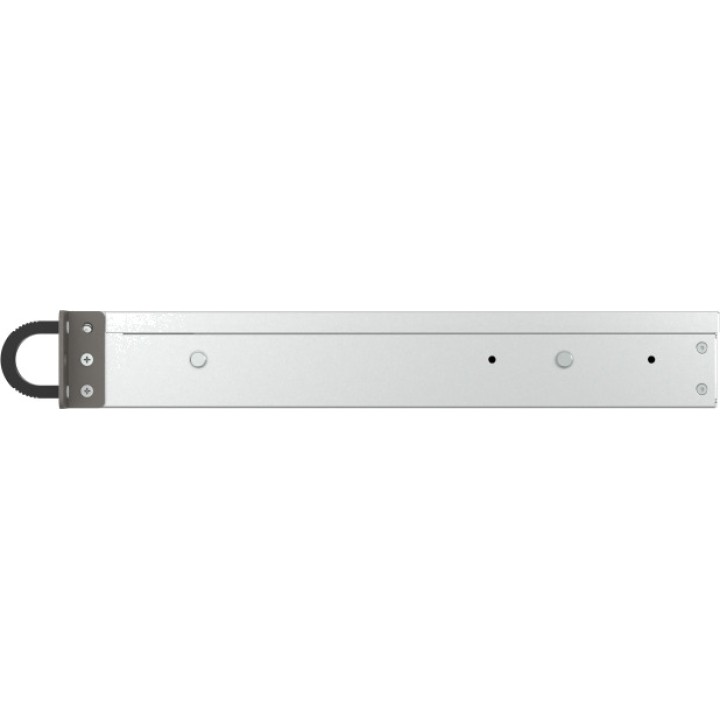

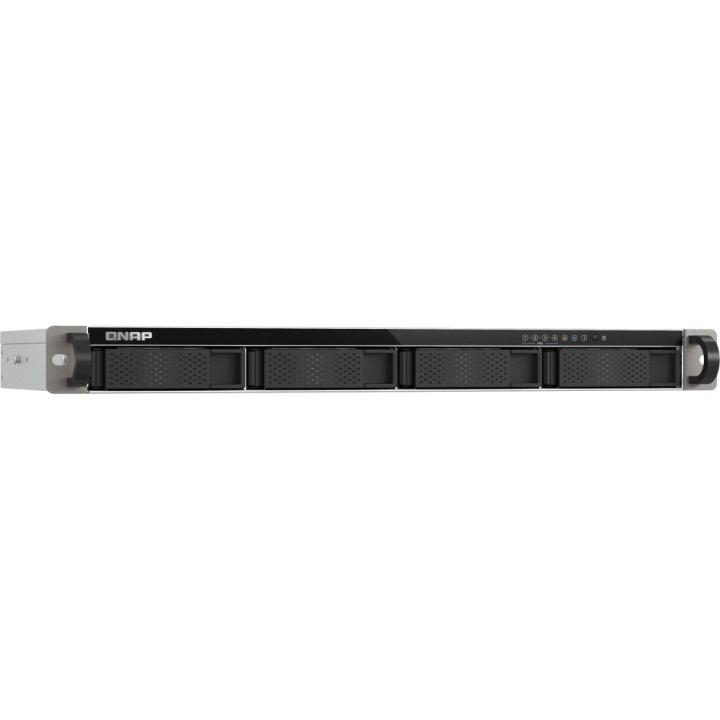

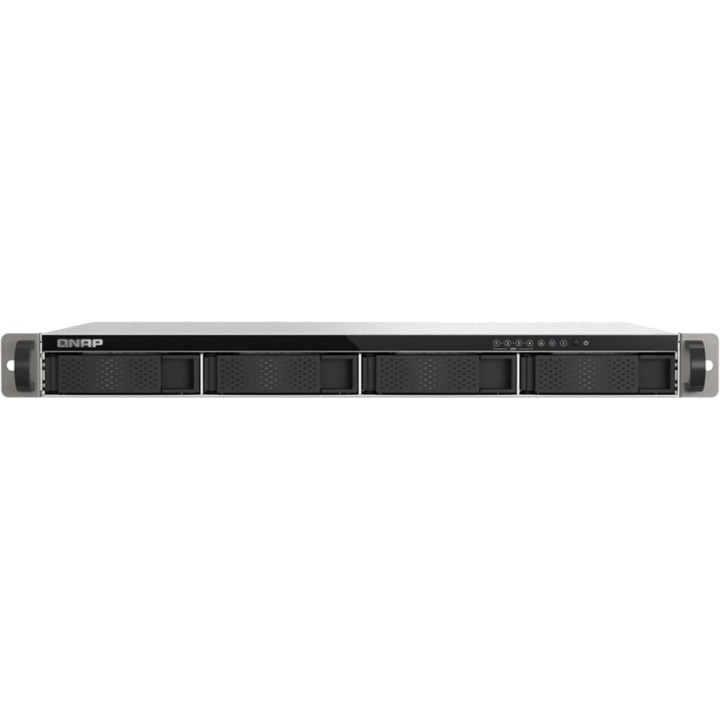

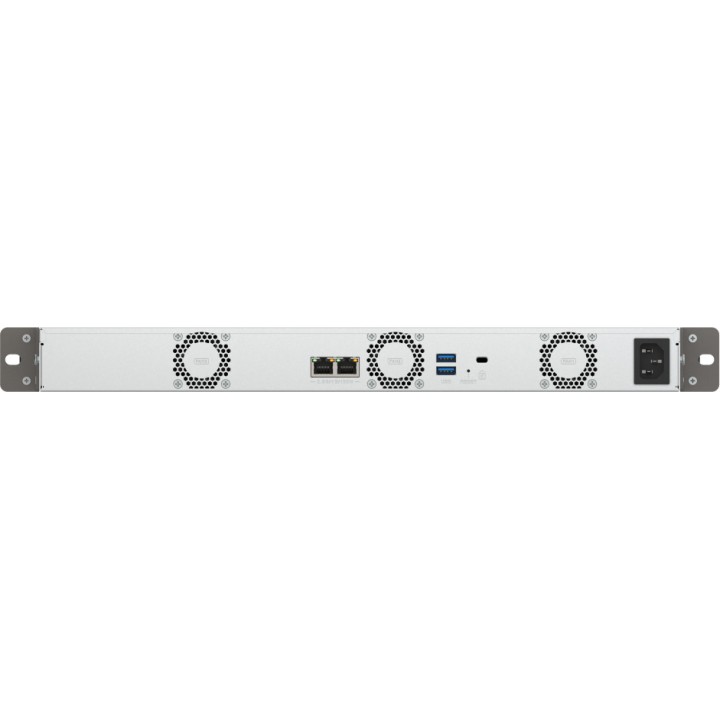

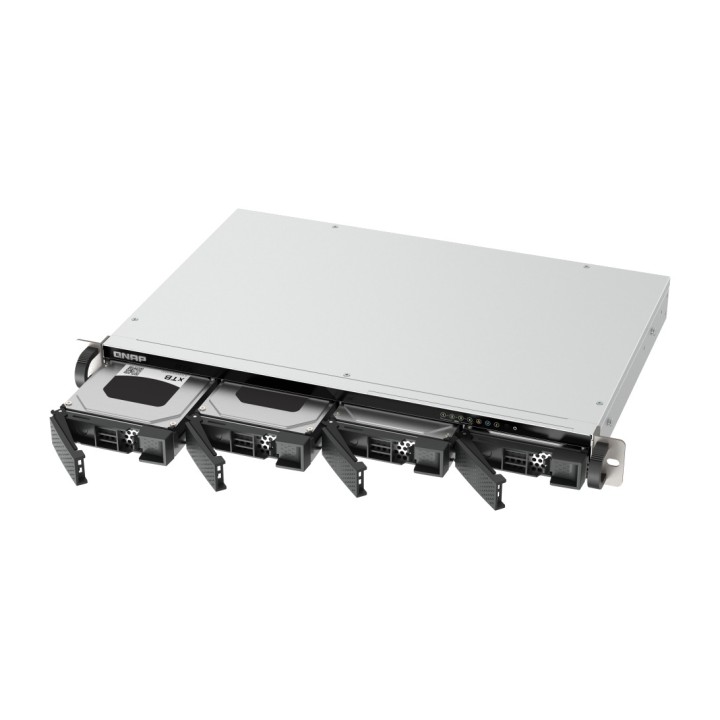

QNAP 4-bay rackmount NAS server without drives TS-433EU 1U CORTEX-A55 4GB DSP0000030513

```
- DIMENSIONS AND WEIGHT

Width: 43 cm
Height: 4.33 cm
Depth: 29.3 cm
Weight: 4.01 kg
Package weight: 5.9 kg

- STORAGE AND EXPANSION

Total storage capacity : 0 GB
Installed devices / Number of modules: 0 (installed) / 4 (max.)
Expansion bays: 4 (total) / 4 (free) x hot-swap - 2.5" / 3.5"

- PROCESSOR AND MEMORY

Installed processor: 1 x ARM A55 2 GHz
Number of cores: Quad-Core
RAM: 4 GB (installed) / 4 GB (maximum supported)
Installed flash memory : 4 GB
Maximum supported quantity : 1

- CONNECTIVITY

Connectivity host: Gigabit Ethernet / 2.5 Gigabit Ethernet
Interfaces:
2 x 2.5 Gigabit Ethernet - RJ-45
2 x USB 3.2 Gen 1 - Type A

- STORAGE CONTROLLER

Type: RAID
Level RAID: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, JBOD
Interface type: SATA 6Gb/s

- NETWORKS AND PROTOCOLS

Data interconnection protocol: 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE
Transport Protocol: DHCP, iSCSI, DDNS, SMB, PPTP, L2TP, IPSec
Remote management protocol: SNMP 2, SNMP 3, SSH, HTTP, HTTPS, Telnet, TFTP
Compatibility with network services:
AFP, Microsoft CIFS, SMB, DHCP, DDNS, HTTP, HTTPS, WebDAV, NFS v3, NFS v4

- NETWORK PERFORMANCE

Concurrent connections (CIFS): 1500
Maximum number of storage pools: 128
Maximum number of volumes: 128
Maximum volume size : 250 TB
Maximum pool size : 308 TB
Maximum LUN size : 250 TB
Maximum number of LUN targets: 256
Minimum snapshot interval: 5 min
Maximum FTP connections: 1024
Local user account: 4096
Local group account: 512
Domain group/user account : 200000
Data logging: 3000 events per second
Virtual hosts: 32

- KEY FEATURES

3 integrated cooling fans
Hardware encryption
Reset button
Secure Erase
Double starter
Kensington security slot
File system EXT4
VJBOD Cloud, JBOD Expansion
SSD TRIM
Online RAID level migration
FTP Server, file station
Support for access control lists (ACL)
Timing chain, system register
Trunk port link, VLAN support
DHCP server, wake on LAN (WOL)
Compatibility with Jumbo Frames
Integrated buzzer
Firewall protection, anti-malware protection
Qsync, Qsirch, QuMagie
Qcenter (NAS CMS), QmailAgent, QuWAN
SQL Server, cloud backup
Compatibility with Apple Time Machine
Antivirus protection
LDAP and RADIUS Support
Technical assistance VPN

- ENCRYPTION AND SECURITY

Encryption algorithm:
SSL, 256-bit AES
TLS 1.0, 1.1, 1.2, 1.3

- Power supply

Power supplied: 60 watts
Required voltage : CA 100-240 V
Power supply device: External power adapter
Power consumption: 23.74 watts
Standby power consumption: 9.32 watts

- SOFTWARE / OPERATING SYSTEM

Storage operating system : QNAP QTS 5.2.1
Software included: IronWolf Health Management
Compatible operating systems:
Windows 7 / 8 / 10 / 11
Windows Server 2008 R2 / 2012 / 2012 R2 / 2016 / 2019 / 2022
MacOS X 10.10 or later
Ubuntu 14.04
Cent OS 7.0
Red Hat Enterprise Linu x 6.6
SuSE Linux 12 or later
Oracle Solaris 10 or higher
IBM AIX 7

- ENVIRONMENTAL PARAMETERS

Minimum operating temperature : 0 °C
Maximum operating temperature : 40 °C
Operating humidity range: 5 - 95% (no condensation)

- SECURITY DVR

Compression format: H.264

- Warranty

Service and maintenance: Limited warranty - 2 years

- ACCESSORIES AND MISCELLANEOUS

Cables included: 1 x network cable
Included accessories:
Power cable
16 x flat-head screws (for HDD of 3,5")
12 x flat-head screws (for HDD of 2,5")
2 x hangers
2 x mounts
```
Volume (m ³): 0.0207
