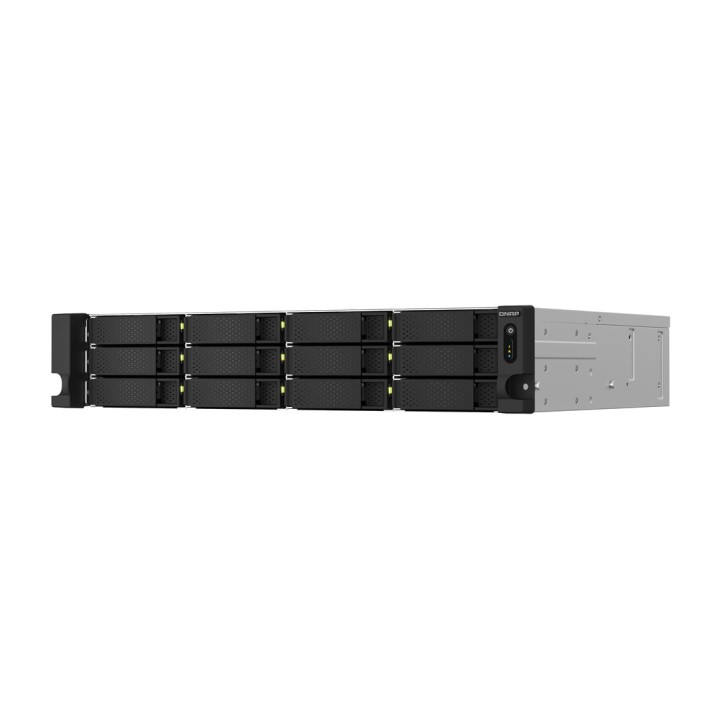

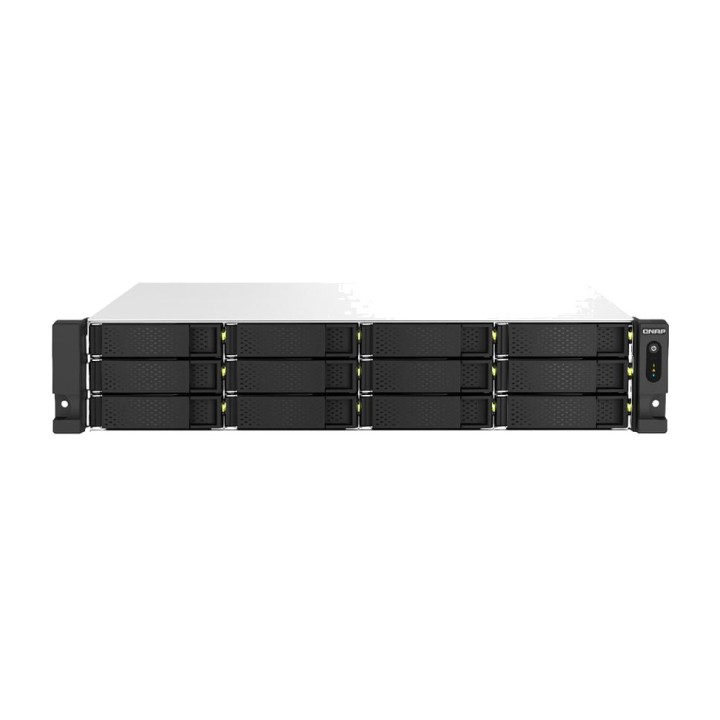

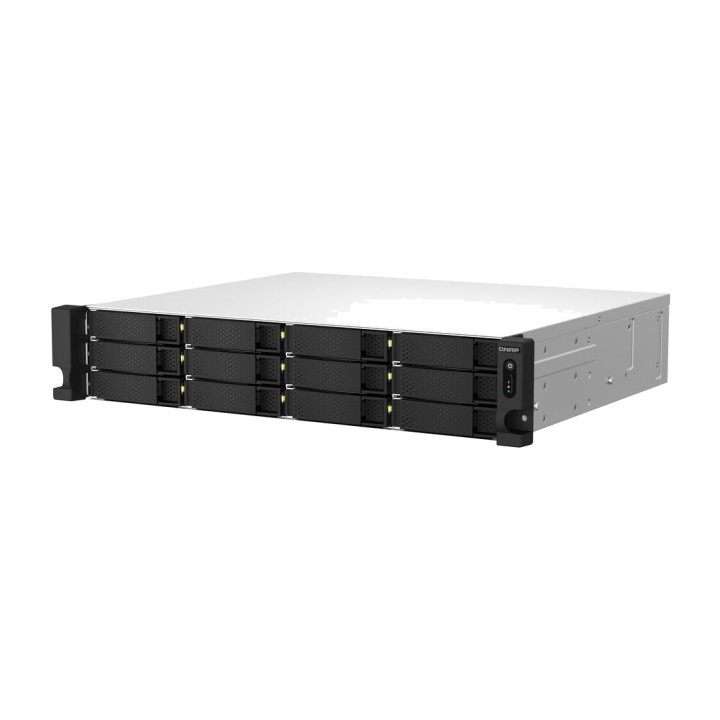

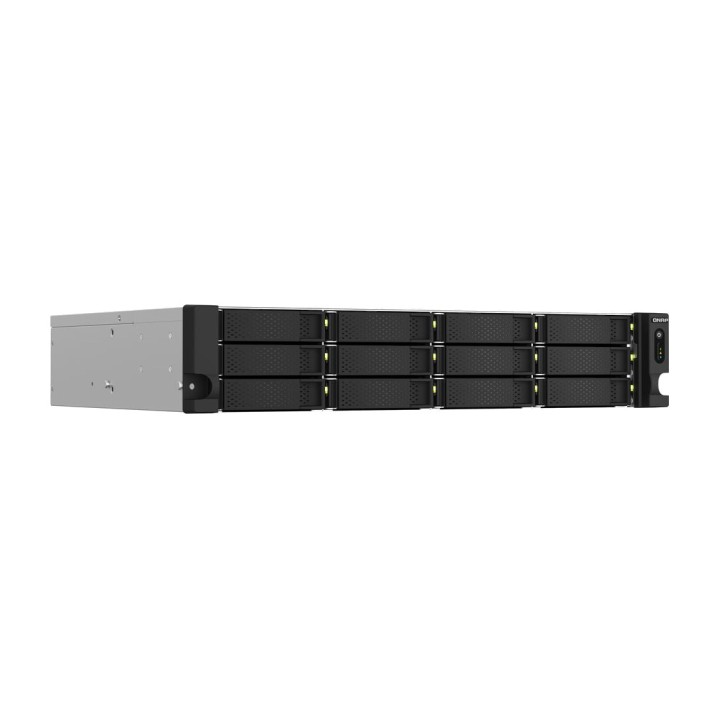

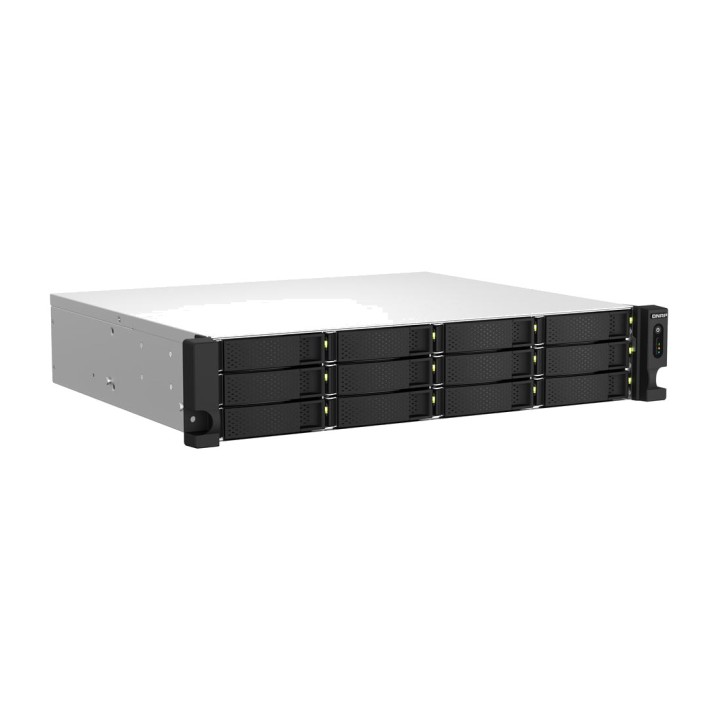

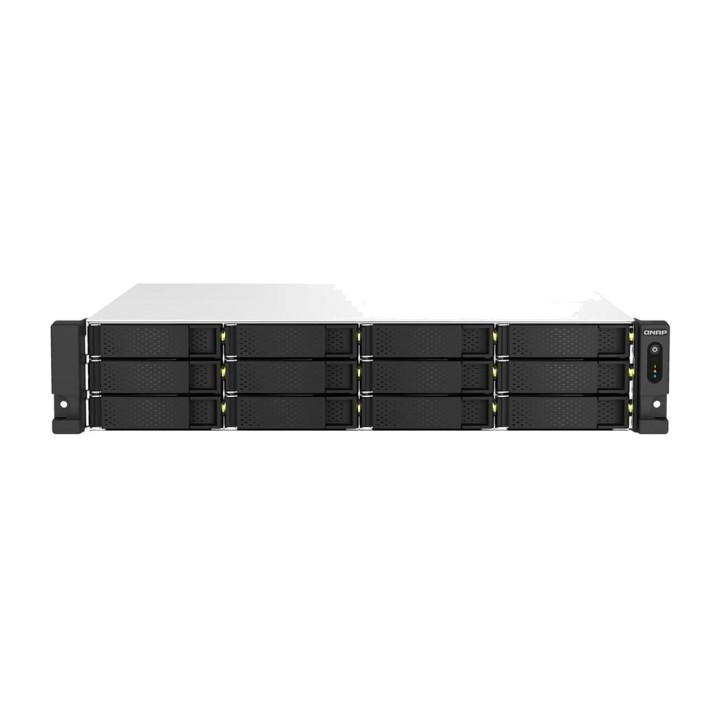

QNAP 12-bay rackmount NAS server without drives TS-1264U-RP 2U CELERON-N5105 8GB DSP0000030227

```
-GENERAL-
Device Type NAS Server
Case type: Rackmount - 2U
Total storage capacity 0 GB
Installed devices / Number of modules 0 (installed) / 12 (max.)
Height 8.87 cm
Depth 42.38 cm
Width 48.22 cm
Weight 9.43 kg
Host connectivity 2.5 Gigabit Ethernet
Integrated LED panel

-EXPANSION / CONNECTIVITY
Expansion bays
12 (total) / 12 (free) x hot-swap - 2.5" / 3.5"

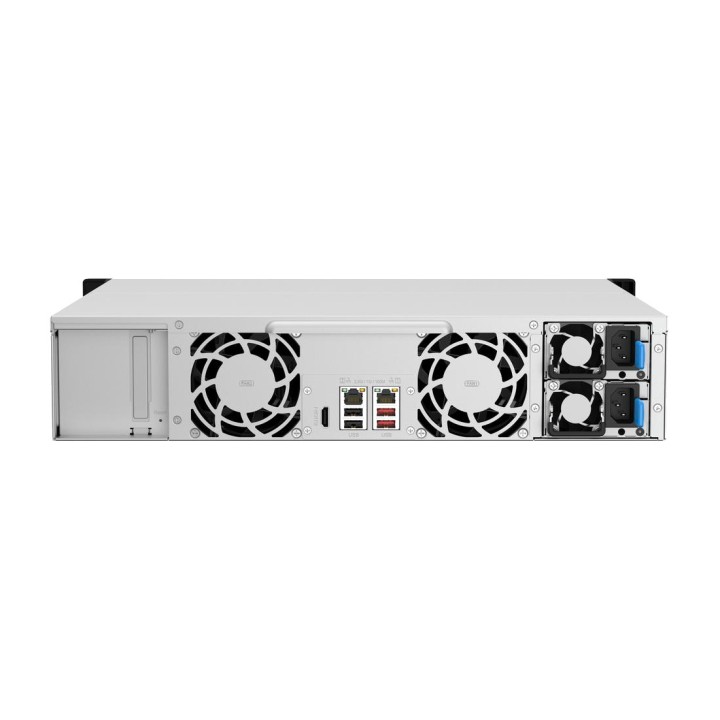

Interfaces
2 x 2.5 Gigabit Ethernet - RJ-45
2 x USB 3.2 Gen 2 - Type A
2 x USB 2.0 - Type A
1 x HDMI output
Expansion slots
1 (total) / 1 (free) x PCI Express 3.0 x2

-Manufacturer Warranty
Service and maintenance Limited warranty - 3 years

-VARIOUS
Cables included
1 x network cable
Included accessories
36 x flat-head screws (for HDD of 2,5")
48 x flat-head screws (for HDD of 3,5")
2 power cables
Certified TLS v1.0, TLS v1.1, TLS v1.2, TLS v 1.3
FEATURES
Dual boot, 2 integrated cooling fans, Secure Erase, wake on LAN, alarm buzzer, hardware encryption, reset button, S.M.A.R.T. compatible, integrated firewall, Online RAID Level Migration (RLM)

-NETWORK CONNECTIVITY
Data interconnection protocol 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE
Red / Transport Protocol IPv4, IPv6, DDNS, DHCP, SMB, iSCSI, QuFTP
Remote management protocol SNMP 2, SNMP 3, SSH, Telnet, HTTP, HTTPS, TFTP, RADIUS
Compatibility with Microsoft CIFS, AFP, SMB, NFS v3, NFS v4, WebDAV, DHCP, DDNS, HTTP, HTTPS services
AES-NI encryption algorithm, TLS 1.0, TLS 1.1, TLS 1.2, TLS 1.3, FIPS 140-2, 256-bit AES

-PERFORMANCE
Concurrent connections (CIFS) 1500 (with maximum memory)
Maximum pool size 308 TB
Maximum number of storage pools 128
Maximum volume size 250 TB
Maximum number of volumes 128
Maximum shared folder size 250 TB
Maximum number of shared folders 512
Maximum LUN size 250 TB
Maximum number of targets LUN 128
Minimum snapshot interval 5 min
Maximum FTP connections 1024
Local user account 4096
Local group account 512
Domain group/user account 200000
Data logger 3000 events/second
Virtual hosts 32

- FEATURES
Floating-point unit
Integrated hardware transcoding
SSD Cache Acceleration
Wake on LAN (WOL)
Compatibility with Jumbo Frames
Integrated buzzer
Pool de almacenamiento y almacenamiento SED
JBOD Expansion, VJBOD Cloud
Fiber optic cable service
iSCSI LUN (file-based and block-based), mapping and LUN masking
WWPN Aliases, FC Port Group, FC Port Binding, MPIO
LUN expansion, LUN snapshots, replication and cloning
Self-classification
RAID Group, RAID Level Migration, RAID Expansion
Storage Pool Expansion, RAID Hot Spare, Sync/Rebuild/Scrubbing
File system EXT4
Disk management: locate, scan S.M.A.R.T., migration, TRIM, life estimation, standby mode
Snapshot volume, retention policies, self-service recovery, cloning
SSD Cache (read-only, read-write, write-only, RAID), profile tool
Management of external devices
MTP Mount
Compatibility FXP
File Station, Object Storage
Domain security, Domain Controller, advanced permissions, Windows ACL
Quotas: group, folder, user
Start cover
Resource Monitor, Network Recycle Bin
Smart Fan, on/off programming
Virtual Switch, VLAN support, trunk port link
DHCP Server
Security counselor, malware remover
Two-factor verification, access lists
Combined services, firewall
Qsync, HybridMount, Hyper Data Protector
Qsirch, QuMagie, HD Station, LDAP, RADIUS support
SQL Server, DA Driver Analyzer, QuWAN, QmailAgent, Boxafe
RAID Migration

-FUELING
Installed quantity 2
Maximum load supported 2
Supplied power 300 watts
Power redundancy Yes
Power redundancy scheme 1+1
Required voltage CA 100-240 V
Power Supply Internal Power Supply
Power consumption in operation 70.913 watts (with units completely full)

-SOFTWARE / SYSTEM REQUIREMENTS
Storage operating system QNAP QTS 5.0.1
Software included IronWolf Health Management, McAfee
Required operating system
macOS X 10.10 or later, Ubuntu 14.04, CentOS 7.0, Red Hat Enterprise Linux 6.6, SuSE Linux 12 or later, IBM AIX 7, Oracle Solaris 10 or later, Microsoft Windows 7 / 8 / 10 / 11, Microsoft Windows Server 2008 R2 / 2012 / 2012 R2 / 2016 / 2019

-ENVIRONMENTAL PARAMETERS
Minimum operating temperature 0 °C
Maximum operating temperature 40 °C
Operating humidity range 5 - 95% RH (no condensation)

-Storage Controller
RAID Type
Interface type SATA 6Gb/s
Level RAID RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID 50, RAID 60

-PROCESSOR / MEMORY
Installed processors 1 x Intel Celeron N5095
Quad-Core Processor
Maximum turbo speed 2.9 GHz
MEMORY RAM 8 GB
Installed flash memory 4 GB
Maximum load supported 1

-DIMENSIONS AND WEIGHT (PACKAGING)
Package weight 14.09 kg
```
Volume (m ³): 0.0207
