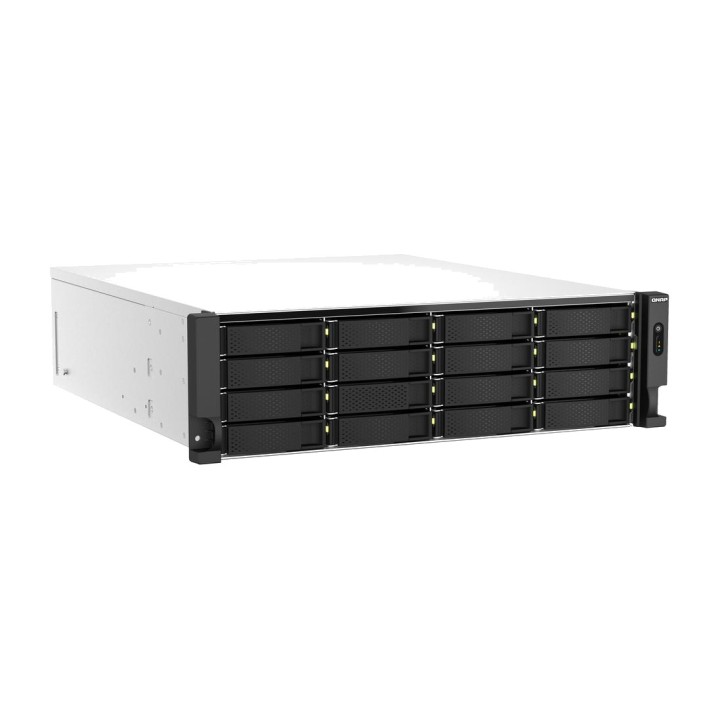

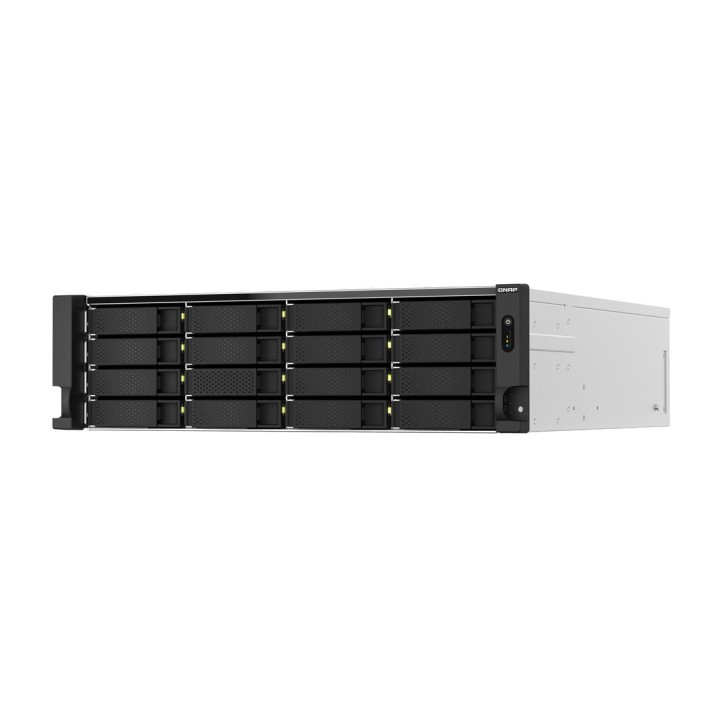

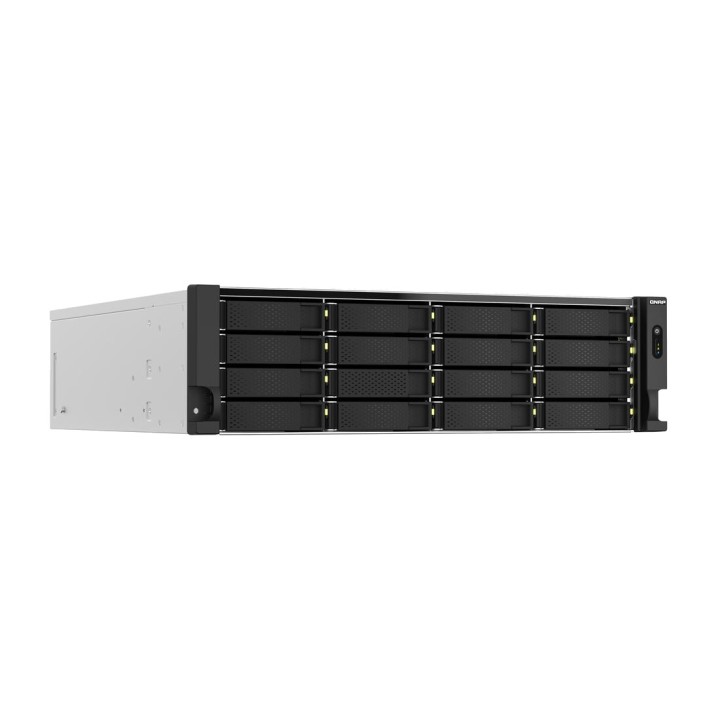

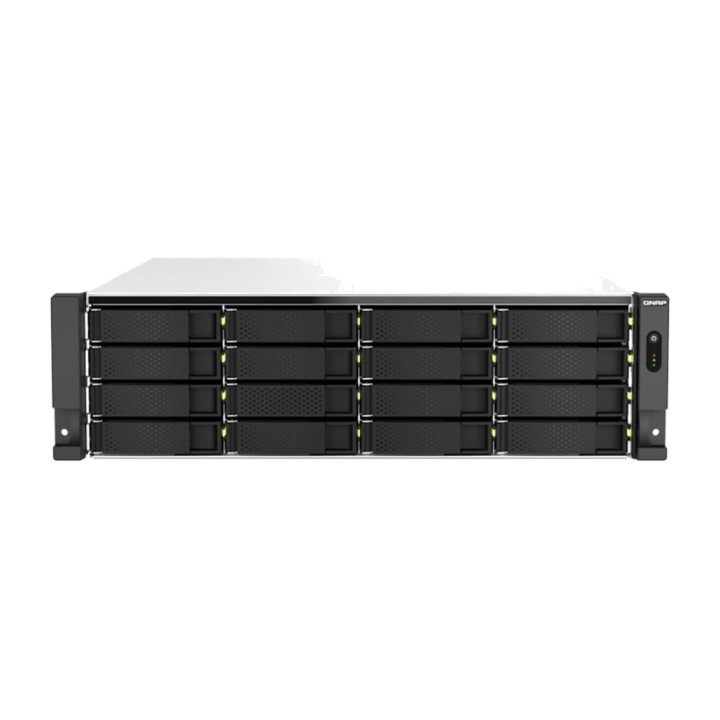

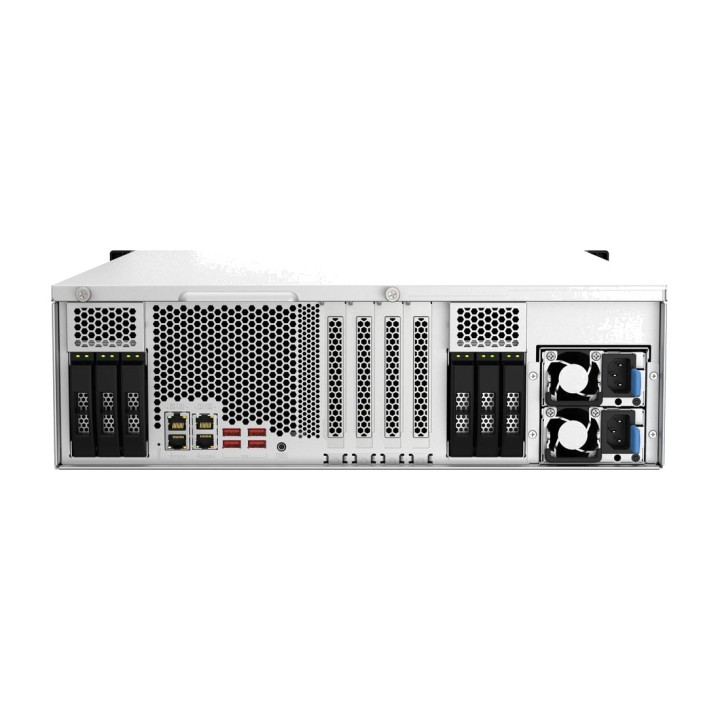

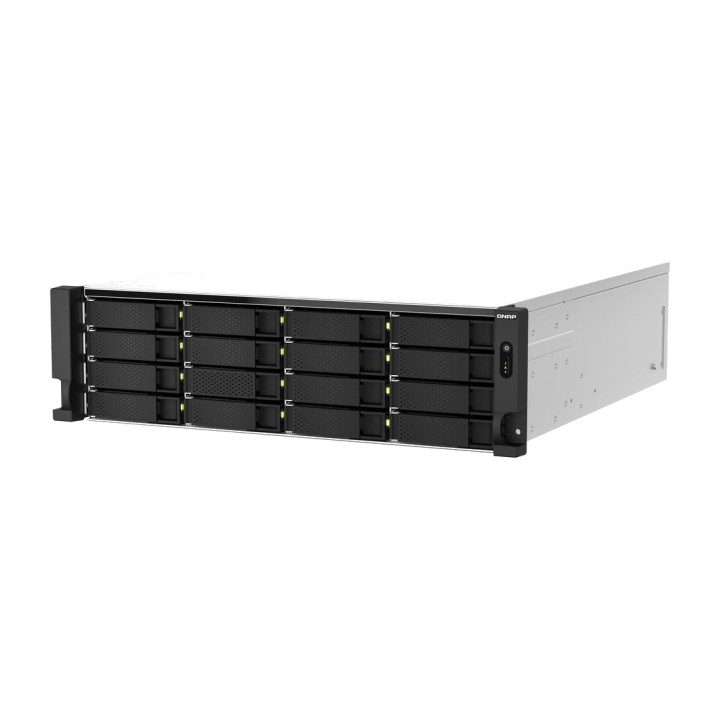

QNAP 22-bay rackmount NAS server, diskless TS-H2287XU-RP 3U XEON-E-2378 64GB DSP0000030221

```
-GENERAL-
Device Type NAS Server
Case type: Rackmount - 3U
Total storage capacity 0 GB
Installed devices / Number of modules 0 (installed) / 22 (max.)
Width 48.3 cm
Height 13.3 cm
Depth 63 cm
Weight 15.64 kg
Host connectivity 2.5 Gigabit Ethernet / 10 Gigabit Ethernet
Language Locations: Traditional Chinese, Simplified Chinese, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Brazilian Portuguese, Romanian, Russian, Spanish, Swedish, Thai, Turkish

-EXPANSION / CONNECTIVITY
Interfaces
2 x Ethernet 10Gb
2 x 2.5 Gigabit Ethernet
4 x USB 3.2 Gen 2 - Type A
Expansion bays
16 (total) / 16 (available) x hot-swappable - 3.5"
6 (total) / 6 (available) x hot-swappable - 2.5"
Expansion slots
2 x PCI Express 4.0 x4
1 x PCI Express 4.0 x8
4 (total) / 0 (free) x DIMM 288-pin

-VARIOUS
Included accessories
64 x flat-head screws (for HDD 3,5")
64 x flat-head screws (for HDD 2,5")
Cables included
1 x network cable
2 x power cables
FEATURES
Dual starter, 4 LED indicators, reset button, on/off switch, 80 mm fan, 3 x 60 mm fans

-NETWORK CONNECTIVITY
Data interconnection protocol 10GbE, 2.5GbE
Red / Transport Protocol FTP, SFTP, TFTP, IPv4, IPv6, DDNS, PPTP, L2TP, IPSec, OpenVPN, WireGuard, QBelt
Remote management protocol TFTP, SNMP 2, SNMP 3, SSH, Telnet, HTTP, HTTPS, RADIUS
Compatibility with network services CIFS, AFP, SMB, NFS v3 and v4, FTPS, WebDAV
Encryption algorithm AES-NI, SSL, TLS (1.0, 1.1, 1.2, 1.3), 256-bit AES , FIPS 140-2
FEATURES
Floating-point unit, SSD cache acceleration, direct GPU output, storage pool and SED, JBOD expansion, VJBOD Cloud, iSCSI (file/block-based), fiber channel, RAID (Group, Migration, Expansion, Hot Spare, Sync, Scrubbing), EXT4, disk management (SMART, Secure Erase, TRIM, life estimation), snapshots (LUN and volumes), Snapshot Vault, SSD cache (read/write-only, RAID), external RAID manager, FXP compatibility, advanced permissions, ACLs, quotas, personal folders, Smart Fan, scheduled power on/off, Virtual Switch, VLAN, firewall, Qsync, HybridMount, hybrid backup, data protection, antivirus, Qfiling, QuMagie, Qsirch, QmailAgent, QuWAN, QVPN, DA Driver Analyzer

-PERFORMANCE
Maximum volume size 250 TB
Maximum pool size 308 TB
Maximum number of pools 128
Maximum number of volumes 128
Maximum shared folder size 250 TB
Maximum number of shared folders 512
Maximum size of LUN 250 TB
Maximum number of targets LUN 256
Minimum snapshot interval 5 min
Maximum FTP connections 1024
Local user account 4096
Local group account 512
Domain group/user account 200000
Events per second 3000
Virtual hosts 32

-FUELING
Installed quantity 2
Maximum load supported 2
Supplied power 550 watts
Power Supply Internal Power Supply
Power redundancy Yes

-SOFTWARE / SYSTEM REQUIREMENTS
Storage operating system QNAP QTS 5.0.1
Software included IronWolf Health Management, McAfee
Required operating system
macOS 10.10 or later, Ubuntu 14.04, CentOS 7.0, IBM AIX 7, Oracle Solaris 10 or later, RHEL 6.6, SuSE Linux 12 or later, Windows 7 / 8 / 10 / 11, Windows Server 2008 R2 / 2012 / 2012 R2 / 2016 / 2019

-ENVIRONMENTAL PARAMETERS
Minimum operating temperature 0 °C
Maximum operating temperature 40 °C
Operating humidity range 5 - 95% RH (no condensation)

-Storage Controller
RAID Type
Interface type SATA 6Gb/s
Level RAID RAID 0, 1, 5, 6, 10, 50, 60, JBOD

-PROCESSOR / MEMORY
Installed processors 1 x Intel Xeon E-2378 2.6 GHz
Number of cores 8 cores
Maximum turbo speed 4.8 GHz
Features ECC
RAM 64 GB DDR4 (installed) / 128 GB (max.)
Installed flash memory 5 GB
Maximum load supported 1

-DIMENSIONS AND WEIGHT (PACKAGING)
Package weight 22.08 kg
```
Volume (m ³): 0.0207
