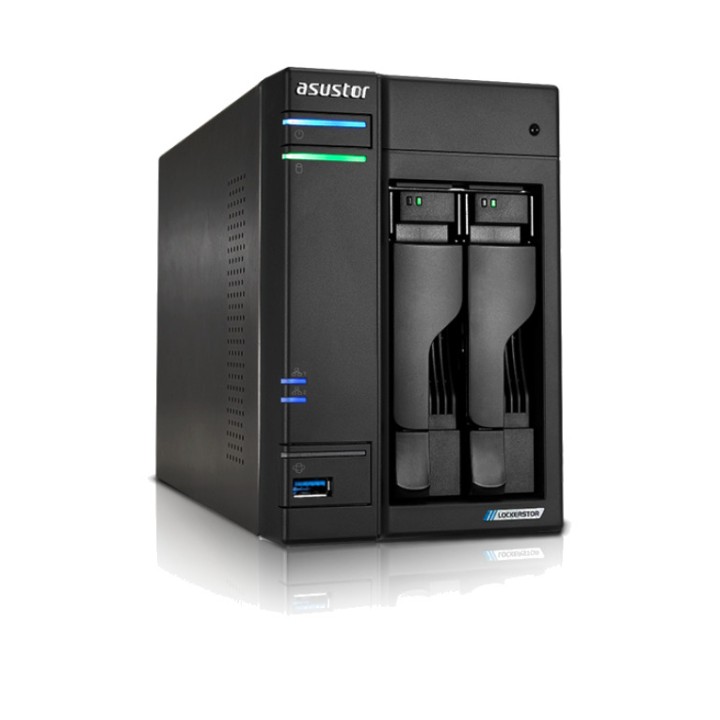

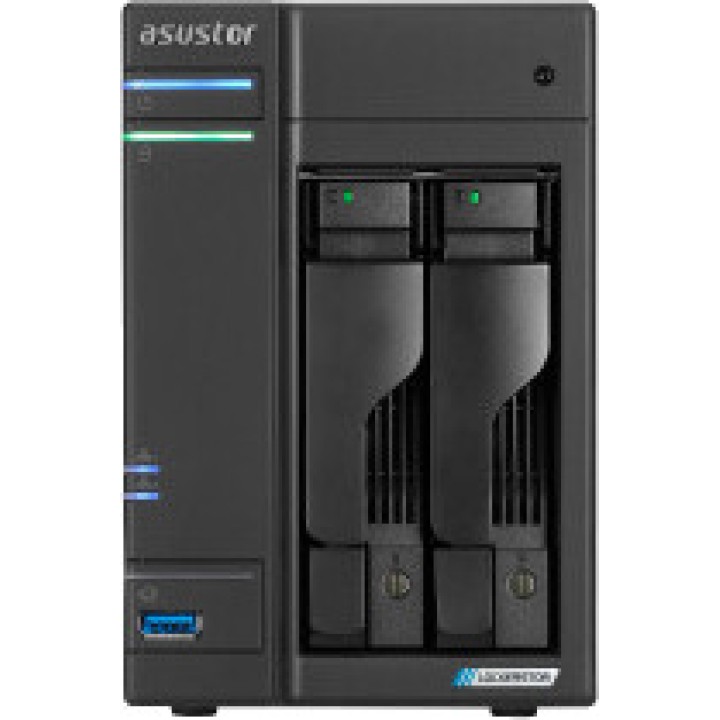

ASUSTOR 2-bay tower NAS server with dual 2.5GbE LOCKERSTOR2 GEN2 AS6702T N5105 4GB-RAM DSP0000018756

ASUSTOR TOWER 2 BAY QUAD-CORE 2.0GHZ CPU DUAL 2.5GBE PORTS 4GB RAM DDR4 NAS SERVER

Intel's latest N5105 quad-core processor features Intel 10 nm technology and up to 31% more performance than Gemini Lake SoCs. The N5105 has a
2.0 GHz frequency with a boost of up to 2.9 GHz, enabling efficient content creation, with the added flexibility of 10 Gigabit Ethernet upgrades.
Characteristic

The 10 nm Intel Celeron N5105 quad-core CPU delivers 31% more performance
Ultra-fast 2.5 Gigabit Ethernet ports
Flexible PCIe slot for drives SSD M.2
Supports PCIe 3.0 SSDs for up to twice the performance of PCIe 2.0
Uses DDR4-2933 with 40% more performance
USB 3.2 Gen2 ports - 10 Gbps speed
Enjoy, download, upload and stream content with transcoding 4K
Improved ventilation for SSDs
Supports Wake on LAN and Wake on WAN

Specifications:

Storage media
Storage drive interface : M.2, SATA
Supported storage drive sizes: 2.5,3.5,M.2
Number of M.2 slots (M and B): 4
RAID compatibility: Yes
Supported file systems: BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
Installed storage drives: No
Number of compatible storage drives : 2
Type of installed storage drives: No
Supported storage drive types: HDD & SSD

PROCESSOR
Processor manufacturer: Intel
Processor family: Intel Celeron
Processor model: N5105
Processor frequency: 2 GHz
Number of processor cores : 4
Processor cache : 4 MB
CPU configuration (maximum) : 1
On-board graphics adapter model: Intel UHD Graphics

MEMORY
Internal memory type: DDR4
Memory clock speed: 2933 MHz
Maximum supported RAM : 16 GB
Memory slots : 2
Internal memory : 4 GB
Memory form factor: SO-DIMM
Flash Memory : 8000 MB

Connection
Ethernet: Yes
Ethernet LAN data transfer rate: 100,1000,2500 Mbit/s
Jumbo Frames support: Yes
iSCSI support: Yes
Networking: Yes
Supported network protocols: CIFS/SMB, SMB 2.0/3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
Dynamic DNS: Yes

Ports and Interfaces
USB port: Yes
Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports 2): 2
Number of ports HDMI: 1
HDMI version: 2.0b
Ethernet LAN (RJ-45) port quantity : 2

Design
Chassis type: Desktop
Cooling type: active
Product colour: Black
Number of fans: 1 fan(s)
Fan diameter: 7 cm
LED indicators: Yes

Performance
Type: NAS
Device class: Home users
Backup function: Yes
Backup options: Cloud
Number of users: 4096 user(s)
Noise level (idle): 17,7 dB
Web-based management: Yes
Access Control List (ACL): Yes
System log: Yes
Universal Plug and Play (UPnP): Yes

SOFTWARE
Installed operating system: ADM
Operating system version: 4.1 Onwards
Supported Windows operating systems: Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP
Supported Linux operating system: Yes
Supported MAC operating systems: Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0
Monterey Supported server operating systems: Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019, Windows Server 2022

Power control
Power supply location: External
Power supply capacity (PSU): 65 W
Number of power supplies : 1
Energy consumption : 21 W
Power consumption (standby) : 0,79 W
Input voltage AC: 100 - 240 V

WEIGHT AND DIMENSIONS
Width: 163,5 mm
Depth: 108 mm
HEIGHT: 230MM
Weight: 2kg

Processor special features
Intel Enhanced SpeedStep Technology: Yes
Idle states: Yes
Intel 64: Yes
Intel Trusted Execution Technology: No
Intel Virtualization Technology (VT-x): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel VT-x with Extended Page Tables (EPT): Yes

Environmental conditions
Operating temperature range : 0 - 40 C
Relative humidity range for operation : 5 - 95%
Volume (m ³): 0.0180
