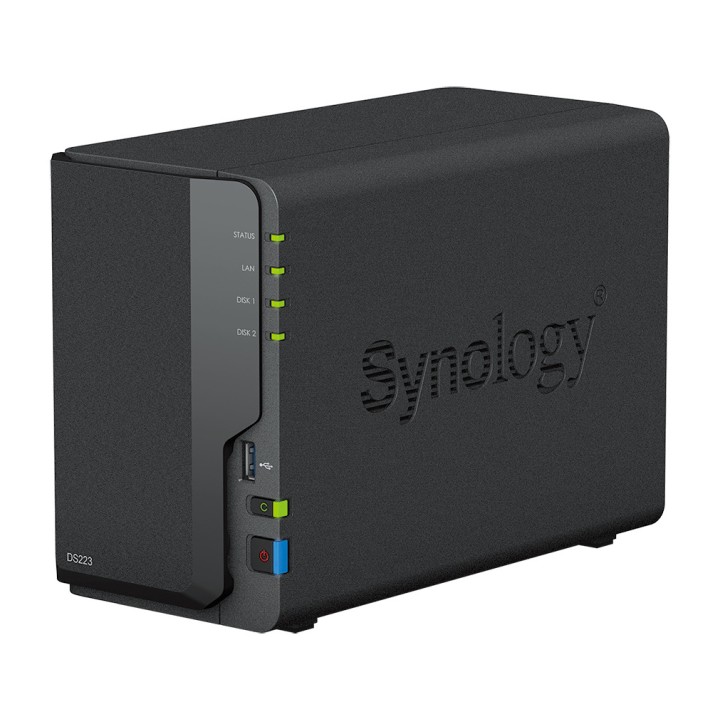

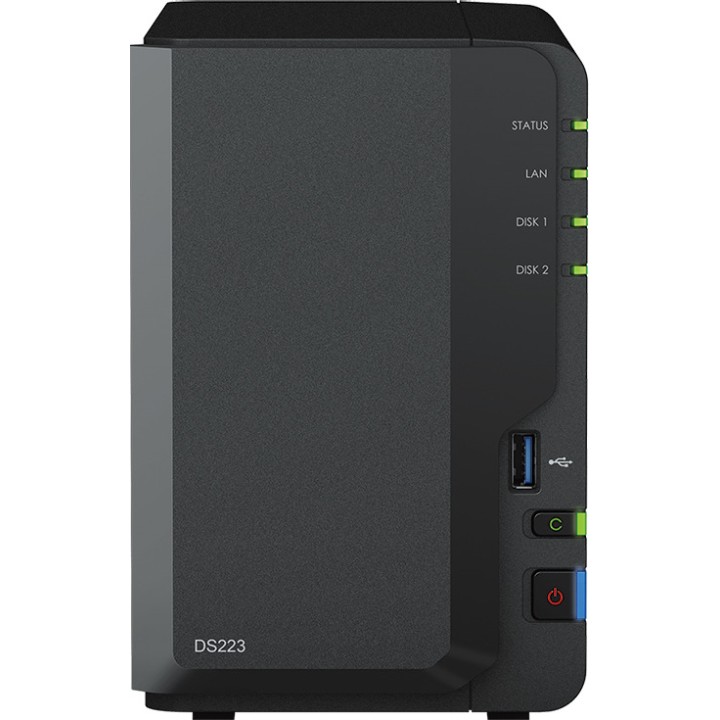

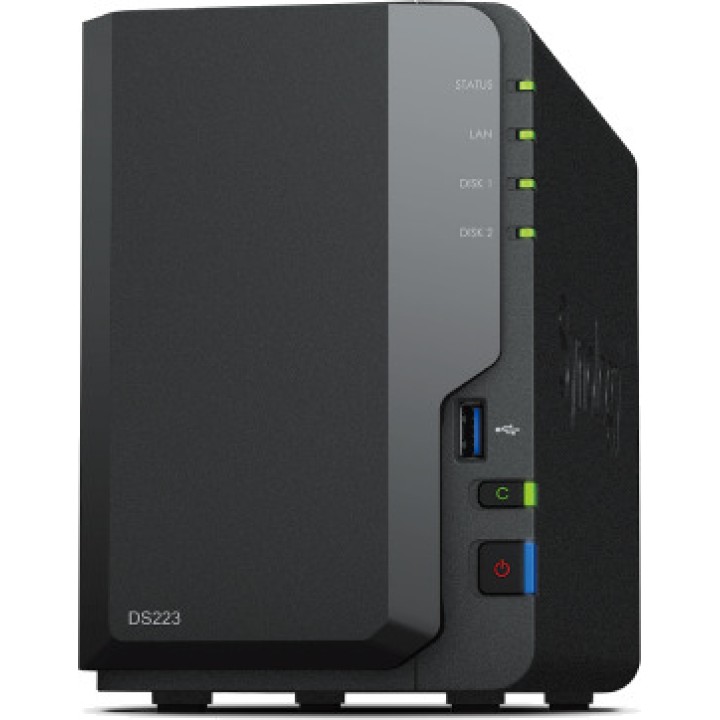

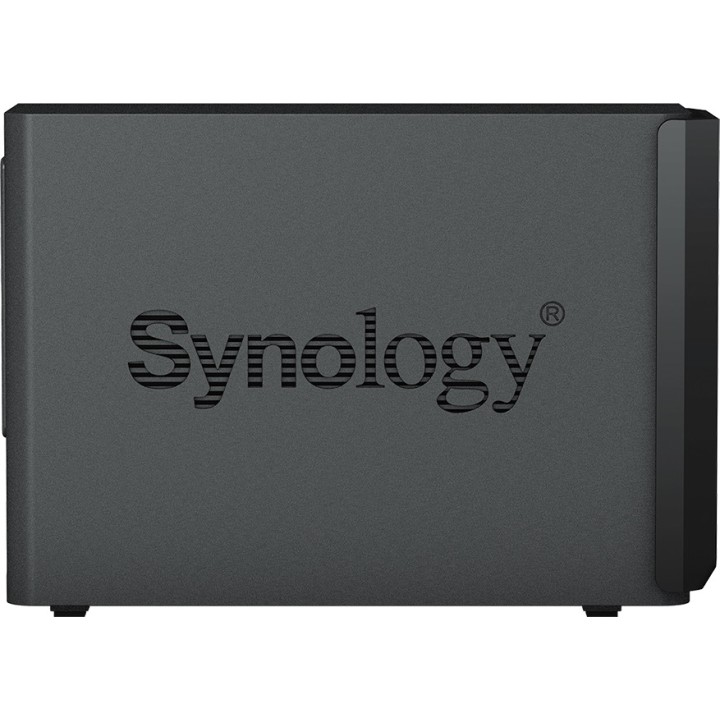

SYNOLOGY 2-bay NAS server DISKSTATION-DS223 2GB-RAM MGS0000015321

SYNOLOGY DISK STATION DS223 NAS SERVER 2BAY 1.7 GHZ QC 2GB DDR 4 1 X GBE 3X USB 3.2

CPUs
Realtek CPU model RTD1619B
Quantity of CPU 1
64-bit CPU architecture
4-core 1.7 GHz CPU frequency
Hardware encryption engine

MEMORY
2 GB DDR4 non-ECC system memory
Notes Synology reserves the right to replace memory modules with modules of the same or a higher frequency, depending on the supplier's product lifecycle status. Make sure that
compatibility and stability have been rigorously tested using the same criteria to ensure identical performance.
Storage
Drive bay(s) 2
Compatible drive type* (see all compatible hard drives)
3.5 SATA HDD
2.5 SATA SSD

Hot-swappable drive*
Notes Compatible drive type indicates the drives that have been tested for compatibility with Synology products. This term does not indicate the maximum connection speed of each hard drive bay.

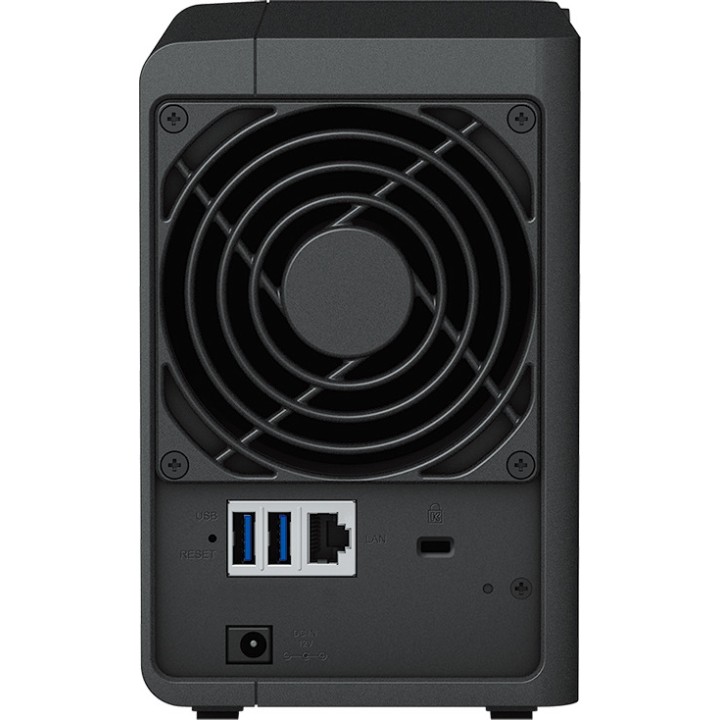

External ports
RJ-45 1Gb port E LAN* 1
USB 3.2 Gen port 1* 3
USB / SD Copy

Notes
The 1 GbE LAN ports on this device have a maximum transmission unit (MTU) size of 1500 bytes.
The USB Implementers Forum (USB-IF) changed the name of the USB 3.0 standard to USB 3.2 Gen 1 in 2019.

File systemInternal drives

BTRFS EXT4

External drives
BTRFS
eXT4
EXT3
Fat
NTFS
HFS+
exFAT

Appearance
Size (Height x Width x Depth) 165 mm x 108 mm x 232.7 mm
Weight 1.28 kg

Others
System fan 92 mm x 92 mm x 1 pcs
Fan speed mode

Full Speed Mode
Cool Mode
Silent mode

Front LED indicators with adjustable brightness
Power recovery
Noise level* 14.6 dB(A)
Scheduled power on/off
Wake on LAN / WAN
Power supply / Adapter 60 W
AC input voltage 100V to 240V AC
Power frequency 50/60 Hz, Single-phase
Power consumption 17.343 W (Access)
4.08 W (Hard drive hibernation)
British thermal unit 59.19 BTU/hr (Access)
13.92 BTU/hr (Hard drive hibernation)
Notes
For more information about how power consumption is measured, see this article.
Noise tests were conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a distance of 1 m
from the front and rear of the device. Background noise: 16,49-17,51 dB(A) temperature: 24,25-25,75C humidity: 58,2-61,8 %.

Temperature
Operating temperature 0C to 40C (32F to 104F)
Storage temperature -20C to 60C (-5F to 140F)
Relative humidity 5% to 95% RH

CERTIFICATION
FCC
EC
BSMI
VCCI
RCM
UKCA
EAC
CCC
KC
Volume (m ³): 0.0094
