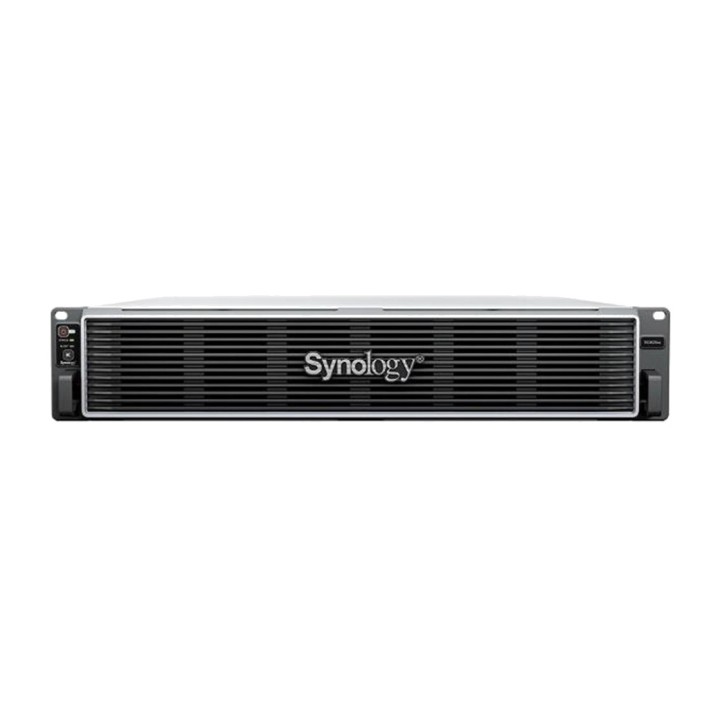

SYNOLOGY 12-bay rackmount NAS server RACKSTATION-RS3626XS 2U XEON-D1726 DSP0000042339

Features of the 12-bay Synology RS3626XS NAS
The Synology RS3626XS is a professional 2U rackmount NAS designed for environments that require centralised storage, high-speed connectivity and expansion capacity. It features an Intel Xeon D-1726 processor, 16 GB of DRAM and connectivity of up to 10 GbE, providing a platform ready to manage files, backups and network storage services.
Intel Xeon processor and 16 GB of memory
Its Intel Xeon D-1726 processor provides a foundation designed for professional workloads and simultaneous access by numerous users. The system has 16,384 MB of DRAM and 8,000 MB of flash memory, combining processing power with resources for managing storage services.

Processor: Intel Xeon D-1726
MEMORY DRAM: 16.384 MB
Flash Memory : 8.000 MB
Maximum number of CIFS users: 2.000
Maximum number of FTP users: 1.000

12 bays and SATA/SSD Hot Swap storage
The unit has 12 bays for SATA/SSD drives with Hot Swap, making maintenance and drive replacement easier. It is supplied without hard drives and supports an enclosure, for a total of up to 24 expansion bays according to the information provided.

12 storage bays
Storage bus: SATA/SSD
Hot Swap SATA/SSD drives
Total number of expansion bays: 24
Enclosure support: yes
Hard drives included : 0
Included drive capacity : 0 GB

RAID compatibility for storage management
Support for different RAID levels lets you configure the drives according to the capacity and redundancy requirements of each environment. The RS3626XS supports RAID 0, RAID 1, RAID 5, RAID 6 and JBOD.

RAID 0 &,lpar,Striping&,rpar,: yes
RAID 1 &,lpar,Mirroring&,rpar,: yes
RAID 5: yes
RAID 6: yes
JBOD: yes

Network connectivity up to 10 GbE
To speed up information exchange on professional networks, it features 2 RJ45 LAN ports with speeds of 10/100/1000/10000. It also has two USB ports and supports IPv4 and IPv6.

speed LAN: 10 / 100 / 1000 / 10000
Number of ports LAN: 2
LAN connector: RJ45
Number of ports USB: 2
IP support: IPv4/IPv6
Console port: No
Wireless extensions: no
Wireless Security: no

Synology DiskStation Manager and file systems
The NAS uses Synology DiskStation Manager &,lpar,DSM&,rpar,, supplied preinstalled to manage storage and network services. It offers native support for Btrfs and ext4, as well as a variety of file systems for external storage.

Operating system: Synology DiskStation Manager
Internal file systems: Btrfs and ext4
External file systems: Btrfs, ext4, ext3, FAT, NTFS, HFS+ and exFAT
Included software: DiskStation Manager &,lpar,DSM&,rpar, preinstalled

Broad network protocol support
Its compatibility with numerous storage, file transfer and access protocols makes it easy to integrate the NAS into different infrastructures and workflows.

iSCSI: yes
AFP: yes
CIFS: yes
SMB: yes
NFS: yes
HTTP: yes
HTTPS: yes
FTP: yes
FTPS: yes
Rsync: yes

2U rack format and redundant power supply
The 2U rack chassis is designed for installation in professional infrastructures. It features a redundant AC power supply and a stated power consumption of 550 W, helping maintain service in the event of issues with one of the power supplies.

Chassis format: rack 2U
COLOUR: BLACK
Maximum height: 88 mm
Maximum width: 482 mm
Maximum depth: 724 mm
Weight: 14.500 g
Redundant power supply: yes
Power supply type: AC
Power supply voltage : 100/240 V
Frequency: 50/60 Hz
Maximum power supply current : 5 A
ABSORBED POWER : 550 W

Compliance and included contents
The device has declarations of conformity for different markets and comes with the items indicated for connection and commissioning.

Compliance: CE, FCC, BSMI, VCCI, RCM, EAC and KC
AC power cable included
Ethernet cable included
DiskStation Manager &,lpar,DSM&,rpar, pre-installed
Volume (m ³): 0.1634
