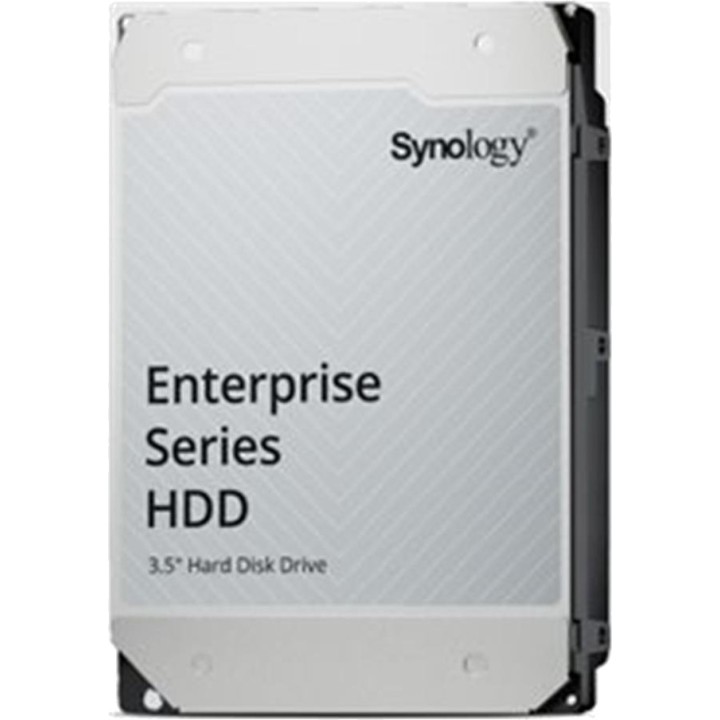

SYNOLOGY 3.5-inch internal hard drive for NAS ENTERPRISE-HAT5320 24TB 7200RPM SATA3 DSP0000038019

Synology HAT5320 Features - Enterprise Hard Drive 24 TB
The Synology HAT5320 is an Enterprise-class internal hard drive designed to deliver high reliability, large capacity and consistent performance in intensive storage environments. Ideal for professional NAS systems and servers that require continuous, stable operation, this 24 TB drive features helium-sealing technologies and cryptographic protection to ensure integrity and durability under demanding workloads.
Robust design and enterprise performance
Designed to meet the highest standards, this hard drive spins at 7200 rpm and achieves an internal transfer rate of up to 309 MB/s. Its helium-sealed construction improves efficiency and reduces friction, while 512e Crypto technology provides greater security for stored data.

Spindle speed: 7200 rpm
Internal transfer rate: up to 309 MB/s
Helium Sealed-Drive technology + 512e encryption

High capacity and continuous reliability
With its 24 TB capacity, the Synology HAT5320 is ideal for large volumes of data, enterprise backups and long-term storage. It is built for 24/7 use, with an MTBF of 2.500.000 hours, ensuring uninterrupted operation even in demanding conditions.

Storage capacity : 24 TB
MTBF: 2,500,000 hours
Drive class: Enterprise

Compatibility and energy efficiency
This drive is compatible with 3.5" bays and connects via a SATA 6 Gb/s interface, ensuring compatibility with most professional servers and NAS systems. It also offers optimized power consumption, contributing to more sustainable operation and lower long-term costs.

Interface: SATA 6 Gb/s
Power consumption: 8.11 W (active), 4.35 W (standby)
Compatible with bays of 3.5"

Reliability in extreme conditions
Thanks to its professional design, the HAT5320 withstands vibration and shock both during operation and when not in use, and operates across a wide temperature range. This makes it a reliable solution for data centres and critical environments.

Operating temperature: 5 °C to 60 °C
Shock tolerance (operating): 49 g @ 2 ms
Vibration tolerance (operating): 7.35 g @ 5-300 Hz

Other specifications

Weight: 730g
Dimensions: 147 mm (depth) x 101.85 mm (width) x 26.1 mm (height)
Standards: RCM, BSMI, KC, UL, TUV, ICES, UKCA, RoHS, Morocco Mark
Endurance SSD: 550 TB
Storage temperature: -40 °C to 70 °C
Shock tolerance (non-operating): 196 g @ 2 ms
Vibration tolerance (non-operating): 29.4 g @ 5-500 Hz
Volume (m ³): 0.0017
