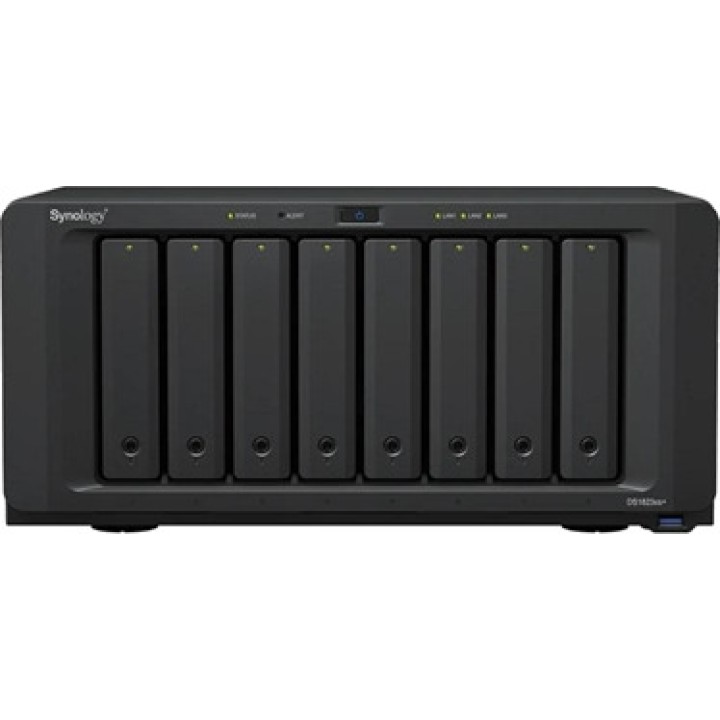

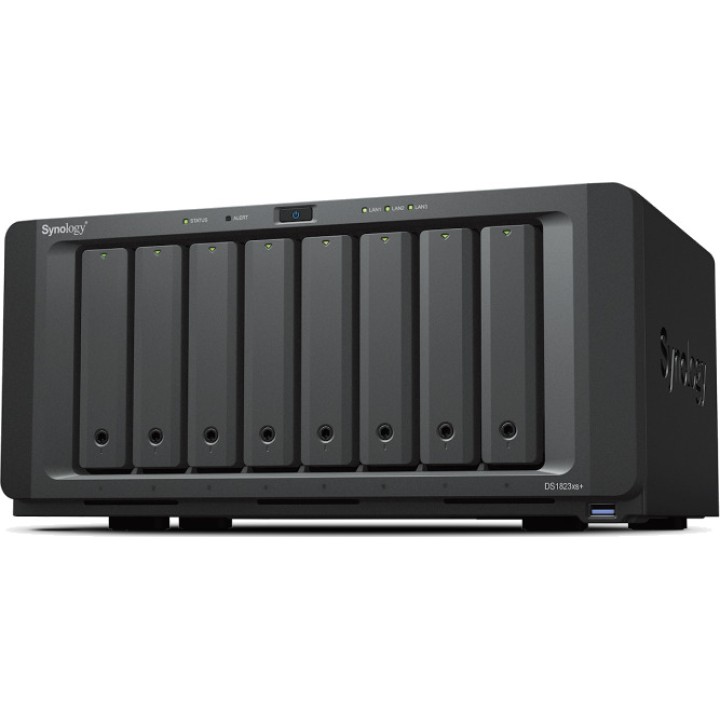

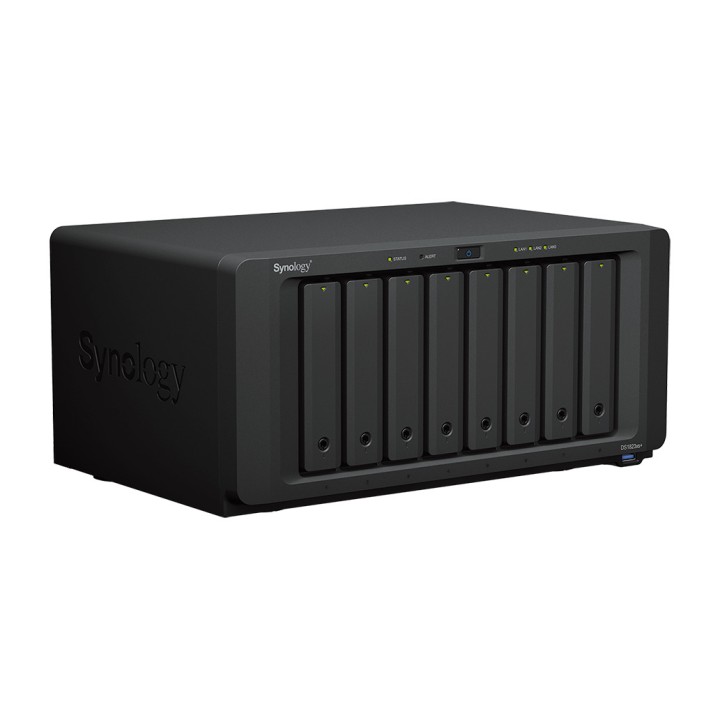

SYNOLOGY 8-bay NAS server DISKSTATION-DS1823XS+ 8GB-RAM DSP0000014998

Brand Synology
Model DS1823xs+
CPU - CPU: AMD Ryzen V1780B
- CPU architecture: 64-bit
- Quantity of CPU: 1
- CPU frequency: 4-core 3.35 (base) / 3.6 (turbo) GHz
- Hardware encryption engine (AES-NI)
Memory - System memory: 8 GB of DDR4 non-ECC SODIMM
- Maximum memory : 32 GB (16 GB x2)
*Synology reserves the right to replace memory modules with the same or a higher frequency, depending on the supplier's product lifecycle status. Ensure that compatibility and
stability have been rigorously tested using the same criteria to ensure identical performance.
Select Synology memory modules for optimal compatibility and reliability. Synology will not provide technical support or the full product warranty if modules from a manufacturer other than Synology are used for memory expansion.
memory modules from a manufacturer other than Synology for memory expansion.
For more information about recommended memory configurations, refer to the Hardware Installation Guide for your Synology product.
Storage - Drive bay(s) : 8
- M.2 drive slots: 2 (NVMe)
- Compatible drive type:
3.5" SATA HDD
2.5" SATA SSD
M.2 2280 NVMe SSD
- Hot-swappable drive
* Synology only guarantees the full functionality, reliability, and performance of Synology drives listed on the compatibility list. The use of unvalidated components may limit certain functions and
cause data loss and system instability.
*M.2 SSD slots do not support the hot-swappable drive function.
*The supported disk type indicates the disks whose compatibility with Synology products has been tested. This term does not indicate the maximum connection speed of each hard drive bay.

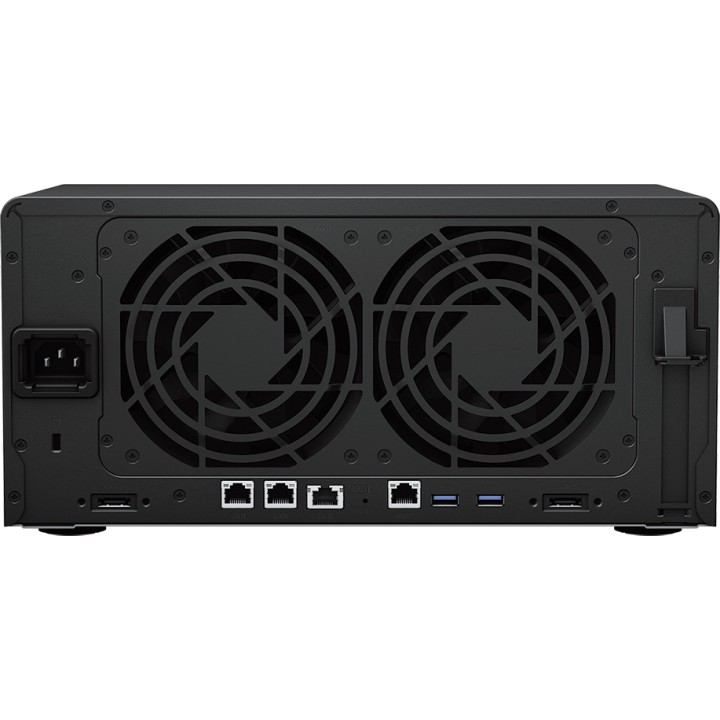

Connections - 2 x Gigabit Ethernet RJ45 ports (/1G/100M/10M)
- 1 x Gigabit Ethernet RJ45 port (10G/1G/100M/10M)
- 1 x LAN
- 3 x USB 3.2 Gen 1 ports
- 2 x eSATA ports
- 1 x Gen3 x8 slot (x4 link)
* The 1 GbE LAN ports on this device have a maximum transmission unit (MTU) size of 1500 bytes.
Features -System fan: 120 mm x 120 mm x 2 pcs
- Fan speed mode:
Full Speed Mode
Cool Mode
Silent mode
- Easy system fan replacement
- Front LED indicators with adjustable brightness
- Energy recovery
- Noise level: 23.6 dB(A)
- Scheduled power on and off
- Wake on LAN / WAN
- Power supply / Adapter : 250 W
- AC input voltage: 100V to 240V AC
- Power frequency: 50/60 Hz, Single-phase
- Power consumption:
87.93 W (Access)
28.37 W (Hard drive hibernation)
- British thermal unit:
300.23 BTU/hr (Access)
96.87 BTU/hr (Hard drive hibernation)
- Operating temperature: 0C to 40C (32F to 104F)
- Storage temperature: -20C to 60C (-5F to 140F)
- Relative humidity: 5% to 95% RH
- Dimensions: 166 343 243 mm
- Weight: 6,2 kg
Volume (m ³): 0.0425
