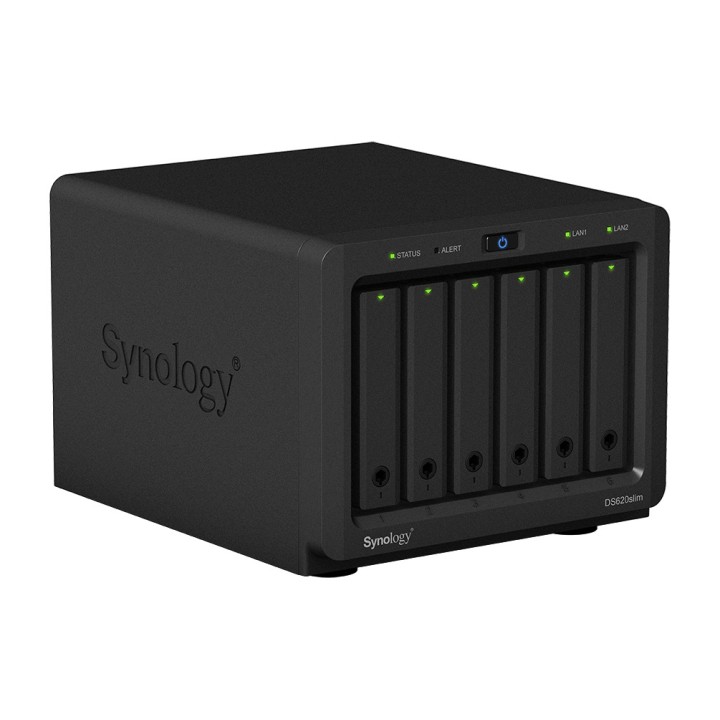

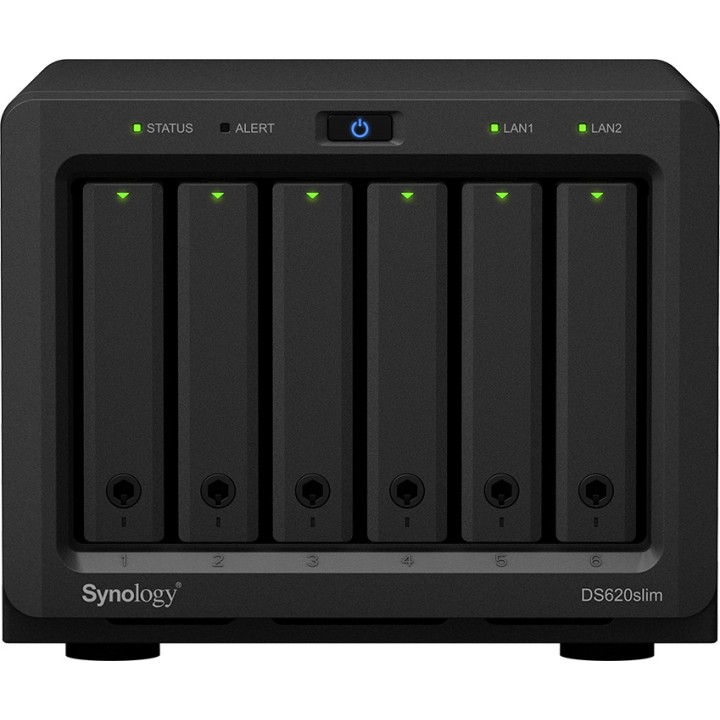

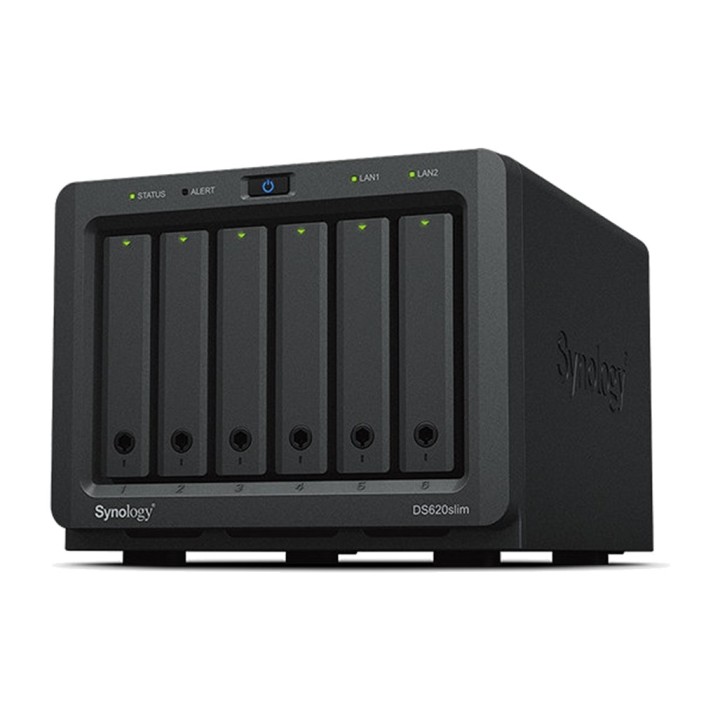

SYNOLOGY Compact 6-bay NAS server for 2.5-inch drives DISKSTATION-DS620SLIM DSP0000006970

DESCRIPTION
Synology DiskStation DS620SLIM. Total installed storage capacity
installed: 108 TB, Supported storage drive types: HDD &
SSD, Storage drive interface: SATA. Processor family:
Intel Celeron, Processor manufacturer: Intel, Processor model:
J3355. Internal memory: 2 GB, Internal memory type: DDR3L, Maximum RAM
supported: 6 GB. Ethernet LAN, data transfer rate:
10,100,1000 Mbit/s, Supported network protocols: CIFS, AFP, NFS, FTP,
WebDAV. Integrated graphics base frequency: 250 MHz, frequency of
integrated graphics adapter: 700 MHz, maximum integrated graphics adapter memory of
integrated graphics : 8 GB ESPECIFICACIONES TÉCNICAS

WEIGHT AND DIMENSIONS
HEIGHT
121 mm
WIDTH
151 mm
WEIGHT
1,4 kg
DEPTH
175 mm
Power control
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power supply unit (PSU) capacity
65 W
Energy consumption
34,88 W
Number of power supplies
1
Power supply location
Integrated
Environmental conditions
Operating temperature range
5 - 40 C
Storage temperature range
-20 - 60 C
Relative humidity range during storage
5 - 95%
Connection
Network connection
YES
Ethernet
YES
Ethernet LAN data transfer rate
10,100,1000 Mbit/s
Supported network protocols
CIFS, AFP, NFS, FTP, WebDAV
iSCSI support
YES
WiFi
NOT
Ports and Interfaces
Number of USB 3.2 Gen 1 (3.1 Gen Type-A ports 1)
2
Ethernet LAN (RJ-45) port quantity
2
Number of eSATA ports
2
USB port
YES
MEMORY
Internal memory
2 GB
Maximum supported RAM
6 GB
Memory slots
2
Internal memory type
DDR3L
PROCESSOR
CPU configuration (maximum)
1
CPU size
24 x 31 mm
Processor cache
2 MB
PCI Express configurations
1x2+2x1,4x1
Stepping
B1
PCI Express entry version
2.0
Processor manufacturer
Intel
Processor family
Intel Celeron
Processor frequency
2 GHz
Turbo processor frequency
2,5 GHz
T-junction
105 C
Processor lithography
14 nm
Maximum internal memory supported by the processor
8 GB
Processor model
J3355
Integrated graphics adapter model
Intel HD Graphics 500
Processor operating modes
64 bits
Number of processor cores
2
Number of processor threads
2
Thermal Design Power (TDP)
10 W
Processor codename
Apollo Lake
Conflict-free processor
YES
Processor socket
BGA 1296
System bus data transfer rate
5 GT/s
Processor cache type
Smart Cache
Processor code
SR2Z8
OTHER FEATURES
Processor ARK ID
95597

Storage media
Total installed storage capacity
108 TB
Storage drive capacity
3000 GB
Maximum supported storage capacity
108 TB
RAID support
YES
Storage drive interface
SATA
RAID levels
0,1,5,6,10,JBOD
Number of compatible storage drives
6
Hot-swap drive bays
YES
Supported file systems
BTRFS,FAT,HFS+,NTFS,exFAT,ext3,ext4
Storage drive size
2.5"
Supported storage drive sizes
2.5"
Type of installed storage drives
NOT
Supported storage drive types
HDD & SSD
Installed storage drives
NOT
Package contents
Cables included
AC , LAN (RJ-45)
Quick setup guide
YES
Performance
Device class
Small and medium-sized businesses
Backup function
YES
Noise level
20,5 dB
Number of users
1000 user(s)
Multilingual support
YES
Type
NAS
Design
Product color
BLACK
Fan diameter
8 cm
LED Indicators
YES
Number of fans
1 fan(s)
Chassis type
Desk
Cooling type
Active
Processor special features
Intel InTru 3D Technology 3D
NOT
Intel 64
YES
Intel AES New Instructions (Intel AES-NI)
YES
Intel Anti-Theft Technology (Intel AT)
NOT
Intel Small Business Advantage (SBA) version
0,00
Intel Small Business Advantage (Intel SBA)
NOT
Intel High Definition Audio Technology (Intel HD Audio)
YES
Execute Disable Bit
YES
Intel Turbo Boost technology
NOT
Intel Secure Boot
YES
Intel Secure Boot Technology version
1,00
Intel Clear Video HD Technology (Intel CVT HD)
YES
Intel Clear Video Technology for MID (Intel CVT for MID)
YES
Intel Clear Video Technology
YES
Intel Smart Connect Technology
NOT
Intel Smart Connect Technology version
0,00
Intel Wireless Display (Intel WiDi)
NOT
Intel Virtualization Technology for Directed I/O (VT-d)
YES
Intel VT-x with Extended Page Tables (EPT)
YES
Intel Enhanced Halt State
YES
Intel Stable Image Platform Program (SIPP)
NOT
Idle states
YES
Intel Trusted Execution Technology
NOT
Maximum number of PCI Express buses
6
Intel OS Guard
NOT
Intel Hyper-Threading
NOT
Intel Identity Protection Technology (Intel IPT)
YES
Intel Identity Protection Technology version
1,00
Intel Insider
NOT
Intel Enhanced SpeedStep Technology
YES
Intel Rapid Storage Technology
NOT
Intel Secure Key Technology version
1,00
Intel Smart Response Technology version
0,00
Intel Stable Image Platform Program version
0,00
Intel Virtualization Technology (VT-x)
YES
Intel Quick Sync Video Technology
YES
Intel Secure Key
YES
Intel Smart Response Technology
NOT
Intel Thermal Monitoring Technology
YES
Number of execution units
12
Available integrated options
YES
Memory types supported by the processor
DDR3L, LPDDR3-SDRAM, LPDDR4-SDRAM
UART
YES
Graphics
Integrated graphics base frequency
250 MHz
Integrated graphics adapter frequency
700 MHz
Maximum integrated graphics adapter memory
8 GB
Number of supported displays (integrated graphics)
3
SOFTWARE
Installed operating system
DiskStation Manager
Volume (m ³): 0.0092
