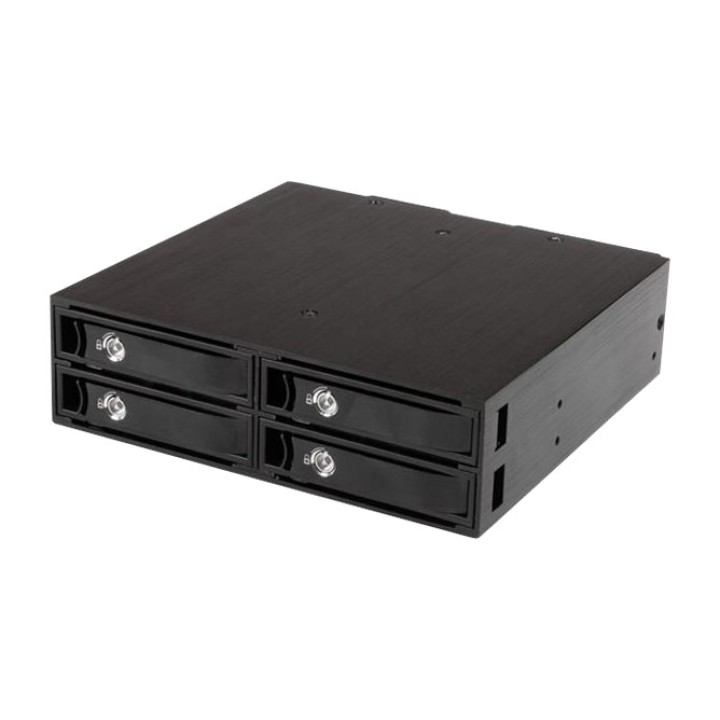

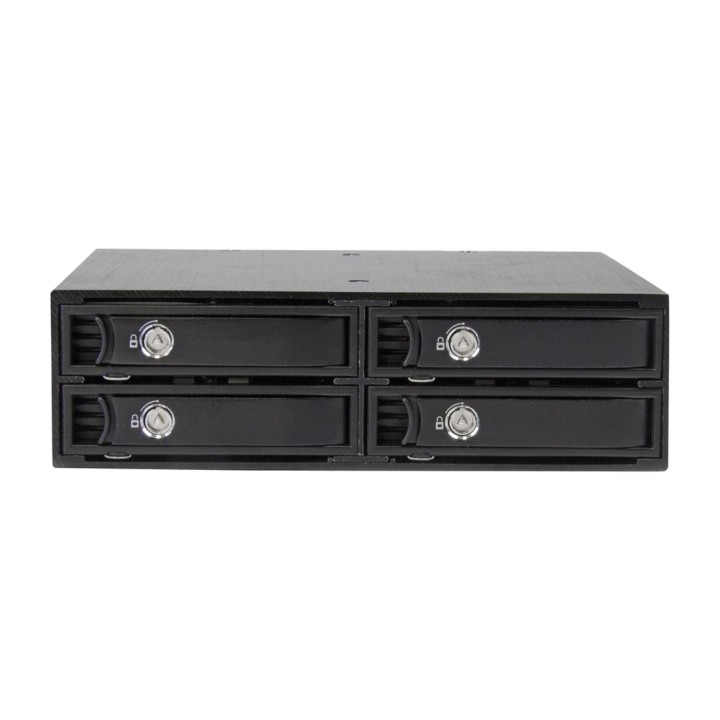

STARTECH.COM Removable-bay backplane for 4 SATA or SAS drives 5,25" 4X-2,5" SATSASBP425 DSP0000039219

Features of the StarTech.com 5.25" to 4-Drive Mobile Rack Backplane 2,5" SATA/SAS
The StarTech.com mobile rack backplane is a professional solution designed to maximize storage capacity in desktop systems or servers. It allows you to install up to 4 2.5" SATA or SAS drives in a single 5.25" bay, offering hot-swap capability, efficient organization and advanced drive management. It is ideal for environments where flexibility, fast maintenance and performance are key.
High capacity and professional compatibility
This backplane makes the most of the available space by integrating four 2.5" hard drives or SSDs into a single front bay. It is compatible with SATA and SAS interfaces, making it a versatile option for both workstations and servers.

Supports up to 4 drives of 2,5"
Compatible with SATA 6Gb/s and SAS 6Gb/s
Installation in a bay of 5,25"

Hot-swap for maximum efficiency
Thanks to its hot-swap functionality, it allows you to replace or add drives without having to shut down the system, simplifying maintenance and reducing downtime in professional environments.

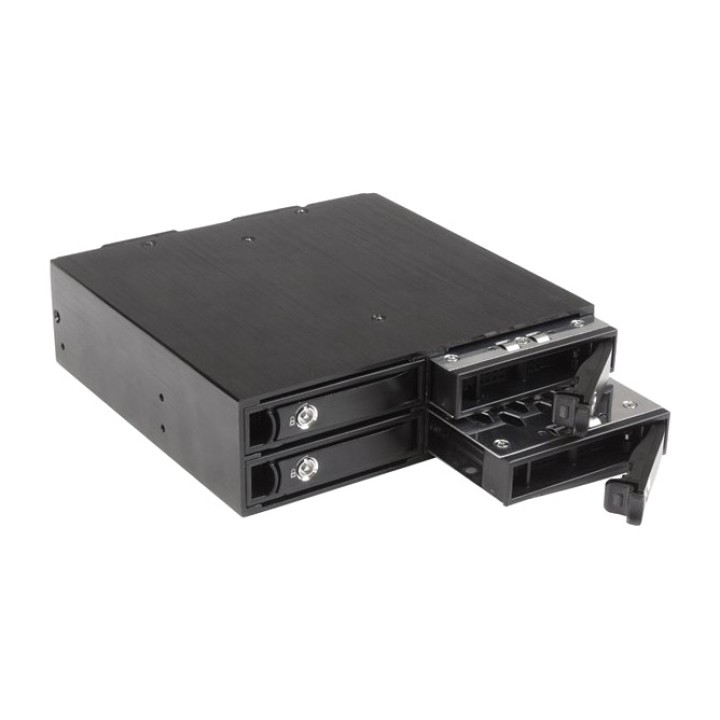

4 hot-swappable bays
Quick front access to the drives
Ideal for continuous-work environments

Secure design and integrated cooling
Features an integrated cooling fan that helps maintain optimal operating temperatures, along with a tray locking system for added security for the installed drives.

Integrated fan for heat dissipation
Drive locking system
Status LED indicators

Comprehensive connectivity and included accessories
The device includes everything needed for quick installation, including SATA cables, trays and screws. It offers direct connectivity via SATA and SAS interfaces, ensuring stable performance.

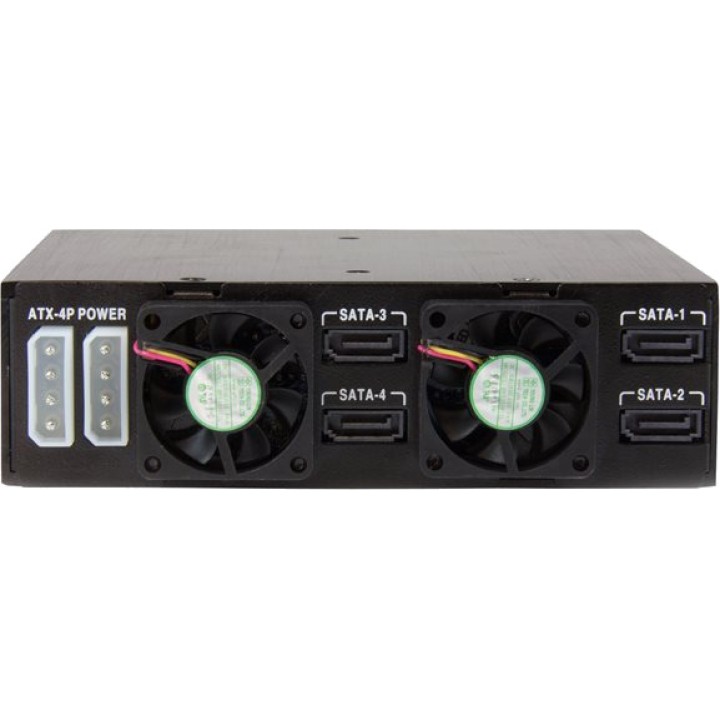

4 SATA interfaces and 4 7-pin SAS interfaces
Includes 4 SATA cables

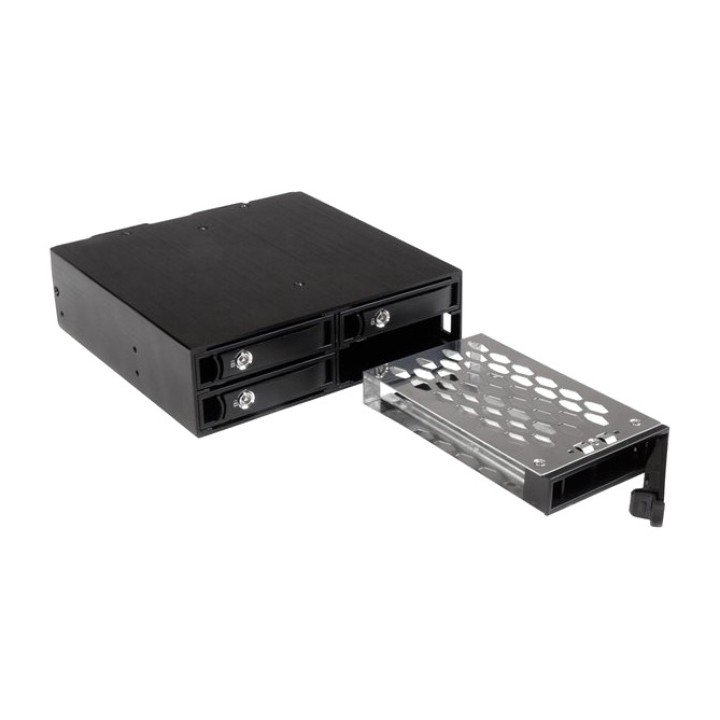

4 drive trays and complete mounting kit

Compact, robust design
Finished in black with a compact design, this backplane fits easily into most systems. Its construction is designed to provide durability and reliability during continuous use.

Dimensions: 14.6 x 4.2 x 15.15 cm
WEIGHT: 740 g
MTBF: 30,000 hours

Other specifications

Power: 4-pin internal connector
Operating temperature: 0 °C to 55 °C
Operating humidity : 5% - 65%
Complies with FCC and RoHS regulations
COMPATIBLE WITH P/N: SATBP125VP, SATSASBP125
Volume (m ³): 0.0034
