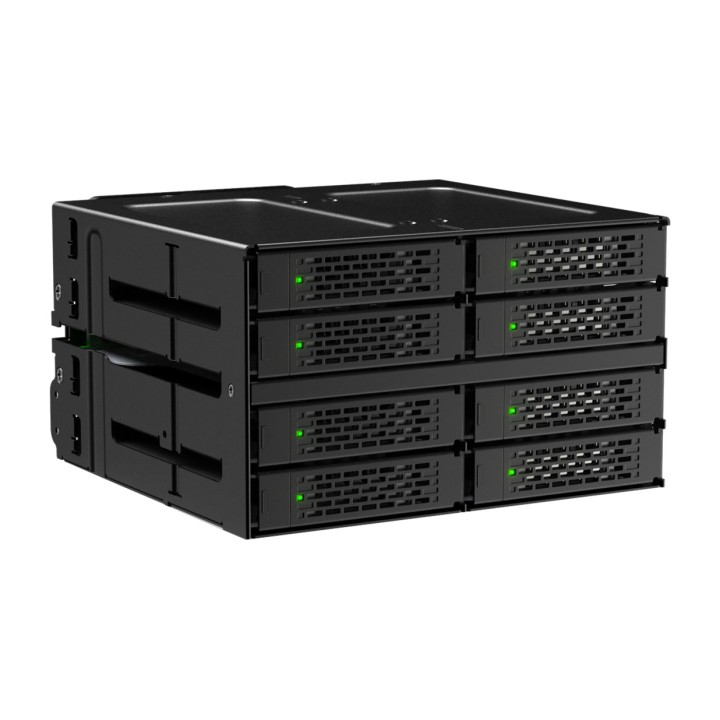

ICY DOCK Removable rack for NVMe SSD in 2 5.25-inch bays TOUGHARMOR-MB508V5P-B 8X2,5"-PCIE 5.0 100194438

The Icy Dock ToughArmor MB508V5P-B is a next-generation NVMe backplane specifically designed for high-performance, intensive applications, combining maximum storage density with state-of-the-art PCIe Gen5 technology. The system supports the installation of up to eight 7 mm to 15 mm-high U.2/U.3 NVMe SSDs in two 5.25-inch bays, making it ideal for professional server and workstation environments. Thanks to the four MCIO 8i (SFF-TA-1016) ports, each drive supports its own PCIe Gen5 x4 connection, achieving an extremely high total bandwidth of up to 128 Gbps. Combined with compatible tri-mode HBA or RAID controllers in NVMe mode, the system provides reliable, future-proof, high-speed connectivity for data-intensive applications. The eight hot-swappable EZ-Slide trays allow SSDs to be replaced quickly and safely while the system is running, greatly simplifying maintenance and data management. The integrated Eagle Hook locking system also ensures that drives remain secure in their trays and are not accidentally removed. For stable performance even under heavy loads, the MB508V5P-B is equipped with a powerful 80 mm fan and an optimized airflow design that effectively cools the NVMe SSDs—a crucial factor, especially in PCIe Gen5 applications. It is powered by an 8-pin PCIe connector and a 6-pin PCIe connector, ensuring a constant and reliable power supply for all drives. The robust, all-metal construction in the ToughArmor design ensures maximum durability and meets the highest requirements for industrial use. The MB508V5P-B is therefore ideal for AI servers, edge computing, media production and other demanding applications where speed, reliability and scalability are crucial.
Type: Interchangeable chassis
Use: Device Bracket
installable units: 8x 2.5 inches internal
Required bays: 2x 5.25 ext.
Dimensions: Width: 146 mm x Height: 84 mm x Depth/length: 158 mm
Weight: 1.5kg
