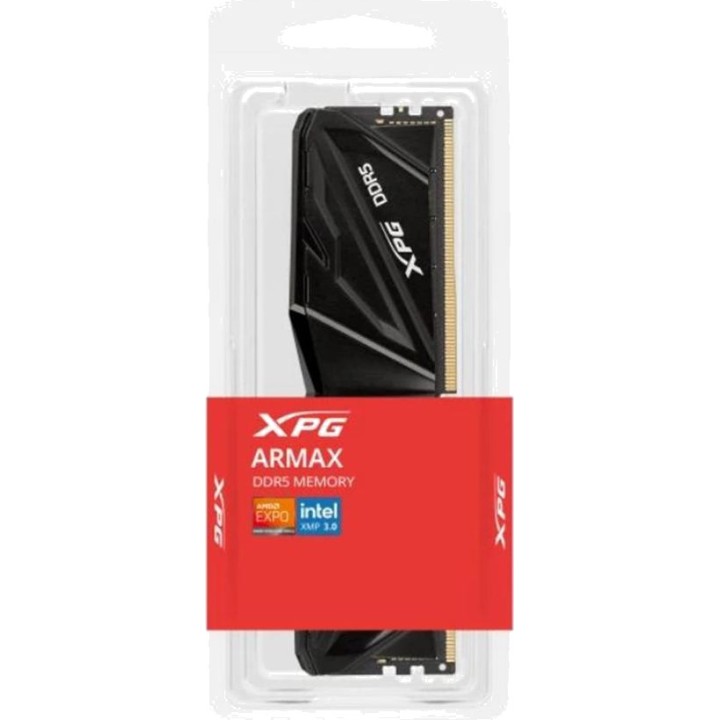

ADATA DIMM RAM memory module XPG ARMAX DDR5 5600MHZ 16GB CL46 DSP0000043263

Features of the ADATA XPG ARMAX 16GB DDR5 5600MHz CL46 Black RAM
The ADATA XPG ARMAX 16 GB DDR5 at 5600 MT/s is a RAM module designed for desktop computers looking to benefit from DDR5 technology. Featuring a U-DIMM form factor, a black heat sink and compatibility with Intel XMP 3.0 profiles, it offers a solution for upgrading or configuring a computer with greater bandwidth, energy efficiency and stability for everyday tasks, demanding applications and gaming.
16 GB DDR5 with a speed of 5600 MT/s
This module features 16 GB of DDR5 memory with a transfer rate of up to 5600 MT/s, providing the bandwidth needed to work with several applications and run programs that require memory resources. Its single-module configuration allows for future upgrades, provided the motherboard has compatible slots.

CAPACITY : 16 GB (1 x 16 GB).
Memory type: single-rank DDR5 U-DIMM (1-rank).
Speed: 5600 MT/s.
Latencies : CL46 (46-45-45).
Operating voltage : 1,1 V.

Compatible with Intel XMP 3.0 and current platforms
Thanks to compatibility with Intel XMP 3.0, this memory allows you to use configuration profiles to adjust its operating parameters from a compatible motherboard. It is also designed for desktop platforms with 2nd Series Intel Core Ultra processors, making it easy to integrate into modern configurations that support DDR5 memory.

Compatible with Intel profiles XMP 3.0.
Compatible with Intel Core Ultra desktop platforms (series 2).
U-DIMM form factor for desktop computers.
Requires a motherboard compatible with memory DDR5.

Integrated power management and On-Die ECC error correction
The ADATA XPG ARMAX features an integrated power management circuit (PMIC) that regulates power to the module and contributes to efficient operation. It also features On-Die ECC technology, which detects and corrects certain internal errors in the memory chips to help ensure data integrity during operation.

Integrated power management via PMIC.
On-Die ECC technology for internal error correction.
Operating voltage of 1,1 V.

Black heatsink with functional design
Its black heatsink helps manage the heat generated while the memory is operating. It features a non-angular top design that adds a discreet look to the inside of the computer. Measuring 133.35 x 39.49 x 8.5 mm, it is important to check the available space next to the processor cooling system before installation.

Integrated heatsink.
Non-angular top design.
COLOR: negro.
Dimensions: 133.35 x 39.49 x 8.5 mm.
Weight: 43.16 g.

SPD profiles and memory configuration
The module includes SPD (Serial Presence Detect) values that allow the motherboard to identify its operating parameters. Its SPD profile sets a speed of 4800 MT/s with timings of 40-39-39 and a voltage of 1.1 V. To reach 5600 MT/s, it may be necessary to enable the corresponding Intel XMP profile in the BIOS, provided the platform supports this configuration.

SPD speed: 4800 MT/s.
SPD timings: 40-39-39.
VOLTAGE SPD: 1,1 V.
Compatible with Intel profiles XMP 3.0.

Other specifications

Brand: ADATA XPG.
SERIES: ARMAX.
MODEL: AX5U5600C4616G-SAMBK.
Configuration: Single Tray (1 x 16 GB).
Package contents: 1 DDR5 RAM memory module of 16 GB.
Volume (m ³): 0.0002
