KINGSTON Desktop PC DIMM RAM VALUERAM-DDR5 5600MT/S 32GB CL46 DSP0000042467

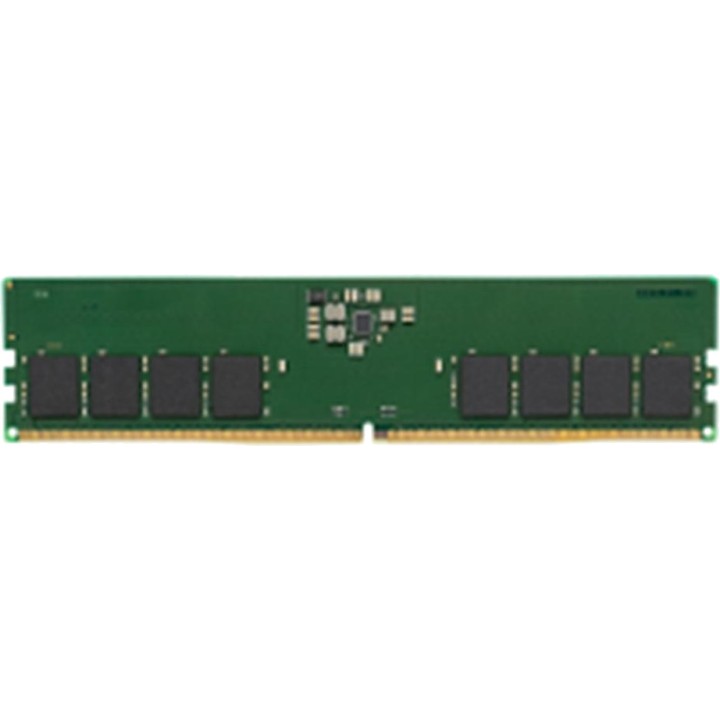

Features of the Kingston Technology ValueRAM 32 GB DDR5 5600 MT/s 288-pin DIMM
The 32 GB Kingston Technology ValueRAM is a memory module designed to expand or upgrade the memory capacity of compatible PCs and servers. It features DDR5 technology at 5600 MT/s in a single 32 GB module, offering a suitable solution for systems that require high memory capacity and the performance of the DDR5 generation.
32 GB of DDR5 memory at 5600 MT/s
This module provides 32 GB of DDR5 capacity and reaches a data transfer speed of 5600 MT/s. Its single-module configuration makes it possible to expand the memory of compatible systems while maintaining the specifications established by the JEDEC standard.

CAPACITY : 32 GB
SETTING : 1 x 32 GB
Memory type: DDR5
Transfer rate: 5600 MT/s
Module configuration : 4096M x 64
Memory rank : 1
Compatible with the JEDEC standard: Yes

288-pin DIMM format for PC and server
The memory uses a 288-pin DIMM format and is intended for desktop computers and servers that support its specifications. It is Unregistered or unbuffered memory, so it does not incorporate a register buffer.

Form factor: 288-pin DIMM
Component for: PC/servidor
Buffered memory type: Unregistered (unbuffered)
ECC: No
SPD profile: Yes

Integrated On-Die ECC
The module incorporates On-Die ECC, a feature of the DDR5 architecture designed to correct certain errors internally within the memory chips themselves. This system should not be confused with conventional ECC memory, as the module is specified as non-ECC.

On-die ECC: Yes
Module ECC: No
CAS latency: CL46
Row active time: 32 ns
Row cycle time: 48 ns
Row cycle refresh time: 410 ns

Efficient operation at 1,1 V
Thanks to the specifications of DDR5 technology, this module operates at a memory voltage of 1.1 V. It also has a VPP voltage of 1.8 V and gold-finished contacts.

Memory voltage : 1,1 V
VOLTAGE VPP: 1,8 V
Contacts: gold

Format and operating conditions
Measuring 133.3 mm wide and 31.2 mm high, the module retains the specified DIMM format for installation in compatible systems. It is designed to operate within an operating temperature range of 0 to 85 °C.

Width: 133.3 mm
Height: 31.2 mm
Operating temperature: 0 to 85 °C
Storage temperature: -55 to 100 °C

Other specifications
The Kingston Technology ValueRAM meets the sustainability requirements specified for the product and is RoHS certified. It is also specified as halogen-free.

Sustainability compliance: yes
Conformity certification: RoHS
Does not contain: halogens
Volume (m ³): 0.0004
