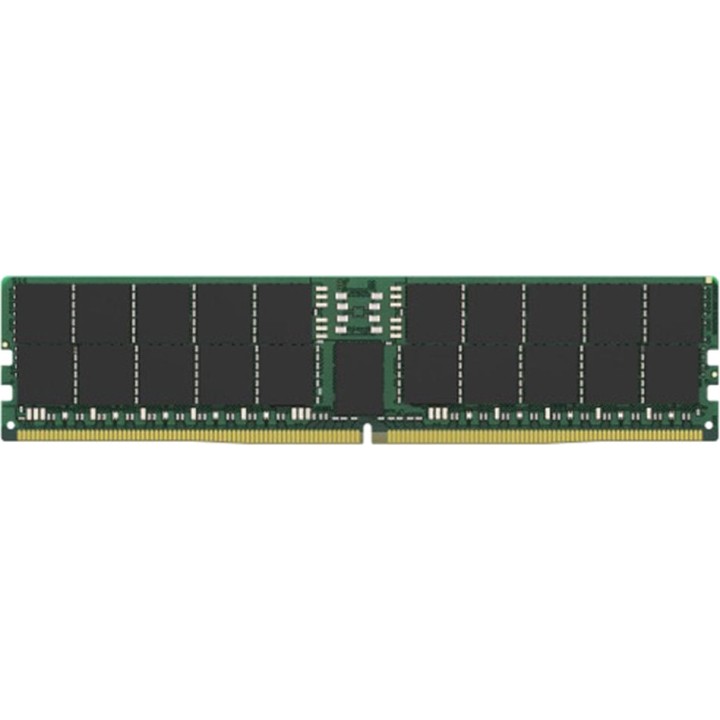

KINGSTON DDR5 ECC RDIMM server RAM SERVER-PREMIER 6400MT/S 64GB CL52 2RX4 DSP0000042254

Features of the Kingston 64GB 6400MT/s DDR5 ECC Registered Memory CL52
Kingston’s 64 GB DDR5 memory is designed for installation in servers that require high memory capacity and stable operation. It offers a transfer speed of 6400 MT/s and uses ECC technology together with Registered (buffered) memory, features intended for professional environments and compatible systems.
64 GB of DDR5 memory at 6400 MT/s
This module provides 64 GB of capacity with DDR5 technology and reaches a data transfer rate of 6400 MT/s. Its 288-pin DIMM form factor is specifically designed for servers compatible with this type of memory.

CAPACITY : 64 GB
Internal memory type: DDR5
Transfer speed: 6400 MT/s
Format: 288-pin DIMM
Component for: Server

ECC Registered memory for servers
The memory incorporates ECC and Registered (buffered) technology, a configuration used in compatible server platforms. It also complies with the JEDEC standard and features an SPD profile to help the system correctly identify its parameters.

ECC: Yes
On-Die ECC: no
Buffered memory type: Registered (Buffered)
JEDEC standard: Yes
SPD profile: Yes
Memory rank : 1

Latency and operating parameters
The module operates with a CAS latency of CL52 and a memory voltage of 1,1 V. Its various timing parameters determine how the memory operates in compatible systems.

CAS latency: 52
Memory voltage : 1,1 V
Voltage power programmer (VPP): 1,8 V
Row active time: 32 ns
Row cycle time: 48 ns
Row cycle refresh time: 295 ns
Minimum time between a precharge phase and an activation phase (TRP): 16

Form factor and environmental conditions
Measuring 133,3 mm wide and 31,2 mm high, it uses the standard 288-pin DIMM form factor. It is designed to operate across a wide temperature range and features gold-finished contacts.

Width: 133.3 mm
Height: 31.2 mm
Lead plating: Gold
Operating temperature : 0 - 95 °C
Storage temperature : -55 - 100 °C

Other specifications
The memory meets technical and environmental requirements, including RoHS certification and being halogen-free.

Chip organization: 1Rx8
Does not contain: halogen
Certificate of conformity: RoHS
Volume (m ³): 0.0004
