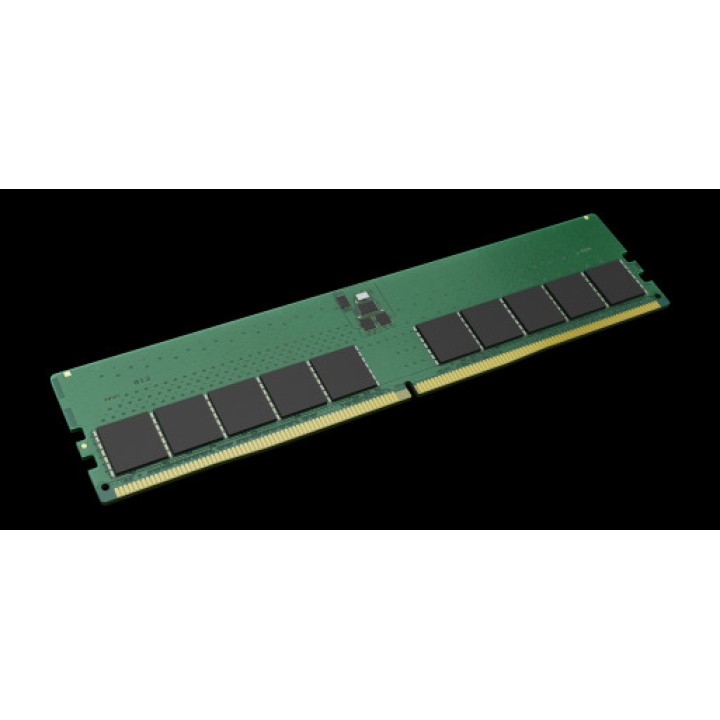

KINGSTON DDR5 ECC UDIMM RAM for servers SERVER-PREMIER 5600MT/S 48GB CL46 2RX8 1.1V DSP0000043208

Kingston Technology memory features KSM56E46BD8KM-48HM 48 GB DDR5

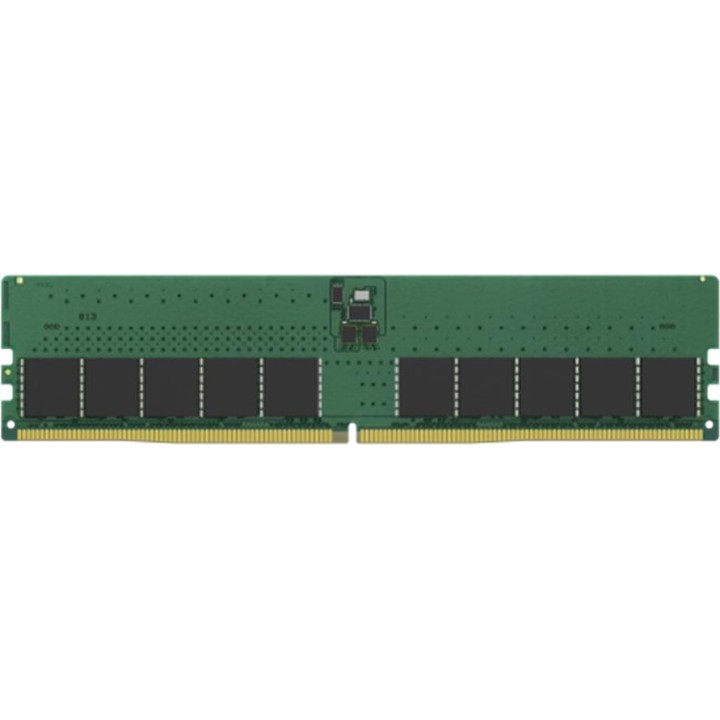

The Kingston Technology KSM56E46BD8KM-48HM is a 48 GB DDR5 RAM module designed for compatible PC and server systems. With a transfer rate of 5600 MT/s, a 288-pin DIMM form factor and CAS latency of 46, it offers a memory upgrade solution for systems that need to handle demanding applications and workloads.
48 GB capacity and technology DDR5
This module incorporates 48 GB of DDR5 memory in a single unit, allowing the system’s RAM capacity to be expanded using a single compatible slot. Its speed of 5600 MT/s provides high bandwidth for data processing and multitasking.

CAPACITY : 48 GB.
SETTING : 1 x 48 GB.
TECHNOLOGY: DDR5.
Transfer speed: 5600 MT/s.
CAS latency: CL46.

DIMM form factor and unbuffered operation
Thanks to its 288-pin DIMM form factor, this memory is intended for motherboards that support DDR5 modules with these specifications. Its Unregistered (unbuffered) architecture allows it to operate without an intermediate memory register, while its 1,1 V voltage meets DDR5 operating specifications.

Form factor: 288-pin DIMM.
Memory type: Unregistered (unbuffered).
Memory voltage : 1,1 V.
VOLTAGE VPP: 1,8 V.
Memory rank: 2 ranks.
Contacts with gold finish.

On-Die ECC technology and JEDEC standard
The memory integrates On-Die ECC technology, which can detect and correct certain errors within the DRAM chips themselves. This function is not equivalent to conventional system-level ECC memory, as the module is specified as non-ECC. It also incorporates an SPD profile and complies with the JEDEC standard to help compatible systems identify its parameters.

On-Die ECC: yes.
Module-level ECC: No.
SPD profile: Sí.
JEDEC standard compatible: Sí.

Memory timing parameters
The Kingston KSM56E46BD8KM-48HM has timings defined for managing memory operations, including row activation, precharge and refresh cycles. These values make it possible to identify its technical specifications precisely and check whether it meets the equipment requirements.

Row active time: 32 ns.
Row cycle refresh time: 295 ns.
Row cycle time: 48 ns.
Minimum time between precharge and activation (TRP): 16.

Dimensions and operating conditions
Measuring 133.3 mm wide and 31.2 mm high, this module has a form factor suitable for compatible DDR5 DIMM slots. Its specified temperature ranges indicate the ambient conditions permitted during operation and storage.

Width: 133.3 mm.
Height: 31,2 mm.
Operating temperature: from 0 to 95 °C.
Storage temperature: From -55 to 100 °C.

Materials and regulatory compliance
The module is specified as halogen-free and has RoHS compliance certification, which relates to the restriction of certain hazardous substances in electrical and electronic equipment.

Halogen-free.
Certificate of conformity: RoHS.
Volume (m ³): 0.0004
