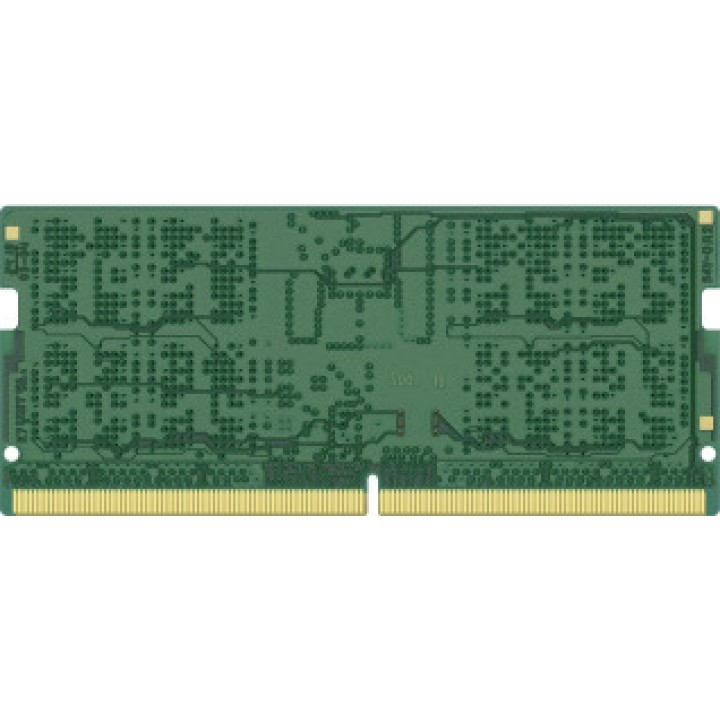

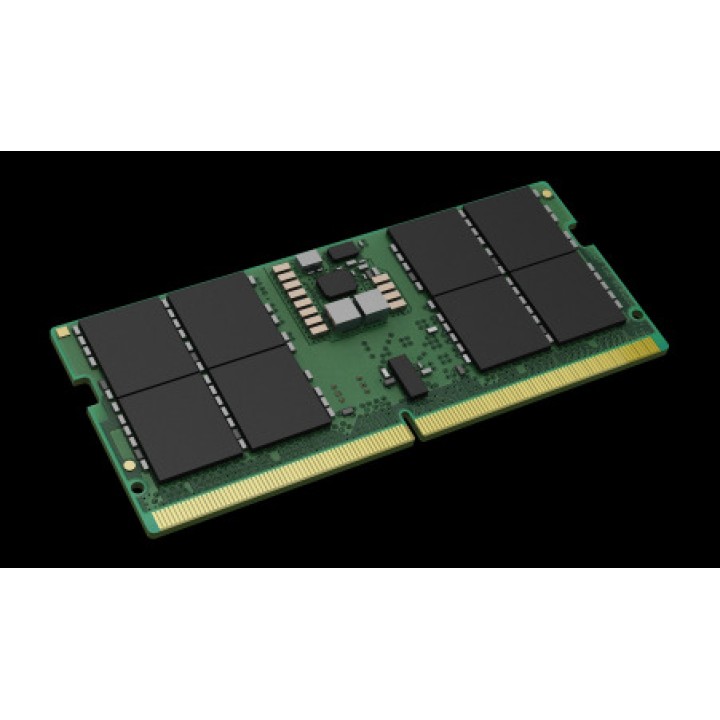

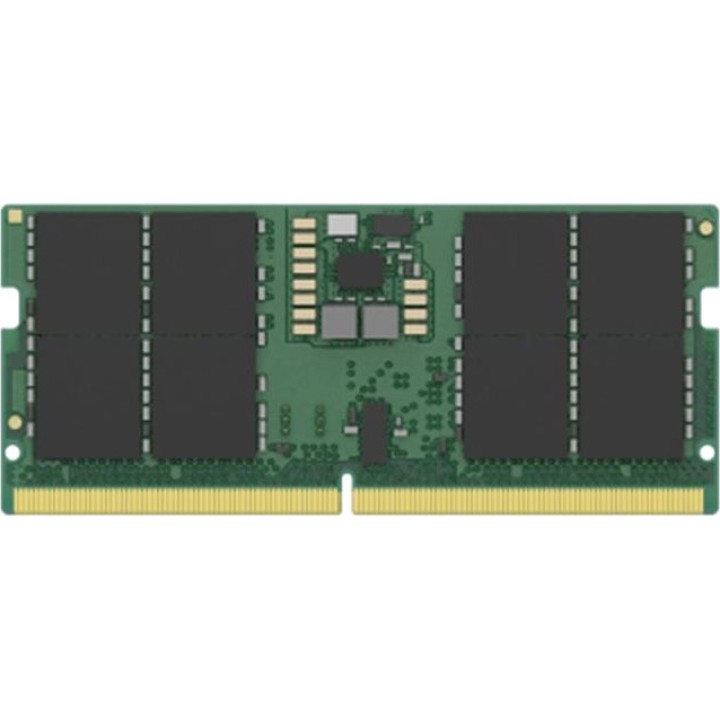

KINGSTON Laptop SODIMM RAM VALUERAM-DDR5 6400MT/S 32GB CL52 KVR64V52BS8-32 DSP0000042466

Features of the Kingston KVR64V52BS8-32 32 GB DDR5 6400 MT/s memory
The Kingston KVR64V52BS8-32 is a DDR5 memory module for laptops offering 32 GB of capacity and a transfer speed of up to 6400 MT/s. Its 262-pin SO-DIMM format and 1 x 32 GB configuration make it a suitable option for expanding or upgrading equipment compatible with DDR5 memory, providing high capacity for demanding applications and multitasking.
32 GB DDR5 at 6400 MT/s
This module combines a capacity of 32 GB with DDR5 technology and a transfer speed of 6400 MT/s. These features provide memory designed to handle intensive workloads, run several applications simultaneously and make the most of the capabilities of compatible laptops.

CAPACITY : 32 GB
SETTING : 1 x 32 GB
Memory type: DDR5
Transfer speed: 6400 MT/s
CAS latency: CL52

SO-DIMM format for laptops
The Kingston KVR64V52BS8-32 uses a 262-pin SO-DIMM format designed for compatible laptops. Its dimensions of 69,6 mm in width and 30 mm in height allow it to fit into the memory slot of these types of devices.

Component for: Laptop
Form factor: 262-pin SO-DIMM
Width: 69,6 mm
Height: 30mm

Operation at 1.1 V and JEDEC standard
The module operates at a memory voltage of 1.1 V and complies with the JEDEC standard. It also features an SPD profile and uses an unbuffered memory configuration, features designed for operation in compatible DDR5 systems.

Memory voltage : 1,1 V
VOLTAGE VPP: 1,8 V
JEDEC standard: Yes
SPD profile: Yes
Buffered memory type: clocked, unregistered (unbuffered)
ECC: No
On-die ECC: Yes

Memory configuration and timings
The memory has a module configuration of 4096M x 64 and a memory rank of 1. Its various timing parameters specify the module's behaviour during data access and refresh operations.

Module configuration : 4096M x 64
Memory rank : 1
Row active time: 32 ns
Row cycle time: 48 ns
Row cycle refresh time: 410 ns
Lead plating: Gold

Operating conditions and certification
Designed to operate across a wide range of conditions, this memory supports an operating temperature of 0 to 85 °C and storage temperatures of -55 to 100 °C. It is also RoHS-compliant and specified as halogen-free.

Operating temperature : 0 - 85 °C
Storage temperature : -55 - 100 °C
Certificate of conformity: RoHS
Does not contain: halogen
Volume (m ³): 0.0004
