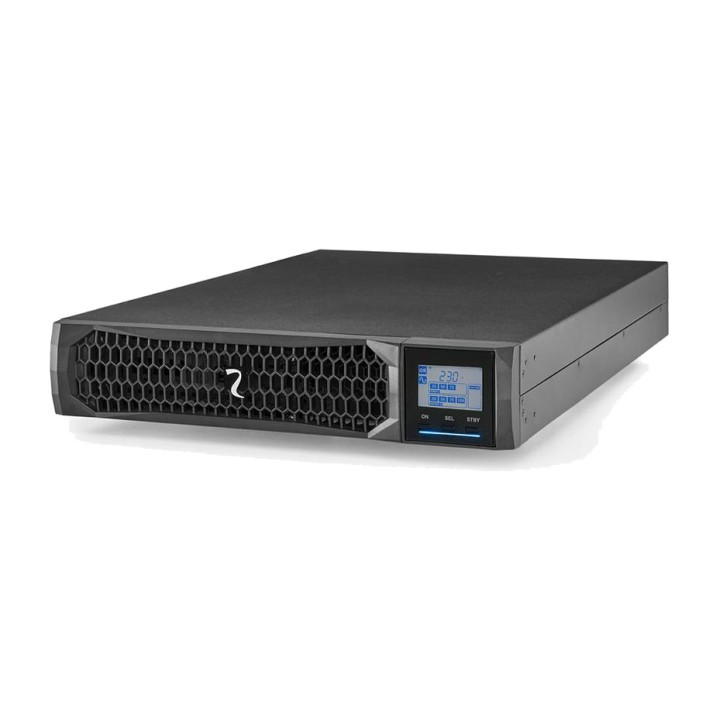

RIELLO UPS Online double-conversion uninterruptible power supply (UPS) for rack cabinet SENTINEL-DUAL2 SD2-2200 2U 2200VA 2200W

Features of the Riello Sentinel Dual 2 2200
The Riello Sentinel Dual2 2200 is an online double-conversion UPS (uninterruptible power supply) designed to protect critical equipment in professional environments. With a power rating of 2200 W / 2.2 kVA, it provides continuous, stable and uninterrupted power, ideal for servers, network systems, workstations or sensitive electronics requiring maximum reliability.
Continuous protection with online double-conversion technology
Thanks to its double-conversion topology, this UPS ensures a completely stable power supply, eliminating any fluctuations or interference from the mains. Its pure sine wave output ensures full compatibility with sensitive devices.

Output power: 2200 W / 2.2 kVA
Topology: Double conversion (online)
Pure sine wave
Efficiency of up to 93.7 %

High efficiency and optimised performance
This model delivers high energy performance thanks to its 93.7 % efficiency and an input power factor of 1, optimising power consumption without compromising protection. Its fast response ensures continuity in the event of any incident.

Efficiency : 93.7 %
Input power factor : 1
Response time: 20 ms
Crest factor: 3:1

Comprehensive connectivity for professional environments
The Riello Sentinel Dual2 2200 integrates multiple connection options that make it easy to integrate into IT systems and corporate networks, enabling remote monitoring and management.

9 AC outlets (C13 and C19)
Input connector C20
USB port Y RS-232
Ethernet port LAN (RJ-45)

Reliable battery with easy maintenance
Equipped with sealed VRLA batteries, this UPS ensures a safe backup power supply. In addition, its hot-swap system allows the batteries to be replaced without having to switch off the connected equipment.

Battery technology: Sealed Lead Acid (VRLA)
Hot-swappable battery

Professional design with intuitive controls

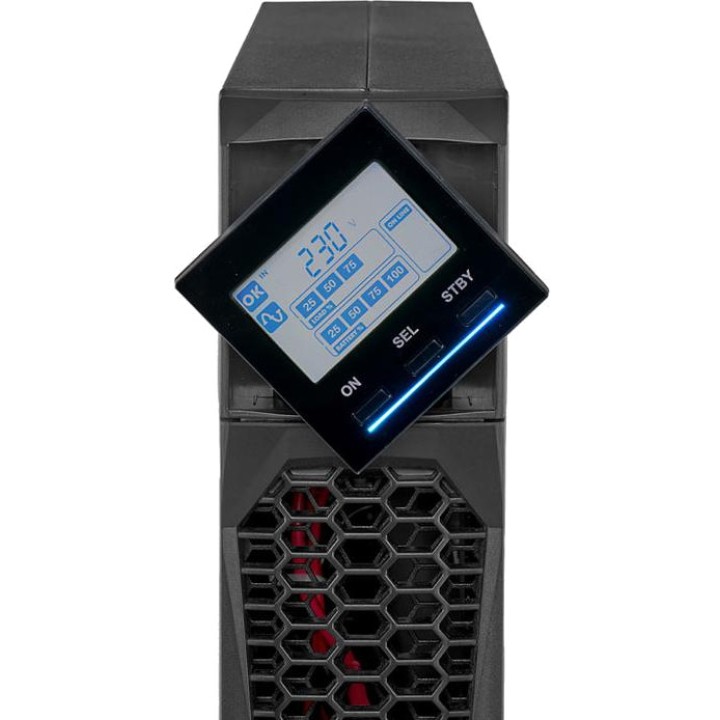

Its tower format and integrated LCD screen make it easy to manage and visually monitor the system status. It also features LED indicators for quick monitoring of its operation.

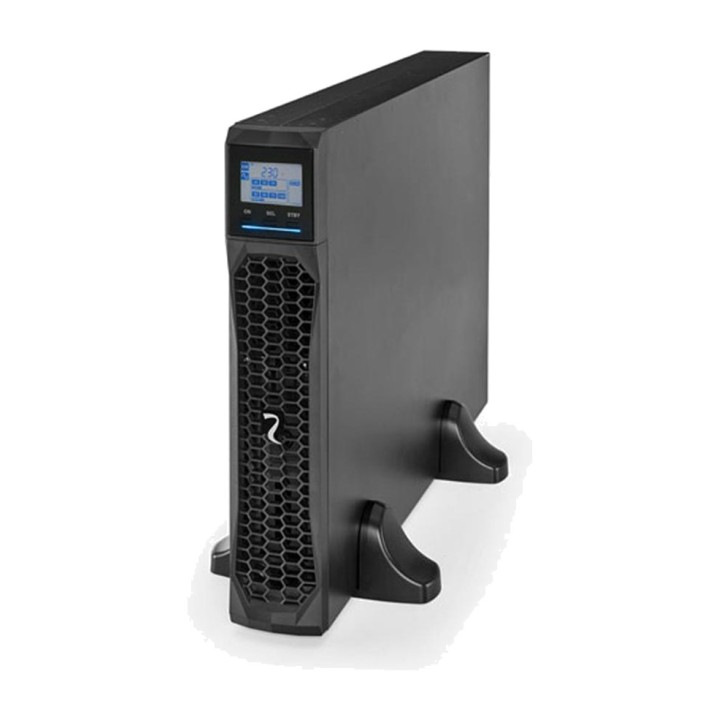

Form factor: Tower
Integrated LCD screen
LED Indicators
Noise level: 40 dB

Advanced protection and safe operation
This UPS incorporates multiple safety systems to protect both the connected equipment and the device itself against electrical incidents.

Overcurrent protection
Short-circuit protection
Overvoltage and undervoltage protection
Energy rating : 300 J

Other specifications

Input voltage : 220 - 240 V
Input/output frequency: 50/60 Hz
Operating temperature range : 0 - 40 °C
Operating relative humidity : 5 - 95 %
Dimensions: 87 x 625 x 450 mm
Weight: 24.8 kg
Contents: power cables, USB cable, manual and quick-start guide
Volume (m ³): 0.0492
