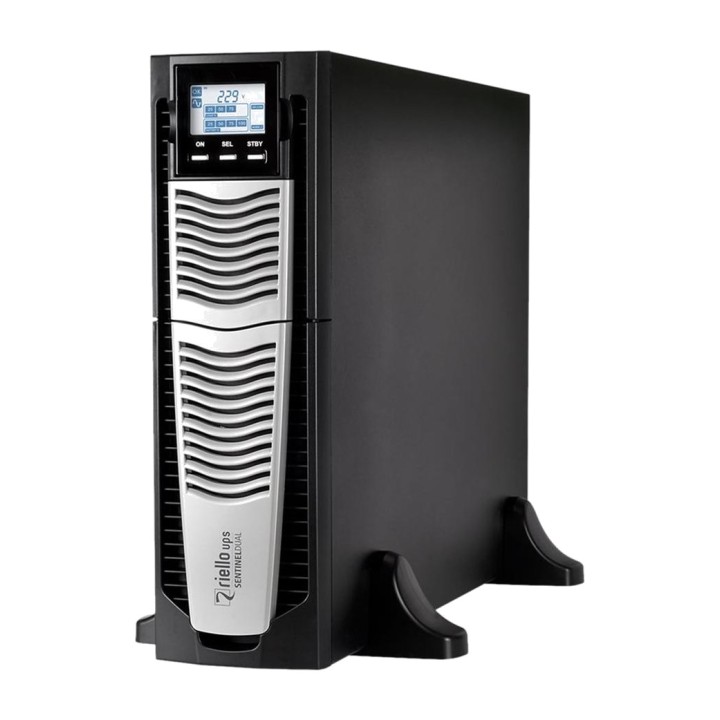

RIELLO UPS Online double-conversion uninterruptible power supply (UPS) for rack or tower SENTINEL-DUAL SDU10000 10000VA DSP00000

Features of the Sentinel Dual SDU 10 kVA
The Sentinel Dual SDU 10 kVA is a high-performance uninterruptible power supply (UPS) designed for critical applications requiring continuous, reliable power protection. Ideal for professional environments such as data centres, servers, industrial systems or network infrastructures, this model offers power of up to 10,000 VA, online double-conversion technology and high energy efficiency. Its flexible design allows it to be installed in a 19" rack or as a standalone unit.
Reliable power with online technology
Double-conversion technology guarantees an uninterrupted power supply free from distortion, protecting equipment against any mains irregularities. In addition, its wide input voltage range and protection against overloads and short circuits make it an essential ally in maintaining operational continuity.

Output capacity : 10000 VA / 10000 W
Input/output voltage : CA 220/230/240 V
Frequency: 50/60 Hz self-adjusting
Operating efficiency: up to 98%
Power factor: 0.99

Versatile design and professional connectivity
Thanks to its 3U (19") rack-mount design and option for standalone use, the Sentinel Dual adapts to different configurations. It features an LCD for quick monitoring, IEC C13/C20 output connections and a terminal block, as well as USB and RS-232 management interfaces. It also includes PowerShield3 software compatible with multiple operating systems.

Interfaces: RS-232, USB Type B
Included software: PowerShield3
Compatible systems: Windows, Linux, MacOS, Solaris, VMware ESX
LCD for monitoring
Output connectors: 2 x IEC C13, 3 x IEC C20, terminal block

Integrated maintenance-free lead-acid battery
Equipped with highly durable lead-acid batteries, this model takes just 4 hours to recharge. The system is designed to provide reliable runtime without the need for frequent maintenance, making it ideal for environments where stability is a priority.

Battery technology: Lead-acid
Recharge time: 4 hours
Thermal and overload protection

Certified reliability and quiet operation
The Sentinel Dual complies with standards such as EN 62040-1 and EN 62040-2, delivering quiet operation with a noise level of just 48 dBA. It is designed to operate in non-condensing humidity conditions and at temperatures of up to 40 °C.

Certifications : EN 62040-1, EN 62040-2, IP20
Operating noise: 48 dBA
Humidity range: 0 - 95% non-condensing

Other specifications

Dimensions: 13.1 cm (width) x 44.8 cm (height) x 64 cm (depth)
Weight: 81 kg (83 kg with packaging)
COLOUR: BLACK (RAL 9005)
Expansion slots: 1 free
Included cables: USB cable
Accessories: Handle kit for mounting
Volume (m ³): 0.0492
