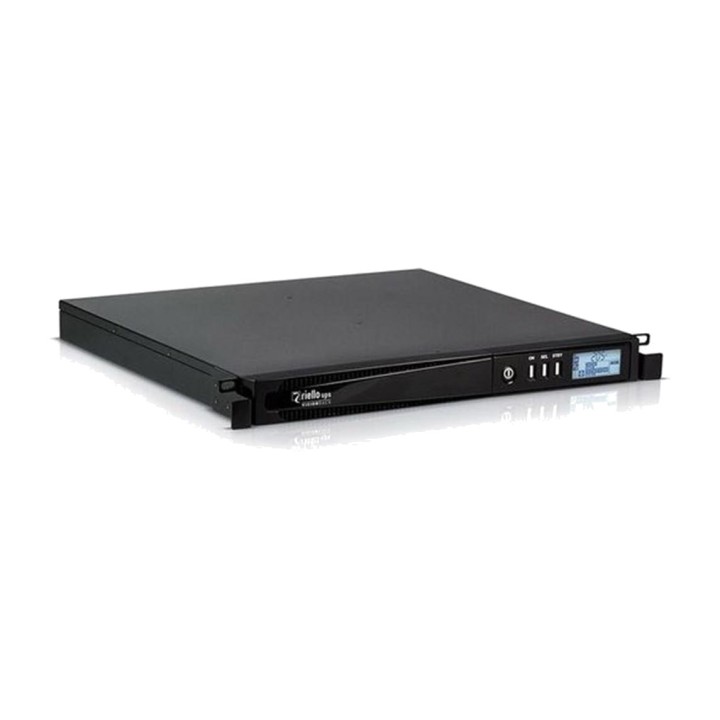

RIELLO UPS Interactive uninterruptible power supply (UPS) for rack cabinet DIALOG-VISION-DUAL VSR800 1U 800VA 640W DSP0000035392

Dialog Vision features 800 DUAL
The **Dialog Vision 800 DUAL** is a **1U rack** uninterruptible power supply (UPS) designed to provide **professional, continuous protection** in critical environments such as servers, network systems and telecommunications equipment. Thanks to its **line-interactive** technology and pure sine wave output, it provides stable, safe power even in the event of fluctuations or power cuts. Its compact design and compatibility with 19" racks make it an ideal solution for space-optimised IT infrastructures.
Complete protection for sensitive systems
This UPS is designed to keep your critical equipment running in the event of a wide range of electrical incidents. It incorporates essential features for comprehensive protection and extends the service life of connected hardware.

Output capacity : 800 VA / 640 W
Integrated automatic voltage regulation (AVR)
Protection against: surges, overloads, undervoltage, overheating, short circuits and cold starts
Built-in overvoltage suppression

Connectivity and efficient remote management
The Dialog Vision 800 DUAL enables advanced remote management thanks to its compatibility with the most widely used protocols. This makes it easy to monitor system status in real time and schedule automatic actions in response to critical events.

Management interface: USB and RS-232
SNMP-compatible for remote monitoring
Management software included: PowerShield3

Professional design and reduced maintenance
With its robust construction and high-quality materials, this UPS is designed for intensive, continuous use in professional environments. Its sealed, maintenance-free battery reduces downtime and simplifies operation.

Sealed, maintenance-free lead-acid battery
Recharge time: 4 hours
1U rack mounting (rack 19")

Reliable performance in demanding conditions
The Dialog Vision 800 DUAL is designed to operate across a wide range of environmental conditions, ensuring stability even in industrial environments or where temperature and humidity requirements vary.

Operating temperature: 0 °C to 40 °C
Operating humidity: 0% - 95% non-condensing
Noise emission: 50 dBA

Output connections and installation
This model provides the connections needed for a basic server or network device environment, while keeping installation simple and accessible.

4 x outputs IEC 60320 C13
1 x input IEC 60320 C14
Dimensions: 48,3 x 46 x 4,4 cm
Weight: 13,5 kg

Other specifications

Input/output frequency: 50/60 Hz
Input/output voltage : CA 230 V
UPS technology: Line-interactive
Waveform: Pure sine wave
Standards : IEC 801-5, EN 62040-1, EN 62040-2
Volume (m ³): 0.0492
