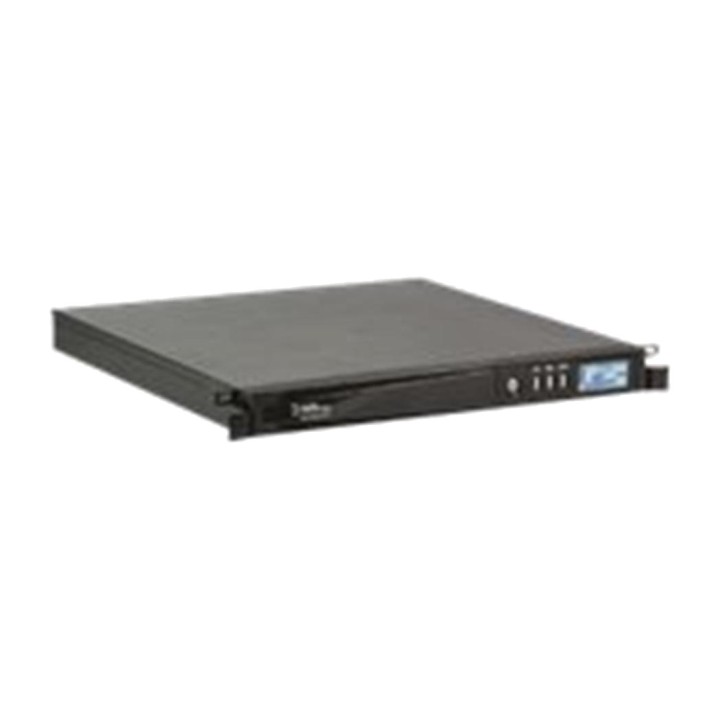

RIELLO UPS Interactive uninterruptible power supply (UPS) for rack cabinet DIALOG-VISION-DUAL VSR1100 1U 1100VA DSP0000035314

Dialog Vision features 1100 DUAL
The **SAI Dialog Vision 1100 DUAL** is designed for professional environments that require a **stable, continuous and secure** power supply. Ideal for servers, network devices and critical equipment, it provides efficient protection in a **19" 1U rack** format, fitting easily into technical cabinets and data centres. Its **line-interactive** technology with a **pure sine wave** output ensures clean, reliable power, even in the event of disturbances or power cuts.
Comprehensive protection and intelligent operation
This model is equipped with a range of features that ensure operational continuity and protect connected equipment. It includes an **AVR (Automatic Voltage Regulation)** system, protection against **surges, undervoltage, overheating and short circuits**, as well as **cold start** for emergency situations.

CAPACITY : 1100 VA / 880 W
UPS technology: Line-interactive with sine wave
4 protected IEC 60320 C13 outlets
Protection against overload, overheating and undervoltage
Emergency Power Off (EPO) function

Connectivity, remote management and included software
The Dialog Vision 1100 DUAL makes remote monitoring and configuration easy thanks to its **USB and RS-232** ports, which are compatible with the **SNMP** protocol for easy integration into monitoring systems. It includes **PowerShield3** software, which enables full UPS management from a computer, with automatic shutdown, alarm and event logging functions.

Interfaces : USB + RS-232
Compatible with SNMP management
PowerShield3 software included

Sealed lead-acid battery, maintenance-free
This UPS features **sealed, maintenance-free** internal batteries, with a recharge time of just **4 hours**. Ideal for maintaining service continuity during critical periods without interruption.

Technology: Sealed lead-acid
Recharge time: 4 hours
Compact 1U rack design 19"

Compact design and quiet operation
Thanks to its **ultra-compact 1U** format, it fits perfectly into standard racks without compromising performance. It also operates at a low noise level of just **50 dBA**, making it suitable for quiet working environments.

Dimensions: 48,3 x 4,4 x 46 cm (width x height x depth)
Weight: 15,6 kg
Noise emission: 50 dBA

Other specifications

Input/output voltage: AC 230 V / 50-60 Hz
Operating frequency: 50/60 Hz
Input : 1 x IEC 60320 C14
Standards : IEC 801-5, EN 62040-2, EN 62040-1
Operating humidity: 0 - 95% non-condensing
Operating temperature: 0 °C to 40 °C
Volume (m ³): 0.0492
