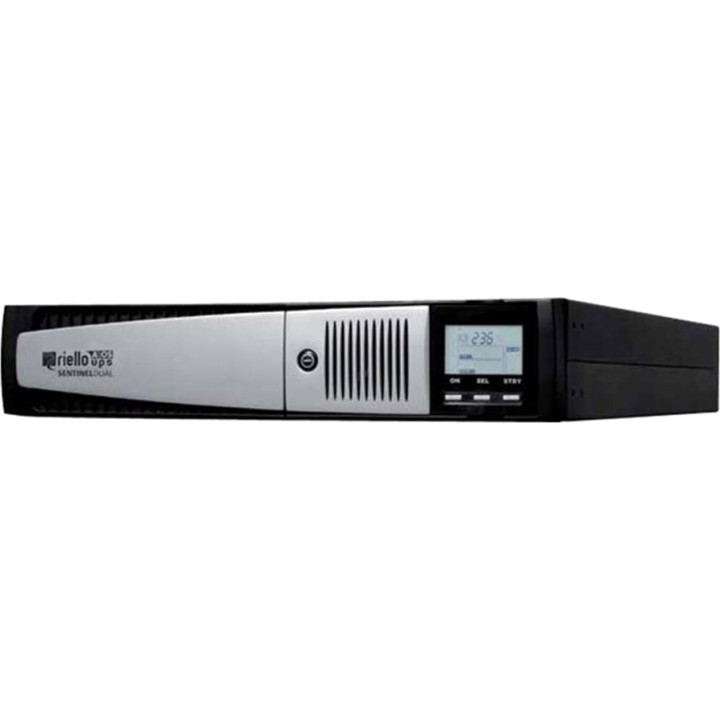

RIELLO UPS Online double-conversion uninterruptible power supply (UPS) for rack or tower SENTINEL-DUAL SDH2200 2200VA 1980W DSP0

Features of the Riello UPS Sentinel Dual SDH 2200
The Riello Sentinel Dual SDH 2200 is a professional online double-conversion uninterruptible power supply (UPS), designed for critical environments requiring maximum reliability and protection against power outages, surges and fluctuations. Its versatile design, compatible with 19" rack or tower mounting, makes it an ideal solution for servers, networks, telecommunications systems and enterprise IT infrastructure.
Comprehensive protection and online technology
Thanks to its double-conversion technology, this UPS ensures a continuous, stable, high-quality power supply. It features an internal automatic bypass, thermal protection, short-circuit protection, overcurrent protection, surge protection and undervoltage protection, as well as intelligent power management to keep your equipment safe at all times.

POWER : 2200 VA / 1980 W
Waveform: Pure sine wave
Input voltage range : 184 - 276 V
Frequency: 50/60 Hz self-adjusting
Recharge time: 4 hours

Modular design and advanced connectivity
The Sentinel Dual SDH 2200 can be installed as a tower or in a rack (2U), adapting to different infrastructure configurations. It includes an LCD for local monitoring and several connectivity options for remote management via RS-232, USB and an additional communication slot.

User interface: LCD and buttons
Ports: RS-232, USB Type B
Free expansion slot for SNMP or relay cards
Included software: PowerShield3, compatible with Windows, Linux, macOS, UNIX, VMware

Extended runtime and replaceable batteries
The system comes equipped with 6 internal lead-acid batteries and can be expanded with additional battery banks. This makes it a flexible option for critical loads requiring greater runtime.

Internal batteries: 6 lead-acid units
Type: Extendable
Recharge time: 4 hours

Certified robustness and reliability
Built with durable materials and certified to IEC 62040-1-1 and IEC 62040-2, the Sentinel Dual SDH 2200 operates quietly (40 dBA) and reliably, even in demanding environments.

Dimensions: 45 x 8.7 x 62.5 cm (width x height x depth)
Weight: 30.5 kg
Operating temperature: 0 °C to 40 °C
Humidity: 0 - 95% non-condensing

Connections and included accessories
Includes all the components required for commissioning and quick connection. Ideal for professional installations.

1 x input IEC C20
8 x outputs IEC C13
1 x Output IEC C19
Rack mounting kit included
Cables: power, USB and serial

Other specifications

Surge energy rating: 300 joules
Circuit protection: Circuit breaker
Packaging: 60 x 24.5 x 76 cm, 35 kg
Volume (m ³): 0.0492
