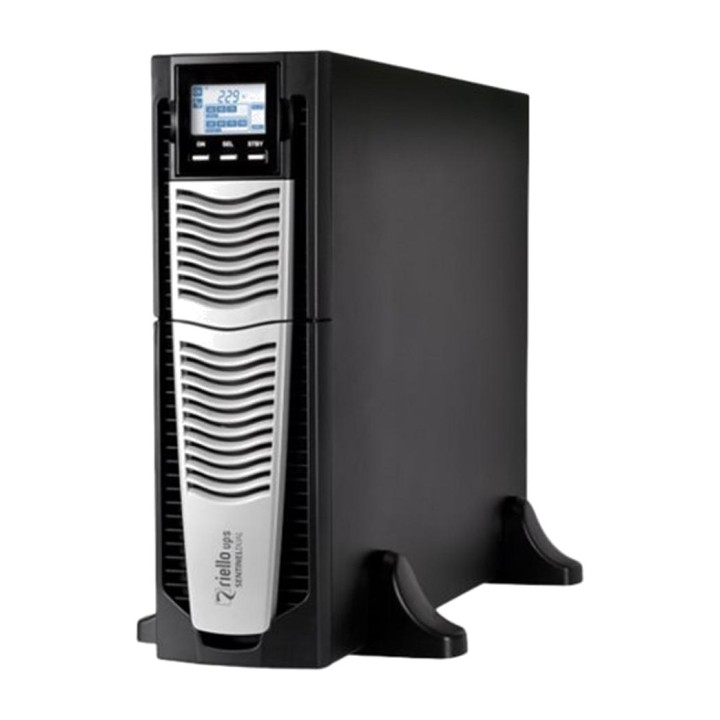

RIELLO UPS Online double-conversion uninterruptible power supply (UPS) for rack or tower SENTINEL-DUAL SDU6000 6000VA DSP0000032

Features of the Riello UPS Sentinel Dual SDU 6000
The **Riello UPS Sentinel Dual SDU 6000** is a high-performance professional uninterruptible power supply solution, ideal for servers, data centres, telecommunications systems and industrial applications. Its versatile design allows it to be used as a tower or mounted in a 19" rack, providing **continuous, high-quality power protection** with 98% efficiency and a **pure sine wave** output.
Reliable power supply with online technology
This model features **online double-conversion technology**, ensuring complete isolation between the mains and the connected devices. The result is a **stable, uninterrupted power supply with no voltage spikes**.

Output power : 6000 VA / 6000 W
Waveform: Pure sine wave
Power factor: 0.99
Input voltage range : 140 - 276 V
Efficiency: up to 98%

Scalable runtime and maintenance-free batteries
Equipped with sealed lead-acid batteries, **expandable and maintenance-free**, with the option of parallel operation for greater runtime. It also supports **hot swapping**, without needing to shut down the system.

Recharge time: 4 hours
Hot-swappable batteries (Hot Swap)
Backup time adjusted according to the load:
10 minutes at 100-110% load
0.033 minutes at 200% load

Versatile, robust design
Its 3U form factor allows **19" rack mounting** or vertical positioning with an optional kit. It is finished in RAL 9005 black and features a robust chassis, ideal for professional environments.

19" rack / tower format
Dimensions: 44,8 × 13,1 × 64 cm
Weight: 47 kg

Advanced communication and management software
It includes **multiple communication interfaces** and is compatible with a wide range of operating systems, enabling efficient monitoring and remote control using PowerShield3 software.

Interfaces : RS-232, USB, EPO
Included software: PowerShield3
Compatible systems: Windows, Linux, MacOS, Solaris, VMware

Integrated protection and guaranteed safety
It incorporates advanced safety features such as **internal bypass, protection against overloads, short circuits and overheating**, as well as **updatable firmware** to improve its performance and stability over time.

Automatic and manual bypass
Thermal, undervoltage and overload protection
Regulatory compliance : EN 62040-1 / 2, IP20

Other specifications

Input and output frequency: 50/60 Hz
Output connectors: 1 x terminal block , 2 x IEC C13
Remote network interface: USB and RS-232
Input wiring: Single-phase
Includes: USB cable and handle kit
Noise: 48 dBA
Humidity range: 0 - 95% non-condensing
Volume (m ³): 0.1596
