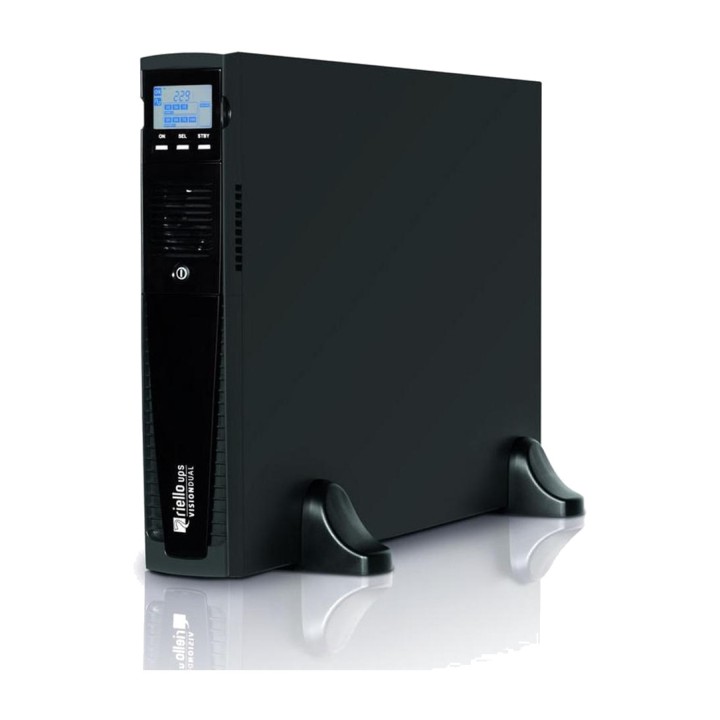

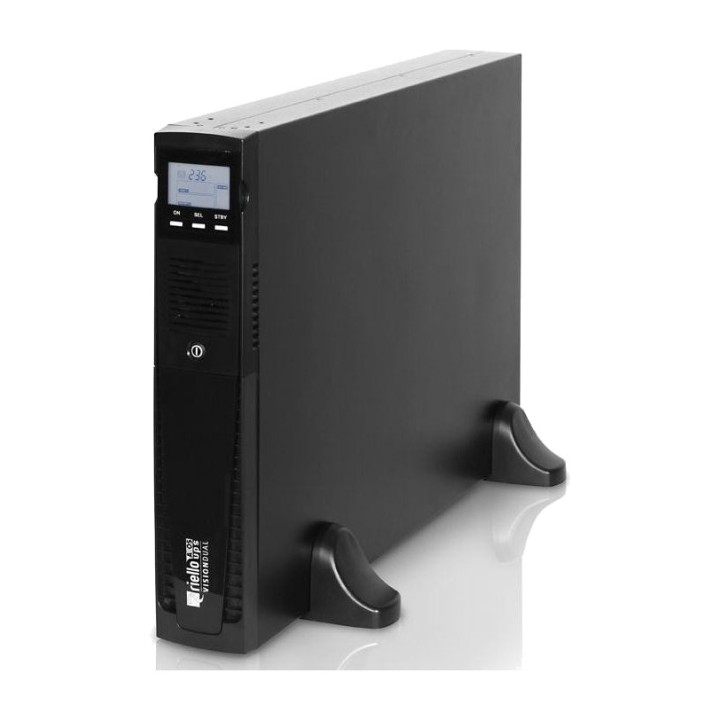

RIELLO UPS Line-interactive uninterruptible power supply (UPS) for rack or tower VISION-DUAL VSD3000 3000VA 2700W DSP0000032294

Features of the Riello Vision Dual UPS 3000 DUAL 0.9 VSD 3000
The Riello Vision Dual 3000 UPS is designed to protect critical equipment from power interruptions, making it ideal for professional environments that require high availability and power reliability. Its versatile form factor allows it to be installed as either a tower or in a rack, adapting to various server, network or industrial system configurations. Thanks to its advanced technology and 3 kVA power rating, it is a robust solution for offices, data centres or installations that cannot afford power outages.
High performance and energy efficiency
The Vision Dual 3000 delivers an output power of 2700 W with a power factor of 0.9, ensuring a stable and efficient power supply. Its power factor of 0.98 and crest factor of 2.5:1 ensure efficient conversion and superior response to consumption peaks.

Rated power: 3 k VA / 2700 W
Power factor: 0,98
Crest factor: 2,5:1

Versatile connectivity and compatibility
It includes 9 AC outlets with C13 and C19 connectors, making it easy to connect multiple devices. It also features a USB 2.0 port and an RS-232 port for communication with monitoring systems, enabling effective UPS status management.

9 AC outlets (C13 and C19)
1 port USB 2.0
1 port RS-232

Advanced protection and reliable operation
The system includes protection against overcurrent, overvoltage, undervoltage and short circuits, ensuring the safety of connected equipment. Its 300 J surge energy rating and battery recharge time of just 4 hours make it ideal for critical applications where response time is key.

Protection: overcurrent, overvoltage, undervoltage, short circuit
Surge energy rating : 300 J
Recharge time: 4 h

Compact design and adaptability
The Vision Dual 3000 features a design optimised for tower or rack mounting, taking up little space without compromising performance. Its noise level of just 40 dB allows it to be installed in offices or technical rooms without acoustic interference.

Format: tower or rack
Noise level: 40 dB
Dimensions: 87 x 450 x 625 mm
Weight: 31,5 kg

Operating and packaging conditions
The UPS is designed to operate in demanding environments, with an operating temperature range of 0 to 40 °C and an allowable relative humidity of up to 95%. It is supplied in secure packaging measuring 600 x 760 x 240 mm and weighing 36,5 kg in total.

Operating temperature : 0 - 40 °C
Relative humidity : 0 - 95%
Package weight: 36,5 kg

Other specifications

COLOUR: BLACK
Input connector: C20 coupler
Input frequency: 50/60 Hz
Operating input voltage : 220 - 240 V
Volume (m ³): 0.1127
