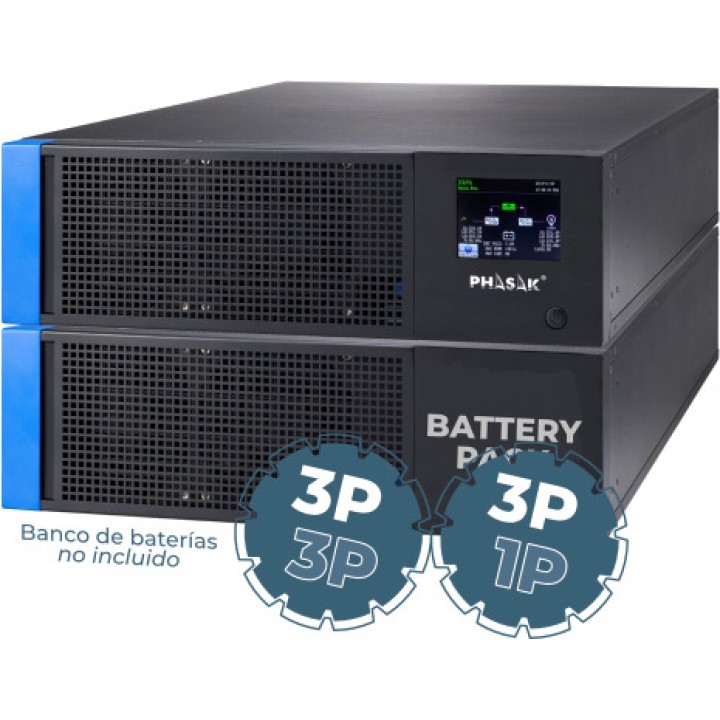

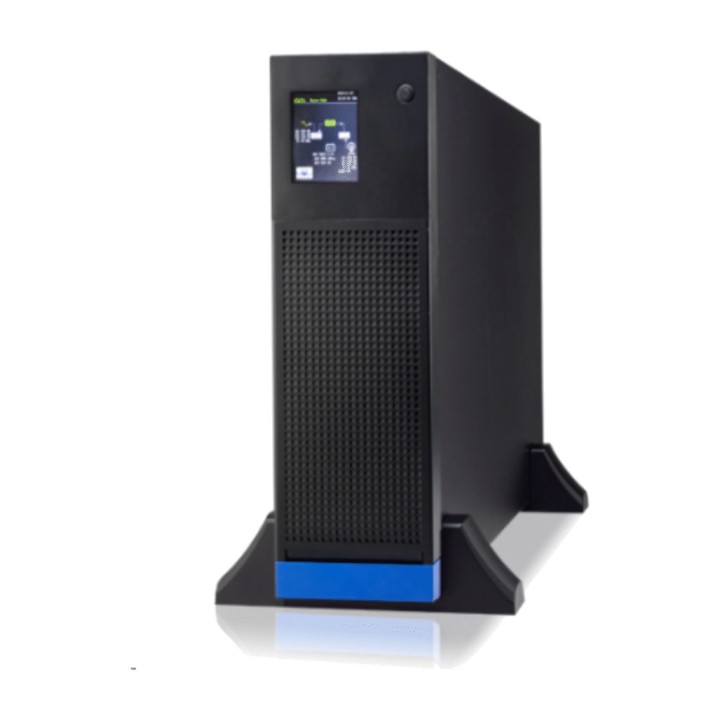

PHASAK Double-conversion online UPS for rack cabinet TITAN PH-9380 10000VA 10000W MGS0000033594

The PHASAK TITAN PH 9380 Online UPS delivers 10 kVA / 10 kW with true double conversion and DSP control, in a 19? rack format with a rotating touchscreen LCD and 3P/3P or 3P/1P topologies. Parallelable (up to 4), dual AC inputs, ECO mode, EPO and USB HID / RS232 / SNMP remote management. Compatible with PH 9389 battery banks
24/7 power for critical infrastructure

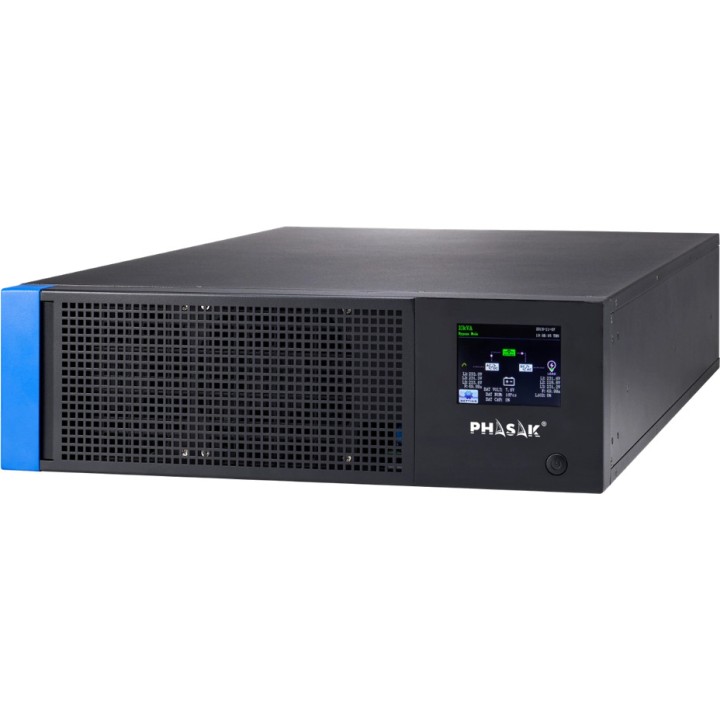

The PHASAK TITAN PH 9380 provides 10 kVA / 10 kW with a power factor of 1.0 in a DSP-controlled online double-conversion architecture, ensuring stable voltage and frequency despite grid fluctuations, surges and brief power interruptions. Its 19? rack format with an auto-rotating touchscreen LCD simplifies installation and operation in data centres, control centres and technical rooms.
Key features

Topology: 3P/3P or 3P/1P (depending on configuration).
Parallelizable: up to 4 units to increase power or redundancy.
Expandable runtime: compatible with external battery banks PH 9389.
Dual AC inputs for greater availability, ECO mode for efficiency.
EPO (emergency power off) and cold start.
Connectivity: USB HID, RS232 and SNMP (optional) for remote monitoring.
Use with generator: improved tolerance and stability for auxiliary power sources.

recommended applications

Data centers, IT racks and network electronics.
Control rooms, broadcasting and communications.
Industry, automation and laboratories with sensitive loads.

Operational benefits

PF=1.0: more usable kW per installed kVA.
Advanced management: event logging, alarms and controlled shutdowns.
Scalability: increase in power or range without having to scale up the infrastructure.

Good installation practices

Size the system with a margin and plan for 3F distribution or conversion to 1F depending on the channel.
Plan suitable bypass and grounding, verify line gauge.
Document parallelization and autonomy with PH 9389 in the technical report.
Volume (m ³): 0.0492
