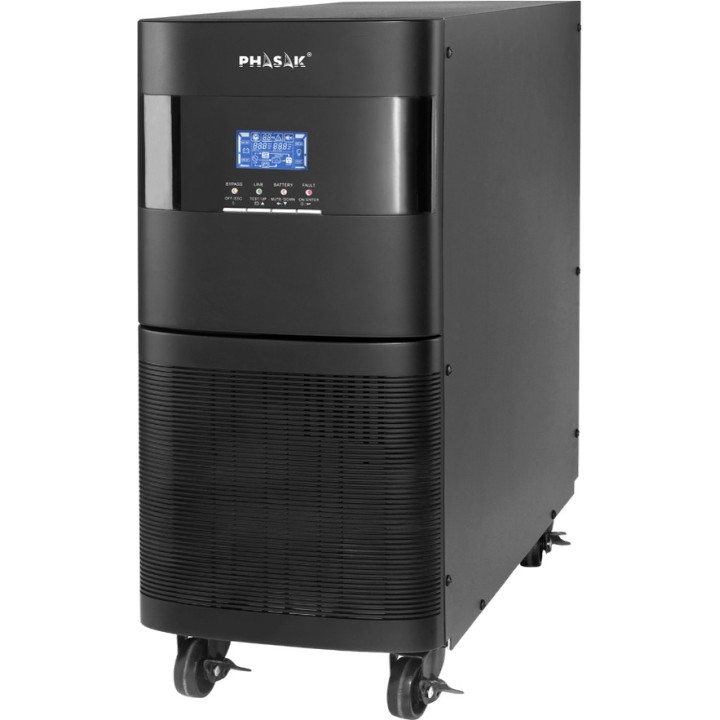

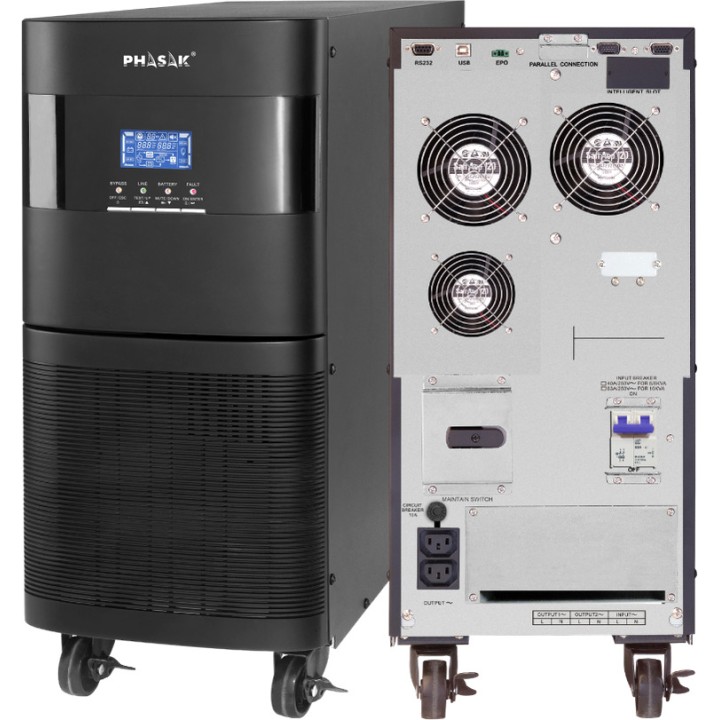

PHASAK Online double-conversion UPS with pure sine wave GATE-PRO PH-9270 10000VA 10000W MGS0000032782

Features of the Phasak Online Gate Pro 10000VA UPS PH 9270
The Phasak PH 9270 Gate Pro is a 10,000 VA / 10,000 W true double-conversion online UPS, designed to protect critical infrastructure against voltage spikes, brief power interruptions and prolonged power outages. Thanks to its pure sine wave, 0.99 power factor and zero transfer time, it guarantees a stable, continuous power supply in professional environments where energy security is a priority.
True Online Double-Conversion Technology
Its complete isolation system between input and output eliminates any disturbance from the power grid. Power is continuously converted, ensuring precise voltage and frequency regulation even in environments with an unstable power supply.

POWER : 10000 VA / 10000 W
Technology: True Online Double Conversion
Waveform: Pure sine wave
Power factor: 0,99
Phase: Single-phase + neutral
Automatic Voltage Regulator (AVR)

Advanced protection for critical loads
Designed to protect servers, storage systems, network electronics and industrial processes, it incorporates multiple electrical safety systems that ensure operational continuity.

Overload and overvoltage protection
Integrated RJ45 protection
EPO (emergency power off)
Cold start
Automatic restart and recharging
Generator compatible

Expandable runtime and high-performance batteries
It incorporates 20 sealed, maintenance-free 12V / 9Ah Pb-Ca AGM internal batteries. In addition, runtime can be extended using compatible external battery banks, adapting to the needs of each installation.

Number of batteries: 20
Type: 12V / 9Ah
Type: sealed, maintenance-free Pb-Ca AGM
Automatic battery test at every startup + manual
Charging time to 90%: 4 h
Compatible with battery bank PH 9268

Professional management and monitoring
The PH 9270 enables advanced local and remote monitoring, facilitating system control and preventive incident management in business environments.

Integrated LCD screen
USB HID port
Port RJ45
SMART RS-232 / USB
Optional SNMP for remote monitoring
Management software compatible with Windows, Linux and Mac

Robust tower design
Its tower design and active ventilation ensure stable installation in technical rooms, open racks or industrial environments. Designed for applications in data centres, healthcare, education, public administration and industrial automation (not life support).

Series: Gate Pro
Format: Tower
Ventilation: Active
Socket type: Terminal block
Number of sockets : 1
Weight: 83 kg
Dimensions: 59,2 x 25 x 57,6 cm

Other specifications

Power button: Yes
LED indicator: No
Touchscreen: No
Number of protected sockets : 0
Volume (m ³): 0.0870
