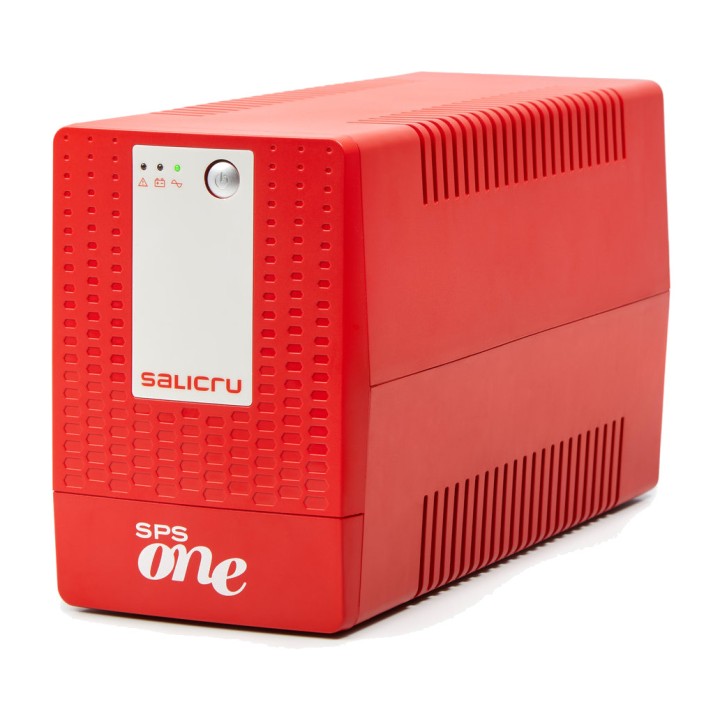

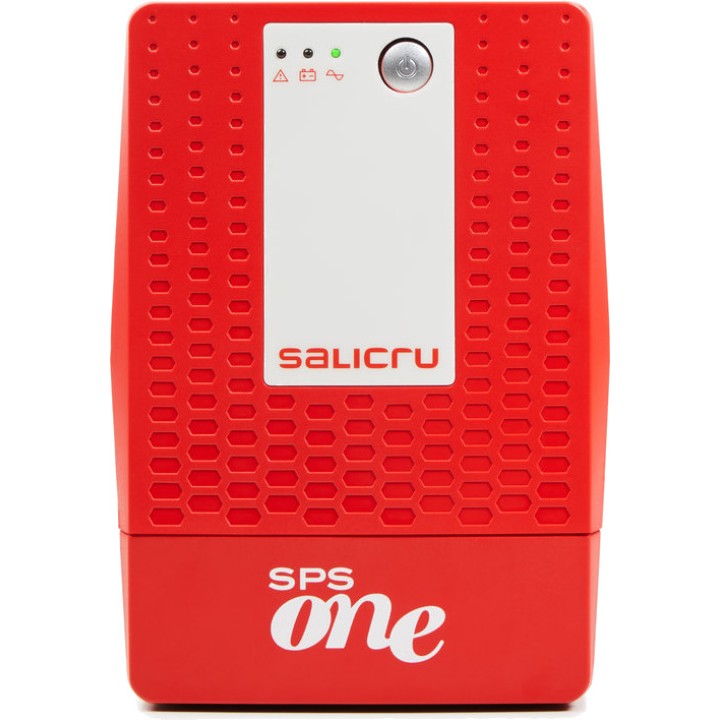

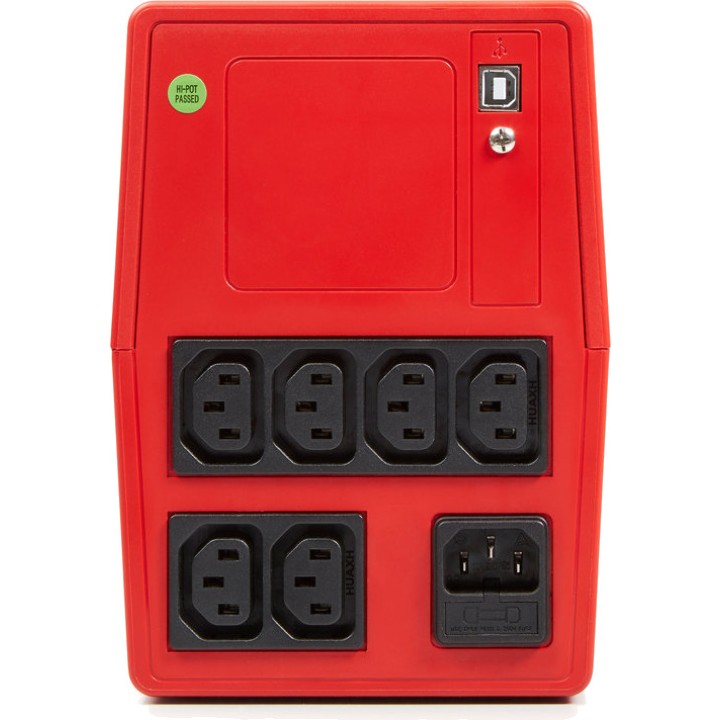

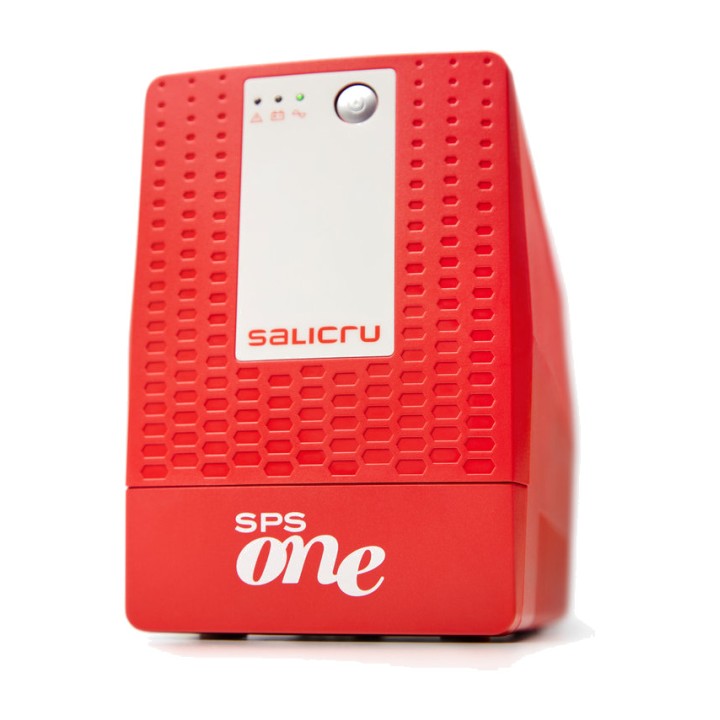

SALICRU Line-interactive UPS with IEC outlets in mini-tower format SPS ONE 1100VA 600W MGS0000005675

SPS 1100 ONE IEC
500 to 2000 VA line-interactive UPS
The best electrical protection for home and professional office equipment

Mini-tower Uninterruptible Power Supply (SAI/UPS) with
Line-interactive topology, Salicru’s SPS ONE series provides battery back-up
(with a pseudo-sinewave inverter output) and protection against
overloads. During power outages, SPS ONE units provide
battery backup to shut down the computer system properly and
protect against data loss and damage to electronics. Operation
using automatic voltage regulation (AVR) to correct minor
voltage fluctuations without having to use the battery, extending its service life
The AVR function is essential in areas where voltage fluctuations
occur frequently.

It incorporates a USB-type UPS/PC communication interface with HID protocol, which
allows you to configure parameters, control the UPS and shut down or
hibernate the computer via the USB port. Compatible with Windows, Linux and Mac operating
systems. UPS management and monitoring software is also available and
monitoring software for shutting down files/applications for Windows,
Linux and Mac, free of charge and downloadable from

The SPS ONE series is available in power ratings of 500, 700, 900, 1100, 1500
VA and 2000 VA.
Technical specifications
TECHNOLOGY
Line-interactive
FORMAT
Tower
Input
Rated voltage
220 V / 230 V / 240 V AC
Voltage range
TO 162 V ÷ 290 V
stabilizer
AVR Buck / Boost
Nominal frequency
50 / 60 Hz
Frequency auto-detection
YES
Protection
Resettable thermal circuit breaker or fuse (depending on model)
Output
Rated voltage
220 V / 230 V / 240 V AC
Voltage accuracy (battery mode)
±10%
Power (VA)
1100
Waveform (battery mode)
Simulated sine wave
FREQUENCY
50 / 60 Hz ± 1 Hz (1)
Transfer time
2 / 6 ms
Socket type
IEC
Battery
BATTERY TYPE
Sealed, maintenance-free lead-calcium batteries, design life
3-5 YEARS
Recharge time
4 - 6 hours to 90% capacity
Battery replaceable by user
YES
AUTONOMY
Up to 20 minutes
Battery replacement warning
YES
Communication
Ports
USB HID
Monitoring software
Monitoring software for Windows, Linux, Unix and Mac
downloadable from
support.salicru.com
INDICATORS
Type
LED
Operating modes
Normal / Stabilization (AVR) / Battery
Mains operation
Green LED
alarm
Battery / low battery / overload / fault
Acoustic
Every 10 s for battery operation. Every 1 s for low battery. Every 0.5 s
for overload. Continuous for fault. Every 2 s for battery replacement.
Fault
Red LED
OTHER FEATURES
Cold start (battery start-up)
YES
Automatic restart
Yes, after the end of runtime
General
Working temperature
0º C ÷ + 40º C
Relative humidity
Up to 90% non-condensing
Maximum operating altitude
2.400 m.s.n.m.
Acoustic noise at 1 metre
<, 40 dB
Regulation
SECURITY
EN-IEC 62040-1
Electromagnetic compatibility (EMC)
EN-IEC 62040-12
Functioning
EN 62040-3
Quality and Environmental Management
ISO 9001 & ISO 14001
DIMENSIONS
Depth (mm)
320
Width (mm)
130
Height (mm)
182
WEIGHT
WEIGHT (KG)
8,2
Volume (m ³): 0.0224
