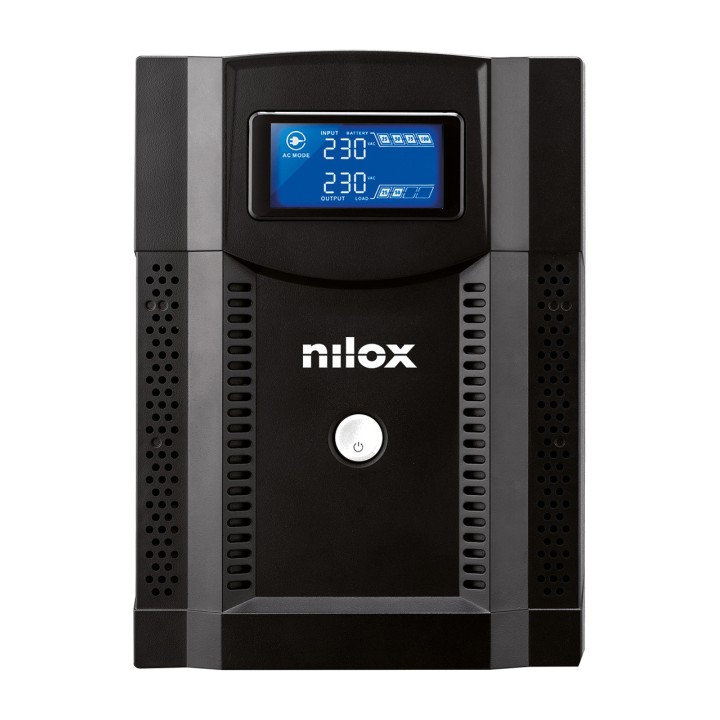

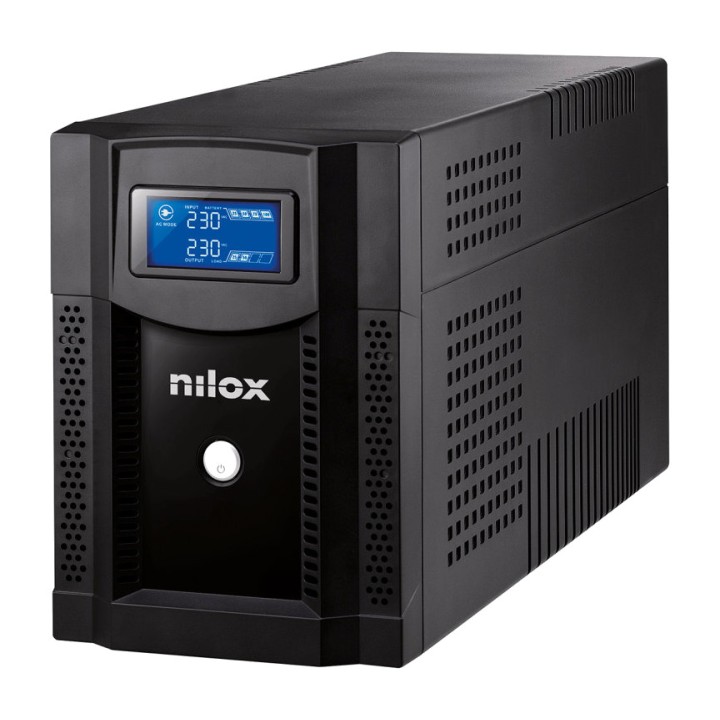

NILOX Line-interactive sine wave UPS with LCD display PREMIUM-LINE-SINEWAVE 3000VA 2100W DSP0000009798

DESCRIPTION
The Nilox Sinewave LCD is a 3000VA/2100W line-interactive UPS with a sine wave
perfect (in backup mode), ideal for protecting small networks, workstations,
computers and peripherals from power outages, filtering disturbances from the
mains supply: these are very frequent and highly damaging to electronic
devices and cause failures over time. Avoiding these problems
means extending the average lifespan of all connected devices and being able to save
your work safely in the event of a power cut. Line Interactive technology,
thanks to the AVR (Automatic Voltage Regulator) system, enables intelligent management
intelligently regulates the voltage and batteries, extending their service life: this is because
in a UPS without AVR, when the input voltage falls outside the set threshold, the
battery starts supplying power to the connected loads. The regulator,
in turn, ensures that the voltage returns to within the
optimal range even when significant changes occur, without immediately relying
batteries immediately, which are activated only when the changes are
extreme and cannot be corrected. The perfect sine wave output means that
this UPS is also suitable for computers with an active PFC power supply.

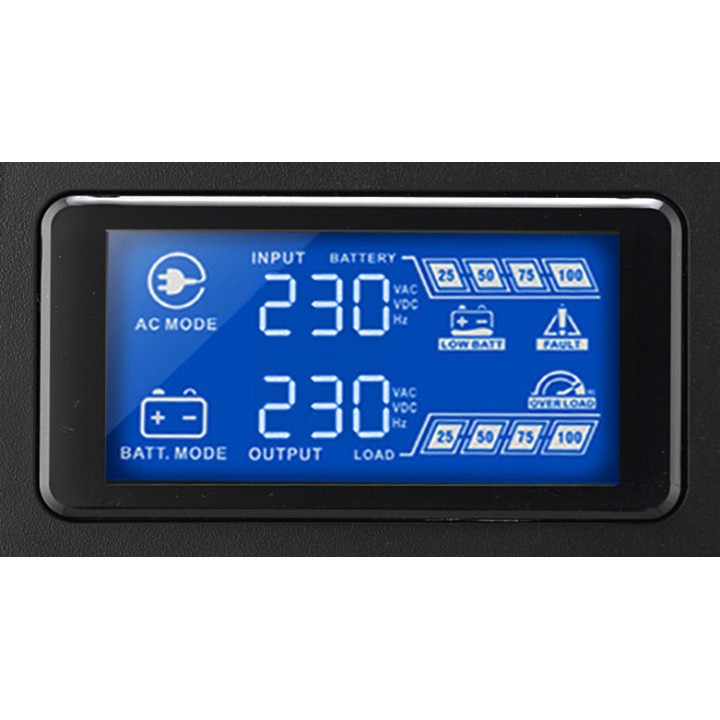

The front LCD display also allows immediate monitoring of all
key parameters, such as alarms, mains/battery operating status,
UPS load and battery charge level. The integrated microprocessor
manages all operating parameters in the best possible way, and the
ViewPower software allows the unit to be controlled via the USB connection. The
software can be downloaded from the Nilox website. The SineWave LCD
3000VA/2100W is equipped with two 9Ah batteries. Individual replacement battery
part number 17NXBA9A00001 - 17NXBA9A00001T
Technical specifications

WEIGHT AND DIMENSIONS
HEIGHT
200 mm
Package height
285 mm
WIDTH
145 mm
Package width
230 mm
WEIGHT
17 kg
DEPTH
380 mm
Package depth
495 mm
Environmental conditions
Operating altitude
0 - 3000 m
Operating temperature range
0 - 40 C
Relative humidity range for operation
0 - 95%

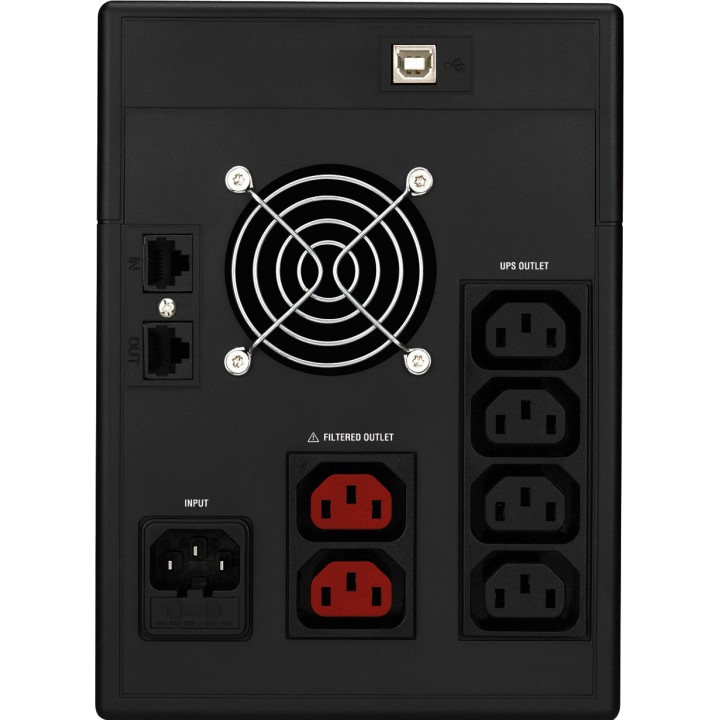

Ports and Interfaces
Ethernet LAN (RJ-45) port quantity
2
AC output type
C14 coupler
Number of AC outputs
4 AC outlets
CONNECTOR
C14 coupler

Battery
Battery capacity
9 Ah
Number of battery cells
2
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at full load
5 min
Typical backup time at half load
10 min
Battery recharge time
8 h
Battery voltage
12 V
Design
CERTIFICATION
EC
Product color
BLACK
Form factor
Mini Tower
Housing material
Metal, Plastic
Cooling type
Active
Display type
LCD
Integrated fan
YES
Characteristic
Output power capacity (VA)
3 kVA
Power factor
0,7
Input frequency
50/60 Hz
Output frequency
50/60 Hz
Noise level
45 dB
Number of input phases
1
Number of output phases
1
Output power
2100 W
RESPONSE TIME
2 ms
UPS topology
Line interactive
Operating input voltage (min)
220 V
Operating input voltage (max)
230 V
Operating output voltage (min)
220 V
Operating output voltage (max)
230 V
Volume (m ³): 0.0334
