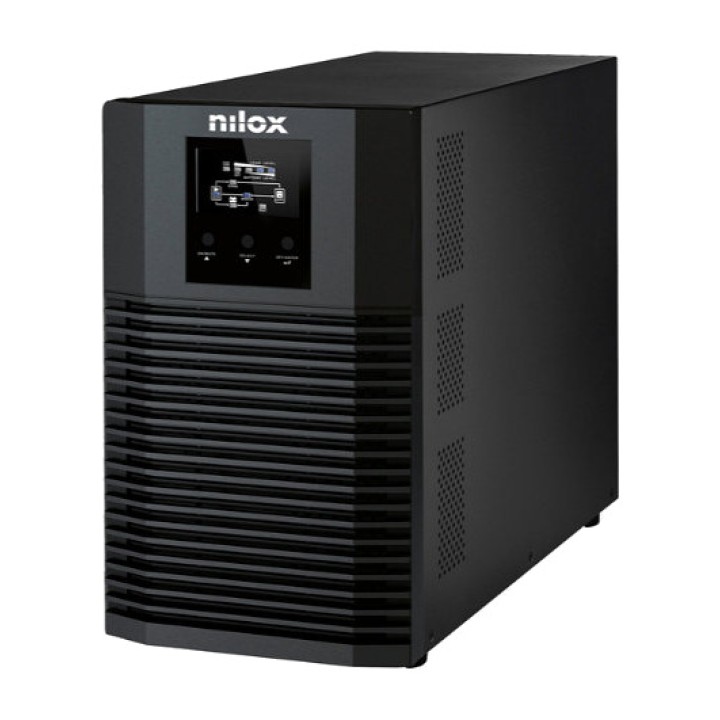

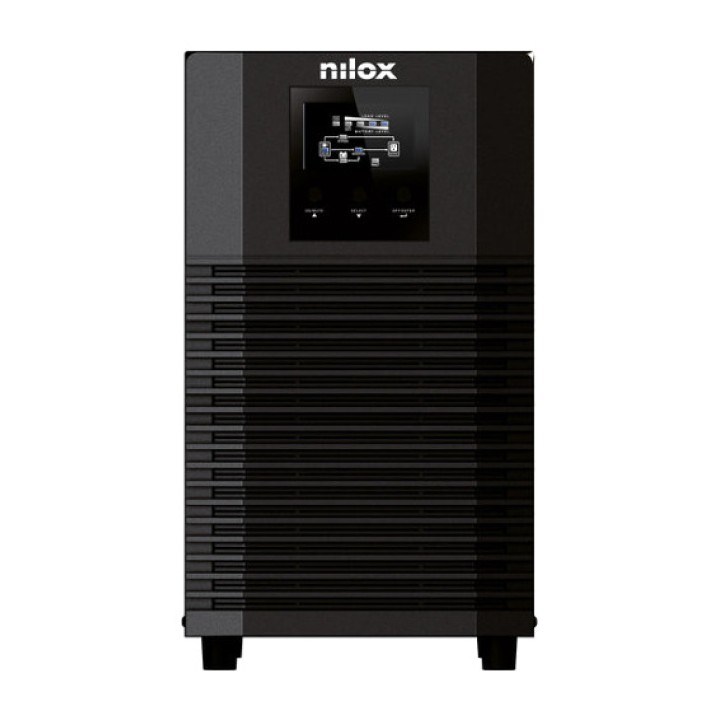

NILOX Pure sine wave double-conversion UPS ON-LINE-PRO-LED 4500VA 3150W DSP0000007865

DESCRIPTION
Nilox presents the PREMIUM UPS range. Nilox OnLine Pro LED is a UPS with
Double Conversion technology, with pure sine wave output,
4,500VA/3,150W, perfect for protecting servers, workstations, networks
LAN and computers from power outages. It also filters mains disturbances
power: these are very frequent and highly damaging to electronic devices
and cause long-term failures. Avoiding these problems means
increasing the average lifespan of all connected devices and being able to save
work in the event of a mains failure. Main features - For Local Area Networks
(LAN), medical equipment, industrial processes, virtual servers,
Pellet stoves, thermal fireplaces, domestic heating boilers -
IGBT rectifier - Generator compatibility - Static bypass - High
efficiency and low operating costs - Microprocessor-controlled battery charging system
microprocessor - ViewPower UPS management software compatible with
Windows, Unix, Linux, etc. Online technology, unlike line-interactive UPSs,
allows intervention times to be eliminated in the event of a power supply failure:
this is because the uninterruptible power supply always operates
in Double Conversion mode. The optional SNMP card allows these UPSs to be installed in an
office or industrial environment. The integrated microprocessor allows the UPS
(ViewPower management software) to communicate with the PC via the RS232/USB serial interface,
RS232/USB, allowing the operating status to be monitored at any
time and shutdown and data saving to be scheduled.
Technical specifications

WEIGHT AND DIMENSIONS
HEIGHT
318 mm
WIDTH
190 mm
WEIGHT
27 kg
DEPTH
421 mm
Environmental conditions
Operating temperature range
0 - 40 C
Relative humidity range for operation
0 - 95%

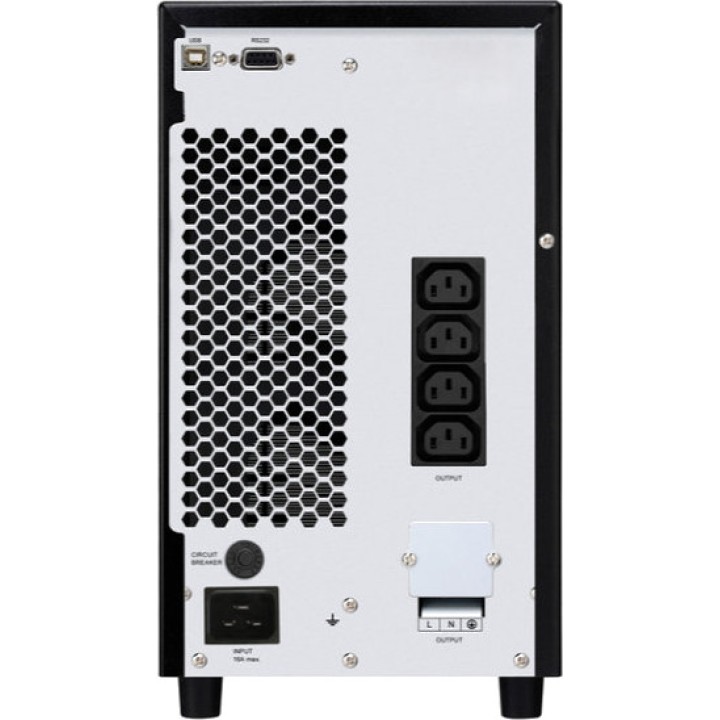

Ports and Interfaces
Port - RS-232
1
Number of AC outputs
1 AC outputs
CONNECTOR
C13 coupler
Number of IEC output sockets
4
USB port
YES
Battery
Battery capacity
9 Ah
Number of supported batteries
6
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at full load
5 min
Typical backup time at half load
10 min
Battery recharge time
4 h
Battery voltage
12 V

Design
CERTIFICATION
IEC EN 62040-1, EMC IEC EN 62040-2, IEC EN 62040-3
Product color
BLACK
IP code (International Protection)
IP20
Form factor
Tower
Housing material
METAL
Screen
LED
Characteristic
Automatic voltage regulation (AVR)
YES
Audible alarm(s)
YES
Output power capacity (VA)
4,5 kVA
Efficiency
95%
Power factor
0,7
Input power factor
0,99
Waveform
Sine wave
Input frequency
50/60 Hz
Output frequency
50/60 Hz
Noise level
45 dB
Output power
3150 W
Overload protection
YES
Output voltage regulation
2%
UPS topology
Double conversion (online)
Operating input voltage (min)
220 V
Operating input voltage (max)
240 V
Operating output voltage (min)
220 V
Operating output voltage (max)
240 V
Packaging
Package height
460 mm
Package width
330 mm
Cables included
Input power cable
Package depth
560 mm
Technical details
Sustainability certificates
CE, RoHS
Volume (m ³): 0.0824
