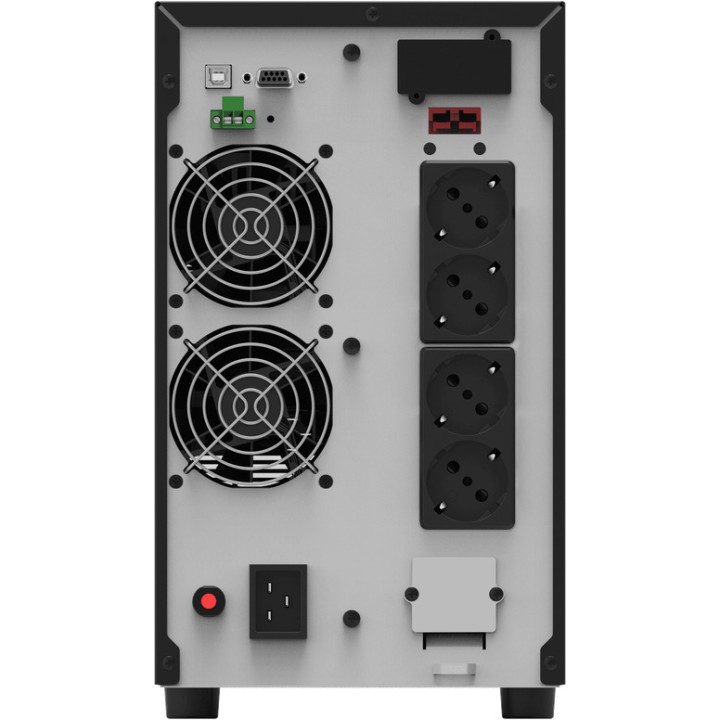

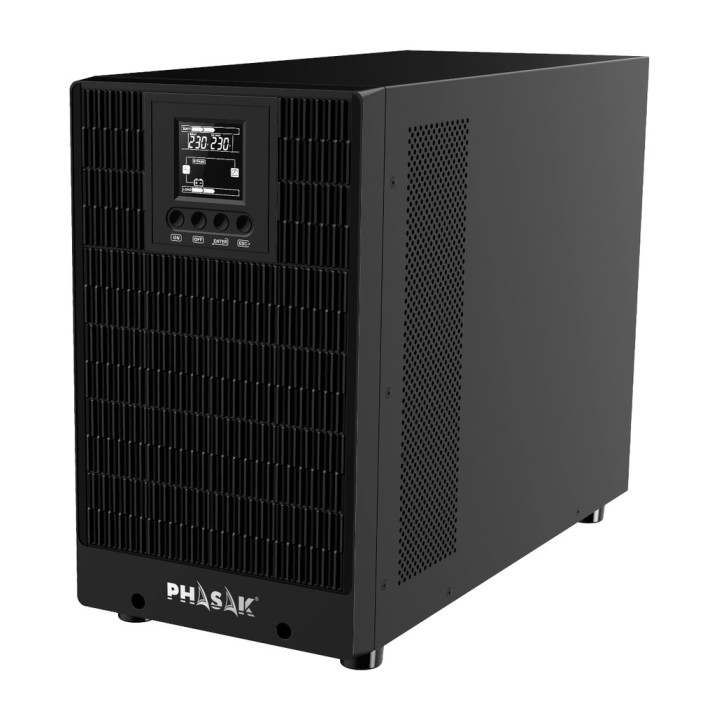

PHASAK Online double-conversion UPS with 4 Schuko sockets SMART-PRO PH-9230 3000VA 3000W DSP0000007753

PHASAK 3000VA SMART PRO ONLINE UPS PH 9230 4XSCHUKO
The PH 9230 is a true 3000 VA / 3000 W double-conversion online UPS with a power factor of 1.0, designed for critical infrastructure with strict SLAs. It delivers clean power with a pure sine wave and total isolation from surges, brief power interruptions and distortion. It supports SNMP monitoring (optional) and extended runtime with external battery banks (depending on configuration).
DESCRIPTION
High-performance online protection for critical loads
The PH 9230 is a true 3000 VA / 3000 W double-conversion online UPS, designed for professional environments requiring maximum power availability. Its power factor of 1.0 ensures full use of the installed capacity, allowing more actual load to be powered without compromising safety.
Thanks to its online architecture, it provides a pure sine wave, precise voltage and frequency regulation, and total isolation from any power grid anomaly. Runtime can be extended using external battery banks, adapting to long-duration and 24/7 continuity scenarios.
Key Benefits
    Doble conversión real: salida totalmente estable y sin interrupciones.
    Factor de potencia 1.0: eficiencia máxima y compatibilidad total con cargas APFC.
    Alta disponibilidad: protección avanzada para infraestructuras críticas.
    Gestión profesional: monitorización local y remota vía SNMP (opcional).
    Autonomía ampliable: integración de bancos de baterías externos.
recommended applications
    Servidores, CPDs, almacenamiento y virtualización.
    Servicios corporativos con SLA estrictos.
    Sistemas de seguridad, comunicaciones, VoIP y control.
Additional Information
Weight: 17kg
Dimensions: 39.7 × 14.5 × 22 cm
Series: Smart Pro
Technology: True Online Double Conversion
POWER (VA): 3000
CAPACITY (W): 3000
Format: Tower
Phase: Single-phase
Waveform: Pure sine wave
Power factor: 1,00
Number of batteries : 6
Battery type: 12V / 9Ah
Battery class: sealed Pb-Ca, AGM, maintenance-free
Battery test: Automatic at every start-up + manual
Charging time (90%): 4 h
Button: Yes
LED indicator: Yes
LCD screen: Yes
Touchscreen: No
WEIGHT: 15.3
HEIGHT: 225
WIDTH: 151
Background: 390
Socket type: Schuko
Number of sockets : 4
Number of protected sockets : 0
USB HID port: Yes
RJ45 port: Yes
EPO: Yes
SMART RS-232 / USB: Yes
Optional SNMP: Yes
Automatic voltage regulator: Yes
Cold start: Yes
Automatic restart: Yes
Automatic recharging: Yes
Overload protection: Yes
Overvoltage protection: Yes
RJ45 protection: Yes
Ventilation: Active
Generator compatible: Yes
Compatible with battery bank : PH 9232
Management software: Windows, Linux and Mac
Volume (m ³): 0.0695
