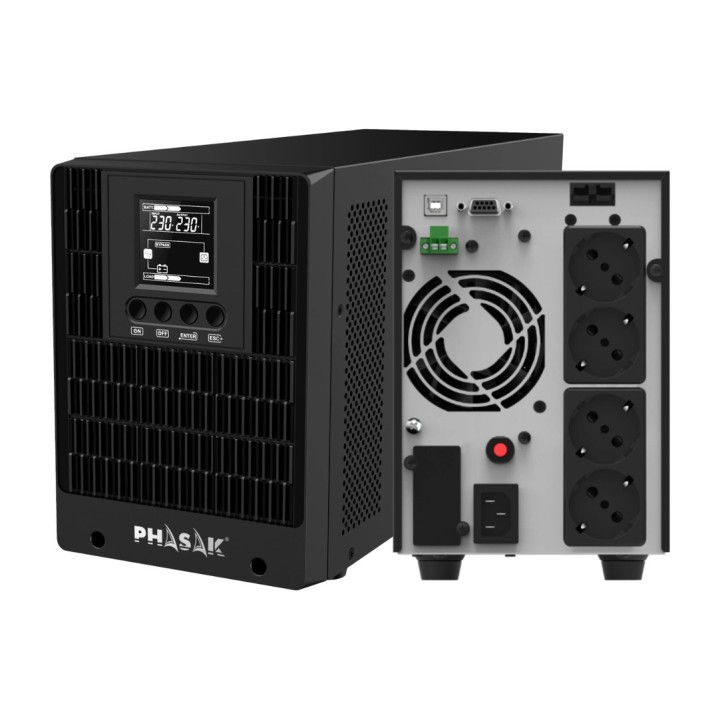

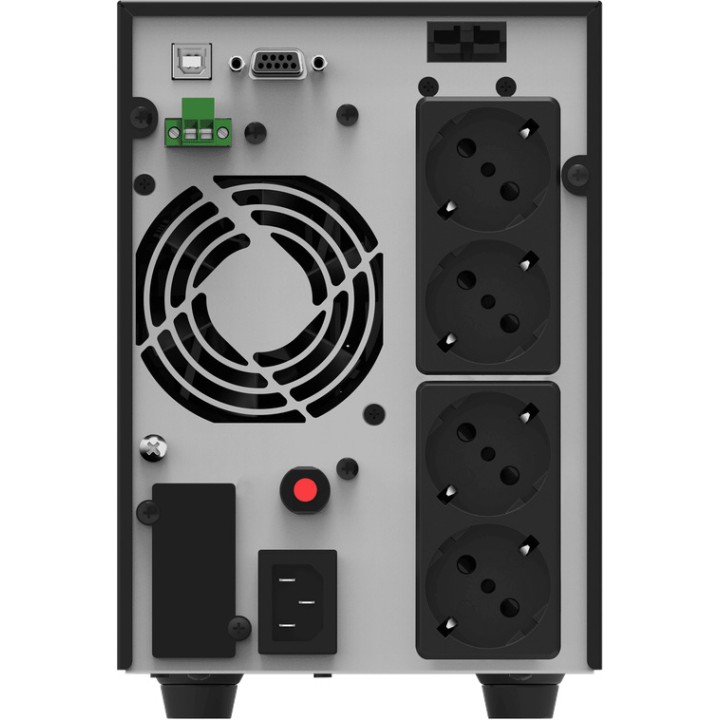

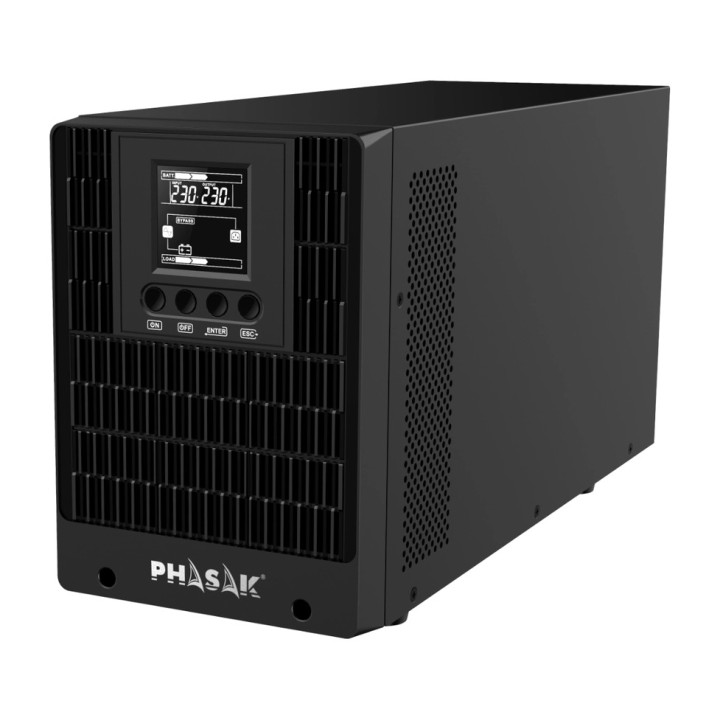

PHASAK Online double-conversion UPS with 3 Schuko outlets SMART-PRO PH-9220 2000VA 2000W DSP0000007138 images
Secure payment
Card, bank transfer and financing. SSL on every page.
Worldwide shipping
Stock available for shipping at competitive rates. Delivery times vary by region.
Personalized support
Call us at +34 948 088 505 or email us. We answer questions and help with your order.
PHASAK Online double-conversion UPS with 3 Schuko outlets SMART-PRO PH-9220 2000VA 2000W DSP0000007138
Regular price:
€418.95
-€19.77
Price:
€399.18
Tax included
DeliveryUpdating delivery estimate…Order within the next — to receive it approximately Updating delivery estimate…
Updating delivery estimate…
Cuándo es más probable que llegue
Calculado con 0 entregas recientes
Fechas estimadas para España peninsular; se ajustarán con tu código postal y forma de entrega.
The date corresponds to the item with the longest delivery time
IVA intracomunitario
La exención intracomunitaria puede aplicarse a una entrega a otro Estado miembro si el NIF-IVA es válido y el destino cumple los requisitos. La comprobación por sí sola no determina el tratamiento fiscal.
Cómo se comprueba el IVA¿Eres profesional del sector?
Puedes solicitar una cuenta profesional e indicar los datos de tu actividad. La solicitud queda pendiente de revisión; puedes consultar su estado en tu cuenta.
Más información sobre cuentas profesionalesCanarias, Ceuta y Melilla sin IVA español
El tratamiento depende del destino de entrega y de la coherencia de la dirección. Pueden corresponder IGIC, IPSI, aranceles u otros cargos locales.
Más información sobre destinos e impuestosPHASAK SMART PRO ONLINE UPS 2000VA 3XSCHUKO PH 9220
The PH 9220 is a 2000 VA / 2000 W online UPS (double conversion) with PF 1.0, for data centres and technical rooms requiring 24/7 continuity. It provides a pure sine wave and precise voltage/frequency regulation to protect servers and network electronics against any electrical anomaly. It includes remote management options with SNMP (optional) and expandable runtime with external battery packs (depending on configuration).
DESCRIPTION
Online double-conversion UPS with maximum energy efficiency
The PH 9220 is a 2000 VA / 2000 W online UPS (true double conversion), designed to ensure clean, stable and continuous power for IT infrastructure and critical professional environments. Its power factor of 1.0 allows 100% of the available power to be used, optimising the investment and reducing the need for oversizing.
It provides a pure sine wave, precise voltage and frequency regulation, and an output completely isolated from the mains. The option to extend runtime using external battery packs makes it a flexible solution ready for future growth.
Key Benefits
Doble conversión real: protección permanente sin microcortes ni distorsión.
Factor de potencia 1.0: más potencia real para servidores y equipos APFC.
Alta fiabilidad: gestión inteligente de baterías y protección integral.
Gestión y control: monitorización local y remota mediante SNMP (opcional).
Escalable: ampliación de autonomía mediante battery packs compatibles.
recommended applications
Servidores, electrónica de red y almacenamiento en CPDs y salas técnicas.
Procesos corporativos con alta criticidad y continuidad operativa.
Sistemas de seguridad, comunicaciones y VoIP.
Additional Information
Weight: 17kg
Dimensions: 39.7 × 14.5 × 22 cm
Series: Smart Pro
Technology: True Online Double Conversion
POWER (VA): 2000
CAPACITY (W): 2000
Format: Tower
Phase: Single-phase
Waveform: Pure sine wave
Power factor: 1,00
Number of batteries : 4
Battery type: 12V / 9Ah
Battery class: sealed Pb-Ca, AGM, maintenance-free
Battery test: Automatic at every start-up + manual
Charging time (90%): 4 h
Button: Yes
LED indicator: Yes
LCD screen: Yes
Touchscreen: No
WEIGHT: 15.3
HEIGHT: 225
WIDTH: 151
Background: 390
Socket type: Schuko
Number of sockets : 4
Number of protected sockets : 0
USB HID port: Yes
RJ45 port: Yes
EPO: Yes
SMART RS-232 / USB: Yes
Optional SNMP: Yes
Automatic voltage regulator: Yes
Cold start: Yes
Automatic restart: Yes
Automatic recharging: Yes
Overload protection: Yes
Overvoltage protection: Yes
RJ45 protection: Yes
Ventilation: Active
Generator compatible: Yes
Compatible with battery bank : PH 9232
Management software: Windows, Linux and Mac
Volume (m ³): 0.0373
The PH 9220 is a 2000 VA / 2000 W online UPS (double conversion) with PF 1.0, for data centres and technical rooms requiring 24/7 continuity. It provides a pure sine wave and precise voltage/frequency regulation to protect servers and network electronics against any electrical anomaly. It includes remote management options with SNMP (optional) and expandable runtime with external battery packs (depending on configuration).
DESCRIPTION
Online double-conversion UPS with maximum energy efficiency
The PH 9220 is a 2000 VA / 2000 W online UPS (true double conversion), designed to ensure clean, stable and continuous power for IT infrastructure and critical professional environments. Its power factor of 1.0 allows 100% of the available power to be used, optimising the investment and reducing the need for oversizing.
It provides a pure sine wave, precise voltage and frequency regulation, and an output completely isolated from the mains. The option to extend runtime using external battery packs makes it a flexible solution ready for future growth.
Key Benefits
Doble conversión real: protección permanente sin microcortes ni distorsión.
Factor de potencia 1.0: más potencia real para servidores y equipos APFC.
Alta fiabilidad: gestión inteligente de baterías y protección integral.
Gestión y control: monitorización local y remota mediante SNMP (opcional).
Escalable: ampliación de autonomía mediante battery packs compatibles.
recommended applications
Servidores, electrónica de red y almacenamiento en CPDs y salas técnicas.
Procesos corporativos con alta criticidad y continuidad operativa.
Sistemas de seguridad, comunicaciones y VoIP.
Additional Information
Weight: 17kg
Dimensions: 39.7 × 14.5 × 22 cm
Series: Smart Pro
Technology: True Online Double Conversion
POWER (VA): 2000
CAPACITY (W): 2000
Format: Tower
Phase: Single-phase
Waveform: Pure sine wave
Power factor: 1,00
Number of batteries : 4
Battery type: 12V / 9Ah
Battery class: sealed Pb-Ca, AGM, maintenance-free
Battery test: Automatic at every start-up + manual
Charging time (90%): 4 h
Button: Yes
LED indicator: Yes
LCD screen: Yes
Touchscreen: No
WEIGHT: 15.3
HEIGHT: 225
WIDTH: 151
Background: 390
Socket type: Schuko
Number of sockets : 4
Number of protected sockets : 0
USB HID port: Yes
RJ45 port: Yes
EPO: Yes
SMART RS-232 / USB: Yes
Optional SNMP: Yes
Automatic voltage regulator: Yes
Cold start: Yes
Automatic restart: Yes
Automatic recharging: Yes
Overload protection: Yes
Overvoltage protection: Yes
RJ45 protection: Yes
Ventilation: Active
Generator compatible: Yes
Compatible with battery bank : PH 9232
Management software: Windows, Linux and Mac
Volume (m ³): 0.0373
- Brand
- PHASAK
- Reference
- DSP0000007138
- EAN-13
- 5605922026913
- Weight
- 20 kg
