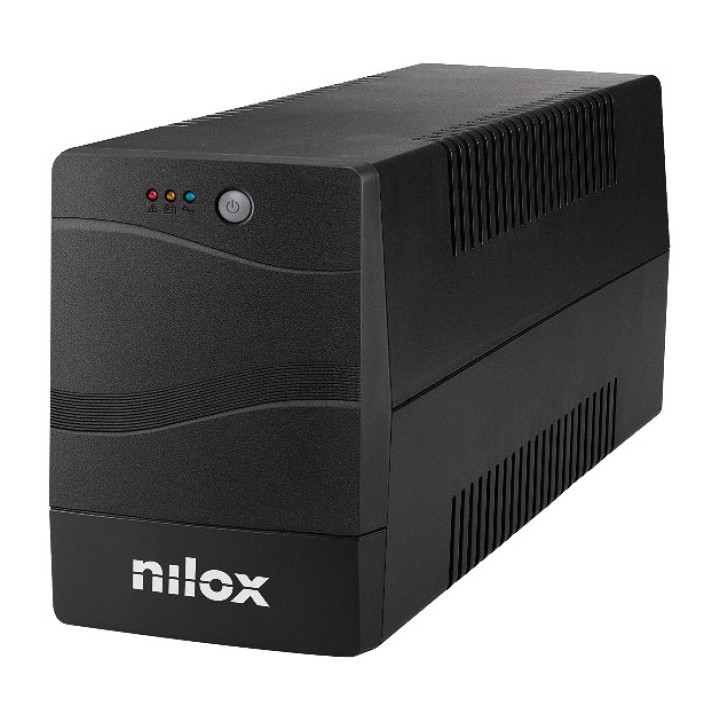

NILOX Line-interactive UPS with AVR voltage regulator and USB port PREMIUM-LINE 2000VA DSP0000006152

DESCRIPTION
STRENGTHS: - Voltage stabilisation via AVR - 2 output sockets
protected against power outages - USB for connection to PC/Server - UPS management software
for the UPS compatible with Windows, Mac OS X (up to version 10.8), Unix, Linux, etc.
The 2,000VA Line-Interactive UPS is perfect for protecting computers and
peripherals from power outages, filtering mains disturbances: these latter, very
frequent, are very harmful to electronic equipment and cause failures over
time. Avoiding these problems means increasing the average lifespan of all
connected devices and being able to save your work with complete peace of mind in the event
of a power line failure. Line Interactive technology,
thanks to the AVR (Automatic Voltage Regulator) system, enables intelligent management
of the voltage and battery, extending its service life: this is because in
a UPS without AVR, when the input voltage falls outside the set threshold, the battery
starts operating to power the connected loads. The regulator, in turn,
part, ensures that the voltage returns to within the optimum parameters
even when significant changes occur and without immediately resorting to
the battery, which is activated only when changes are extreme and it is not possible to
correct them. The Line Interactive 2.000 VA NXGCLI20002X9V2 unit is equipped
with two 9Ah batteries, replacement battery part number
17NXBA9A00001T - 17NXBA9A00001
Technical specifications

WEIGHT AND DIMENSIONS
HEIGHT
180 mm
WIDTH
130 mm
WEIGHT
8,6 kg
DEPTH
320 mm
Battery
Battery capacity
9 Ah
Number of battery cells
2
Typical backup time at full load
7 min
Typical backup time at half load
10 min
Battery recharge time
8 h
Battery voltage
12 V

Design
CERTIFICATION
EC
Product color
BLACK
Form factor
Mini Tower
Characteristic
Automatic voltage regulation (AVR)
YES
Audible alarm(s)
YES
Output power capacity (VA)
2 kVA
Output frequency
50/60 Hz
Noise level
40 dB
Output power
1400 W
RESPONSE TIME
2 ms
UPS topology
Line interactive
Operating input voltage (min)
173 V
Operating input voltage (max)
276 V
Operating output voltage (min)
220 V
Operating output voltage (max)
230 V
Volume (m ³): 0.0205
