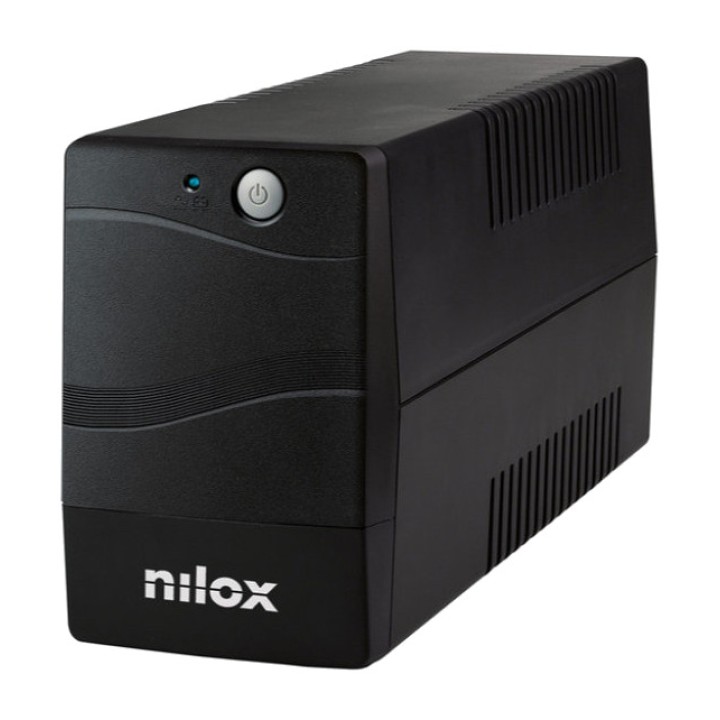

NILOX Line-interactive UPS with AVR voltage regulator PREMIUM-LINE 600VA DSP0000006150

DESCRIPTION
STRENGTHS: - Voltage stabilisation via AVR - 2 output sockets
protected against power outages UPS Line Interactive 600VA is perfect for protecting
computers and peripherals from power outages, filtering mains disturbances: these
latter, which are very frequent, are highly damaging to electronic equipment and, over
time, cause failures. Avoiding these problems means increasing the average lifespan of
all connected devices and being able to save your work with complete peace of mind
in the event of a power failure. Line Interactive technology,
thanks to the AVR (Automatic Voltage Regulator) system, enables intelligent management
of the voltage and battery, extending its service life: this is because in
a UPS without AVR, when the input voltage falls outside the set threshold, the battery
starts operating to power the connected loads. The regulator, in turn,
part, ensures that the voltage returns to within the optimum parameters
even when significant changes occur and without immediately resorting to
the battery, which is activated only when changes are extreme and it is not possible to
correct them. The NXGCLI6001X5 600 VA Line Interactive UPS is equipped with a
5 Ah battery, part number 17NXBA5A00001T - 17NXBA5A00001.
Technical specifications

WEIGHT AND DIMENSIONS
HEIGHT
142 mm
WIDTH
101 mm
WEIGHT
3,46 kg
DEPTH
279 mm
Battery
Battery capacity
5 Ah
Number of battery cells
1
Typical backup time at half load
10 min
Battery voltage
12 V

Design
CERTIFICATION
EC
Product color
BLACK
Form factor
Mini Tower
Characteristic
Output power capacity (VA)
0.6 kVA
Output frequency
50/60 Hz
Output power
420 W
UPS topology
Line interactive
Operating input voltage (min)
220 V
Operating input voltage (max)
230 V
Operating output voltage (min)
220 V
Operating output voltage (max)
230 V
Volume (m ³): 0.0099
