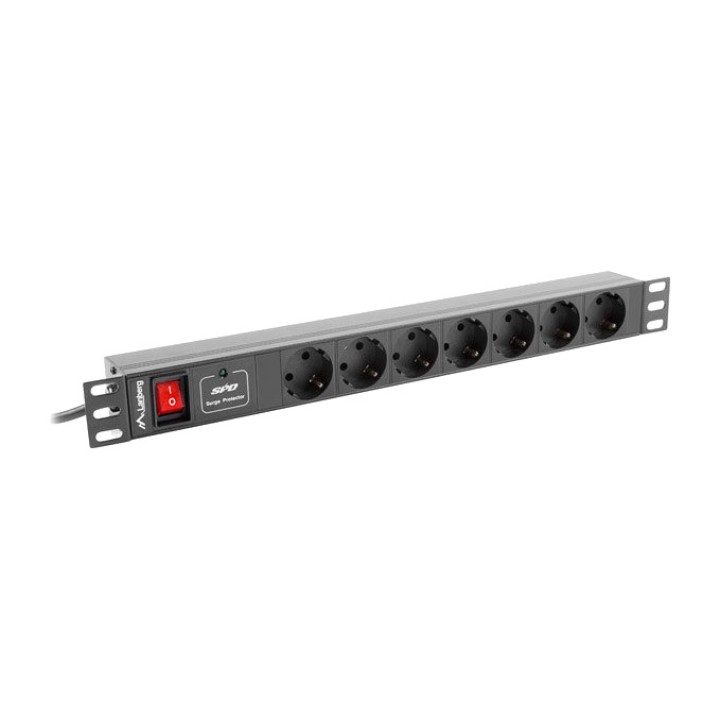

LANBERG 7-outlet Schuko power strip with protection for rack cabinet 19" 1U 16A 2M PDU-07F-0200-BK DSP0000001370

The PDU surge protector (power distribution unit)
by Lanberg is a solution dedicated to professional applications in the
field of power strips. Its construction has been designed
exclusively for horizontal mounting on the front of all types of
19" server cabinets. The power strip provides power
uninterrupted and reliable to the devices connected to it, providing
an additional level of protection.

This particular PDU is equipped with a power input
single-phase and a range of additional safety features, such as
the use of overload protection, circuit current diaphragms to
protect the user and an automatic fuse, making
maintenance or replacement of this component very easy.

In addition, for an even higher level of safety, all Lanberg PDUs
have a larger cable cross-section, ensuring
full and uninterrupted operation of the device, even
when load levels are very high. Because of this, this product
can be successfully used in a professional server environment as a
safe, reliable and versatile power distribution unit.

Product Specs:

- Height : 1U,
- Voltage range : 220 V ~ 250 V,
- Frequency range: 50Hz / 60Hz,
- Maximum power of the strip : 4000W,
- Fuse: automatic. Activated when the green LED is on,
- Max. switch operating current: 16A,
- Max. surge protection current: 3000A ~ 5000A,
- PDU material: aluminium,
- Input cable plug type: uni-schuko (DIN 49441), 16A,
- Input cable pin type: solid, brass,
- Type and number of output sockets: Schuko x7 (DIN VDE 0620-1),
- Output socket plug type: full, brass,
- Cable length and type: 2 m, 3 wires, cross-section 1,5 mm ^ 2. Complies with VDE,
- Rack mounting ears (reversible, non-removable),
- Black.

Cable length 200 cm
COLOR BLACK
Fuse type Automatic
Number of fuses 1
Fuse response time 25 ns
Height of the TIC 1 U
Required number of screws 4
Protections Surge protection, Circuit breaker
Size 19 "
Weight 0.79 kg
Length 45 mm
Width 431 mm
Height 44.45 mm
POWER 4000 W
Output type Type F
Number of outlets 7
Current rating 16 A
Fuse No
Specialized rack
Plug type Uni-schuko
Volume (m ³): 0.0031
