STARTECH.COM Vented cantilever fixed shelf for rack cabinet 1U 19" 406MM CABSHELF116V 20KG DSP0000043563

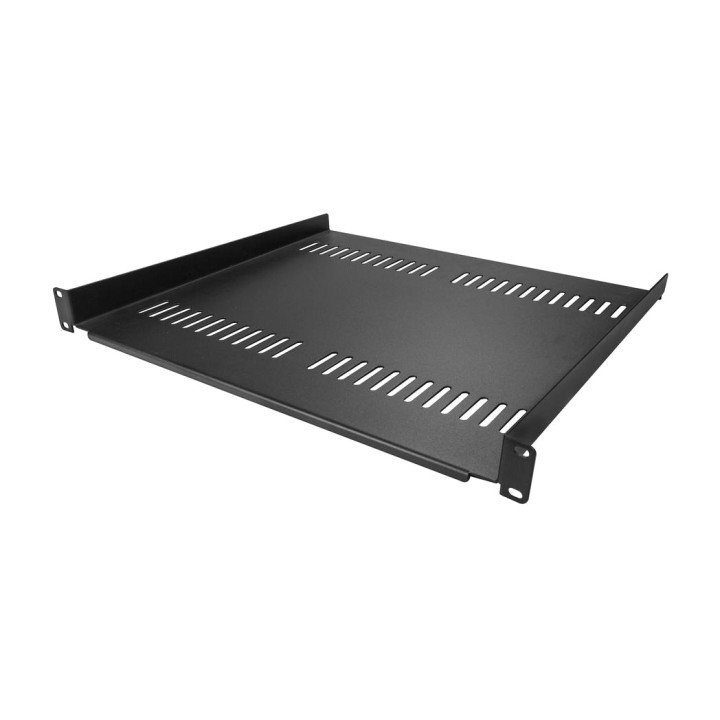

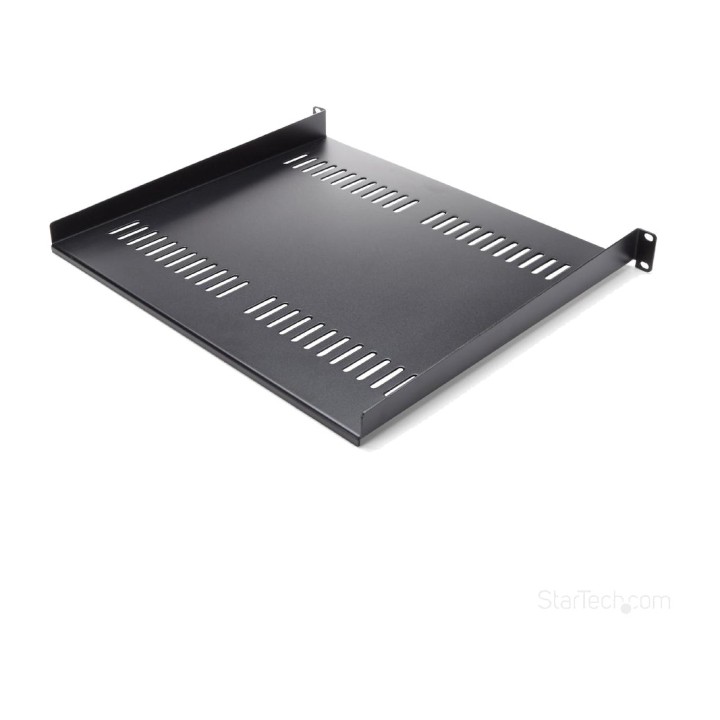

Features of the StarTech 1U Vented Rack Shelf for 19-Inch Racks CABSHELF116V
The StarTech CABSHELF116V vented shelf is a sturdy, functional solution for expanding equipment storage space in 19-inch server cabinets and racks. With a height of 1U, a depth of 40 cm and a load capacity of up to 20 kg, it allows you to install computer, network and audiovisual devices that need a stable support surface. Its steel construction and vented design make it suitable for professional environments, offices and server rooms.
Universal compatibility with 19-inch racks
Designed for front mounting in standard 19-inch cabinets and racks, this fixed shelf provides an additional surface for equipment that does not have its own mounting brackets. Its 1U format makes use of the available vertical space and helps organize devices more effectively.

Compatibility: 19-inch racks and cabinets.
Mounting height: 1U (43.2 mm).
Nominal depth: 16 inches (approximately 410 mm).
Product length: 40 cm.
Industry standard: EIA/ECA-310-E.

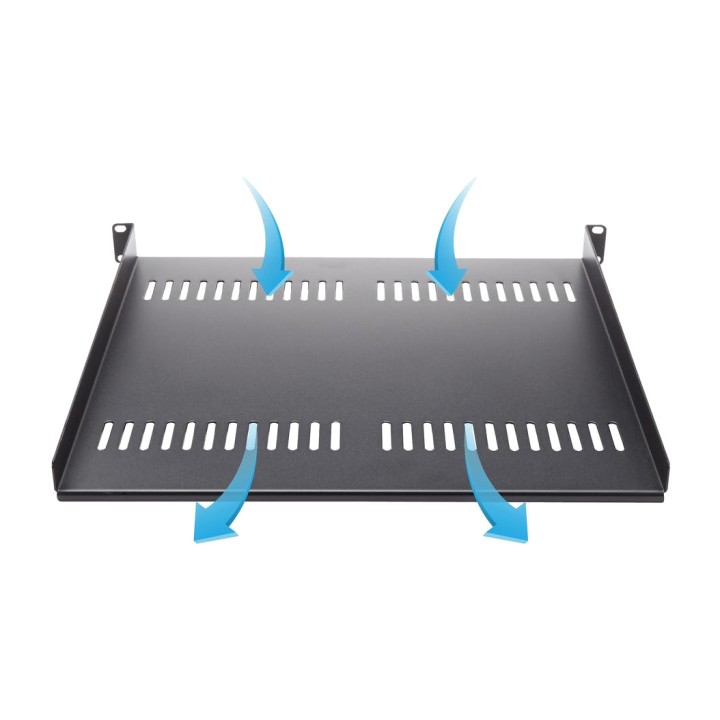

Vented design to promote heat dissipation
The shelf’s perforated surface promotes air circulation around installed devices and helps reduce heat build-up. This feature is especially useful for electronic equipment that operates for extended periods, such as network devices, computer systems or audiovisual components.

Vented surface to promote airflow.
Suitable for network, computer and audiovisual equipment.
Fixed design with front mounting.

Durable steel construction with a 20 kg capacity
Made from SPCC cold-rolled commercial steel, this shelf provides a solid base for equipment installed in the rack. Its fixed load capacity of up to 20 kg allows you to place devices of different sizes, provided the specified dimensions and load limits are observed.

Material: cold-rolled SPCC steel.
Maximum fixed load capacity: 20 kg (44.1 lb).
COLOR: negro.
Product weight: 3.1 kg (6.7 lb).
Frame type: acero.

Dimensions and space utilization
Thanks to its dimensions, which are adapted to 19-inch racks, the shelf allows you to arrange equipment neatly without taking up more height than necessary. Its internal width of 43.6 cm provides a support surface for compatible devices, while its black finish matches the appearance of other cabinet components.

Overall width: 48.3 cm (19 inches).
Internal width: 43.6 cm (17.2 inches).
Length: 40 cm (15.7 inches).
Height: 43.2 mm (1.7 inches).
Integrated cable management: no.

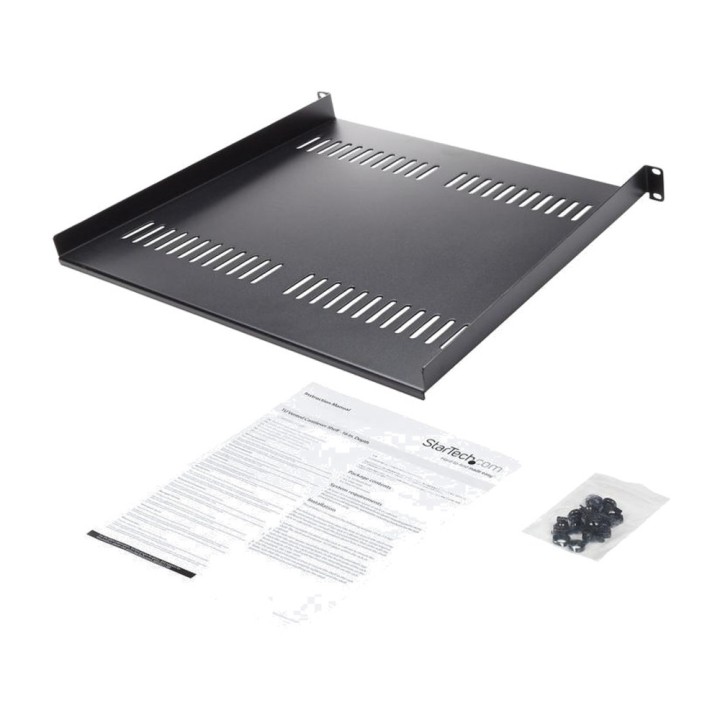

Installation with included mounting hardware
The shelf is supplied with the fasteners required for installation in a compatible rack. It includes M6 screws and cage nuts, as well as C-shaped cup washers, making it easy to add the shelf to an existing infrastructure.

1 fixed vented shelf of 1U.
4 cage nuts M6.
4 SCREWS M6.
4 C-shaped cupped washers.
Quantity per pack: 1 unit.

Other specifications
The StarTech CABSHELF116V model is supplied in packaging designed for transport and distribution, with the following measurements and identification references.

Manufacturer reference: CABSHELF116V.
UPC code: 065030870481.
Package width: 47 cm (18.5 inches).
Package depth: 55.2 cm (21.7 inches).
Package height: 12.3 cm (4.8 inches).
Shipping weight: 3.9 kg (8.7 lb).
